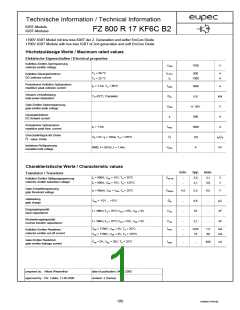

Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
1700V IGBT Modul mit low loss IGBT der 2. Generation und softer EmCon Diode
1700V IGBT Module with low loss IGBT of 2nd generation and soft EmCon Diode
Höchstzulässige Werte / Maximum rated values
Elektrische Eigenschaften / Electrical properties
Kollektor-Emitter-Sperrspannung
collector-emitter voltage
VCES
1700
V
TC = 80 °C
IC,nom.
IC
800
A
A
Kollektor-Dauergleichstrom
DC-collector current
TC = 25 °C
1300
Periodischer Kollektor Spitzenstrom
repetitive peak collector current
tP = 1 ms, TC = 80°C
TC=25°C, Transistor
ICRM
Ptot
VGES
IF
1600
6,6
A
kW
V
Gesamt-Verlustleistung
total power dissipation
Gate-Emitter-Spitzenspannung
gate-emitter peak voltage
+/- 20V
800
Dauergleichstrom
DC forward current
A
Periodischer Spitzenstrom
repetitive peak forw. current
tP = 1 ms
IFRM
1600
170
A
Grenzlastintegral der Diode
I2t - value, Diode
I2t
kA2s
kV
VR = 0V, tp = 10ms, TVj = 125°C
RMS, f = 50 Hz, t = 1 min.
Isolations-Prüfspannung
insulation test voltage
VISOL
4
Charakteristische Werte / Characteristic values
min.
typ. max.
Transistor / Transistor
IC = 800A, VGE = 15V, Tvj = 25°C
VCE sat
-
-
2,6
3,1
3,1
3,6
V
V
Kollektor-Emitter Sättigungsspannung
collector-emitter saturation voltage
IC = 800A, VGE = 15V, Tvj = 125°C
Gate-Schwellenspannung
gate threshold voltage
IC = 60mA, VCE = VGE, Tvj = 25°C
VGE(th)
4,5
5,5
9,6
52
6,5
V
Gateladung
gate charge
VGE = -15V ... +15V
QG
-
-
-
-
-
µC
nF
nF
Eingangskapazität
input capacitance
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
Cies
Rückwirkungskapazität
reverse transfer capacitance
Cres
ICES
-
2,7
VCE = 1700V, VGE = 0V, Tvj = 25°C
VCE = 1700V, VGE = 0V, Tvj = 125°C
-
-
0,02
10
1,5
80
mA
mA
Kollektor-Emitter Reststrom
collector-emitter cut-off current
Gate-Emitter Reststrom
gate-emitter leakage current
VCE = 0V, VGE = 20V, Tvj = 25°C
IGES
-
-
400
nA
prepared by: Alfons Wiesenthal
date of publication: 04.08.2000
revision: 2 (Series)
approved by: Chr. Lübke; 11.08.2000
1(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Charakteristische Werte / Characteristic values
min.
typ. max.
Transistor / Transistor
IC = 800A, VCE = 900V
Einschaltverzögerungszeit (ind. Last)
turn on delay time (inductive load)
td,on
V
GE = ±15V, RG = 1,8Ω, Tvj = 25°C
-
-
0,3
0,3
-
-
µs
µs
VGE = ±15V, RG = 1,8Ω, Tvj = 125°C
IC = 800A, VCE = 900V
Anstiegszeit (induktive Last)
rise time (inductive load)
tr
VGE = ±15V, RG = 1,8Ω, Tvj = 25°C
-
-
0,14
0,14
-
-
µs
µs
V
GE = ±15V, RG = 1,8Ω, Tvj = 125°C
IC = 800A, VCE = 900V
GE = ±15V, RG = 1,8Ω, Tvj = 25°C
GE = ±15V, RG = 1,8Ω, Tvj = 125°C
IC = 800A, VCE = 900V
GE = ±15V, RG = 1,8Ω, Tvj = 25°C
GE = ±15V, RG = 1,8Ω, Tvj = 125°C
IC = 800A, VCE = 900V, VGE = 15V
G = 1,8Ω, Tvj = 125°C, LS = 50nH
Abschaltverzögerungszeit (ind. Last)
turn off delay time (inductive load)
td,off
V
-
-
1,1
1,1
-
-
µs
µs
V
Fallzeit (induktive Last)
fall time (inductive load)
tf
V
-
-
0,11
0,12
-
-
µs
µs
V
Einschaltverlustenergie pro Puls
turn-on energy loss per pulse
Eon
Eoff
R
-
-
300
325
-
-
mWs
mWs
IC = 800A, VCE = 900V, VGE = 15V
Abschaltverlustenergie pro Puls
turn-off energy loss per pulse
RG = 1,8Ω, Tvj = 125°C, LS = 50nH
t
P ≤ 10µsec, VGE ≤ 15V
Kurzschlußverhalten
SC Data
ISC
TVj≤125°C, VCC=1000V, VCEmax=VCES -LsCE ·dI/dt
-
-
3200
12
-
-
A
Modulinduktivität
stray inductance module
LsCE
nH
Modulleitungswiderstand, Anschlüsse - Chip
module lead resistance, terminals - chip
RCC´+EE´
pro Zweig / per arm
-
0,08
-
mΩ
Charakteristische Werte / Characteristic values
min.
typ. max.
Diode / Diode
IF = 800A, VGE = 0V, Tvj = 25°C
Durchlaßspannung
VF
IRM
Qr
-
-
2,1
2,1
2,5
2,5
V
V
forward voltage
IF = 800A, VGE = 0V, Tvj = 125°C
IF = 800A, - diF/dt = 6600A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
Rückstromspitze
peak reverse recovery current
-
-
800
920
-
-
A
A
VR = 900V, VGE = -10V, Tvj = 125°C
IF = 800A, - diF/dt =6600A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
VR = 900V, VGE = -10V, Tvj = 125°C
IF = 800A, - diF/dt = 6600A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
VR = 900V, VGE = -10V, Tvj = 125°C
Sperrverzögerungsladung
recovered charge
-
-
170
300
-
-
µAs
µAs
Abschaltenergie pro Puls
reverse recovery energy
Erec
-
-
80
-
-
mWs
mWs
160
2(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Thermische Eigenschaften / Thermal properties
min.
typ. max.
RthJC
Transistor / transistor, DC
Diode/Diode, DC
-
-
-
-
0,019
0,034
K/W
K/W
Innerer Wärmewiderstand
thermal resistance, junction to case
pro Modul / per module
Übergangs-Wärmewiderstand
thermal resistance, case to heatsink
RthCK
-
0,008
-
K/W
°C
λPaste = 1 W/m*K
/
λgrease = 1 W/m*K
Höchstzulässige Sperrschichttemperatur
maximum junction temperature
Tvj
-
-
-
-
150
125
125
Betriebstemperatur
operation temperature
Top
-40
-40
°C
Lagertemperatur
storage temperature
Tstg
°C
Mechanische Eigenschaften / Mechanical properties
Gehäuse, siehe Anlage
case, see appendix
Innere Isolation
internal insulation
AlN
17
Kriechstrecke
creepage distance
mm
mm
Luftstrecke
clearance
10
CTI
275
comperative tracking index
M1
M2
5
Nm
Anzugsdrehmoment f. mech. Befestigung
mounting torque
terminals M4
terminals M8
2
Nm
Nm
Anzugsdrehmoment f. elektr. Anschlüsse
terminal connection torque
8 - 10
Gewicht
weight
G
1050
g
Mit dieser technischen Information werden Halbleiterbauelemente spezifiziert, jedoch keine Eigenschaften zugesichert.
Sie gilt in Verbindung mit den zugehörigen Technischen Erläuterungen.
This technical information specifies semiconductor devices but promises no characteristics. It is
valid in combination with the belonging technical notes.
3(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Ausgangskennlinie (typisch)
Output characteristic (typical)
IC = f (VCE)
VGE = 15V
1800
1600
1400
1200
1000
800
600
400
200
0
Tvj = 25°C
Tvj = 125°C
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
VCE [V]
Ausgangskennlinienfeld (typisch)
Output characteristic (typical)
IC = f (VCE)
Tvj = 125°C
1800
1600
1400
1200
1000
800
600
400
200
0
vGE = 20V
vGE = 15V
vGE = 12V
vGE = 10V
vGE = 9V
vGE = 8V
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
VCE [V]
4(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Übertragungscharakteristik (typisch)
Transfer characteristic (typical)
IC = f (VGE)
VCE = 20V
1800
1600
1400
1200
1000
800
600
400
200
0
Tj = 25°C
Tj = 125°C
5
6
7
8
9
10
11
12
13
VGE [V]
Durchlaßkennlinie der Inversdiode (typisch)
IF = f (VF)
Forward characteristic of inverse diode (typical)
1800
1600
1400
1200
1000
800
600
400
200
0
Tvj=25°C
Tvj=125°C
0,0
0,5
1,0
1,5
2,0
2,5
3,0
VF [V]
5(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (IC) , Eoff = f (IC) , Erec = f (IC)
Rgon = Rgoff =1,8 Ω, VCE = 900V, Tj = 125°C, VGE = ± 15V
1200
Eoff
EON
Erec
1000
800
600
400
200
0
0
200
400
600
800
1000
1200
1400
1600
1800
IC [A]
Schaltverluste (typisch)
Switching losses (typical)
1000
Eon = f (RG) , Eoff = f (RG) , Erec = f (RG)
IC = 800A , VCE = 900V , Tj = 125°C, VGE = ± 15V
900
800
700
600
500
400
300
200
100
0
Eoff
EON
Erec
0
2
4
6
8
10
RG [Ω]
6(8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Transienter Wärmewiderstand
Transient thermal impedance
ZthJC = f (t)
0,1
0,01
Zth:Diode
Zth:IGBT
0,001
0,001
0,01
0,1
1
10
100
t [sec]
1
2
3
4
i
ri [K/kW]
: IGBT
: IGBT
: Diode
: Diode
1,82
0,003
3,35
0,003
8,99
0,05
3,8
4,39
0,95
6,21
0,75
τi [sec]
ri [K/kW]
τi [sec]
0,1
18,22
0,045
6,22
0,45
Sicherer Arbeitsbereich (RBSOA)
Reverse bias safe operation area (RBSOA) Rg = 1,8 Ohm, Tvj= 125°C
1800
1600
1400
1200
IC,Modul
IC,Chip
1000
800
600
400
200
0
0
200
400
600
800
1000
1200
1400
1600
1800
VCE [V]
7 (8)
FZ800R17KF6CB2
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 800 R 17 KF6C B2
Äußere Abmessungen / external dimensions
8(8)
FZ800R17KF6CB2
Terms & Conditions of Usage
Attention
The present product data is exclusively subscribed to technically experienced
staff. This Data Sheet is describing the specification of the products for which a
warranty is granted exclusively pursuant the terms and conditions of the supply
agreement. There will be no guarantee of any kind for the product and its
specifications. Changes to the Data Sheet are reserved.
You and your technical departments will have to evaluate the suitability of the
product for the intended application and the completeness of the product data
with respect to such application. Should you require product information in
excess of the data given in the Data Sheet, please contact your local Sales Office
via “www.eupec.com / sales & contact”.
Warning
Due to technical requirements the products may contain dangerous substances.
For information on the types in question please contact your local Sales Office via
“www.eupec.com / sales & contact”.
厂商 型号 描述 页数 下载

ETC

 		FZ800R06KF3 晶体管| IGBT | N -CHAN | 600V V（ BR ） CES | 800A I（C ） | M ： HL093HW048\n[ TRANSISTOR | IGBT | N-CHAN | 600V V(BR)CES | 800A I(C) | M:HL093HW048 ] 1 页

INFINEON

 		FZ800R12KE3 62毫米C- Serien MODUL MIT海沟/ Feldstopp IGBT3 UND发射极控制二极管3[ 62mm C-Serien Modul mit Trench/Feldstopp IGBT3 und Emitter Controlled 3 Diode ] 9 页

ETC

 		FZ800R12KF1 晶体管| IGBT功率模块|独立| 1.2KV V（ BR ） CES | 800A I（C ）\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 1.2KV V(BR)CES | 800A I(C) ] 2 页

ETC

 		FZ800R12KF4 IGBT模块\n[ IGBT Module ] 4 页

INFINEON

 		FZ800R12KL4C TECHNISCHE信息/技术信息[ Technische Information / Technical Information ] 8 页

ETC

 		FZ800R12KS4 IGBT -模块[ IGBT-Module ] 9 页

INFINEON

 		FZ800R12KS4B2NOSA1 [ Insulated Gate Bipolar Transistor, 1200A I(C), 1200V V(BR)CES, N-Channel, MODULE-7 ] 8 页

ETC

 		FZ800R12KS4V2 IGBT模块\n[ IGBT Module ] 9 页

EUPEC

 		FZ800R12KS4_B2 与铝碳化硅基板和短尾巴IGBT2的高开关频率高功率模块[ High Power Module with AlSiC base plate and short tail IGBT2 for high switching frequency ] 8 页

ETC

 		FZ800R16KF4 晶体管| IGBT功率模块|独立| 1.6KV V（ BR ） CES | 800A I（C ）\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 1.6KV V(BR)CES | 800A I(C) ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.210142s
