FZ800R12KS4V2

型号：

FZ800R12KS4V2

描述：

IGBT模块\n[ IGBT Module ]

品牌：

ETC[ ETC ]

页数：

9 页

PDF大小：

154 K

下载PDF手册

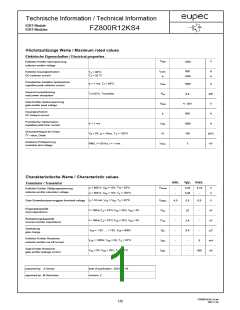

Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Höchstzulässige Werte / Maximum rated values
Elektrische Eigenschaften / Electrical properties
VCES
V
Kollektor-Emitter-Sperrspannung
collector-emitter voltage
1200
IC,nom.
IC
800
A
A
Kollektor-Dauergleichstrom
DC-collector current
TC = 80°C
TC = 25 °C
1200
Periodischer Kollektor Spitzenstrom
repetitive peak collector current
tP = 1 ms, TC = 80°C
TC=25°C, Transistor
ICRM
Ptot
VGES
IF
1600
6,9
A
kW
V
Gesamt-Verlustleistung
total power dissipation
Gate-Emitter-Spitzenspannung
gate-emitter peak voltage
+/- 20V
800
Dauergleichstrom
DC forward current
A
Periodischer Spitzenstrom
repetitive peak forw. current
tP = 1 ms
IFRM
1600
185
A
Grenzlastintegral der Diode
I2t - value, Diode
I2t
kA2s
kV
VR = 0V, tp = 10ms, TVj = 125°C
RMS, f = 50 Hz, t = 1 min.
Isolations-Prüfspannung
insulation test voltage
VISOL
3
Charakteristische Werte / Characteristic values
min.
typ. max.
Transistor / Transistor
IC = 800 A, VGE = 15V, Tvj = 25°C
VCE sat
-
-
3,20
3,85
3,70
-
V
V
Kollektor-Emitter Sättigungsspannung
collector-emitter saturation voltage
IC = 800 A, VGE = 15V, Tvj = 125°C
IC = 32 mA, VCE = VGE, Tvj = 25°C
VGE(th)
Cies
Cres
QG
Gate-Schwellenspannunggate threshold voltage
4,5
5,5
52
3,4
8,4
-
6,5
V
Eingangskapazität
input capacitance
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
VGE = -15V ... + 15V, VCE = 600V
VCE = 1200V, VGE = 0V, Tvj = 25°C
VCE = 0V, VGE = 20V, Tvj = 25°C
-
-
-
-
-
-
nF
nF
µC
mA
nA
Rückwirkungskapazität
reverse transfer capacitance
-
-
Gateladung
gate charge
Kollektor-Emitter Reststrom
ICES
5
collector-emitter cut-off current
Gate-Emitter Reststrom
gate-emitter leakage current
IGES
-
400
prepared by: A.Schulz
date of publication : 2001-11-29
revision: 2
approved by: M.Hierholzer
FZ800R12KS4_V2.xls
2001-11-29
1/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Charakteristische Werte / Characteristic values
min.
typ. max.
Transistor / Transistor
IC = 800 A, VCC = 600V
Einschaltverzögerungszeit (ind. Last)
turn on delay time (inductive load)
td,on
VGE = ±15V, RG = 1,3 W, Tvj = 25°C
VGE = ±15V, RG = 1,3 W, Tvj = 125°C
IC = 800 A, VCC = 600V
-
-
100
125
-
-
ns
ns
Anstiegszeit (induktive Last)
rise time (inductive load)
tr
VGE = ±15V, RG = 1,3 W, Tvj = 25°C
VGE = ±15V, RG = 1,3 W, Tvj = 125°C
IC = 800 A, VCC = 600V
-
-
90
-
-
ns
ns
100
Abschaltverzögerungszeit (ind. Last)
turn off delay time (inductive load)
td,off
VGE = ±15V, RG = 1,3 W, Tvj = 25°C
VGE = ±15V, RG = 1,3 W, Tvj = 125°C
IC = 800 A, VCC = 600V
-
-
530
590
-
-
ns
ns
Fallzeit (induktive Last)
fall time (inductive load)
tf
VGE = ±15V, RG = 1,3 W, Tvj = 25°C
VGE = ±15V, RG = 1,3 W, Tvj = 125°C
IC = 800 A, VCC = 600V, VGE = 15V
RG = 1,3 W, Tvj = 125°C, LS = 60nH
IC = 800 A, VCC = 600V, VGE = 15V
RG = 1,3 W, Tvj = 125°C, LS = 60nH
-
-
60
70
-
-
ns
ns
Einschaltverlustenergie pro Puls
turn-on energy loss per pulse
Eon
Eoff
-
-
76
58
-
-
mWs
mWs
Abschaltverlustenergie pro Puls
turn-off energy loss per pulse
t
P £ 10µsec, VGE £ 15V
Kurzschlußverhalten
SC Data
ISC
T
Vj£125°C, VCC= 900V, VCEmax=VCES -LsCE ·dI/dt
-
-
6000
15
-
-
A
Modulinduktivität
stray inductance module
LsCE
nH
Modul-Leitungswiderstand, Anschlüsse - Chip
lead resistance, terminals - chip
RCC'+EE'
-
0,1
-
mW
Charakteristische Werte / Characteristic values
min.
typ. max.
Diode / Diode
IF = 800 A, VGE = 0V, Tvj = 25°C
Durchlaßspannung
VF
IRM
Qr
-
-
2,00
1,70
2,40
-
V
V
forward voltage
IF = 800 A, VGE = 0V, Tvj = 125°C
IF = 800 A, - diF/dt = 8200 A/µsec
VR = 600V, VGE = -10V, Tvj = 25°C
VR = 600V, VGE = -10V, Tvj = 125°C
IF = 800 A, - diF/dt = 8200 A/µsec
VR = 600V, VGE = -10V, Tvj = 25°C
VR = 600V, VGE = -10V, Tvj = 125°C
IF = 800 A, - diF/dt = 8200 A/µsec
VR = 600V, VGE = -10V, Tvj = 25°C
VR = 600V, VGE = -10V, Tvj = 125°C
Rückstromspitze
peak reverse recovery current
-
-
540
900
-
-
A
A
Sperrverzögerungsladung
recovered charge
-
-
60
-
-
µAs
µAs
160
Abschaltenergie pro Puls
reverse recovery energy
Erec
-
-
32
76
-
-
mWs
mWs
FZ800R12KS4_V2.xls
2001-11-29
2/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Thermische Eigenschaften / Thermal properties
min.
typ. max.
RthJC
Transistor / transistor, DC
Diode/Diode, DC
-
-
-
-
0,018
0,027
K/W
K/W
Innerer Wärmewiderstand
thermal resistance, junction to case
pro Modul / per module
l Paste = 1 W/m*K / l grease = 1 W/m*K
Übergangs-Wärmewiderstand
thermal resistance, case to heatsink
RthCK
Tvj max
Tvj op
Tstg
-
0,008
-
K/W
°C
Höchstzulässige Sperrschichttemperatur
maximum junction temperature
-
-
-
-
150
125
150
Betriebstemperatur
operation temperature
-40
-40
°C
Lagertemperatur
storage temperature
°C
Mechanische Eigenschaften / Mechanical properties
Gehäuse, siehe Anlage
case, see appendix
Material Modulgrundplatte
material of module baseplate
Cu
AlN
Innere Isolation
internal insulation
Kriechstrecke
creepage distance
32,2
19,1
> 400
mm
mm
Luftstrecke
clearance
CTI
comperative tracking index
M1
M2
4,25
5,75
Nm
Anzugsdrehmoment f. mech. Befestigung
mounting torque
terminals M4
terminals M8
1,7
8
2,3
Nm
Nm
Anzugsdrehmoment f. elektr. Anschlüsse
terminal connection torque
10,00
Gewicht
weight
G
1000
g
Mit dieser technischen Information werden Halbleiterbauelemente spezifiziert, jedoch keine Eigenschaften zugesichert.
Sie gilt in Verbindung mit den zugehörigen Technischen Erläuterungen.
This technical information specifies semiconductor devices but promises no characteristics. It is
valid in combination with the belonging technical notes.
FZ800R12KS4_V2.xls
2001-11-29
3/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Ausgangskennlinie (typisch)
Output characteristic (typical)
IC = f (VCE)
VGE = 15V
1600
1400
1200
1000
800
600
400
200
0
T = 25°C
T = 125°C
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
VCE [V]
Ausgangskennlinienfeld (typisch)
Output characteristic (typical)
IC = f (VCE)
Tvj = 125°C
1600
1400
1200
1000
800
600
400
200
0
VGE = 8V
VGE = 9V
VGE = 10V
VGE = 12V
VGE = 15V
VGE = 20V
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
VCE [V]
FZ800R12KS4_V2.xls
2001-11-29
4/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Übertragungscharakteristik (typisch)
Transfer characteristic (typical)
IC = f (VGE)
VCE = 20V
1600
1400
1200
1000
800
600
400
200
0
T = 25°C
T = 125°C
5
6
7
8
9
10
11
12
VGE [V]
Durchlaßkennlinie der Inversdiode (typisch)
Forward characteristic of inverse diode (typical)
IF = f (VF)
1600
1400
1200
1000
800
600
400
200
0
Tj = 25°C
Tj = 125°C
0,0
0,2
0,4
0,6
0,8
1,0
1,2
1,4
1,6
1,8
2,0
2,2
2,4
2,6
VF [V]
FZ800R12KS4_V2.xls
2001-11-29
5/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (IC) , Eoff = f (IC) , Erec = f (IC)
RG,on = 1,3 W, RG,off = 1,3 W, VCE = 600V, Tj = 125°C
250,0
200,0
150,0
100,0
50,0
Eon
Eoff
Erec
0,0
0
200
400
600
800
1000
1200
1400
1600
IC [A]
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (RG) , Eoff = f (RG) , Erec = f (RG)
IC = 800 A , VCE = 600V , Tj = 125°C
450
400
350
300
250
200
150
100
50
Eon
Eoff
Erec
0
0
1
2
3
4
5
6
7
8
RG [W]
FZ800R12KS4_V2.xls
2001-11-29
6/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Sicherer Arbeitsbereich IGBT (RBSOA)
RG,off = 1,3 W, Tvj= 125°C
Reverse bias safe operation area IGBT (RBSOA)
1800
1600
1400
1200
1000
800
600
400
200
0
IC,Modul
IC,Chip
0
200
400
600
800
1000
1200
1400
VCE [V]
FZ800R12KS4_V2.xls
2001-11-29
7/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Transienter Wärmewiderstand
Transient thermal impedance
ZthJC = f (t)
0,1
Zth:IGBT
Zth:Diode
0,01
0,001
0,0001
0,001
0,01
0,1
1
10
t [sec]
1
2
3
4
i
ri [K/kW]
: IGBT
: IGBT
: Diode
: Diode
3,85
5,68
0,0493
8,52
6,15
0,0916
9,22
2,32
ti [s]
0,0064
5,78
1,5237
3,48
ri [K/kW]
ti [s]
0,0064
0,0493
0,0916
1,5237
FZ800R12KS4_V2.xls
2001-11-29
8/9
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ800R12KS4
Gehäusemaße / Schaltbild
Package outline / Circuit diagram
FZ800R12KS4_V2.xls
2001-11-29
9/9
厂商 型号 描述 页数 下载

ETC

 		FZ800R06KF3 晶体管| IGBT | N -CHAN | 600V V（ BR ） CES | 800A I（C ） | M ： HL093HW048\n[ TRANSISTOR | IGBT | N-CHAN | 600V V(BR)CES | 800A I(C) | M:HL093HW048 ] 1 页

INFINEON

 		FZ800R12KE3 62毫米C- Serien MODUL MIT海沟/ Feldstopp IGBT3 UND发射极控制二极管3[ 62mm C-Serien Modul mit Trench/Feldstopp IGBT3 und Emitter Controlled 3 Diode ] 9 页

ETC

 		FZ800R12KF1 晶体管| IGBT功率模块|独立| 1.2KV V（ BR ） CES | 800A I（C ）\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 1.2KV V(BR)CES | 800A I(C) ] 2 页

ETC

 		FZ800R12KF4 IGBT模块\n[ IGBT Module ] 4 页

INFINEON

 		FZ800R12KL4C TECHNISCHE信息/技术信息[ Technische Information / Technical Information ] 8 页

ETC

 		FZ800R12KS4 IGBT -模块[ IGBT-Module ] 9 页

INFINEON

 		FZ800R12KS4B2NOSA1 [ Insulated Gate Bipolar Transistor, 1200A I(C), 1200V V(BR)CES, N-Channel, MODULE-7 ] 8 页

EUPEC

 		FZ800R12KS4_B2 与铝碳化硅基板和短尾巴IGBT2的高开关频率高功率模块[ High Power Module with AlSiC base plate and short tail IGBT2 for high switching frequency ] 8 页

ETC

 		FZ800R16KF4 晶体管| IGBT功率模块|独立| 1.6KV V（ BR ） CES | 800A I（C ）\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 1.6KV V(BR)CES | 800A I(C) ] 4 页

EUPEC

 		FZ800R17KF6CB2 IGBT模块[ IGBT-Modules ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.172110s
