FZ1200R33KF2-B5

型号:

FZ1200R33KF2-B5

描述:

Hochstzulassige Werte /最大额定值[ Hochstzulassige Werte / Maximum rated values ]

品牌:

EUPEC[ EUPEC GMBH ]

页数:

9 页

PDF大小:

186 K

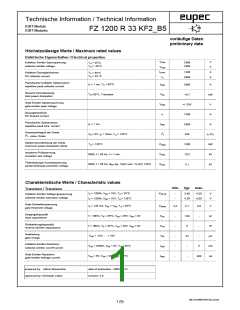

Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Höchstzulässige Werte / Maximum rated values
Elektrische Eigenschaften / Electrical properties
VCES
V
V
A
A
Kollektor-Emitter-Sperrspannung
collector-emitter voltage
3300
3300
Tvj = 25°C
Tvj = -25°C
VCES
IC,nom.
IC
1200
2000
Kollektor-Dauergleichstrom
DC-collector current
T
C = 80°C
TC = 25 °C
Periodischer Kollektor Spitzenstrom
repetitive peak collector current
tP = 1 ms, TC = 80°C
ICRM
2400
14,7
A
kW
V
Gesamt-Verlustleistung
total power dissipation
TC=25°C, Transistor
Ptot
Gate-Emitter-Spitzenspannung
gate-emitter peak voltage
VGES
+/- 20V
1200
2400
444
Dauergleichstrom
DC forward current
IF
A
Periodischer Spitzenstrom
repetitive peak forw. current
tP = 1 ms
IFRM
A
Grenzlastintegral der Diode
I2t - value, Diode
I2t
k A2s
kW
kV
kV
VR = 0V, tp = 10ms, Tvj = 125°C
Spitzenverlustleistung der Diode
maximum power dissipation diode
T
vj = 125°C
PRQM
VISOL
VISOL
1200
10,2
Isolations-Prüfspannung
insulation test voltage
RMS, f = 50 Hz, t = 1 min.
Teilentladungs-Aussetzspannung
partial discharge extinction voltage
RMS, f = 50 Hz, QPD typ. 10pC (acc. To IEC 1287)
5,1
Charakteristische Werte / Characteristic values
min. typ. max.
Transistor / Transistor
IC = 1200A, VGE = 15V, Tvj = 25°C
VCE sat
-
3,40
4,25
V
V
Kollektor-Emitter Sättigungsspannung
collector-emitter saturation voltage
IC = 1200A, VGE = 15V, Tvj = 125°C
-
4,30
5,00
Gate-Schwellenspannung
gate threshold voltage
IC = 120 mA, VCE = VGE, Tvj = 25°C
VGE(th)
Cies
Cres
QG
4,2
5,1
150
8
6,0
V
Eingangskapazität
input capacitance
f = 1MHz, Tvj = 25°C, VCE = 25V, VGE = 0V
f = 1MHz, Tvj = 25°C, VCE = 25V, VGE = 0V
VGE = -15V ... + 15V
-
-
-
-
-
-
nF
nF
µC
mA
nA
Rückwirkungskapazität
reverse transfer capacitance
-
-
Gateladung
gate charge
22
-
Kollektor-Emitter Reststrom
collector-emitter cut-off current
V
CE = 3300V, VGE = 0V, Tvj = 25°C
CE = 0V, VGE = 20V, Tvj = 25°C
ICES
5
Gate-Emitter Reststrom
gate-emitter leakage current
V
IGES
-
400
prepared by: Alfons Wiesenthal
approved by: Christoph Lübke
date of publication : 2002-10-31
revision: 2.0
DB_FZ1200R33KF2 B5_2.0.xls
1 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Charakteristische Werte / Characteristic values
min. typ. max.
Transistor / Transistor
IC = 1200 A, VCE = 1800V
Einschaltverzögerungszeit (ind. Last)
turn on delay time (inductive load)
td,on
VGE = ±15V, RG = 2,7 , CGE = 220nF, Tvj = 25°C
VGE = ±15V, RG = 2,7 , CGE = 220nF, Tvj = 125°C
-
-
0,70
0,65
-
-
µs
µs
I
C = 1200 A, VCE = 1800V
VGE = ±15V, RG = 2,7 , CGE = 220nF, Tvj = 25°C
GE = ±15V, RG = 2,7 , CGE = 220nF, Tvj = 125°C
C = 1200 A, VCE = 1800V
VGE = ±15V, RG = 1,8 , CGE = 220nF, Tvj = 25°C
GE = ±15V, RG = 1,8 , CGE = 220nF, Tvj = 125°C
C = 1200 A, VCE = 1800V
VGE = ±15V, RG = 1,8 , CGE = 220nF, Tvj = 25°C
GE = ±15V, RG = 1,8 , CGE = 220nF, Tvj = 125°C
C = 1200 A, VCE = 1800V, VGE = 15V
RG = 1,5 , CGE = 220 nF, Tvj = 125°C, LS = 40nH
C = 1200 A, VCE = 1800V, VGE = 15V
RG = 1,8 , CGE = 220 nF, Tvj = 125°C, LS = 40nH
P 10µsec, VGE 15V
Vj125°C, VCC=2500V, VCEmax=VCES -LsCE ·dI/dt
Anstiegszeit (induktive Last)
rise time (inductive load)
tr
-
-
0,45
0,48
-
-
µs
µs
V
I
Abschaltverzögerungszeit (ind. Last)
turn off delay time (inductive load)
td,off
-
-
1,90
2,10
-
-
µs
µs
V
I
Fallzeit (induktive Last)
fall time (inductive load)
tf
-
-
0,20
0,20
-
-
µs
µs
V
I
Einschaltverlustenergie pro Puls
turn-on energy loss per pulse
Eon
Eoff
-
-
2900
1600
-
-
mWs
mWs
I
Abschaltverlustenergie pro Puls
turn-off energy loss per pulse
t
Kurzschlußverhalten
SC Data
ISC
T
-
-
6000
18
-
-
A
Modulinduktivität
stray inductance module
LsCE
nH
Modul-Leitungswiderstand, Anschlüsse - Chip
lead resistance, terminals - chip
TC = 25°C
RCC'+EE'
-
0,12
-
mΩ
Charakteristische Werte / Characteristic values
min. typ. max.
Diode / Diode
Durchlaßspannung
IF = 1200 A, VGE = 0V, Tvj = 25°C
VF
IRM
Qr
-
2,80
3,50
V
V
forward voltage
IF = 1200 A, VGE = 0V, Tvj = 125°C
IF = 1200 A, - diF/dt = 4600 A/µsec
VR = 1800V, VGE = -10V, Tvj = 25°C
-
2,80
3,50
Rückstromspitze
peak reverse recovery current
-
-
1250
1350
-
-
A
A
VR = 1800V, VGE = -10V, Tvj = 125°C
IF = 1200 A, - diF/dt = 4600 A/µsec
VR = 1800V, VGE = -10V, Tvj = 25°C
Sperrverzögerungsladung
recovered charge
-
-
710
-
-
µAs
µAs
VR = 1800V, VGE = -10V, Tvj = 125°C
1320
IF = 1200 A, - diF/dt = 4600 A/µsec
VR = 1800V, VGE = -10V, Tvj = 25°C
Abschaltenergie pro Puls
reverse recovery energy
Erec
-
-
680
-
-
mWs
mWs
VR = 1800V, VGE = -10V, Tvj = 125°C
1400
DB_FZ1200R33KF2 B5_2.0.xls
2 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Thermische Eigenschaften / Thermal properties
min. typ. max.
RthJC
Transistor / transistor, DC
Diode/Diode, DC
-
-
0,0085
K/W
K/W
Innerer Wärmewiderstand
thermal resistance, junction to case
-
-
0,0170
pro Modul / per module
λPaste = 1 W/m*K / λgrease = 1 W/m*K
Übergangs-Wärmewiderstand
RthCK
Tvj max
Tvj op
Tstg
-
0,006
-
K/W
°C
thermal resistance, case to heatsink
Höchstzulässige Sperrschichttemperatur
maximum junction temperature
-
-
-
-
150
125
125
Betriebstemperatur
operation temperature
-40
-40
°C
Lagertemperatur
storage temperature
°C
Mechanische Eigenschaften / Mechanical properties
Gehäuse, siehe Anlage
case, see appendix
Material Modulgrundplatte
AlSiC
AlN
56
material of module baseplate
Innere Isolation
internal insulation
Kriechstrecke
creepage distance
mm
mm
Luftstrecke
clearance
26
CTI
> 600
-
comperative tracking index
Anzugsdrehmoment f. mech. Befestigung
Schraube M6 / screw M6
M
4,25
5,75
Nm
mounting torque
Anschlüsse / terminals M4
Anschlüsse / terminals M8
M
M
1,8
8
2,1
10
Nm
Nm
Anzugsdrehmoment f. elektr. Anschlüsse
terminal connection torque
Gewicht
weight
G
1400
g
Mit dieser technischen Information werden Halbleiterbauelemente spezifiziert, jedoch keine Eigenschaften zugesichert.
Sie gilt in Verbindung mit den zugehörigen Technischen Erläuterungen.
This technical information specifies semiconductor devices but promises no characteristics. It is
valid in combination with the belonging technical notes.
DB_FZ1200R33KF2 B5_2.0.xls
3 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Ausgangskennlinie (typisch)
Output characteristic (typical)
I = f (VCE)
C
VGE = 15V
2400
2000
1600
1200
800
400
0
Tvj = 25°C
Tvj = 125°C
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
6,5
7,0
VCE [V]
Ausgangskennlinienfeld (typisch)
Output characteristic (typical)
I = f (VCE)
C
Tvj = 125°C
2400
2000
1600
1200
800
400
0
VGE = 8V
VGE = 9V
VGE = 10V
VGE = 12V
VGE = 15V
VGE = 20V
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
5,5
6,0
6,5
7,0
VCE [V]
DB_FZ1200R33KF2 B5_2.0.xls
4 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Übertragungscharakteristik (typisch)
Transfer characteristic (typical)
I = f (VGE)
C
VCE = 20V
2400
2000
1600
1200
800
400
0
Tvj = 25°C
Tvj = 125°C
5
6
7
8
9
10
11
12
13
VGE [V]
Durchlaßkennlinie der Inversdiode (typisch)
Forward characteristic of inverse diode (typical)
I = f (VF)
F
2400
2000
1600
1200
800
400
0
Tvj = 25°C
Tvj = 125°C
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
VF [V]
DB_FZ1200R33KF2 B5_2.0.xls
5 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (IC) , Eoff = f (IC) , Erec = f (IC)
Tvj=125°C, VCE = 1800V, VGE=±15V, RGon = 1,5 , RGoff = 1,8 , CGE = 220 nF
10000
9000
8000
7000
6000
5000
4000
3000
2000
1000
0
Eon
Eoff
Erec
0
300
600
900
1200
1500
1800
2100
2400
IC [A]
Schaltverluste (typisch)
Switching losses (typical)
E = f (RG) , Eoff = f (RG) , Erec = f (RG)
on
Tvj = 125°C, IC = 1200 A , VCE = 1800V , VGE = ±15V, CGE = 220nF
12000
Eon
Eoff
Erec
10000
8000
6000
4000
2000
0
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
RG []
DB_FZ1200R33KF2 B5_2.0.xls
6 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Sicherer Arbeitsbereich IGBT (RBSOA)
VGE = ±15V, RG,off = 1,8, CGE = 220 nF
Reverse bias safe operation area IGBT (RBSOA)
Tvj= 125°C
3000
2400
1800
1200
600
IC,Modul
IC,Chip
0
0
500
1000
1500
2000
VCE [V]
2500
3000
3500
Sicherer Arbeitsbereich Diode (SOA)
safe operation area Diode (SOA)
Tvj= 125°C
3000
2400
1800
1200
600
0
0
500
1000
1500
2000
VR [V]
2500
3000
3500
DB_FZ1200R33KF2 B5_2.0.xls
7 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Transienter Wärmewiderstand
Transient thermal impedance
ZthJC = f (t)
0,1
Zth: IGBT
Zth: Diode
0,01
0,001
0,0001
0,001
0,01
0,1
1
10
t [sec]
1
2
3
4
i
ri [K/kW]
τi [sec]
: IGBT
: IGBT
: Diode
: Diode
3,83
0,03
7,65
0,03
2,13
0,10
4,25
0,10
0,51
0,30
1,02
0,30
2,04
1,00
4,08
1,00
ri [K/kW]
τi [sec]
DB_FZ1200R33KF2 B5_2.0.xls
8 (9)
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1200 R 33 KF2_B5
vorläufige Daten
preliminary data
Äußere Abmessungen /
extenal dimensions
DB_FZ1200R33KF2 B5_2.0.xls
9 (9)
厂商 型号 描述 页数 下载

ETC

FZ1000R25KF1 IGBT模块\n[ IGBT Module ] 9 页

INFINEON

FZ1000R33HE3 IHM -B模块,具有快速海沟/场终止IGBT3和发射Controlled3二极管[ IHM-B module with fast Trench/Fieldstop IGBT3 and Emitter Controlled3 diode ] 9 页

INFINEON

FZ1000R33HE3B60BPSA1 [ Insulated Gate Bipolar Transistor, ] 9 页

INFINEON

FZ1000R33HL3 IHM -B模块海沟/场终止IGBT3和发射Controlled3二极管[ IHM-B module with Trench/Fieldstop IGBT3 and Emitter Controlled3 diode ] 9 页

INFINEON

FZ1000R33HL3B60BOSA1 [ Insulated Gate Bipolar Transistor, ] 9 页

INFINEON

FZ1000R33HL3BPSA1 [ Insulated Gate Bipolar Transistor, 3300V V(BR)CES, N-Channel, MODULE-7 ] 9 页

ETC

FZ100A05KN 晶体管| IGBT | N -CHAN | 500V V( BR ) CES | 100A I(C ) | MODULE -Q\n[ TRANSISTOR | IGBT | N-CHAN | 500V V(BR)CES | 100A I(C) | MODULE-Q ] 2 页

ETC

FZ100A06KL 晶体管| IGBT功率模块|独立| 600V V( BR ) CES | 100A I(C )\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 600V V(BR)CES | 100A I(C) ] 1 页

ETC

FZ1050R12K4 IGBT模块\n[ IGBT Module ] 3 页

GOOD-ARK

FZ1110 [ Surface Mount Zener Diodes ] 5 页

PDF索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引:

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

0.274399s
