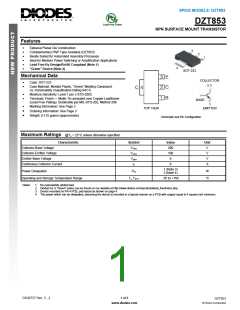

SPICE MODELS: DZT853
DZT853
NPN SURFACE MOUNT TRANSISTOR
Features
•
•
•
•
•
•
Epitaxial Planar Die Construction
Complementary PNP Type Available (DZT953)
Ideally Suited for Automated Assembly Processes
Ideal for Medium Power Switching or Amplification Applications
Lead Free By Design/RoHS Compliant (Note 1)
"Green" Device (Note 2)
SOT-223
Mechanical Data
COLLECTOR
•
•
Case: SOT-223
Case Material: Molded Plastic, "Green" Molding Compound.
UL Flammability Classification Rating 94V-0
•
•
Moisture Sensitivity: Level 1 per J-STD-020C
Terminals: Finish — Matte Tin annealed over Copper Leadframe
(Lead Free Plating). Solderable per MIL-STD-202, Method 208
BASE
•
•
•
Marking Information: See Page 3
Ordering Information: See Page 3
Weight: 0.115 grams (approximate)
TOP VIEW
EMITTER
Schematic and Pin Configuration
Maximum Ratings @TA = 25°C unless otherwise specified
Characteristic
Collector-Base Voltage
Symbol
VCBO
VCEO
VEBO
IC
Value
200
100
6
Unit
V
Collector-Emitter Voltage
V
Emitter-Base Voltage
V
Continuous Collector Current
6
A
1 (Note 3)
3 (Note 4)
Power Dissipation
Ptot
W
Operating and Storage Temperature Range
Tj, TSTG
-55 to +150
°C
Notes:
1. No purposefully added lead.
2. Diodes Inc.'s "Green" policy can be found on our website at http://www.diodes.com/products/lead_free/index.php.
3. Device mounted on FR-4 PCB, pad layout as shown on page 4.
4. The power which can be dissipated, assuming the device is mounted in a typical manner on a PCB with copper equal to 4 square inch minimum.
DS30737 Rev. 3 - 2
1 of 4
DZT853
© Diodes Incorporated
www.diodes.com
