PZT3904

型号：

PZT3904

描述：

小信号NPN晶体管[ SMALL SIGNAL NPN TRANSISTOR ]

品牌：

STMICROELECTRONICS[ ST ]

页数：

4 页

PDF大小：

49 K

下载PDF手册

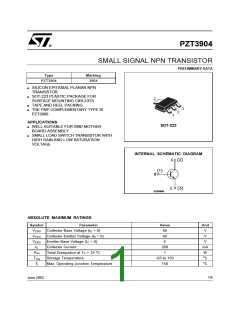

PZT3904
®
SMALL SIGNAL NPN TRANSISTOR
PRELIMINARY DATA
Type
Marking
3904
PZT3904
■
■
SILICON EPITAXIAL PLANAR NPN
TRANSISTOR
SOT-223 PLASTIC PACKAGE FOR
SURFACE MOUNTING CIRCUITS
TAPE AND REEL PACKING
THE PNP COMPLEMENTARY TYPE IS
PZT3906
2
■
■
3
2
1
APPLICATIONS
SOT-223
■
WELL SUITABLE FOR SMD MOTHER
BOARD ASSEMBLY
■
SMALL LOAD SWITCH TRANSISTOR WITH
HIGH GAIN AND LOW SATURATION
VOLTAGE
INTERNAL SCHEMATIC DIAGRAM
ABSOLUTE MAXIMUM RATINGS
Symbol
VCBO
VCEO
VEBO
IC
Parameter
Value
Unit
Collector-Base Voltage (IE = 0)
Collector-Emitter Voltage (IB = 0)
Emitter-Base Voltage (IC = 0)
Collector Current
60
V
V
40
6
200
V
mA
o
Ptot
Total Dissipation at TC = 25 C
1
W
Tstg
Storage Temperature
-65 to 150
150
oC
oC
Tj
Max. Operating Junction Temperature
1/4
June 2002
PZT3904
THERMAL DATA
Rthj-amb
•
Thermal Resistance Junction-Ambient
Max
125
oC/W
2
• Device mounted on a PCB area of 1 cm
ELECTRICAL CHARACTERISTICS (Tcase = 25 oC unless otherwise specified)
Symbol
Parameter
Test Conditions
VCE = 30 V
Min.
Typ.
Max.
Unit
ICEX
Collector Cut-off
50
nA
Current (VBE = -3 V)
IBEX
Base Cut-off Current
(VBE = -3 V)
VCE = 30 V
IC = 1 mA
50
nA
V
V(BR)CEO Collector-Emitter
Breakdown Voltage
(IB = 0)
40
60
6
V(BR)CBO Collector-Base
Breakdown Voltage
(IE = 0)
V
V
IC = 10 µA
IE = 10 µA
V(BR)EBO Emitter-Base
Breakdown Voltage
(IC = 0)
VCE(sat)
VBE(sat)
hFE
Collector-Emitter
Saturation Voltage
IC = 10 mA
IC = 50 mA
IB = 1 mA
IB = 5 mA
0.2
0.2
V
V
Base-Emitter
Saturation Voltage
IC = 10 mA
IC = 50 mA
IB = 1 mA
IB = 5 mA
0.85
0.95
V
V
0.65
DC Current Gain
IC = 0.1 mA
IC = 1 mA
IC = 10 mA
IC = 50 mA
IC = 100 mA
VCE = 1 V
VCE = 1 V
VCE = 1 V
VCE = 1 V
VCE = 1 V
60
80
100
60
300
30
fT
Transition Frequency
IC = 10 mA VCE = 20 V f = 100 MHz
250
270
4
MHz
pF
CCBO
Collector-Base
Capacitance
IE = 0
VCB = 10 V
f = 1 MHz
CEBO
NF
Emitter-Base
Capacitance
IC = 0
VEB = 0.5 V f = 1 MHz
18
5
pF
dB
Noise Figure
VCE = 5 V IC = 0.1 mA f = 10 Hz
to 15.7 KHz RG = 1 KΩ
td
tr
Delay Time
Rise Time
IC = 10 mA
VCC = 30 V
IB = 1 mA
35
35
ns
ns
ts
tf
Storage Time
Fall Time
IC = 10 mA
VCC = 30 V
IB1 = -IB2 = 1 mA
200
50
ns
ns
Pulsed: Pulse duration = 300 µs, duty cycle ≤ 2 %
2/4
PZT3904
SOT-223 MECHANICAL DATA
mm
inch
TYP.
DIM.
MIN.
TYP.
MAX.
1.80
0.80
3.10
0.32
6.70
MIN.
MAX.
0.071
0.031
0.122
0.013
0.264
A
B
0.60
2.90
0.24
6.30
0.70
3.00
0.26
6.50
2.30
4.60
3.50
7.00
0.024
0.114
0.009
0.248
0.027
0.118
0.010
0.256
0.090
0.181
0.138
0.276
B1
c
D
e
e1
E
3.30
6.70
3.70
7.30
10o
0.130
0.264
0.146
0.287
10o
H
V
A1
0.02
P008B
3/4
PZT3904
Information furnished is believed to be accurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or patent rights of STMicroelectronics. Specification mentioned in this publication are
subject to change without notice. This publication supersedes and replaces all information previously supplied. STMicroelectronics products
are not authorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The ST logo is a trademark of STMicroelectronics
© 2002 STMicroelectronics – Printed in Italy – All Rights Reserved
STMicroelectronics GROUP OF COMPANIES
Australia - Brazil - Canada - China - Finland - France - Germany - Hong Kong - India - Israel - Italy - Japan - Malaysia - Malta - Morocco -
Singapore - Spain - Sweden - Switzerland - United Kingdom - United States.
http://www.st.com
4/4
