FZ1800R17KF6CB2V

型号：

FZ1800R17KF6CB2V

描述：

IGBT模块\n[ IGBT Module ]

品牌：

ETC[ ETC ]

页数：

8 页

PDF大小：

144 K

下载PDF手册

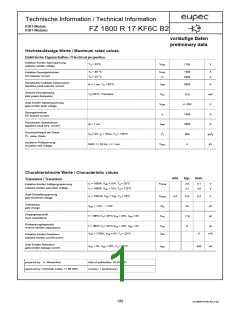

Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Höchstzulässige Werte / Maximum rated values
Elektrische Eigenschaften / Electrical properties
Kollektor-Emitter-Sperrspannung
collector-emitter voltage
Tvj = 25°C
C = 80 °C
VCES
1700
V
T
IC,nom.
IC
1800
2900
A
A
Kollektor-Dauergleichstrom
DC-collector current
TC = 25 °C
Periodischer Kollektor Spitzenstrom
repetitive peak collector current
tP = 1 ms, TC = 80°C
ICRM
3600
13,9
+/- 20V
1800
3600
850
A
kW
V
Gesamt-Verlustleistung
total power dissipation
TC=25°C, Transistor
Ptot
Gate-Emitter-Spitzenspannung
gate-emitter peak voltage
VGES
Dauergleichstrom
DC forward current
IF
A
Periodischer Spitzenstrom
repetitive peak forw. current
IFRM
tp = 1 ms
A
Grenzlastintegral der Diode
I2t - value, Diode
I2t
kA2s
kV
VR = 0V, tp = 10ms, TVj = 125°C
RMS, f = 50 Hz, t = 1 min.
Isolations-Prüfspannung
insulation test voltage
VISOL
4
Charakteristische Werte / Characteristic values
min. typ. max.
Transistor / Transistor
I
C = 1800A, VGE = 15V, Tvj = 25°C
VCE sat
2,6
3,1
3,1
3,6
V
V
Kollektor-Emitter Sättigungsspannung
collector-emitter saturation voltage
IC = 1800A, VGE = 15V, Tvj = 125°C
Gate-Schwellenspannung
gate threshold voltage
IC = 120mA, VCE = VGE, Tvj = 25°C
VGE = -15V ... +15V
VGE(th)
4,5
5,5
22
118
6
6,5
V
Gateladung
gate charge
QG
µC
nF
Eingangskapazität
input capacitance
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
f = 1MHz,Tvj = 25°C,VCE = 25V, VGE = 0V
Cies
Rückwirkungskapazität
reverse transfer capacitance
Cres
ICES
nF
VCE = 1700V, VGE = 0V, Tvj = 25°C
5
mA
Kollektor-Emitter Reststrom
collector-emitter cut-off current
Gate-Emitter Reststrom
gate-emitter leakage current
VCE = 0V, VGE = 20V, Tvj = 25°C
IGES
400
nA
prepared by: A. Wiesenthal
date of publication: 28.05.2001
revision: 1 (preliminary)
approved by: Christoph Lübke; 11.06.2001
1(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Charakteristische Werte / Characteristic values
min. typ. max.
Transistor / Transistor
I
C = 1800A, VCE = 900V
Einschaltverzögerungszeit (ind. Last)
turn on delay time (inductive load)
td,on
VGE = ±15V, RG = 0,82W, Tvj = 25°C
VGE = ±15V, RG =0,82W, Tvj = 125°C
0,3
0,3
µs
µs
I
C = 1800A, VCE = 900V
Anstiegszeit (induktive Last)
rise time (inductive load)
tr
VGE = ±15V, RG = 0,82W, Tvj = 25°C
VGE = ±15V, RG = 0,82W, Tvj = 125°C
0,2
0,2
µs
µs
I
C = 1800A, VCE = 900V
Abschaltverzögerungszeit (ind. Last)
turn off delay time (inductive load)
td,off
VGE = ±15V, RG = 0,82W, Tvj = 25°C
VGE = ±15V, RG = 0,82W, Tvj = 125°C
1,3
1,3
µs
µs
I
C = 1800A, VCE = 900V
VGE = ±15V, RG = 0,82W, Tvj = 25°C
GE = ±15V, RG = 0,82W, Tvj = 125°C
C = 1800A, VCE = 900V, VGE = 15V
RG = 0,82W, Tvj = 125°C, LS = 50nH
C = 1800A, VCE = 900V, VGE = 15V
RG = 0,82W, Tvj = 125°C, LS = 50nH
P £ 10µsec, VGE £ 15V
Vj£125°C, VCC=1000V, VCEmax=VCES -LsCE ·dI/dt
Fallzeit (induktive Last)
fall time (inductive load)
tf
0,15
0,16
µs
µs
V
I
Einschaltverlustenergie pro Puls
turn-on energy loss per pulse
Eon
Eoff
570
725
mWs
mWs
I
Abschaltverlustenergie pro Puls
turn-off energy loss per pulse
t
Kurzschlußverhalten
SC Data
ISC
T
7200
10
A
Modulinduktivität
stray inductance module
LsCE
nH
Modulleitungswiderstand, Anschlüsse - Chip
module lead resistance, terminals - chip
RCC´+EE´
pro Zweig / per arm
0,06
mW
Charakteristische Werte / Characteristic values
min. typ. max.
Diode / Diode
IF = 1800A, VGE = 0V, Tvj = 25°C
VF
IRM
Qr
2,1
2,1
2,5
2,5
V
V
Durchlaßspannung
forward voltage
IF = 1800A, VGE = 0V, Tvj = 125°C
IF = 1800A, - diF/dt = 10800A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
Rückstromspitze
peak reverse recovery current
1580
1860
A
A
VR = 900V, VGE = -10V, Tvj = 125°C
IF = 1800A, - diF/dt =10800A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
Sperrverzögerungsladung
recovered charge
340
630
µAs
µAs
VR = 900V, VGE = -10V, Tvj = 125°C
IF = 1800A, - diF/dt = 10800A/µsec
VR = 900V, VGE = -10V, Tvj = 25°C
Abschaltenergie pro Puls
reverse recovery energy
Erec
190
370
mWs
mWs
VR = 900V, VGE = -10V, Tvj = 125°C
2(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Thermische Eigenschaften / Thermal properties
min. typ. max.
RthJC
Transistor / transistor, DC
Diode/Diode, DC
0,009
0,017
K/W
K/W
Innerer Wärmewiderstand
thermal resistance, junction to case
pro Modul / per module
Übergangs-Wärmewiderstand
thermal resistance, case to heatsink
RthCK
0,006
K/W
°C
lPaste = 1 W/m*K
/
lgrease = 1 W/m*K
Höchstzulässige Sperrschichttemperatur
maximum junction temperature
Tvj
150
Betriebstemperatur
operation temperature
Tvj op
-40
-40
125
125
°C
Lagertemperatur
storage temperature
Tstg
°C
Mechanische Eigenschaften / Mechanical properties
Gehäuse, siehe Anlage
case, see appendix
Innere Isolation
internal insulation
AlN
32
Kriechstrecke
creepage distance
mm
mm
Luftstrecke
clearance
20
CTI
>400
comperative tracking index
M1
M2
5
Nm
Anzugsdrehmoment f. mech. Befestigung
mounting torque
terminals M4
terminals M8
2
Nm
Nm
Anzugsdrehmoment f. elektr. Anschlüsse
terminal connection torque
8 - 10
Gewicht
weight
G
1500
g
Mit dieser technischen Information werden Halbleiterbauelemente spezifiziert, jedoch keine Eigenschaften zugesichert.
Sie gilt in Verbindung mit den zugehörigen Technischen Erläuterungen.
This technical information specifies semiconductor devices but promises no characteristics. It is
valid in combination with the belonging technical notes.
3(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Ausgangskennlinie (typisch)
Output characteristic (typical)
IC = f (VCE)
VGE = 15V
3600
3200
2800
2400
2000
1600
1200
800
Tvj = 25°C
Tvj = 125°C
400
0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
VCE [V]
Ausgangskennlinienfeld (typisch)
Output characteristic (typical)
IC = f (VCE)
Tvj = 125°C
3600
3200
2800
2400
2000
1600
1200
800
vGE = 20V
vGE = 15V
vGE = 12V
vGE = 10V
vGE = 9V
vGE = 8V
400
0
0,0
0,5
1,0
1,5
2,0
2,5
3,0
3,5
4,0
4,5
5,0
VCE [V]
4(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Übertragungscharakteristik (typisch)
Transfer characteristic (typical)
IC = f (VGE)
VCE = 20V
3600
3200
2800
2400
2000
1600
1200
800
Tvj = 25°C
Tvj = 125°C
400
0
5
6
7
8
9
10
11
12
13
VGE [V]
Durchlaßkennlinie der Inversdiode (typisch)
IF = f (VF)
Forward characteristic of inverse diode (typical)
3600
3200
2800
2400
2000
1600
1200
800
Tvj = 25°C
Tvj = 125°C
400
0
0,0
0,5
1,0
1,5
2,0
2,5
3,0
VF [V]
5(8)
FZ1800R17KF6C B2_V.xls




Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (IC) , Eoff = f (IC) , Erec = f (IC)
Rgon = Rgoff =0,82 9, VCE = 900V, Tj = 125°C, VGE = ± 15V
1800
1600
1400
1200
1000
800
600
400
200
0
Eoff
Eon
Erec
0
500
1000
1500
2000
2500
3000
3500
4000
IC [A]
Schaltverluste (typisch)
Switching losses (typical)
Eon = f (RG) , Eoff = f (RG) , Erec = f (RG)
IC = 1200A , VCE = 900V , Tj = 125°C, VGE = ± 15V
2500
Eon
Eoff
Erec
2000
1500
1000
500
0
0
1
2
3
4
5
6
7
RG [9]
6(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
vorläufige Daten
preliminary data
Transienter Wärmewiderstand
Transient thermal impedance
ZthJC = f (t)
0,1
0,01
Zth; Diode
Zth; IGBT
0,001
0,001
0,01
0,1
1
10
100
t [sec]
1
2
3
4
i
: IGBT
: IGBT
: Diode
: Diode
0,865
0,003
1,67
4,26
0,05
1,8
2,08
0,95
3,11
0,75
ri [K/kW]
JE [sec]
0,1
9,11
3,11
0,45
ri [K/kW]
0,003
0,045
JE [sec]
Sicherer Arbeitsbereich (RBSOA)
Reverse bias safe operation area (RBSOA)
Rg = 0,82 Ohm, Tvj = 125°C
4000
3500
3000
2500
2000
1500
1000
500
iC; Chip
iC; Modul
0
0
200
400
600
800
1000
1200
1400
1600
1800
VCE [V]
7(8)
FZ1800R17KF6C B2_V.xls
Technische Information / Technical Information
IGBT-Module
IGBT-Modules
FZ 1800 R 17 KF6C B2
Äußere Abmessungen / external dimensions
8(8)
FZ1800R17KF6C B2_V.xls
厂商 型号 描述 页数 下载

ETC

 		FZ1000R25KF1 IGBT模块\n[ IGBT Module ] 9 页

INFINEON

 		FZ1000R33HE3 IHM -B模块，具有快速海沟/场终止IGBT3和发射Controlled3二极管[ IHM-B module with fast Trench/Fieldstop IGBT3 and Emitter Controlled3 diode ] 9 页

INFINEON

 		FZ1000R33HE3B60BPSA1 [ Insulated Gate Bipolar Transistor, ] 9 页

INFINEON

 		FZ1000R33HL3 IHM -B模块海沟/场终止IGBT3和发射Controlled3二极管[ IHM-B module with Trench/Fieldstop IGBT3 and Emitter Controlled3 diode ] 9 页

INFINEON

 		FZ1000R33HL3B60BOSA1 [ Insulated Gate Bipolar Transistor, ] 9 页

INFINEON

 		FZ1000R33HL3BPSA1 [ Insulated Gate Bipolar Transistor, 3300V V(BR)CES, N-Channel, MODULE-7 ] 9 页

ETC

 		FZ100A05KN 晶体管| IGBT | N -CHAN | 500V V（ BR ） CES | 100A I（C ） | MODULE -Q\n[ TRANSISTOR | IGBT | N-CHAN | 500V V(BR)CES | 100A I(C) | MODULE-Q ] 2 页

ETC

 		FZ100A06KL 晶体管| IGBT功率模块|独立| 600V V（ BR ） CES | 100A I（C ）\n[ TRANSISTOR | IGBT POWER MODULE | INDEPENDENT | 600V V(BR)CES | 100A I(C) ] 1 页

ETC

 		FZ1050R12K4 IGBT模块\n[ IGBT Module ] 3 页

GOOD-ARK

 		FZ1110 [ Surface Mount Zener Diodes ] 5 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.413215s
