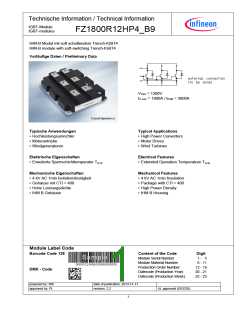

TechnischeꢀInformationꢀ/ꢀTechnicalꢀInformation
IGBT-Module
IGBT-modules
FZ1800R12HP4_B9
VorläufigeꢀDaten
PreliminaryꢀData
IGBT,Wechselrichterꢀ/ꢀIGBT,Inverter
HöchstzulässigeꢀWerteꢀ/ꢀMaximumꢀRatedꢀValues
Kollektor-Emitter-Sperrspannung
Collector-emitterꢀvoltage
Tvj = 25°C
VCES
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
1200
ꢀ
ꢀ
ꢀ
V
Kollektor-Dauergleichstrom
ContinuousꢀDCꢀcollectorꢀcurrent
TC = 100°C, Tvj max = 175°C
TC = 25°C, Tvj max = 175°C
IC nom
IC
1800
2700
A
A
PeriodischerꢀKollektor-Spitzenstrom
Repetitiveꢀpeakꢀcollectorꢀcurrent
tP = 1 ms
ICRM
Ptot
3600
10,5
A
Gesamt-Verlustleistung
Totalꢀpowerꢀdissipation
TC = 25°C, Tvj max = 175°C
ꢀ kW
Gate-Emitter-Spitzenspannung
Gate-emitterꢀpeakꢀvoltage
ꢀ
VGES
+/-20
ꢀ
V
CharakteristischeꢀWerteꢀ/ꢀCharacteristicꢀValues
min. typ. max.
Kollektor-Emitter-Sättigungsspannung
Collector-emitterꢀsaturationꢀvoltage
IC = 1800 A, VGE = 15 V
IC = 1800 A, VGE = 15 V
IC = 1800 A, VGE = 15 V
Tvj = 25°C
Tvj = 125°C
Tvj = 150°C
1,70 2,05
2,00
2,10
V
V
V
VCE sat
Gate-Schwellenspannung
Gateꢀthresholdꢀvoltage
IC = 68,5 mA, VCE = VGE, Tvj = 25°C
VGE = -15 V ... +15 V
VGEth
QG
5,1
5,8
14,0
1,1
110
6,20
ꢀ
6,5
V
µC
Ω
Gateladung
Gateꢀcharge
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
InternerꢀGatewiderstand
Internalꢀgateꢀresistor
Tvj = 25°C
RGint
Cies
Cres
ICES
IGES
td on
Eingangskapazität
Inputꢀcapacitance
f = 1 MHz, Tvj = 25°C, VCE = 25 V, VGE = 0 V
f = 1 MHz, Tvj = 25°C, VCE = 25 V, VGE = 0 V
VCE = 1200 V, VGE = 0 V, Tvj = 25°C
VCE = 0 V, VGE = 20 V, Tvj = 25°C
nF
nF
Rückwirkungskapazität
Reverseꢀtransferꢀcapacitance
Kollektor-Emitter-Reststrom
Collector-emitterꢀcut-offꢀcurrent
5,0 mA
Gate-Emitter-Reststrom
Gate-emitterꢀleakageꢀcurrent
ꢀ
400 nA
µs
Einschaltverzögerungszeit,ꢀinduktiveꢀLast
Turn-onꢀdelayꢀtime,ꢀinductiveꢀload
IC = 1800 A, VCE = 600 V
VGE = ±15 V
RGon = 1,8 Ω
Tvj = 25°C
Tvj = 125°C
Tvj = 150°C
0,40
0,43
0,43
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
µs
µs
Anstiegszeit,ꢀinduktiveꢀLast
Riseꢀtime,ꢀinductiveꢀload
IC = 1800 A, VCE = 600 V
VGE = ±15 V
RGon = 1,8 Ω
Tvj = 25°C
Tvj = 125°C
Tvj = 150°C
0,28
0,29
0,29
µs
µs
µs
tr
td off
tf
Abschaltverzögerungszeit,ꢀinduktiveꢀLast
Turn-offꢀdelayꢀtime,ꢀinductiveꢀload
IC = 1800 A, VCE = 600 V
VGE = ±15 V
RGoff = 0,3 Ω
Tvj = 25°C
Tvj = 125°C
Tvj = 150°C
1,00
1,10
1,10
µs
µs
µs
Fallzeit,ꢀinduktiveꢀLast
Fallꢀtime,ꢀinductiveꢀload
IC = 1800 A, VCE = 600 V
VGE = ±15 V
RGoff = 0,3 Ω
Tvj = 25°C
Tvj = 125°C
Tvj = 150°C
0,18
0,22
0,23
µs
µs
µs
EinschaltverlustenergieꢀproꢀPuls
Turn-onꢀenergyꢀlossꢀperꢀpulse
IC = 1800 A, VCE = 600 V, LS = 50 nH
VGE = ±15 V, di/dt = 6300 A/µs (Tvj = 150°C) Tvj = 125°C
RGon = 1,8 Ω
Tvj = 25°C
245
330
355
mJ
mJ
mJ
Eon
Eoff
Tvj = 150°C
AbschaltverlustenergieꢀproꢀPuls
Turn-offꢀenergyꢀlossꢀperꢀpulse
IC = 1800 A, VCE = 600 V, LS = 50 nH
VGE = ±15 V, du/dt = 2500 V/µs (Tvj = 150°C)Tvj = 125°C
RGoff = 0,3 Ω
Tvj = 25°C
330
405
430
mJ
mJ
mJ
ꢀ
ꢀ
Tvj = 150°C
Kurzschlußverhalten
SCꢀdata
VGE ≤ 15 V, VCC = 800 V
VCEmax = VCES -LsCE ·di/dt
ISC
ꢀ
tP ≤ 10 µs, Tvj = 150°C
7200
A
Wärmewiderstand,ꢀChipꢀbisꢀGehäuse
Thermalꢀresistance,ꢀjunctionꢀtoꢀcase
proꢀIGBTꢀ/ꢀperꢀIGBT
RthJC
RthCH
Tvj op
ꢀ
ꢀ
ꢀ
14,0 K/kW
K/kW
Wärmewiderstand,ꢀGehäuseꢀbisꢀKühlkörper proꢀIGBTꢀ/ꢀperꢀIGBT
Thermalꢀresistance,ꢀcaseꢀtoꢀheatsink
9,00
λ
Pasteꢀ=ꢀ1ꢀW/(m·K)ꢀꢀꢀ/ꢀꢀꢀꢀλgreaseꢀ=ꢀ1ꢀW/(m·K)
TemperaturꢀimꢀSchaltbetrieb
Temperatureꢀunderꢀswitchingꢀconditions
ꢀ
-40
ꢀ
150
°C
preparedꢀby:ꢀWB
approvedꢀby:ꢀPL
dateꢀofꢀpublication:ꢀ2013-11-11
revision:ꢀ2.2
2
