PZT651

型号:

PZT651

描述:

NPN硅平面外延型晶体管[ NPN Silicon Planar Epitaxial Transistor ]

品牌:

ONSEMI[ ONSEMI ]

页数:

4 页

PDF大小:

107 K

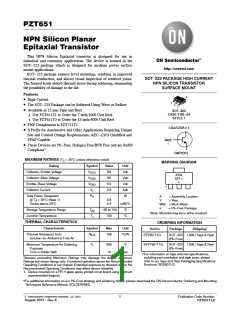

PZT651
NPN Silicon Planar
Epitaxial Transistor
This NPN Silicon Epitaxial transistor is designed for use in
industrial and consumer applications. The device is housed in the
SOT223 package which is designed for medium power surface
mount applications.
http://onsemi.com
SOT223 package ensures level mounting, resulting in improved
thermal conduction, and allows visual inspection of soldered joints.
The formed leads absorb thermal stress during soldering, eliminating
the possibility of damage to the die.
SOT223 PACKAGE HIGH CURRENT
NPN SILICON TRANSISTOR
SURFACE MOUNT
Features
High Current
4
1
2
3
The SOT223 Package can be Soldered Using Wave or Reflow
Available in 12 mm Tape and Reel
SOT223
CASE 318E04
STYLE 1
Use PZT651T1 to Order the 7 inch/1000 Unit Reel
Use PZT651T3 to Order the 13 inch/4000 Unit Reel
PNP Complement is PZT751T1
COLLECTOR 2, 4
S Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AECQ101 Qualified and
PPAP Capable
BASE
1
These Devices are PbFree, Halogen Free/BFR Free and are RoHS
Compliant*
EMITTER 3
MAXIMUM RATINGS (T = 25°C unless otherwise noted)
C
MARKING DIAGRAM
Rating
CollectorEmitter Voltage
CollectorBase Voltage
EmitterBase Voltage
Collector Current
Symbol
Value
60
Unit
Vdc
Vdc
Vdc
Adc
W
V
CEO
V
CBO
V
EBO
AYW
651 G
G
80
5.0
2.0
1
I
C
Total Power Dissipation
P
D
A
Y
= Assembly Location
= Year
@ T = 25°C (Note 1)
Derate above 25°C
0.8
6.4
A
mW/°C
°C
WW = Work Week
G
= PbFree Package
Storage Temperature Range
Junction Temperature
T
65 to 150
stg
(Note: Microdot may be in either location)
T
150
°C
J
THERMAL CHARACTERISTICS
Characteristic
ORDERING INFORMATION
Symbol
Max
Unit
Device
Package
Shipping
Thermal Resistance from
JunctiontoAmbient in Free Air
R
156
°C/W
q
JA
PZT651T1G
SOT223 1,000 / Tape & Reel
(PbFree)
Maximum Temperature for Soldering
Purposes
Time in Solder Bath
T
260
10
°C
SPZT651T1G
SOT223 1,000 / Tape & Reel
(PbFree)
L
Sec
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specifications
Brochure, BRD8011/D.
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
1. Device mounted on a FR4 glass epoxy printed circuit board using minimum
recommended footprint.
*For additional information on our PbFree strategy and soldering details, please download the ON Semiconductor Soldering and Mounting
Techniques Reference Manual, SOLDERRM/D.
© Semiconductor Components Industries, LLC, 2013
1
Publication Order Number:
August, 2013 Rev. 8
PZT651T1/D

PZT651
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise noted)
A
Characteristics
OFF CHARACTERISTICS
Symbol
Min
Max
Unit
CollectorEmitter Breakdown Voltage
V
Vdc
Vdc
(BR)CEO
(BR)CBO
(BR)EBO
(I = 10 mAdc, I = 0)
60
80
5.0
C
B
CollectorEmitter Breakdown Voltage
(I = 100 mAdc, I = 0)
V
V
C
E
EmitterBase Breakdown Voltage
(I = 10 mAdc, I = 0)
Vdc
E
C
BaseEmitter Cutoff Current
(V = 4.0 Vdc)
EB
I
mAdc
nAdc
EBO
0.1
100
CollectorBase Cutoff Current
I
CBO
(V = 80 Vdc, I = 0)
CB
E
ON CHARACTERISTICS (Note 2)
DC Current Gain
h
FE
(I = 50 mAdc, V = 2.0 Vdc)
75
75
75
40
C
CE
(I = 500 mAdc, V = 2.0 Vdc)
C
CE
(I = 1.0 Adc, V = 2.0 Vdc)
C
CE
(I = 2.0 Adc, V = 2.0 Vdc)
C
CE
CollectorEmitter Saturation Voltages
(I = 2.0 Adc, I = 200 mAdc)
V
Vdc
CE(sat)
0.5
0.3
C
B
(I = 1.0 Adc, I = 100 mAdc)
C
B
BaseEmitter Voltages
(I = 1.0 Adc, V = 2.0 Vdc)
V
Vdc
Vdc
MHz
BE(on)
1.0
1.2
C
CE
BaseEmitter Saturation Voltage
(I = 1.0 Adc, I = 100 mAdc)
V
BE(sat)
C
B
CurrentGain — Bandwidth
(I = 50 mAdc, V = 5.0 Vdc, f = 100 MHz)
f
T
75
C
CE
2. Pulse Test: Pulse Width 300 ms, Duty Cycle = 2.0%
http://onsemi.com
2

PZT651
NPN
PNP
300
270
250
T = 125°C
J
225
200
175
150
125
100
75
V
CE
= -2.0 V
V
CE
= 2.0 V
T = 125°C
J
240
210
25°C
180
150
120
90
25°C
-ꢀ55°C
-ꢀ55°C
60
50
30
25
0
0
10
20
50 100 200
500 1.0 A 2.0 A 4.0 A
-10 -ꢀ20
-ꢀ50 -100 -ꢀ200 -ꢀ500 -1.0 A -2.0 A -4.0 A
I , COLLECTOR CURRENT (mA)
I , COLLECTOR CURRENT (mA)
C
C
Figure 1. Typical DC Current Gain
NPN
Figure 2. Typical DC Current Gain
PNP
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0
-2.0
-1.8
-1.6
-1.4
-1.2
-1.0
-0.8
-0.6
-0.4
-0.2
0
V
@ I /I = 10
C B
BE(sat)
V
@ I /I = 10
C B
BE(sat)
V
BE(on)
@ V = 2.0 V
CE
V
BE(on)
@ V = 2.0 V
CE
V
@ I /I = 10
C B
CE(sat)
V
@ I /I = 10
C B
CE(sat)
50
100
200
500
1.0 A
2.0 A
4.0 A
-50
-100
-200
-500 -1.0 A -2.0 A -4.0 A
I , COLLECTOR CURRENT (mA)
C
I , COLLECTOR CURRENT (mA)
C
Figure 3. On Voltages
NPN
Figure 4. On Voltages
PNP
1.0
0.9
0.8
0.7
-1.0
-0.9
-0.8
-0.7
T = 25°C
J
T = 25°C
J
0.6
0.5
0.4
0.3
0.2
0.1
0
-0.6
-0.5
-0.4
-0.3
-0.2
-0.1
0
I
C
= 10 mA
I
C
= 100 mA
I
C
= 500 mA
I
C
= 2.0 A
I
= -500 mA
I = -2.0 A
C
C
I
C
= -10 mA
I
C
= -100 mA
0.05 0.1 0.2 0.5 1.0 2.0 5.0 10 20
50 100 200 500
-0.05 -0.1 -0.2 -0.5 -1.0 -2.0 -5.0 -10 -20 -50 -100-200 -500
I , BASE CURRENT (mA)
B
I , BASE CURRENT (mA)
B
Figure 5. Collector Saturation Region
Figure 6. Collector Saturation Region
http://onsemi.com
3
PZT651
PACKAGE DIMENSIONS
SOT223 (TO261)
CASE 318E04
ISSUE N
D
b1
NOTES:
ꢁꢂ1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M,
1994.
ꢁꢂ2. CONTROLLING DIMENSION: INCH.
MILLIMETERS
INCHES
4
2
DIM
A
A1
b
b1
c
D
E
e
e1
L
L1
MIN
1.50
0.02
0.60
2.90
0.24
6.30
3.30
2.20
0.85
0.20
1.50
6.70
0°
NOM
1.63
0.06
0.75
3.06
0.29
6.50
3.50
2.30
0.94
−−−
1.75
7.00
MAX
MIN
0.060
0.001
0.024
0.115
0.009
0.249
0.130
0.087
0.033
0.008
0.060
0.264
0°
NOM
0.064
0.002
0.030
0.121
0.012
0.256
0.138
0.091
0.037
−−−
MAX
0.068
0.004
0.035
0.126
0.014
0.263
0.145
0.094
0.041
−−−
H
E
E
1.75
0.10
0.89
3.20
0.35
6.70
3.70
2.40
1.05
−−−
2.00
7.30
10°
1
3
b
e1
e
0.069
0.276
0.078
0.287
10°
C
q
H
E
A
q
0.08 (0003)
STYLE 1:
A1
PIN 1. BASE
2. COLLECTOR
3. EMITTER
L
L1
4. COLLECTOR
SOLDERING FOOTPRINT*
3.8
0.15
2.0
0.079
6.3
0.248
2.3
0.091
2.3
0.091
2.0
0.079
mm
inches
1.5
0.059
ǒ
Ǔ
SCALE 6:1
*For additional information on our PbFree strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/PatentMarking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 8002829855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81358171050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 3036752175 or 8003443860 Toll Free USA/Canada
Fax: 3036752176 or 8003443867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
