8S89834AKILFT

型号：

8S89834AKILFT

描述：

低偏移， 2至4 LVCMOS / LVTTL - TO- LVPECL / ECL时钟多路复用器[ Low Skew, 2-to-4 LVCMOS/LVTTL-to-LVPECL/ECL Clock Multiplexer ]

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

17 页

PDF大小：

735 K

下载PDF手册

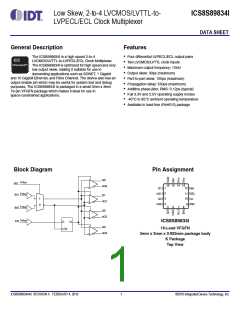

Low Skew, 2-to-4 LVCMOS/LVTTL-to-
LVPECL/ECL Clock Multiplexer
ICS8S89834I
DATA SHEET
General Description
Features
The ICS8S89834I is a high speed 2-to-4
• Four differential LVPECL/ECL output pairs
• Two LVCMOS/LVTTL clock inputs
• Maximum output frequency: 1GHz
• Output skew: 30ps (maximum)
S
IC
LVCMOS/LVTTL-to-LVPECL/ECL Clock Multiplexer.
The ICS8S89834I is optimized for high speed and very
low output skew, making it suitable for use in
demanding applications such as SONET, 1 Gigabit
HiPerClockS™
and 10 Gigabit Ethernet, and Fibre Channel. The device also has an
output enable pin which may be useful for system test and debug
purposes. The ICS8S89834I is packaged in a small 3mm x 3mm
16-pin VFQFN package which makes it ideal for use in
space-constrained applications.
• Part-to-part skew: 100ps (maximum)
• Propagation delay: 550ps (maximum)
• Additive phase jitter, RMS: 0.12ps (typical)
• Full 3.3V and 2.5V operating supply modes
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package
Pin Assignment
Block Diagram
Q0
Pullup
SEL
16 15 14 13
nQ0
1
2
3
Q1
nQ1
Q2
12
11
10
IN1
SEL
nc
Pullup
IN1
IN2
EN
Q1
1
0
nQ1
nQ2
4
IN2
9
Pullup
Pullup
5
6
7
8
Q2
nQ2
ICS8S89834I
D
Q
Q3
16-Lead VFQFN
CK
nQ3
3mm x 3mm x 0.925mm package body
K Package
Top View
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
1
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Table 1. Pin Descriptions
Number
1, 2
Name
Type
Description
Q1, nQ1
Q2, nQ2
Q3, nQ3
Output
Output
Output
Differential output pair. LVPECL/ECL interface levels.
Differential output pair. LVPECL/ECL interface levels.
Differential output pair. LVPECL/ECL interface levels.
3, 4
5, 6
7, 14
Vcc
Power
Positive supply pins.
Synchronizing clock enable. When LOW, Q outputs will go LOW and nQ outputs will
go HIGH on the next LOW transition at IN inputs. Input threshold is VCC/2V. Includes a
37kΩ pullup resistor. Default state is HIGH when left floating. The internal latch is
clocked on the falling edge of the input signal IN1, IN2.
8
EN
Input
Input
Pullup
Pullup
LVTTL/LVCMOS interface levels.
9
IN2
nc
Single-ended clock input. LVCMOS/LVTTL interface levels.
No connect.
10
Unused
Select clock input. When LOW, selects IN2 and when HIGH selects IN1.
LVCMOS/LVTTL interface levels.
11
SEL
Input
Pullup
Pullup
12
13
IN1
VEE
Input
Power
Output
Single-ended clock input. LVCMOS/LVTTL interface levels.
Negative supply pin.
15, 16
Q0, nQ0
Differential output pair. LVPECL/ECL interface levels.
NOTE: Pullup refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
RPULLUP
Input Pullup Resistor
37
kΩ
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
2
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Function Tables
Table 3A. Control Input Function Table
Inputs
Outputs
EN
0
Selected Source
IN1, IN2
Q[0:3]
Disabled; LOW
Enabled
nQ[0:3]
Disabled; HIGH
Enabled
1
IN1, IN2
NOTE: EN switches, the clock outputs are disabled or enabled following a falling input
clock edge as shown in Figure 1.
Enabled
Disabled
IN1, IN2
EN
nQx
Qx
Figure 1. EN Timing Diagram
Table 3B. Truth Table
Inputs
Outputs
IN1, IN2
IN1, IN2
EN
1
Q[0:3]
nQ[0:3]
0
1
X
X
0
0
1
1
1
0
X
X
X
1
0
1
1
0
1
1
X
0
0(NOTE 1)
1(NOTE 1)
NOTE 1: On next negative transition of the input signal (IN).
Table 3C. SEL Control Function Table
SEL
0
Input Selected
IN2
IN1
1
.
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
3
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Negative Supply Voltage, VEE
Inputs, VI (LVPECL mode)
Inputs, VI (ECL mode)
4.6V (LVPECL mode, VEE = 0V)
-4.6V (ECL mode, VCC = 0V)
-0.5V to VCC + 0.5V
0.5V to VEE - 0.5V
Outputs, IO
Continuos Current
Surge Current
50mA
100mA
Operating Temperature Range, TA
-40°C to +85°C
74.7°C/W (0 mps)
-65°C to 150°C
Package Thermal Impedance, θJA, (Junction-to-Ambient)
Storage Temperature, TSTG
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VCC = 3.3V 10%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
VCC Positive Supply Voltage
IEE Power Supply Current
Test Conditions
Minimum
Typical
Maximum
3.63
Units
V
2.97
3.3
52
mA
Table 4B. Power Supply DC Characteristics, VCC = 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
VCC Positive Supply Voltage
IEE Power Supply Current
Test Conditions
Minimum
Typical
Maximum
2.625
52
Units
V
2.375
2.5
mA
Table 4C. LVCMOS/LVTTL DC Characteristics, VCC = 2.5V 5% or 3.3V 10%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
2.2
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
VCC = 3.3V
VCC = 2.5V
VCC = 3.3V
VIH
VIL
Input High Voltage
1.7
V
-0.3
V
Input Low Voltage
VCC = 2.5V
-0.3
0.7
V
IIH
IIL
Input High Current
Input Low Current
VCC = VIN = 3.63V or 2.625V
VCC = 3.63V or 2.625V, VIN = 0V
10
µA
µA
-150
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
4
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Table 4D. LVPECL DC Characteristics, VCC = 3.3V 10% or 2.5V 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCC – 1.145
VCC – 1.945
0.6
Typical
Maximum
VCC – 0.80
VCC – 1.60
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Output Voltage Swing
V
V
V
V
VOL
VOUT
VDIFF_OUT Differential Output Voltage Swing
1.2
2.0
NOTE 1: Outputs terminated with 50Ω to VCC - 2V.
AC Electrical Characteristics
Table 5. AC Characteristics, VCC = 2.5V 5% or or 3.3V 10%, TA = -40°C to 85°C
Symbol Parameter
fMAX Maximum Frequency
tPLH
Test Conditions
Minimum
Typical
Maximum
1
Units
GHz
ps
Propagation Delay; Low-to-High; NOTE 1
Propagation Delay; High-to-Low; NOTE 1
250
300
300
550
tPHL
550
ps
tSW
Switchover Time
SEL to Q
550
ps
tsk(o)
tsk(pp)
Output Skew; NOTE 2, 3
30
ps
Part-to-Part Skew; NOTE 3, 4
100
ps
200MHz
Integration Range:
(12kHz - 20MHz)
Buffer Additive Phase Jitter, RMS; refer to
Additive Phase Jitter Section
tjit
0.12
ps
tS
Clock Enable Setup Time
Clock Enable Hold Time
Output Rise/Fall Time
EN to IN1, IN2
EN to IN1, IN2
300
500
50
ps
ps
ps
%
tH
tR / tF
20% to 80%
250
52
fMAX < 622MHz
48
odc
Output Duty Cycle
f
MAX ≥ 622MHz
45
55
%
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device
is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
All parameters are measured at ≤ 1GHz unless otherwise noted.
NOTE 1: Measured from VCC/2 of the input to the differential output crossing point.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at the output differential cross points.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency and with equal load
conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
5
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Additive Phase Jitter @ 200MHz
12kHz to 20MHz = 0.12ps (typical)
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements has
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device. This
is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
The source generator "IFR2042 10kHz – 56.4GHz Low Noise Signal
Generator as external input to an Agilent 8133A 3GHz Pulse
Generator".
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
6
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
V
Qx
V
Qx
CC
CC
LVPECL
LVPECL
nQx
nQx
VEE
VEE
-1.3V 0.33V
-0.5V 0.125V
3.3V LVPECL Output Load AC Test Circuit
2.5V LVPECL Output Load AC Test Circuit
nQx
Qx
Part 1
nQx
Qx
nQy
Part 2
nQy
Qy
Qy
tsk(o)
tsk(pp)
Part-to-Part Skew
Output Skew
VDD
2
IN1, IN2
IN1, IN2
EN
tSET-UP
tHOLD
nQ0:nQ3
Q0:Q3
tpLH
tpHL
Setup & Hold Time
Propagation Delay
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
7
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Parameter Measurement Information, continued
IN1
IN2
nQ0:nQ3
80%
tF
80%
tR
VOUT
20%
20%
SEL
Q0:Q3
nQ0:nQ3
Q0:Q3
tsw
Switch Over
Output Rise/Fall Time
nQ0:nQ3
Q0:Q3
tPW
VDIFF_IN, VDIFF_OUT
VIN, VOUT
tPERIOD
1600mV
(typical)
800mV
(typical)
tPW
odc =
x 100%
tPERIOD
Output Duty Cycle/Pulse Width/Period
Differential Output Voltage Swing
Application Information
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
IN Inputs
LVPECL Outputs
For applications not requiring the use of a clock input, it can be left
floating. Though not required, but for additional protection, a 1kΩ
resistor can be tied from the IN input to ground.
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
LVCMOS Control Pins
All control pins have internal pullups; additional resistance is not
required but can be added for additional protection. A 1kΩ resistor
can be used.
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
8
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 2. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 2. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
9
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 3A and 3B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50Ω
3.3V
3.3V
R3
R4
3.3V
Zo = 50Ω
+
125Ω
125Ω
3.3V
3.3V
Z
o = 50Ω
+
_
_
Input
LVPECL
Zo = 50Ω
LVPECL
Input
R1
50Ω
R2
50Ω
Zo = 50Ω
R1
84Ω
R2
84Ω
VCC - 2V
1
RTT =
* Zo
RTT
((VOH + VOL) / (VCC – 2)) – 2
Figure 3A. 3.3V LVPECL Output Termination
Figure 3B. 3.3V LVPECL Output Termination
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
10
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Termination for 2.5V LVPECL Outputs
Figure 4A and Figure 4B show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating 50Ω
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 4B can be eliminated and the termination is
shown in Figure 4C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
R1
R3
50Ω
250
250
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
2.5V LVPECL Driver
R2
62.5
R4
62.5
R3
18
Figure 4A. 2.5V LVPECL Driver Termination Example
Figure 4B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
Figure 4C. 2.5V LVPECL Driver Termination Example
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
11
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Power Considerations
This section provides information on power dissipation and junction temperature for the ICS8S89834I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the ICS8S89834I is the sum of the core power plus the power dissipated in the load(s).
The following is the power dissipation for VCC = 3.63V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.63V * 52mA = 188.76mW
Power (outputs)MAX = 32mW w/Loaded Output pair
If all outputs are loaded, the total power is 4 * 32mW = 128mW
Total Power_MAX = (3.63V, with all outputs switching) = 188.76mW + 128mW = 316.76mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = θJA * Pd_total + TA
Tj = Junction Temperature
θJA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance θJA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.317W * 74.7°C/W = 108.7°C. This is well below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance θJA for 16 Lead VFQFN, Forced Convection
θJA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
12
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pairs.
LVPECL output driver circuit and termination are shown in Figure 5.
VCC
Q1
VOUT
RL
50Ω
VCC - 2V
Figure 5. LVPECL Driver Circuit and Termination
To calculate worst case power dissipation into the load, use the following equations which assume a 50Ω load, and a termination voltage of
VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.80V
(VCC_MAX – VOH_MAX) = 0.80V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.60V
(VCC_MAX – VOL_MAX) = 1.60V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX– (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.80V)/50Ω] * 0.80V = 19.20mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCO_MAX – VOL_MAX) =
[(2V – 1.60V)/50Ω] * 1.60V = 12.80mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 32mW
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
13
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Reliability Information
Table 6. θJA vs. Air Flow Table for a 16 Lead VFQFN
θJA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for ICS8S89834I is: 351
This device is pin and function compatible and a suggested replacement for ICS889834.
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
14
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Package Outline and Package Dimensions
Package Outline - K Suffix for 16 Lead VFQFN
(Ref.)
Seating Plane
ND& NE
Even
(ND-1)x e
(R ef.)
A1
Index Area
L
A3
E2
e
2
N
N
(Typ.)
If ND & NE
are Even
1
Anvil
Singulation
or
Sawn
Singulation
2
(NE -1)x e
(Re f.)
E2
2
Top View
D
b
e
Thermal
Base
A
(Ref.)
ND &NE
Odd
D2
2
0. 08
C
Chamfer 4x
0.6 x 0.6 max
OPTIONAL
D2
C
Bottom View w/Type A ID
Bottom View w/Type B ID
Bottom View w/Type C ID
4
2
1
2
1
2
1
CHAMFER
RADIUS
N N-1
N N-1
DD
N N-1
4
4
4
There are 3 methods of indicating pin 1 corner
at the back of the VFQFN package are:
1. Type A: Chamfer on the paddle (near pin 1)
2. Type B: Dummy pad between pin 1 and N.
4
AA
4
3. Type C: Mouse bite on the paddle (near pin 1)
Table 7. Package Dimensions
JEDEC Variation: VEED-2/-4
All Dimensions in Millimeters
Symbol
Minimum
Maximum
N
16
A
0.80
0
1.00
0.05
A1
A3
0.25 Ref.
b
ND & NE
D & E
D2 & E2
e
0.18
0.30
4
3.00 Basic
1.00
0.30
1.80
0.50 Basic
L
0.50
Reference Document: JEDEC Publication 95, MO-220
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
15
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
Ordering Information
Table 8. Ordering Information
Part/Order Number
8S89834AKILF
8S89834AKILFT
Marking
834A
834A
Package
“Lead-Free” 16 Lead VFQFN
“Lead-Free” 16 Lead VFQFN
Shipping Packaging
Tube
2500 Tape & Reel
Temperature
-40°C to 85°C
-40°C to 85°C
NOTE: Parts that are ordered with an "LF" suffix to the part number are the Pb-Free configuration and are RoHS compliant.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes no responsibility for either its use or for the
infringement of any patents or other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal
commercial and industrial applications. Any other applications, such as those requiring high reliability or other extraordinary environmental requirements are not recommended without
additional processing by IDT. IDT reserves the right to change any circuitry or specifications without notice. IDT does not authorize or warrant any IDT product for use in life support
devices or critical medical instruments.
ICS8S89834AKI REVISION A FEBRUARY 4, 2010
16
©2010 Integrated Device Technology, Inc.
ICS8S89834I Data Sheet
LOW SKEW, 2-TO-4 LVCMOS/LVTTL-TO-LVPECL/ECL CLOCK MULTIPLEXER
6024 Silver Creek Valley Road Sales
Technical Support
800-345-7015 (inside USA)
netcom@idt.com
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
San Jose, California 95138
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to significantly affect the health or safety of users. Anyone using an IDT
product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2010. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		8S89200 [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILF [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILFT [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89202 [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILF [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILFT [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89296 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI8 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89831AKILF [ Differential LVPECL-To-LVPECL/ECL Fanout Buffer ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.191911s
