8S89200

型号：

8S89200

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

20 页

PDF大小：

428 K

下载PDF手册

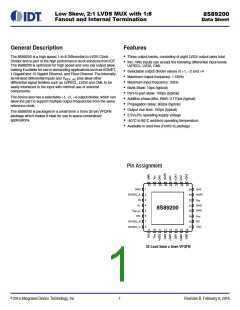

Low Skew, 2:1 LVDS MUX with 1:8
Fanout and Internal Termination
8S89200
Data Sheet
General Description
Features
The 8S89200 is a high speed 1-to-8 Differential-to-LVDS Clock
Divider and is part of the high performance clock solutions from IDT.
The 8S89200 is optimized for high speed and very low output skew,
making it suitable for use in demanding applications such as SONET,
1 Gigabit and 10 Gigabit Ethernet, and Fibre Channel. The internally
terminated differential inputs and VREF_AC pins allow other
differential signal families such as LVPECL, LVDS and CML to be
easily interfaced to the input with minimal use of external
components.
• Three output banks, consisting of eight LVDS output pairs total
• INx, nINx inputs can accept the following differential input levels:
LVPECL, LVDS, CML
• Selectable output divider values of ÷1, ÷2 and ÷4
• Maximum output frequency: 1.5GHz
• Maximum input frequency: 3GHz
• Bank Skew: 10ps (typical)
• Part-to-part skew: 100ps (typical)
• Additive phase jitter, RMS: 0.170ps (typical)
• Propagation delay: 802ps (typical)
• Output rise time: 150ps (typical)
• 2.5V 5% operating supply voltage
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package
The device also has a selectable ÷1, ÷2, ÷4 output divider, which can
allow the part to support multiple output frequencies from the same
reference clock.
The 8S89200 is packaged in a small 5mm x 5mm 32-pin VFQFN
package which makes it ideal for use in space-constrained
applications.
Pin Assignment
32 31 30 29 28 27 26 25
1
2
3
4
5
6
7
8
QA3
nQA3
VDD
GND
24
23
22
DIVSEL_A
IN
VT
GND
GND
VDD
21
20
8S89200
VREF_AC
nIN
19
18
17
DIVSEL_B
DIVSEL_C
QC
nQC
9
10 11 12 13 14 15 16
32-Lead 5mm x 5mm VFQFN
©2016 Integrated Device Technology, Inc
1
Revision B February 8, 2016
Block Diagram
Pullup
QA0
DIVSEL_A
nQA0
QA1
÷1
÷2
÷4
÷1
÷2
nQA1
IN
QA2
R
=50
=50
IN
VT
nQA2
R
IN
nIN
QA3
nQA3
Pullup
Pullup
EN
nMR
QB0
nQB0
VREF_AC
÷2
÷4
QB1
nQB1
QB2
nQB2
Pullup
DIVSEL_B
÷2
÷4
QC
nQC
Pullup
DIVSEL_C
8S89200 Data Sheet
Table 1. Pin Descriptions
Number
Name
Type
Description
1, 20, 21
GND
Power
Input
Ground supply pins.
Output divider select pin. Controls output divider settings for Bank A.
See Table 3 for additional information. LVCMOS/LVTTL interface levels.
2
DIVSEL_A
Pullup
3
4
5
6
Input
Input
Non-inverting differential LVPECL clock input. RIN = 50termination to VT.
Termination center-tap input.
IN
VT
Output
Input
Reference voltage for AC-coupled applications.
VREF_AC
nIN
Inverting differential LVPECL clock input. RIN = 50termination to VT.
Output divider select pin. Controls output divider settings for Bank B.
See Table 3 for additional information. LVCMOS/LVTTL interface levels.
7
8
9
Input
Input
Input
Pullup
Pullup
Pullup
DIVSEL_B
DIVSEL_C
EN
Output divider select pin. Controls output divider settings for Bank C.
See Table 3 for additional information. LVCMOS/LVTTL interface levels.
Output enable pin. See Table 3 for additional information.
LVCMOS/LVTTL interface levels.
10, 19, 22, 31
11, 12
VDD
Power
Output
Output
Output
Output
Output
Output
Output
Output
Positive supply pins.
nQB2, QB2
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
Differential output pair. LVDS interface levels.
13, 14
nQB1, QB1
nQB0, QB0
15, 16
17, 18
nQC, QC
23, 24
nQA3, QA3
25, 26
nQA2, QA2
nQA1, QA1
27, 28
29, 30
nQA0, QA0
nMR
Master Reset. See Table 3 for additional information.
LVCMOS/LVTTL interface levels.
32
Input
Pullup
NOTE: Pullup refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
Input Pullup Resistor
2
RPULLUP
25
k
©2016 Integrated Device Technology, Inc
3
Revision B February 8, 2016
8S89200 Data Sheet
Function Tables
Table 3. SEL Function Table
nMR
EN
n/a
0
DIVSEL_A
DIVSEL_B
DIVSEL_C
Output Bank A
Output Bank B
Output Bank C
0
1
1
1
n/a
n/a
0
n/a
n/a
0
n/a
n/a
0
0
0
0
0
0
0
1
÷1
÷2
÷2
÷4
÷2
÷4
1
1
1
1
ꢀ
ꢂ
ꢄ
ꢃ
Q,1
,1
W55
Q05
9''ꢅꢂ
Q05ꢁDV\QFKURQRXVO\ꢁUHVHWVꢁWKHꢁRXWSXWV
(1
Q4
¤
W3'ꢅ05ꢈ4
·ꢀꢁ2XWSXW
4
Q4
·ꢂꢁ2XWSXW
4
Q4
ꢁ·ꢃꢁ2XWSXW
4
2XWSXWVꢁJRꢁ+,*+ꢁVLPXOWDQHRXVO\ꢁDIWHUꢁꢃꢁFRPSOHWHꢁLQSXWꢁFORFNꢁꢆ,1ꢇꢁSHULRGVꢁDIWHUꢁQ05ꢁLVꢁGHꢈDVVHUWHG
Figure 1A. Reset with Output Enabled
©2016 Integrated Device Technology, Inc
4
Revision B February 8, 2016
8S89200 Data Sheet
1
2
3
4
nIN
IN
VDD/2
Enabled asserted
EN
nQ
÷1 Output
Q
nQ
÷2 Output
Q
nQ
÷4 Output
Q
Outputs go HIGH simultaneously after EN is asserted.
The number of IN clock cycles after EN is asserted before
the outputs go HIGH varies from 2 to 6 cycles (4 cycles shown).
Figure 1B. Enabled Timing
©2016 Integrated Device Technology, Inc
5
Revision B February 8, 2016
8S89200 Data Sheet
1
2
3
4
nIN
IN
EN
VDD/2
Enabled de-asserted to disable Q[0:7] outputs
nQ
÷1 Output
Q
nQ
÷2 Output
Q
Q
÷4 Output
nQ
Outputs go LOW in output sequence after EN is de-asserted.
The ÷4, ÷2 and ÷1 outputs go LOW in that order.
The number of IN clock cycles after EN is de-asserted
varies from 2 to 6 cycles (4 cycles shown).
Figure 1C. Disabled Timing
©2016 Integrated Device Technology, Inc
6
Revision B February 8, 2016
8S89200 Data Sheet
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VDD
Inputs, VI
4.6V
-0.5V to VDD + 0.5V
Outputs, IO
Continuous Current
Surge Current
10mA
15mA
Input Current, IN, nIN
50mA
VT Current, IVT
100mA
Input Sink/Source, IREF_AC
Package Thermal Impedance, JA
Storage Temperature, TSTG
2mA
42.7C/W (0 mps)
-65C to 150C
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol Parameter
VDD Positive Supply Voltage
IDD Power Supply Current
Test Conditions
Minimum
Typical
2.5
Maximum
2.625
Units
V
2.375
280
311
mA
Table 4B. LVCMOS/LVTTL DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol
VIH
Parameter
Test Conditions
Minimum
1.7
Typical
Maximum
VDD + 0.3
0.7
Units
V
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
VIL
-0.3
V
IIH
VDD = VIN = 2.625V
-125
20
µA
uA
IIL
VDD = 2.625V, VIN = 0V
-300
Table 4C. Differential DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
RIN
VIH
VIL
VIN
Input Resistance
IN, nIN
IN, nIN
IN, nIN
IN to VT, nIN to VT
50
V
V
V
V
V
Input High Voltage
Input Low Voltage
Input Voltage Swing
0.15
0
VDD + 0.3
VDD – 0.15
1.2
0.15
VDIFF_IN Differential Input Voltage Swing
VREF_AC Bias Voltage
0.3
2.4
VDD – 1.34
VDD – 1.3
VDD – 1.18
©2016 Integrated Device Technology, Inc
7
Revision B February 8, 2016
8S89200 Data Sheet
Table 4D. LVDS DC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol Parameter Test Conditions
Minimum
Typical
Maximum
Units
mV
mV
V
VOD
Differential Output Voltage
312
375
483
50
VOD
VOS
VOD Magnitude Change
Offset Voltage
1.14
1.25
1.40
50
VOS
VOS Magnitude Change
mV
AC Electrical Characteristics
Table 5. AC Characteristics, VDD = 2.5V 5%, TA = -40°C to 85°C
Symbol Parameter
fOUT Output Frequency
fIN
Test Conditions
Minimum
Typical
Maximum
1.5
Units
GHz
GHz
ps
Input Frequency
3
IN to Qx
650
500
802
725
10
80
935
965
55
tPD
Propagation Delay; NOTE 1
nMR to Qx
ps
tsk(b)
tsk(w)
tsk(o)
tsk(pp)
Bank to Bank Skew; NOTE 2, 3
Bank to Bank Skew; NOTE 2, 3
Within-Bank Skew; NOTE 2, 4
Part-to-Part Skew; NOTE 2, 5
Same divide setting
Different divide setting
Within same fanout bank
ps
150
25
ps
4
ps
250
ps
Buffer Additive Phase Jitter, RMS;
refer to Additive Phase Jitter section
156.25MHz, Integration Range:
12kHz to 20MHz
tjit
0.170
150
0.214
210
ps
ps
tR / tF
Output Rise/Fall Time
20% to 80%
80
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: Measured from the differential input crossing point to the differential output crossing point.
NOTE 2: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 3: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the output differential
cross points.
NOTE 4: Defined as skew within a bank of outputs at the same voltage and with equal load conditions.
NOTE 5: Defined as skew between outputs on different devices operating at the same supply voltage, same temperature, same frequency and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
©2016 Integrated Device Technology, Inc
8
Revision B February 8, 2016
8S89200 Data Sheet
Additive Phase Jitter
The spectral purity in a band at a specific offset from the
fundamental. When the required offset is specified, the phase noise
is called a dBc value, which simply means dBm at a specified offset
from the fundamental. By investigating jitter in the frequency
domain, we get a better understanding of its effects on the desired
application over the entire time record of the signal. It is
mathematically possible to calculate an expected bit error rate given
a phase noise plot.
fundamental compared to the power of the fundamental is called the
dBc Phase Noise. This value is normally expressed using a Phase
noise plot and is most often the specified plot in many applications.
Phase noise is defined as the ratio of the noise power present in a
1Hz band at a specified offset from the fundamental frequency to the
power value of the fundamental. This ratio is expressed in decibels
(dBm) or a ratio of the power in the 1Hz band to the power in the
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements has
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device.
This is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
Measured using a Rohde & Schwarz SMA100 as the input source.
©2016 Integrated Device Technology, Inc
9
Revision B February 8, 2016
8S89200 Data Sheet
Parameter Measurement Information
V
CC
nIN
IN
V
DD
VIN
VIH
Cross Points
VIL
V
EE
Output Load AC Test Circuit
Input Levels
nQAx,
nQBx, nQC
nIN
IN
80%
80%
tR
VOD
20%
nQAx,
nQBx, nQC
QAx,
QBx, QC
20%
tF
QAx,
QBx, QC
tPD
Propagation Delay
Output Rise/Fall Time
Offset Voltage Setup
Differential Output Voltage Setup
©2016 Integrated Device Technology, Inc
10
Revision B February 8, 2016
8S89200 Data Sheet
Parameter Measurement Information, continued
Part 1
Part 2
nQx
Qx
nQx
Qx
nQy
Qy
nQy
Qy
tsk(pp)
Within Bank Skew
Part-to-Part Skew
nQXx
QXx
nQXx
QXx
nQXy
QXy
nQXy
QXy
tsk(b)
tsk(ω)
Where X = Bank A, Bank B or Bank C
Bank to Bank Skew (same divide setting)
Bank to Bank (different divide settings)
VDIFF_IN
VIN
Differential Voltage Swing = 2 x Single-ended VIN
Single-Ended & Differential Input Swing
©2016 Integrated Device Technology, Inc
11
Revision B February 8, 2016
8S89200 Data Sheet
Applications Information
2.5V LVPECL Input with Built-In 50Termination Interface
The IN/nIN with built-in 50terminations accept LVDS, LVPECL,
CML and other differential signals. Both signals must meet the VIN
and VIH input requirements. Figures 2A to 2D show interface
examples for the IN/nIN with built-in 50termination input driven by
the most common driver types. The input interfaces suggested here
are examples only. If the driver is from another vendor, use their
termination recommendation. Please consult with the vendor of the
driver component to confirm the driver termination requirements.
Figure 2A. IN/nIN Input with Built-In 50
Figure 2B. IN/nIN Input with Built-In 50
Driven by an LVDS Driver
Driven by an LVPECL Driver
Figure 2D. IN/nIN Input with Built-In 50Driven by a
CML Driver with Built-In 50Pullup
Figure 2C. IN/nIN Input with Built-In 50
Driven by a CML Driver
©2016 Integrated Device Technology, Inc
12
Revision B February 8, 2016
8S89200 Data Sheet
LVDS Driver Termination
For a general LVDS interface, the recommended value for the
termination impedance (ZT) is between 90and 132. The actual
value should be selected to match the differential impedance (Z0) of
your transmission line. A typical point-to-point LVDS design uses a
100parallel resistor at the receiver and a 100differential
transmission-line environment. In order to avoid any
transmission-line reflection issues, the components should be
surface mounted and must be placed as close to the receiver as
possible. IDT offers a full line of LVDS compliant devices with two
types of output structures: current source and voltage source. The
standard termination schematic as shown in Figure 3A can be used
with either type of output structure. Figure 3B, which can also be
used with both output types, is an optional termination with center
tap capacitance to help filter common mode noise. The capacitor
value should be approximately 50pF. If using a non-standard
termination, it is recommended to contact IDT and confirm if the
output structure is current source or voltage source type. In addition,
since these outputs are LVDS compatible, the input receiver’s
amplitude and common-mode input range should be verified for
compatibility with the output.
ZO ZT
LVDS
Receiver
LVDS
Driver
ZT
Figure 3A. Standard Termination
ZT
2
ZO ZT
LVDS
Driver
LVDS
ZT Receiver
C
2
Figure 3B. Optional Termination
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
LVCMOS Select Pins
LVDS Outputs
All control pins have internal pullups; additional resistance is not
required but can be added for additional protection. A 1kresistor
can be used.
All unused LVDS output pairs can be either left floating or terminated
with 100across. If they are left floating, we recommend that there
is no trace attached.
©2016 Integrated Device Technology, Inc
13
Revision B February 8, 2016
8S89200 Data Sheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
/Electrically Enhance Leadframe Base Package, Amkor Technology.
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
©2016 Integrated Device Technology, Inc
14
Revision B February 8, 2016
8S89200 Data Sheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8S89200.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8S89200 is the sum of the core power plus the power dissipated in the load(s). The following is the power
dissipation for VDD = 2.5V + 5% = 2.625V, which gives worst case results.
The maximum current at 85°C is as follows:
IDD_MAX = 281mA
•
•
Power (core)MAX = VDD_MAX * IDD_MAX = 2.625V * 311mA = 816.375mW
Power Dissipation for internal termination RT
Power (RT)MAX = (VIN_MAX)2 / RT_MIN = (1.2V)2 / 80= 18mW
Total Power_MAX = (2.625V, with all outputs switching) = 816.375mW + 18mW = 816.393mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 42.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.816W * 42.7°C/W = 120°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance JA for 32 Lead VFQFN, Forced Convection
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
42.7°C/W
37.3°C/W
33.5°C/W
©2016 Integrated Device Technology, Inc
15
Revision B February 8, 2016
8S89200 Data Sheet
Reliability Information
Table 7. JA vs. Air Flow Table for a 32 Lead VFQFN
JA vs. Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
42.7°C/W
37.3°C/W
33.5°C/W
Transistor Count
The transistor count for 8S89200: 689
©2016 Integrated Device Technology, Inc
16
Revision B February 8, 2016
8S89200 Data Sheet
32 Lead VFQFN Package Outline and Package Dimensions
Package Outline - K Suffix for 32 Lead VFQFN
(Ref.)
N & N
Even
Seating Plane
(N -1)x e
(Ref.)
A1
IndexArea
L
A3
E2
e
2
N
N
(Ty p.)
If N & N
are Even
Anvil
1
Singulation
2
(N -1)x e
(Re f.)
E2
2
TopView
D
b
e
Thermal
Base
A
(Ref.)
D2
2
N & N
Odd
0. 08
C
Chamfer 4x
0.6 x 0.6 max
OPTIONAL
D2
C
Bottom View w/Type A ID
Bottom View w/Type C ID
2
1
2
1
CHAMFER
RADIUS
N N-1
N N-1
4
4
There are 2 methods of indicating pin 1 corner at the back of the VFQFN package:
1. Type A: Chamfer on the paddle (near pin 1)
2. Type C: Mouse bite on the paddle (near pin 1)
NOTE: The following package mechanical drawing is a generic
drawing that applies to any pin count VFQFN package. This drawing
is not intended to convey the actual pin count or pin layout of this
device. The pin count and pin-out are shown on the front page. The
package dimensions are in Table 8.
Table 8. Package Dimensions
JEDEC Variation: VHHD-2/-4
All Dimensions in Millimeters
Symbol
Minimum
Nominal
Maximum
N
32
A
0.80
0
1.00
0.05
A1
A3
0.25 Ref.
0.25
b
ND & NE
D & E
D2 & E2
e
0.18
0.30
8
5.00 Basic
3.0
3.3
0.50 Basic
0.40
L
0.30
0.50
Reference Document: JEDEC Publication 95, MO-220
©2016 Integrated Device Technology, Inc
17
Revision B February 8, 2016
8S89200 Data Sheet
Ordering Information
Table 9. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Tray
Temperature
-40C to 85C
-40C to 85C
8S89200BKILF
8S89200BKILFT
ICS89200BIL
ICS89200BIL
32 Lead VFQFN, Lead-Free
32 Lead VFQFN, Lead-Free
Tape & Reel
Tape & Reel Pin 1
Orientation: EIA-481-D
8S89200BKILF/W
ICS89200BIL
32 Lead VFQFN, Lead-Free
-40C to 85C
Table 10. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
LFT
Quadrant 1 (EIA-481-C)
USER DIRECTION OF FEED
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
LF/W
Quadrant 2 (EIA-481-D)
USER DIRECTION OF FEED
©2016 Integrated Device Technology, Inc
18
Revision B February 8, 2016
8S89200 Data Sheet
Revision History Sheet
Rev
Table
Page
Description of Change
Date
T9
T10
18
18
Ordering information Table - added additional row.
Added Pin 1 Orientation in Tape & Reel Packaging Table.
Updated header/footer throughout the data sheet.
B
06/08/2015
T9
18
Ordering Information - removed LF note below table.
Updated header and footer.
B
2/8/16
©2016 Integrated Device Technology, Inc
19
Revision B February 8, 2016
8S89200 Data Sheet
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
www.idt.com/go/support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
DISCLAIMER Integrated Device Technology, Inc. (IDT) reserves the right to modify the products and/or specifications described herein at any time, without notice, at IDT's sole discretion. Performance specifications
and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein
is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any particular purpose, an implied warranty of merchantability,
or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary.
Copyright ©2016 Integrated Device Technology, Inc. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		8S89200BKILF [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILFT [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89202 [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILF [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILFT [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89296 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI8 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89831AKILF [ Differential LVPECL-To-LVPECL/ECL Fanout Buffer ] 21 页

IDT

 		8S89831AKILFT [ Differential LVPECL-To-LVPECL/ECL Fanout Buffer ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.200059s
