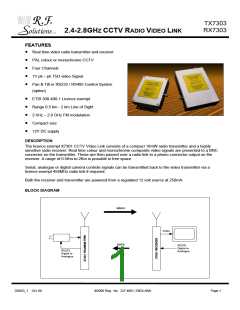

TX7303
RX7303
2.4-2.8GHZ CCTV RADIO VIDEO LINK
FEATURES
·
·
·
·
·
Real time video radio transmitter and receiver
PAL colour or monochrome CCTV
Four Channels
1V pk – pk 75W video Signal
Pan & Tilt or RS232 / RS485 Control System
(option)
·
·
·
·
·
ETSI 300-400-1 Licence exempt
Range 0.5 km - 2 km Line of Sight
2.4Hz – 2.8 GHz FM modulation
Compact size
12V DC supply
DESCRIPTION
The licence exempt X7301 CCTV Video Link consists of a compact 10mW radio transmitter and a highly
sensitive radio receiver. Real time colour and monochrome composite video signals are presented to a BNC
connector on the transmitter. These are then passed over a radio link to a phono connector output on the
receiver. A range of 0.5Km to 2Km is possible in free space.
Serial, analogue or digital camera controls signals can be transmitted back to the video transmitter via a
licence exempt 458MHz radio link if required.
Both the receiver and transmitter are powered from a regulated 12 volt source at 250mA.
BLOCK DIAGRAM
VIDEO
Video
DATA
RS232,
Digital or
Analogue
RS232,
Digital or
Analogue
DS053_1 Oct ’00
©2000 Reg. No. 227 4001, ENGLAND
Page 1
