RX77016

型号：

RX77016

描述：

RX77016配置工具|用户手册[ 10/2000 ][ RX77016 Configuration Tool | User＇s Manual[10/2000] ]

品牌：

ETC[ ETC ]

页数：

47 页

PDF大小：

235 K

下载PDF手册

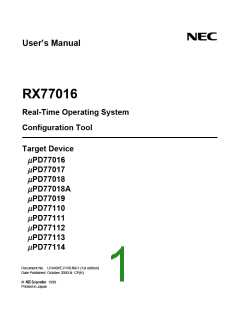

User’s Manual
RX77016
Real-Time Operating System
Configuration Tool
Target Device
µPD77016
µPD77017
µPD77018
µPD77018A
µPD77019
µPD77110
µPD77111
µPD77112
µPD77113
µPD77114
Document No. U14404EJ1V0UMJ1 (1st edition)
Date Published October 2000 N CP(K)
©
1999
Printed in Japan
[MEMO]
2
User’s Manual U14404EJ1V0UM00
Windows is either a registered trademark or a trademark of Microsoft Corporation in the United States
and/or other countries.
3
User’s Manual U14404EJ1V0UM00
•
The information in this document is current as of October, 1999. The information is subject to
change without notice. For actual design-in, refer to the latest publications of NEC's data sheets or
data books, etc., for the most up-to-date specifications of NEC semiconductor products. Not all
products and/or types are available in every country. Please check with an NEC sales representative
for availability and additional information.
•
•
No part of this document may be copied or reproduced in any form or by any means without prior
written consent of NEC. NEC assumes no responsibility for any errors that may appear in this document.
NEC does not assume any liability for infringement of patents, copyrights or other intellectual property rights of
third parties by or arising from the use of NEC semiconductor products listed in this document or any other
liability arising from the use of such products. No license, express, implied or otherwise, is granted under any
patents, copyrights or other intellectual property rights of NEC or others.
•
•
•
Descriptions of circuits, software and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these
circuits, software and information in the design of customer's equipment shall be done under the full
responsibility of customer. NEC assumes no responsibility for any losses incurred by customers or third
parties arising from the use of these circuits, software and information.
While NEC endeavours to enhance the quality, reliability and safety of NEC semiconductor products, customers
agree and acknowledge that the possibility of defects thereof cannot be eliminated entirely. To minimize
risks of damage to property or injury (including death) to persons arising from defects in NEC
semiconductor products, customers must incorporate sufficient safety measures in their design, such as
redundancy, fire-containment, and anti-failure features.
NEC semiconductor products are classified into the following three quality grades:
"Standard", "Special" and "Specific". The "Specific" quality grade applies only to semiconductor products
developed based on a customer-designated "quality assurance program" for a specific application. The
recommended applications of a semiconductor product depend on its quality grade, as indicated below.
Customers must check the quality grade of each semiconductor product before using it in a particular
application.
"Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
and visual equipment, home electronic appliances, machine tools, personal electronic equipment
and industrial robots
"Special": Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
"Specific": Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems and medical equipment for life support, etc.
The quality grade of NEC semiconductor products is "Standard" unless otherwise expressly specified in NEC's
data sheets or data books, etc. If customers wish to use NEC semiconductor products in applications not
intended by NEC, they must contact an NEC sales representative in advance to determine NEC's willingness
to support a given application.
(Note)
(1) "NEC" as used in this statement means NEC Corporation and also includes its majority-owned subsidiaries.
(2) "NEC semiconductor products" means any semiconductor product developed or manufactured by or for
NEC (as defined above).
M8E 00. 4
4
User’s Manual U14404EJ1V0UM00
Regional Information
Some information contained in this document may vary from country to country. Before using any NEC
product in your application, pIease contact the NEC office in your country to obtain a list of authorized
representatives and distributors. They will verify:
•
•
•
•
•
Device availability
Ordering information
Product release schedule
Availability of related technical literature
Development environment specifications (for example, specifications for third-party tools and
components, host computers, power plugs, AC supply voltages, and so forth)
•
Network requirements
In addition, trademarks, registered trademarks, export restrictions, and other legal issues may also vary
from country to country.
NEC Electronics Inc. (U.S.)
Santa Clara, California
Tel: 408-588-6000
800-366-9782
NEC Electronics (Germany) GmbH NEC Electronics Hong Kong Ltd.
Benelux Office
Hong Kong
Eindhoven, The Netherlands
Tel: 040-2445845
Tel: 2886-9318
Fax: 2886-9022/9044
Fax: 408-588-6130
800-729-9288
Fax: 040-2444580
NEC Electronics Hong Kong Ltd.
Seoul Branch
Seoul, Korea
Tel: 02-528-0303
Fax: 02-528-4411
NEC Electronics (France) S.A.
Velizy-Villacoublay, France
Tel: 01-30-67 58 00
NEC Electronics (Germany) GmbH
Duesseldorf, Germany
Tel: 0211-65 03 02
Fax: 01-30-67 58 99
Fax: 0211-65 03 490
NEC Electronics Singapore Pte. Ltd.
United Square, Singapore
Tel: 65-253-8311
NEC Electronics (France) S.A.
Madrid Office
Madrid, Spain
NEC Electronics (UK) Ltd.
Milton Keynes, UK
Tel: 01908-691-133
Fax: 65-250-3583
Tel: 91-504-2787
Fax: 01908-670-290
Fax: 91-504-2860
NEC Electronics Taiwan Ltd.
Taipei, Taiwan
Tel: 02-2719-2377
NEC Electronics Italiana s.r.l.
Milano, Italy
Tel: 02-66 75 41
NEC Electronics (Germany) GmbH
Scandinavia Office
Taeby, Sweden
Fax: 02-2719-5951
Fax: 02-66 75 42 99
Tel: 08-63 80 820
NEC do Brasil S.A.
Electron Devices Division
Guarulhos-SP Brasil
Tel: 55-11-6462-6810
Fax: 55-11-6462-6829
Fax: 08-63 80 388
J00.7
5
User’s Manual U14404EJ1V0UM00
[MEMO]
6
User’s Manual U14404EJ1V0UM00
INTRODUCTION
Target Readers
This manual is intended for users who wish to understand the functions of the
µPD77016 Family and to design and develop application programs using these
microcontrollers.
µPD77016 Family is the generic name for the µPD77016, 77017, 77018, 77018A,
77019, 77110, 77111, 77112, 77113, and 77114.
In this manual, the µPD77016 is described as a typical device unless there are
specific differences with respect to functions.
Purpose
This manual is intended for users to understand how to use the RX77016 real-time
operating system configuration tool.
Organization
This user’s manual consists of the following contents.
•
•
•
•
About the RX77016 Configuration Tool
The User Interface
Menu Commands
RX77016 Configuration Tool Functions
How to Use This Manual
It is assumed that the reader of this manual has general knowledge in the fields of
logical circuits and microcontrollers and basic knowledge of Windows™ operating
methods.
This manual mentions some functions that are not available in the present version. In
addition, the keywords “task” and “sub task” are used, but these are not equivalent in
meaning to application programs. “Sub task” designates the smallest unit the OS
manages and “task” designates a unit by which a number of sub tasks are managed
collectively.
Conventions
Data significance:
Higher digits on the left and lower digits on the right
Active low representation: ××× (overscore over pin or signal name)
Note:
Footnote for item marked with Note in the text
Information requiring particular attention
Supplementary information
Caution:
Remark:
Numerical representation: Binary ··· ×××× or 0b××××
Decimal ··· ××××
Hexadecimal ··· 0x××××
User’s Manual U14404EJ1V0UM00
7
Related Documents
The related documents indicated in this publication may include preliminary versions.
However, preliminary versions are not marked as such.
•
Documents related to the µPD77016 Family
Document Name
Part Number
Pamphlet
Data Sheet
User’s Manual
Architecture Instruction
U10503E U13116E
Application Note
Basic Software
U11958E
µPD77016
µPD77017
µPD77018
µPD77018A
µPD77019
µPD77019-013
µPD77110
µPD77111
µPD77112
µPD77113
µPD77114
U12395E
U10891E
U10902E
U11849E
U13053E
U12801E
To be prepared
U14373E
•
Documents related to development tool
Document Name
Document No.
EEU-1541
U14139E
IE-77016-98/PC User’s Manual
IE77016-CM-LC User’s Manual
RX77016 User’s Manual
Hardware
Functions
U14397E
Configuration Tool
HOST API
This manual
U14371E
RX77016 Application Note
Caution The related documents listed above are subject to change without notice. Be sure to use the latest
version of each document for designing.
8
User’s Manual U14404EJ1V0UM00
CONTENTS
CHAPTER 1 ABOUT THE RX77016 CONFIGURATION TOOL........................................................ 13
1.1 Overview of the RX77016 Configuration Tool ........................................................................ 13
CHAPTER 2 USER INTERFACE........................................................................................................... 15
2.1 Main Window ............................................................................................................................. 15
2.2 Toolbar ....................................................................................................................................... 16
2.3 Status Bar................................................................................................................................... 17
CHAPTER 3 MENU COMMANDS......................................................................................................... 19
3.1 [File] Menu.................................................................................................................................. 19
3.2 [Edit] Menu................................................................................................................................. 20
3.3 [View] Menu................................................................................................................................ 21
3.4 [Help] Menu................................................................................................................................ 22
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS......................................................... 23
4.1 File .............................................................................................................................................. 23
4.1.1
4.1.2
4.1.3
4.1.4
Creating new task information....................................................................................................... 23
Saving task information................................................................................................................. 23
Reading task information............................................................................................................... 23
Generating Configuration Files...................................................................................................... 23
4.2 Edit.............................................................................................................................................. 24
4.2.1
4.2.2
4.2.3
Editing ........................................................................................................................................... 24
Adding and deleting....................................................................................................................... 24
Moving tasks and sub tasks .......................................................................................................... 24
4.3 Display........................................................................................................................................ 25
4.3.1
4.3.2
4.3.3
4.3.4
4.3.5
Main window ................................................................................................................................. 25
Changing the screen split position ................................................................................................ 26
Tree and list .................................................................................................................................. 27
One Point window ......................................................................................................................... 29
About window................................................................................................................................ 29
4.4 Setting Properties ..................................................................................................................... 30
4.4.1
4.4.2
4.4.3
4.4.4
4.4.5
4.4.6
4.4.7
Setting General RTOS property .................................................................................................... 30
Setting Task information property ................................................................................................. 31
Setting Interrupt handler property.................................................................................................. 33
Setting Other property................................................................................................................... 35
Setting Memory property............................................................................................................... 37
Setting Task property .................................................................................................................... 38
Setting Sub task property.............................................................................................................. 39
4.5 Setting Properties of Optional Functions............................................................................... 41
4.5.1
4.5.2
Setting Event task property ........................................................................................................... 41
Setting Host API property.............................................................................................................. 42
User’s Manual U14404EJ1V0UM00
9
LIST OF FIGURES
Figure No.
Title
Page
1-1
2-1
Overview of RX77016 Configuration Tool......................................................................................................13
Main Window Screen.....................................................................................................................................15
3-1
3-2
3-3
3-4
[File] Menu Selection Screen.........................................................................................................................19
[Edit] Menu Selection Screen ........................................................................................................................20
[View] Menu Selection Screen.......................................................................................................................21
[Help] Menu Selection Screen .......................................................................................................................22
4-1
Main Window Screen.....................................................................................................................................25
Changing the Screen Split Position ...............................................................................................................26
One Point Window Screen.............................................................................................................................29
About Window Screen ...................................................................................................................................29
General RTOS property Setting Screen ........................................................................................................30
Task information property Setting Screen......................................................................................................31
Interrupt Settings ...........................................................................................................................................31
Interrupt handler property Setting Screen......................................................................................................33
Other property Setting Screen.......................................................................................................................35
Memory property Setting Screen...................................................................................................................37
Task property Setting Screen ........................................................................................................................38
Sub task property Setting Screen..................................................................................................................39
Event task property Setting Screen ...............................................................................................................41
Host API property Setting Screen..................................................................................................................42
Host API property Setting Screen (Using Byte Access Method)....................................................................43
4-2
4-3
4-4
4-5
4-6
4-7
4-8
4-9
4-10
4-11
4-12
4-13
4-14
4-15
10
User’s Manual U14404EJ1V0UM00
LIST OF TABLES
Table No.
Title
Page
3-1
3-2
3-3
3-4
List of [File] Menu Commands .......................................................................................................................19
List of [Edit] Menu Commands.......................................................................................................................20
List of [View] Menu Commands .....................................................................................................................21
List of [Help] Menu Commands......................................................................................................................22
User’s Manual U14404EJ1V0UM00
11
[MEMO]
12
User’s Manual U14404EJ1V0UM00
CHAPTER 1 ABOUT THE RX77016 CONFIGURATION TOOL
1.1 Overview of the RX77016 Configuration Tool
In order to link a task to an RX77016, a user must create a number of interface source programs. The
configuration tool performs automatic generation of the files needed for linking to the RX77016 core according to
parameters specified by the user. Since the configuration tool is designed based on a GUI, the user can create files
easily.
Figure 1-1. Overview of RX77016 Configuration Tool
RX77016 Configuration Tool
Creates the Task Information File in the
RX77016 Configuration Tool
Task Information File
Generates Configuration Files by
generating source files
Configuration Files
The configuration tool consists of the execution file MOSConf.exe and four files (OS_idata.mos, OS_taskx.mos,
OS_udef.mos, definf0.mos) known as MOS files.
The files generated by the configuration tool are called configuration files and this applies to the following files.
(1) OS_UDEF.H
This file is used to generate configuration settings. RX77016 operation is set up to suit the system in use.
(2) OS_IDATA.ASM
Task parameters used in sub task scheduling are set in this file.
(3) OS_TASKX.ASM
All sub tasks used by the RX77016 are registered in this file.
(4) devinf0.ini
Information needed in the Host API is set in this file. The Host API reads this information.
User’s Manual U14404EJ1V0UM00
13
[MEMO]
14
User’s Manual U14404EJ1V0UM00
CHAPTER 2 USER INTERFACE
2.1 Main Window
The following figure shows the main window of the RX77016 Configuration Tool. It also shows the names by which
each part is known.
Figure 2-1. Main Window Screen
Toolbar
Tree Window
List Window
Status Bar
User’s Manual U14404EJ1V0UM00
15
CHAPTER 2 USER INTERFACE
2.2 Toolbar
By using the toolbar, you can shorten the invocation of menus that are used frequently in the Configuration Tool.
The function of each command in the toolbar is shown below.
Opens the General RTOS property to create a new Task Information File.
Opens a dialog box to load an existing Task Information File.
Updates and saves the Task Information File being worked on.
Generates Configuration Files and output the files to the same folder as that containing the Task Information File.
This function is not available in the present version.
This function is not available in the present version.
This function is not available in the present version.
Moves the selected task or sub task up.
Moves the selected task or sub task down.
Opens the property window of the item selected by the cursor.
Displays version information for the RX77016 Configuration Tool.
16
User’s Manual U14404EJ1V0UM00
CHAPTER 2 USER INTERFACE
This function is not available in the present version.
Generates a sub task for the selected task and opens the property window.
2.3 Status Bar
The information about each command can be viewed by clicking a menu item or the toolbar. The status bar also
displays information related to the current task (see the figure in 2.1 Main Window).
User’s Manual U14404EJ1V0UM00
17
[MEMO]
18
User’s Manual U14404EJ1V0UM00
CHAPTER 3 MENU COMMANDS
3.1 [File] Menu
Selecting the [File] menu displays the menu commands shown below.
Figure 3-1. [File] Menu Selection Screen
The following table shows each [File] menu command.
Table 3-1. List of [File] Menu Commands
Command
New ... (Ctrl+N)
Open ... (Ctrl+O)
Save (Ctrl+S)
Save As ...
Function
Opens the General RTOS property to generate a new Task Information File.
Opens a dialog box to load an existing Task Information File.
Updates and saves the Task Information File being worked on.
Saves the working Task Information File under a different name.
Generate Source
Generates Configuration Files and output the files to the same folder as that containing the Task
Information File.
Recent File
Exit
Up to four Task Information Files used in the past are displayed starting from the most recent.
A previous Task Information File can be opened from here.
Terminates the RX77016 Configuration Tool.
User’s Manual U14404EJ1V0UM00
19
CHAPTER 3 MENU COMMANDS
3.2 [Edit] Menu
Selecting the [Edit] menu displays the menu commands shown below.
Figure 3-2. [Edit] Menu Selection Screen
The following table shows each [Edit] menu command.
Table 3-2. List of [Edit] Menu Commands
Command
Undo (Ctrl+Z)
Cut (Ctrl+X)
Copy (Ctrl+C)
Paste (Ctrl+V)
Insert ...
Function
Reverts to the status before the current operationNote
.
Deletes the selected task or sub task and send it to the clipboardNote
.
Sends the selected task or sub task to the clipboardNote
.
Inserts the task or sub task from the clipboard immediately after the selected positionNote
Inserts a task or sub task immediately before the selected position.
Adds a task or sub task immediately after the selected position.
Deletes the selected task or sub task.
.
Append ...
Delete
Position Up
Position Down
Property ...
Sub task
Moves the selected task or sub task up.
Moves the selected task or sub task down.
Opens the property window of the item selected by the cursor.
Generates a sub task for the selected task and opens the property window.
Note This function is not available in the present version.
20
User’s Manual U14404EJ1V0UM00
CHAPTER 3 MENU COMMANDS
3.3 [View] Menu
Selecting the [View] menu displays the menu commands shown below.
Figure 3-3. [View] Menu Selection Screen
The following table shows each [View] menu command.
Table 3-3. List of [View] Menu Commands
Command
Toolbar
Function
Displays or hides the toolbar.
Displays or hides the status bar.
Changes the screen split position.
Status Bar
Split
User’s Manual U14404EJ1V0UM00
21
CHAPTER 3 MENU COMMANDS
3.4 [Help] Menu
Selecting the [Help] menu displays the menu commands shown below.
Figure 3-4. [Help] Menu Selection Screen
The following table shows each [Help] menu command.
Table 3-4. List of [Help] Menu Commands
Command
Function
Help Topics
One Point
Displays the online help file.
Displays the One Point window. If the check at the lower left is removed, this is not
displayed beginning with the next startup.
About RTOS Configuration Tool ...
Displays the copyright and version of the program.
22
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.1 File
4.1.1 Creating new task information
To create a new Task Information File, click [New …] on the [File] menu. Alternatively, input [Ctrl+N] from the
keyboard, or use the toolbar shortcut button. At this time, the RX77016 Configuration Tool opens the General RTOS
property window and requests that each parameter be set.
4.1.2 Saving task information
Saves task information during or after its creation. To save a newly created Task Information File or change the
name of the created file, click [Save As …] on the [File] menu. Click [Save] on the [File] menu to save a task
information file that is being used without changing its name.
4.1.3 Reading task information
To read a Task Information File that has been saved, click [Open …] on the [File] menu. Alternatively, input
[Ctrl+O] from the keyboard, or use the toolbar shortcut button. At this time, the RX77016 Configuration Tool opens a
dialog box containing the Task Information Files being used. The file to be opened also can be dragged and dropped
from the explorer. To open task information that you worked on previously, click the file name displayed at the bottom
of the [File] menu. The RX77016 Configuration Tool displays up to four past files starting from the file that was last
used.
4.1.4 Generating Configuration Files
In order to create Configuration Files, click [Generate Source] on the [File] menu. Alternatively, input [Ctrl+G] from
the keyboard, or use the shortcut button in the toolbar. Configuration Files cannot be generated for a task in the
RX77016 Configuration Tool unless it has at least one sub task.
User’s Manual U14404EJ1V0UM00
23
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.2 Edit
4.2.1 Editing
The editing functions [Undo], [Cut], [Copy], and [Paste] are not available in the present version.
4.2.2 Adding and deleting
A new file can be added or a file deleted in the task or sub task that is being edited. The number of tasks that can
be appended or inserted is 31 if using the high priority event task management function, and 32 if not using it.
Moreover, if using the low priority event task function, the number of sub tasks that can be appended or inserted is 30
for Task1. For each task other than this one, the number of sub tasks is 31. Normally, deletion of tasks and sub tasks
is not restricted, but Task1 and Event Task cannot be deleted.
The functions described above correspond to the [Insert …], [Append …], and [Delete] commands of the [Edit]
menu.
4.2.3 Moving tasks and sub tasks
The order of definition of tasks and sub tasks defined in a list can be shifted.
[Position Up] and [Position Down] on the [Edit] menu correspond to this. This function also can be used from the
toolbar shortcut buttons.
24
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.3 Display
4.3.1 Main window
When you start the RX77016 Configuration Tool, the One Point window screen is displayed. Clicking on [Close]
displays the main window screen.
Figure 4-1. Main Window Screen
Click [Close]
Tree Window
List Window
User’s Manual U14404EJ1V0UM00
25
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.3.2 Changing the screen split position
The display proportion of the task tree and list in the main window can be changed.
Figure 4-2. Changing the Screen Split Position
Slide to the right
26
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.3.3 Tree and list
The main window of the RX77016 Configuration Tool consists of a tree structure and a list structure as its basic
structure. Selecting any item in the Tree window lists that item’s group in the List window.
(1) When RTOS is selected
Selecting RTOS in the Tree window displays the group in the tree in list format in the List window. Moreover,
the list displayed in the List window is always the same for any item in the Tree window. For example, the list
displayed in the List window when [Other] is selected in the Tree window is the same as when [RTOS] is
selected.
User’s Manual U14404EJ1V0UM00
27
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(2) When Event Task is selected
Selecting Event Task in the Tree window displays the sub tasks executed in Event Task in list format in the
List window.
(3) When Task is selected
Selecting Task in the Tree window displays information about sub tasks executed in Task in list format in the
List Window. Sub task name, base clock, frame size, and order information are displayed in the list.
28
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.3.4 One Point window
The following screen is displayed at Configuration Tool startup or by clicking on [One Point] on the [Help] menu.
(In the present version, the window opens but the One Point content is not displayed.)
Figure 4-3. One Point Window Screen
4.3.5 About window
The About Window displays the version and copyright. It is invoked by [About RX77016 Configuration Tool …] on
the [Help] menu or the toolbar shortcut.
Figure 4-4. About Window Screen
User’s Manual U14404EJ1V0UM00
29
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4 Setting Properties
The RX77016 Configuration Tool consists of a number of property windows. The user sets properties for each
item to obtain the desired Configuration File. Each property window can be opened from [Property …] on the [Edit]
menu. Alternatively, double-clicking tree items in the main window or a displayed item opens it. The [Edit] menu can
be viewed by right-clicking on item in the list.
4.4.1 Setting General RTOS property
The following figure shows the General RTOS property setting screen.
Figure 4-5. General RTOS property Setting Screen
(1) Device type
Specify the type of device the user is using in Device type. The DMA function cannot be used in Optional
function when using the µPD77016.
(2) Optional function
(a) Use event task
Select this check box when using an event task in an application program.
(b) Use Host API
Select this check box when using the Host API function in an application program.
30
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.2 Setting Task information property
This sets properties of task information.
Figure 4-6. Task information property Setting Screen
Each command is described below.
(1) Register initialize value
For each task, set initial values of the interrupt enable flag stack register (EIR) and status registers (SR) for
when the task first starts.
The EIR is a 16-bit register. The default value of 1 means it is interrupt enabled. The specification range is
from 0 to 32767.
The SR also are 16-bit registers, but they do not have default values. The user specifies disabling interrupts,
enabling interrupts, or not setting interrupts.
Figure 4-7. Interrupt Settings
Disable
Enable
N/A
(2) Save register
This determines whether or not to save or recover a register when switching tasks. The default value is set
so that a save or recovery is performed. A register that is not used in any application program or a register
used in only one task need not be saved or recovered.
User’s Manual U14404EJ1V0UM00
31
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(3) Stack size
Specify the size of the CALL stack and the size of the LOOP stack. The specification range for CALL stack
size is from 2 to 15, and that for LOOP stack size is from 1 to 4.
The default value of CALL stack size is 15, and that of LOOP stack size is 4.
(4) Frame counter period and Timer counter period
Specify the timing of updating the frame counter value (Frame counter period) and the timing of task
monitoring (Timer counter period).
The larger the value of the frame counter period, the smaller the MIPS value the RX77016 uses and the
larger the sub task execution interval. Moreover, the larger the value of the timer counter period, the larger
the MIPS value the RX77016 uses. Neither one has a default value, so specify a value of 1 or higher.
32
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.3 Setting Interrupt handler property
This sets properties of the interrupt handler.
Figure 4-8. Interrupt handler property Setting Screen
Each command is described below.
(1) Used interrupt vector
Specify locations to use as interrupt vectors. Be sure to specify the same locations as those specified in SR
in the Task information property.
(2) Timer
Specify an interrupt vector to use as a timer and the execution period of the interrupt handler to use as a
timer (Frequency). There is no default value for either value.
User’s Manual U14404EJ1V0UM00
33
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(3) etc …
Normally, the initially defined destination of calls to interrupt handler code cannot be changed. However, the
multi-handler command (Multi handle) is used when you want to switch the destination of calls to interrupt
handler code to another interrupt handler from inside a task. The default value is set so that the Multi handle
is not used.
If using interrupt nesting, be sure to make the nesting level specified in the property match the nesting level
actually used. If the actual interrupt nesting level exceeds the specified nesting level, subsequent operation
is not guaranteed.
34
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.4 Setting Other property
This sets properties of other parameters.
Figure 4-9. Other property Setting Screen
Each command is described below.
(1) OS simulate debug
Use this command to validate RX77016 operation using the software simulator (HSM77016). The default
value is set so that code without simulation information is output.
(2) Frame extension
This is used to request more detailed frame information. Using this command provides the following 4 kinds
of additional frame information.
(a) Sub task end frame counter
This saves the value before updating of the frame counter that is updated when a sub task terminates. It
maintains the value until the next time the same sub task is executed and terminates.
User’s Manual U14404EJ1V0UM00
35
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(b) Frame overflow status
If the sum of the values of the sub task end frame counter and frame counter B is 0 or less, a value of 1
is set to indicate frame overflow. The initial value is 0.
(c) Maximum value of frame counter
This maintains the maximum negative value of past sub task end frame counter values.
(d) Frame overflow counter
This counts the number of times the frame overflow status was frame overflow.
The default value is set so that frame information extension is not performed.
(3) Use boot code
This invokes boot code described in the OS_BOOT.ASM file. OS_BOOT.ASM is one of the files that users
must describe themselves.
(4) SPX pause at boot
This pauses processing from immediately after the OS starts until HOST preparations end. Processing does
not operate until there is a pause-releasing instruction from the host. The default value is set so that
processing pauses. When using a Host API, the user need not be aware of the pause status of the OS. For
simulation, set this command not to be used.
(5) OS error check level
This outputs the error codes of specified system calls. By default it is set so that error codes are not output.
If select a check box, the error code will be output.
(6) RTOS segment type
Specify whether to allocate RX77016 code in internal memory or external memory. By default this is set so
that it is allocated in internal memory. If you want any segment to be allocated in external memory, select its
check box.
(7) ROM data for OS is located into YRAM
Select whether to make the destination for placing ROM data YROMSEG or YRAMSEG.
The default value is set so that YRAM is specified. If you wish to specify YROM, select the check box.
36
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.5 Setting Memory property
The following figure shows the Memory property setting screen.
Figure 4-10. Memory property Setting Screen
Each command is described below.
(1) Use memory
Select this check box to use the memory management function.
(2) Memory buffer size
Specify the sizes of the data areas for memory allocation management of X and Y memories. The default is
1 for both.
User’s Manual U14404EJ1V0UM00
37
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.6 Setting Task property
This sets properties of a task.
Figure 4-11. Task property Setting Screen
(1) Task name
This registers a task name.
38
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.4.7 Setting Sub task property
This sets properties of a sub task.
Figure 4-12. Sub task property Setting Screen
Each command is described below.
(1) Sub task name
This registers the name of a sub task. The names of sub tasks cannot be shared. Be sure to input separate
names. In addition, since sub task names are used internally as symbols, be careful of the characters used.
(2) Sub task cycle information
If Direct select is selected, the following settings are made.
(a) Frame_counter:
(b) Frame_sub:
(c) Frame_add:
TimerClock*FrameSize/_FRAME_COUNTER_PERIOD
SamplingFreq
TimerClock*FrameSize/_FRAME_COUNTER_PERIOD
User’s Manual U14404EJ1V0UM00
39
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
Here, “SamplingFreq” is the sub task execution period, “TimerClock” is the clock frequency used as a
timer, and “FrameSize” is the sub task frame size. In addition, _FRAME_COUNTER_PERIOD designates
the timing of updating the frame counter value that was set in Task information property. If Direct select is
selected, the user can change the frame counter value to a desired value. For example, it is possible to set
(1,0,1) to not execute the sub task.
If Direct select is not selected, set as follows.
(d) Base clock
Set the sampling frequency of data processed in the sub task.
(e) Frame size
Set the amount of data processed at once when the sub task is executed.
(3) Synchronize pre sub task
Select Succession to execute sub tasks in list order, or Independence to place no restrictions on sub tasks.
The first sub task of each task is set to Top. User settings are ignored.
40
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.5 Setting Properties of Optional Functions
4.5.1 Setting Event task property
This sets properties of an event task.
Figure 4-13. Event task property Setting Screen
Each command is described below.
(1) Use low event task
Low priority event task management is a function that does not perform event processing immediately after
an execution request is issued, but performs it after sub task execution ends or during task switching. Use
this management method if it is not necessary to execute an event processing program immediately. The
default value is set so that this is not used. Normally, the number of sub tasks registered is 31, but when
using this function the number of sub tasks of Task1 can be no more than 30. To use it, select the check box.
(2) Use high event task
High priority event task management is a function for performing event processing immediately after an
execution request is issued by instantly suspending the sub task or task currently in progress. Since task
switching occurs in order to perform event processing, this management method places a burden on task
scheduling. To use it, select the check box.
(3) Event stack size
This specifies the event ID stack size. The default value is 16. Be sure to specify a value of 2 or higher. If
neither low priority event task management nor high priority event task management is specified, a stack area
is not allocated.
User’s Manual U14404EJ1V0UM00
41
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
4.5.2 Setting Host API property
This sets properties when using the Host API management function.
Figure 4-14. Host API property Setting Screen
Each command is described below.
(1) HDT Port
The host data register is a 16-bit register for input/output of data from the host interface. If word access is
specified, 16 bits (1 word) of data is read or written using one I/O port.
(2) HST Port
The host interface status register (HST) is a 16-bit register that shows the mode setting and status of the host
interface. Like the host data register, if word access is specified, 16 bits (1 word) of data is read or written
using one I/O port.
42
User’s Manual U14404EJ1V0UM00
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(3) RST Port
A reset signal (RST) correctly initializes a device prior to program execution. Set whether to perform byte
access or word access for the I/O port that accesses this pin.
(a) Bit assign
Although 16 bits of data are sent to the RST pin, the bit actually used for reset is specified here. Use up
to four hexadecimal digits to specify 1 in the relevant location and 0 elsewhere.
(b) Mask data
For the I/O port that accesses the reset pin, use up to four hexadecimal digits to specify OR mask data at
pins other than the reset pin (if 1 is specified in the bit position of the RST pin, mask processing is
ignored).
Each command of Host API property when the byte access method is used is described below.
Figure 4-15. Host API property Setting Screen (Using Byte Access Method)
User’s Manual U14404EJ1V0UM00
43
CHAPTER 4 RX77016 CONFIGURATION TOOL FUNCTIONS
(1) HDT Port
Specify the I/O port address when performing byte access to the HDT register. Byte access divides 16 bits
into higher 8 bits and lower 8 bits and reads and writes data using a different I/O port for each. Specify bits 8
to 15 of the I/O port address in High at the top of the screen and bits 0 to 7 in Low.
(2) HST Port
Specify an I/O port address in the same way as for the HDT register. Specify bits 8 to 15 of the I/O port
address in High and bits 0 to 7 in Low.
(3) RST Port
Specify the I/O port address when performing byte access. Specify bits 0 to 7 in Low including the reset pin
and specify bits 8 to 15 in High.
(a) Bit assign
Specify the bit position of the reset pin in the lower byte using up to two hexadecimal digits. Specify 1 in
the relevant position and specify 0 elsewhere.
(b) Mask data
Specify this for the lower byte using up to two hexadecimal digits to mask data (except the RST pin)
when performing byte access (if 1 is specified in the bit position of the RST pin, mask processing is
ignored).
44
User’s Manual U14404EJ1V0UM00
[MEMO]
User’s Manual U14404EJ1V0UM00
45
[MEMO]
46
User’s Manual U14404EJ1V0UM00
AlthoughNEChastakenallpossiblesteps
toensurethatthedocumentationsupplied
to our customers is complete, bug free
and up-to-date, we readily accept that
errorsmayoccur. Despiteallthecareand
precautions we've taken, you may
encounterproblemsinthedocumentation.
Please complete this form whenever
you'd like to report errors or suggest
improvements to us.
Facsimile Message
From:
Name
Company
Tel.
FAX
Address
Thank you for your kind support.
North America
Hong Kong, Philippines, Oceania Asian Nations except Philippines
NEC Electronics Inc.
Corporate Communications Dept.
Fax: 1-800-729-9288
1-408-588-6130
NEC Electronics Hong Kong Ltd.
Fax: +852-2886-9022/9044
NEC Electronics Singapore Pte. Ltd.
Fax: +65-250-3583
Korea
Japan
Europe
NEC Electronics Hong Kong Ltd.
Seoul Branch
Fax: 02-528-4411
NEC Semiconductor Technical Hotline
Fax: 044-435-9608
NEC Electronics (Europe) GmbH
Technical Documentation Dept.
Fax: +49-211-6503-274
South America
Taiwan
NEC do Brasil S.A.
Fax: +55-11-6462-6829
NEC Electronics Taiwan Ltd.
Fax: 02-2719-5951
I would like to report the following error/make the following suggestion:
Document title:
Document number:
Page number:
If possible, please fax the referenced page or drawing.
Document Rating
Clarity
Excellent
Good
Acceptable
Poor
Technical Accuracy
Organization
CS 00.6
厂商 型号 描述 页数 下载

NTE

 		RX7000 材料安全数据表[ MATERIAL SAFETY DATA SHEET ] 3 页

ETC

 		RX703000 RD850任务调试器的Windows （ TM）基于|用户手册[ 06/2000 ]\n[ RD850 Task Debugger Windows(TM) based | User＇s Manual[06/2000] ] 47 页

ETC

 		RX703100 RX850 Pro对于基础|用户手册[ 04/2003 ][ RX850 Pro for Basics | User＇s Manual[04/2003] ] 290 页

RFSOLUTIONS

 		RX7301 1.39GHZ央视RADIO视频链接[ 1.39GHZ CCTV RADIO VIDEO LINK ] 3 页

RFSOLUTIONS

 		RX7303 2.4-2.8GHZ央视RADIO视频链接[ 2.4-2.8GHZ CCTV RADIO VIDEO LINK ] 3 页

ETC

 		RX730AE FILTER NETZ EINBAU 6MH 250VAC 1A\n[ FILTER NETZ EINBAU 6MH 250VAC 1A ] 1 页

ETC

 		RX730CR+CLIP FILTER NETZ EINBAU 6MH 250VAC 6.5A\n[ FILTER NETZ EINBAU 6MH 250VAC 6.5A ] 1 页

ETC

 		RX730R0 FILTER NETZ EINBAU 2MH 250VAC 2.5A\n[ FILTER NETZ EINBAU 2MH 250VAC 2.5A ] 1 页

ETC

 		RX730RC+CLIP FILTER NETZ EINBAU 1MH 250VAC 4A\n[ FILTER NETZ EINBAU 1MH 250VAC 4A ] 1 页

ETC

 		RX77R1A-P1000 电信/数据通信\n[ Telecomm/Datacomm ] 4 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.239369s
