0ICAG-001-XTP

型号：

0ICAG-001-XTP

描述：

高速CAN收发器[ High Speed CAN Transceiver ]

品牌：

AMI[ AMI SEMICONDUCTOR ]

页数：

12 页

PDF大小：

646 K

下载PDF手册

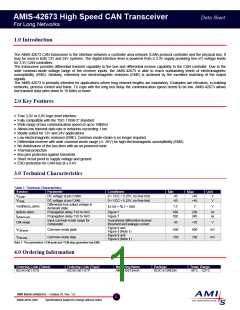

AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
1.0 Introduction
The AMIS-42673 CAN transceiver is the interface between a controller area network (CAN) protocol controller and the physical bus. It
may be used in both 12V and 24V systems. The digital interface level is powered from a 3.3V supply providing true I/O voltage levels
for 3.3V CAN controllers.
The transceiver provides differential transmit capability to the bus and differential receive capability to the CAN controller. Due to the
wide common-mode voltage range of the receiver inputs, the AMIS-42673 is able to reach outstanding levels of electromagnetic
susceptibility (EMS). Similarly, extremely low electromagnetic emission (EME) is achieved by the excellent matching of the output
signals.
The AMIS-42673 is primarily intended for applications where long network lengths are mandatory. Examples are elevators, in-building
networks, process control and trains. To cope with the long bus delay the communication speed needs to be low. AMIS-42673 allows
low transmit data rates down to 10 kbit/s or lower.
2.0 Key Features
• True 3,3V or 5,0V logic level interface
• Fully compatible with the “ISO 11898-2” standard
• Wide range of bus communication speed (0 up to 1Mbit/s)
• Allows low transmit data rate in networks exceeding 1 km
• Ideally suited for 12V and 24V applications
• Low electromagnetic emission (EME). Common-mode-choke is no longer required
• Differential receiver with wide common-mode range (+/- 35V) for high electromagnetic susceptibility (EMS)
• No disturbance of the bus lines with an un-powered node
• Thermal protection
• Bus pins protected against transients
• Short circuit proof to supply voltage and ground
• ESD protection for CAN bus at ± 8 kV
3.0 Technical Characteristics
Table 1: Technical Characteristics
Symbol
VCANH
VCANL
Parameter
Conditions
Min
Max
Unit
DC voltage at pin CANH
DC voltage at pin CANL
0 < VCC < 5.25V; no time limit
0 < VCC < 5.25V; no time limit
-45
+45
V
-45
+45
V
Differential bus output voltage in
dominant state
Vi(dif)(bus_dom)
1.5
3
V
42.5Ω < RLT < 60Ω
tpd(rec-dom)
tpd(dom-rec)
Propagation delay TxD to RxD
Propagation delay TxD to RxD
Figure 7
Figure 7
100
100
230
245
ns
ns
Input common-mode range for
comparator
Guaranteed differential receiver
threshold and leakage current
Figure 8 and
Figure 9 (Note 1)
Figure 8 and
CM-range
VCM-peak
VCM-step
-35
+35
500
150
V
Common-mode peak
-500
-150
mV
mV
Common-mode step
Figure 9 (Note 1)
Note 1: The parameters VCM-peak and VCM-step guarantee low EME.
4.0 Ordering Information
Ordering Code (Tubes)
0ICAG-001-XTD
Ordering Code (Tape)
0ICAG-001-XTP
Marketing Name
AMIS 42673AGA
Package
SOIC-8 GREEN
Temp. Range
-40°C…125°C
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
1
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
5.0 Block Diagram
VCC
3
AMIS-42673
Thermal
VCC
shutdown
1
TxD
V33
7
6
CANH
CANL
Driver
control
'S'
8
4
COMP
RxD
VREF
Ri(cm)
Vcc/2
+
5
Ri(cm)
2
PC20071003.2
GND
Figure 1: Block Diagram
6.0 Typical Application
6.1 Application Schematic
VBAT
IN
60 Ω
60 Ω
OUT
OUT
5V-reg
47 nF
3.3V-
reg
CAN
BUS
IN
VCC
V33
8
VCC
3
RxD
CANH
VREF
CANL
4
1
7
5
6
CAN
controller
AMIS-
42673
TxD
60 Ω
60 Ω
47 nF
2
PC20071003.3
GND
GND
Figure 2: Application Diagram
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
2
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
6.2 Pin Description
6.2.1. Pin Out (top view)
8
7
6
5
1
2
3
4
V33
TxD
GND
VCC
CANH
CANL
VREF
RxD
PC20071003.1
Figure 3: Pin Configuration
6.2.2. Pin Description
Table 2: Pin Out
Pin
1
2
Name
TxD
GND
VCC
Description
Transmit data input; low input → dominant driver; internal pull-up current
Ground
Supply voltage
3
4
5
RxD
VREF
Receive data output; dominant transmitter→ low output
Reference voltage output
6
7
8
CANL
CANH
V33
LOW-level CAN bus line (low in dominant mode)
HIGH-level CAN bus line (high in dominant mode)
3.3V supply for digital I/O
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
3
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
7.0 Functional Description
7.1 General
The AMIS-42673 is the interface between the CAN protocol controller and the physical bus. It is intended for use in industrial and
automotive applications requiring baud rates up to 1Mbit/s. It provides differential transmit capability to the bus and differential receiver
capability to the CAN protocol controller. It is fully compatible to the “ISO 11898-2” standard.
7.2 Operating Modes
AMIS-42673 only operates in high-speed mode as illustrated in Table 3.
The transceiver is able to communicate via the bus lines. The signals are transmitted and received to the CAN controller via the pins
TxD and RxD. The slopes on the bus lines outputs are optimised to give extremely low EME.
Table 3: Functional table of AMIS-42673; X = don’t care
VCC
4.75 to 5.25.V
4.75 to 5.25.V
VCC<PORL (unpowered)
PORL<VCC<4.75V
pin TxD
0
1 (or floating)
X
pin CANH
High
VCC/2
0V<CANH<VCC
0V<CANH<VCC
pin CANL
Low
VCC/2
0V<CANL<VCC
0V<CANL<VCC
Bus state
Dominant
Recessive
Recessive
Recessive
pin RxD
0
1
1
1
>2V
7.3 Over-temperature Detection
A thermal protection circuit protects the IC from damage by switching off the transmitter if the junction temperature exceeds a value of
approximately 160°C. Because the transmitter dissipates most of the power, the power dissipation and temperature of the IC is
reduced. All other IC functions continue to operate. The transmitter off-state resets when pin TxD goes HIGH. The thermal protection
circuit is particularly needed when a bus line short circuits.
7.4 High Communication Speed Range
The transceiver is primarily intended for industrial applications. It allows very low baud rates needed for long bus length applications.
But also high speed communication is possible up to 1Mbit/s.
7.5 Fail-safe Features
A current-limiting circuit protects the transmitter output stage from damage caused by accidental short-circuit to either positive or
negative supply voltage - although power dissipation increases during this fault condition.
The pins CANH and CANL are protected from automotive electrical transients (according to “ISO 7637”; see Figure 4).
Should TxD become disconnected, this pin is pulled high internally.
When the Vcc supply is removed, pins TxD and RxD will be floating. This prevents the AMIS-42673 from being supplied by the CAN
controller through the I/O pins.
7.6 3.3V Interface
AMIS-42673 may be used to interface with 3.3V or 5V controllers by use of the V33 pin. This pin may be supplied with 3.3V or 5V to
have the corresponding digital interface voltage levels.
When the V33 pin is supplied at 2.5V, even interfacing with 2.5V CAN controllers is possible. See also Digital Output Characteristics @
V33 = 2.5V, Table 7. In this case a pull-up resistor from TxD to V33 is necessary.
AMI Semiconductor – October 07, Rev. 1.0
4
www.amis.com
Specifications subject to change without notice

AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
8.0 Electrical Characteristics
8.1 Definitions
All voltages are referenced to GND (pin 2). Positive currents flow into the IC. Sinking current means that the current is flowing into the
pin. Sourcing current means that the current is flowing out of the pin.
8.2 Absolute Maximum Ratings
Stresses above those listed in Table 4 may cause permanent device failure. Exposure to absolute maximum ratings for extended
periods may effect device reliability.
Table 4: Absolute Maximum Ratings
Symbol
Parameter
Conditions
Min.
-0.3
-0.3
-45
Max.
+7
Unit
V
Supply voltage
VCC
V33
VCANH
VCANL
VTxD
VRxD
VREF
Vtran(CANH)
Vtran(CANL)
Vtran(VREF)
I/O interface voltage
+7
V
DC voltage at pin CANH
DC voltage at pin CANL
DC voltage at pin TxD
DC voltage at pin RxD
DC voltage at pin VREF
Transient voltage at pin CANH
Transient voltage at pin CANL
Transient voltage at pin VREF
0 < VCC < 5.25V; no time limit
0 < VCC < 5.25V; no time limit
+45
V
-45
+45
V
-0.3
-0.3
-0.3
-150
-150
-150
VCC + 0.3
VCC + 0.3
VCC + 0.3
+150
V
V
V
V
Note 1
Note 1
Note 1
+150
V
+150
V
Electrostatic discharge voltage at
CANH and CANL pin
Electrostatic discharge voltage at all
other pins
Static latch-up at all pins
Storage temperature
Note 2
Note 5
Note 3
Note 5
Note 4
-8
-500
-4
+8
+500
+ 4
+250
100
+155
+125
+150
kV
V
kV
V
Vesd(CANL/CANH)
Vesd
-250
Latch-up
Tstg
Tamb
mA
-55
-40
-40
°C
°C
°C
Ambient temperature
Maximum junction temperature
Tjunc
Notes:
1) Applied transient waveforms in accordance with “ISO 7637 part 3”, test pulses 1, 2, 3a, and 3b (see Figure 4).
2) Standardized human body model system ESD pulses in accordance to IEC 1000.4.2.
3) Standardized human body model ESD pulses in accordance to MIL883 method 3015. Supply pin 8 is ±4kV.
4) Static latch-up immunity: static latch-up protection level when tested according to EIA/JESD78.
5) Standardized charged device model ESD pulses when tested according to EOS/ESD DS5.3-1993.
8.3 Thermal Characteristics
Table 5: Thermal Characteristics
Symbol
Parameter
Conditions
In free air
In free air
Value
Unit
Thermal resistance from junction to ambient in SO8 package
Thermal resistance from junction to substrate of bare die
145
45
K/W
K/W
Rth(vj-a)
Rth(vj-s
)
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
5

AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
8.4 DC Characteristics
VCC = 4.75 to 5.25V; V33 = 2.9V to 3.6V; Tjunc = -40 to +150 °C; RLT = 60Ω unless specified otherwise
Table 6: Characteristics
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Supply (pin VCC and pin V33)
Dominant; VTXD = 0V
Recessive; VTXD = VCC
45
4
65
8
mA
mA
Supply current
ICC
I33
I33
V
33 = 3.3V; CL = 20pF;
recessive
33 = 3.3V; CL = 20pF;
I/O interface current
1
µA
µA
V
I/O interface current (1)
170
1Mbps
Transmitter Data Input (pin TxD)
HIGH-level input voltage
Output recessive
Output dominant
2.0
-0.3
-1
-
VCC
+0.8
+1
V
VIH
VIL
IIH
IIL
LOW-level input voltage
HIGH-level input current
LOW-level input current
Input capacitance (1)
-
0
V
VTxD = V33
TxD = 0V
µA
µA
pF
-50
-
-200
5
-300
10
V
Ci
Receiver Data Output (pin RxD)
0.75 x
V33
0.18
-15
10
HIGH-level output voltage
0.7 x V33
V
VOH
I
I
V
V
RXD = - 10mA
RXD = 5mA
LOW-level output voltage
HIGH-level output current (1)
LOW-level output current (1)
0.35
-20
15
V
VOL
Ioh
Iol
-10
5
mA
mA
RxD = 0.7 x V33
RxD = 0.45V
Reference Voltage Output (pin VREF
)
0.50 x
VCC
0.55 x
VCC
Reference output voltage
0.45 x VCC
0.40 x VCC
V
V
VREF
-50µA < IVREF < +50µA
Reference output voltage for full common-
mode range
-35V < VCANH < +35V;
-35V < VCANL < +35V
0.50 x
VCC
0.60 x
VCC
VREF_CM
Bus Lines (pins CANH and CANL)
Recessive bus voltage at pin CANH
2.0
2.0
2.5
2.5
3.0
3.0
V
V
Vo(reces)(CANH)
Vo(reces)(CANL)
V
V
TxD = VCC; no load
TxD = VCC; no load
Recessive bus voltage at pin CANL
-35V < VCANH < +35V;
0V < VCC < 5.25V
-35V < VCANL < +35V;
0V < VCC < 5.25V
Recessive output current at pin CANH
-2.5
-2.5
-
-
+2.5
+2.5
mA
mA
Io(reces) (CANH)
Recessive output current at pin CANL
Io(reces) (CANL)
Vo(dom) (CANH)
Vo(dom) (CANL)
Dominant output voltage at pin CANH
Dominant output voltage at pin CANL
3.0
3.6
1.4
4.25
1.75
V
V
V
V
V
TxD = 0V
0. 5
TxD = 0V
TxD = 0V; dominant;
1.5
2.25
0
3.0
V
Differential bus input voltage (VCANH
VCANL
-
42.5Ω < RLT < 60Ω
TxD = VCC; recessive;
no load
Vi(dif) (bus)
)
V
-120
+50
mV
Short circuit output current at pin CANH
Short circuit output current at pin CANL
-45
45
-70
70
-95
mA
mA
Io(sc) (CANH)
Io(sc) (CANL)
V
V
CANH = 0V;VTxD = 0V
CANL = 36V; VTxD = 0V
120
-5V < VCANL < +12V;
-5V < VCANH < +12V;
see Figure 5
-35V < VCANL < +35V;
-35V < VCANH < +35V;
see Figure 5
-35V < VCANL < +35V;
-35V < VCANH < +35V;
see Figure 5
Differential receiver threshold voltage
0.5
0.25
50
0.7
0.7
70
0.9
1.05
100
V
V
Vi(dif)(th)
Differential receiver threshold voltage for
high common-mode
Vihcm(dif) (th)
Differential receiver input voltage hysteresis
Common-mode input resistance at pin CANH
Common-mode input resistance at pin
CANL
mV
Vi(dif) (hys)
15
15
25
25
37
37
Ri(cm)(CANH)
Ri(cm) (CANL)
KΩ
KΩ
Matching between pin CANH and pin CANL
common-mode input resistance
Differential input resistance
-3
0
+3
75
%
Ri(cm)(m)
Ri(dif)
VCANH = VCANL
25
50
KΩ
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
6
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
Table 7: Characteristics (Continued)
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Bus Lines (pins CANH and CANL)
Input capacitance at pin CANH
7.5
7.5
20
20
pF
pF
pF
µA
µA
Ci(CANH)
Ci(CANL)
Ci(dif)
ILI(CANH)
ILI(CANL)
V
V
TxD = VCC; not tested
TxD = VCC; not tested
Input capacitance at pin CANL
Differential input capacitance
3.75
170
170
10
VTxD = VCC; not tested
VCC = 0V; VCANH = 5V
VCC = 0V; VCANL = 5V
Input leakage current at pin CANH
Input leakage current at pin CANL
10
10
250
250
Common-mode peak during transition from
dom → rec or rec → dom
Difference in common-mode between
dominant and recessive state
Figure 8 and
Figure 9
Figure 8 and
Figure 9
-500
-150
500
150
mV
mV
VCM-peak
VCM-step
Power on Reset
PORL
CANH, CANL, Vref in tri-
state below POR level
POR level
2.2
3.5
4.7
V
Thermal Shutdown
shutdown junction temperature
150
160
180
°C
Tj(sd)
Timing Characteristics (see Figures 6 and 7)
Delay TxD to bus active
Delay TxD to bus inactive
Delay bus active to RxD
Delay bus inactive to RxD
40
30
25
65
85
60
110
110
110
135
ns
ns
ns
ns
td(TxD-BUSon)
td(TxD-BUSoff)
td(BUSon-RxD)
td(BUSoff-RxD)
55
100
Propagation delay TxD to RxD from
recessive to dominant
Propagation delay TxD to RxD from
dominant to recessive
100
100
230
245
ns
ns
tpd(rec-dom)
td(dom-rec)
Note: 1) Not tested at ATE
VCC = 4.75 to 5.25V; V33 = 2.5V ± 5%; Tjunc = -40 to +150 °C; RLT = 60Ω unless specified otherwise.
Table 8: Digital Output Characteristics @ V33 = 2.5V
Symbol
Parameter
Conditions
Min.
Typ.
Max.
Unit
Receiver Data Output (pin RxD)
HIGH-level output current
LOW-level output current
-2.6
mA
mA
Ioh
Iol
VOH > 0.9 x V33
VOL < 0.1 x V33
4
8.5 Measurement Set-ups and Definitions
+3.3 V
100 nF
+5 V
VCC
V33
100 nF
3
8
CANH
7
TxD
RxD
1
1 nF
VREF
Transient
Generator
AMIS-
42673
5
1 nF
4
6
CANL
2
PC20071003.4
20 pF
GND
Figure 4: Test Circuit for Automotive Transients
AMI Semiconductor – October 07, Rev. 1.0
7
www.amis.com
Specifications subject to change without notice
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
VRxD
High
Low
Hysteresis
PC20040829.7
0,9
0,5
Vi(dif)(hys)
Figure 5: Hysteresis of the Receiver
+3.3 V
+5 V
100 nF
100 nF
VCC
V33
3
8
CANH
7
TxD
RxD
1
RLT
VREF
CLT
AMIS-
42673
5
100 pF
60 Ω
4
6
CANL
2
20 pF
GND
PC20071003.5
Figure 6: Test Circuit for Timing Characteristics
HIGH
LOW
TxD
CANH
CANL
dominant
recessive
Vi(dif)
=
0,9V
0,5V
V
CANH - VCANL
RxD
0,7 x V33
0,3 x V33
td(TxD-BUSon)
td(TxD-BUSoff)
td(BUSon-RxD)
td(BUSoff-RxD)
tpd(rec-dom)
tpd(dom-rec)
PC20040829.6
Figure 7: Timing Diagram for AC Characteristics
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
8
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
+3.3 V
100 nF
+5 V
VCC
V33
3
8
6.2 kΩ
CANH
CANL
7
6
5
TxD
10 nF
1
Active Probe
AMIS-
42673
Generator
RxD
Spectrum Anayzer
6.2 kΩ
30 Ω
4
30 Ω
VREF
2
47 nF
20 pF
GND
PC20071003.6
Figure 8: Basic Test Set-up for Electromagnetic Measurement
CANH
CANL
recessive
VCM-peak
VCM-step
Vi(com)
=
V
CANH + VCANL
PC20040829.7
VCM-peak
Figure 9: Common-mode Voltage Peaks (see measurement set-up Figure 8)
AMI Semiconductor – October 07, Rev. 1.0
www.amis.com Specifications subject to change without notice
9
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
9.0 Package Outline
SOIC-8: Plastic small outline; 8 leads; body width 150 mil; JEDEC: MS-012
AMI Semiconductor – October 07, Rev. 1.0
10
www.amis.com
Specifications subject to change without notice
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
10.0 Soldering
10.1 Introduction to Soldering Surface Mount Packages
This text gives a very brief insight to a complex technology. A more in-depth account of soldering ICs can be found in the AMIS “Data
Handbook IC26; Integrated Circuit Packages” (document order number 9398 652 90011). There is no soldering method that is ideal for
all surface mount IC packages. Wave soldering is not always suitable for surface mount ICs, or for printed-circuit boards (PCB) with
high population densities. In these situations re-flow soldering is often used.
10.2 Re-flow Soldering
Reflow soldering requires solder paste (a suspension of fine solder particles, flux and binding agent) to be applied to the PCB by screen
printing, stencilling or pressure-syringe dispensing before package placement. Several methods exist for re-flowing; for example,
infrared/convection heating in a conveyor type oven.
Throughput times (preheating, soldering and cooling) vary between 100 and 200 seconds depending on heating method. Typical re-
flow peak temperatures range from 215 to 250°C. The top-surface temperature of the packages should preferably be kept below 230°C.
10.3 Wave Soldering
Conventional single wave soldering is not recommended for surface mount devices (SMDs) or PCBs with a high component density, as
solder bridging and non-wetting can present major problems. To overcome these problems the double-wave soldering method was
specifically developed. If wave soldering is used the following conditions must be observed for optimal results:
• Use a double-wave soldering method comprising a turbulent wave with high upward pressure followed by a smooth laminar wave.
• For packages with leads on two sides and a pitch (e):
o
Larger than or equal to 1.27mm, the footprint longitudinal axis is preferred to be parallel to the transport direction of
the PCB;
o
Smaller than 1.27mm, the footprint longitudinal axis must be parallel to the transport direction of the PCB. The
footprint must incorporate solder thieves at the downstream end.
• For packages with leads on four sides, the footprint must be placed at a 45º angle to the transport direction of the PCB. The footprint
must incorporate solder thieves downstream and at the side corners.
During placement and before soldering, the package must be fixed with a droplet of adhesive. The adhesive can be applied by screen
printing, pin transfer or syringe dispensing. The package can be soldered after the adhesive is cured. Typical dwell time is four seconds
at 250°C. A mildly-activated flux will eliminate the need for removal of corrosive residues in most applications.
10.4 Manual Soldering
Fix the component by first soldering two diagonally-opposite end leads. Use a low voltage (24V or less) soldering iron applied to the flat
part of the lead. Contact time must be limited to 10 seconds at up to 300°C.
When using a dedicated tool, all other leads can be soldered in one operation within two to five seconds between 270 and 320°C.
Table 9: Soldering Process
Soldering Method
Wave
Package
Re-flow(1)
Suitable
Suitable
Suitable
Suitable
Suitable
BGA, SQFP
Not suitable
HLQFP, HSQFP, HSOP, HTSSOP, SMS
Not suitable (2)
Suitable
PLCC (3), SO, SOJ
LQFP, QFP, TQFP
SSOP, TSSOP, VSO
Notes
Not recommended (3)(4)
Not recommended (5)
1.
All surface mount (SMD) packages are moisture sensitive. Depending upon the moisture content, the maximum temperature (with respect to time) and body size of the
package, there is a risk that internal or external package cracks may occur due to vaporization of the moisture in them (the so called popcorn effect). For details, refer to
the drypack information in the “Data Handbook IC26; Integrated Circuit Packages; Section: Packing Methods.”
These packages are not suitable for wave soldering as a solder joint between the PCB and heatsink (at bottom version) can not be achieved, and as solder may stick to
the heatsink (on top version).
If wave soldering is considered, then the package must be placed at a 45° angle to the solder wave direction. The package footprint must incorporate solder thieves
downstream and at the side corners.
Wave soldering is only suitable for LQFP, TQFP and QFP packages with a pitch (e) equal to or larger than 0.8mm; it is definitely not suitable for packages with a pitch
(e) equal to or smaller than 0.65mm.
2.
3.
4.
5.
Wave soldering is only suitable for SSOP and TSSOP packages with a pitch (e) equal to or larger than 0.65mm; it is definitely not suitable for packages with a pitch (e)
equal to or smaller than 0.5mm.
AMI Semiconductor – October 07, Rev. 1.0
11
www.amis.com
Specifications subject to change without notice
AMIS-42673 High Speed CAN Transceiver
Data Sheet
For Long Networks
11.0 Company or Product Inquiries
For more information about AMI Semiconductor’s Industrial CAN Transceivers, visit our Web site at http://www.amis.com.
12.0 Revision History
Date
Revision
Change
October 2007
1.0
Initial release
Devices sold by AMIS are covered by the warranty and patent indemnification provisions appearing in its Terms of Sale only. AMIS makes no warranty, express,
statutory, implied or by description, regarding the information set forth herein or regarding the freedom of the described devices from patent infringement. AMIS makes
no warranty of merchantability or fitness for any purposes. AMIS reserves the right to discontinue production and change specifications and prices at any time and
without notice. AMI Semiconductor's products are intended for use in commercial applications. Applications requiring extended temperature range, unusual
environmental requirements, or high reliability applications, such as military, medical life-support or life-sustaining equipment, are specifically not recommended without
additional processing by AMIS for such applications. Copyright ©2007 AMI Semiconductor, Inc.
AMI Semiconductor – October 07, Rev. 1.0
12
www.amis.com
Specifications subject to change without notice
厂商 型号 描述 页数 下载

AMI

 		0ICAA-001-XTD 高速低功耗CAN收发器[ High-Speed Low Power CAN Transceiver ] 12 页

AMI

 		0ICAA-001-XTP 高速低功耗CAN收发器[ High-Speed Low Power CAN Transceiver ] 12 页

AMI

 		0ICAB-001-XTD 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAB-001-XTP 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAG-001-XTD 高速CAN收发器[ High Speed CAN Transceiver ] 12 页

AMI

 		0ICAH-002-XTD 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAH-002-XTP 高速CAN收发器[ High-Speed CAN Transceiver ] 12 页

AMI

 		0ICAW-001-XTP [ Interface Circuit, PDSO20, 0.300 INCH, GREEN, PLASTIC, SOIC-20 ] 16 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.193561s
