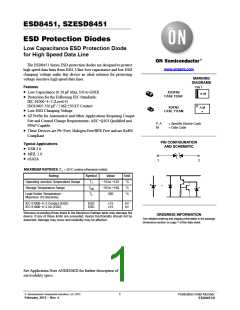

ESD8451, SZESD8451
ESD Protection Diodes
Low Capacitance ESD Protection Diode
for High Speed Data Line
The ESD8451 Series ESD protection diodes are designed to protect
high speed data lines from ESD. Ultra−low capacitance and low ESD
clamping voltage make this device an ideal solution for protecting
voltage sensitive high speed data lines.
www.onsemi.com
MARKING
DIAGRAMS
Features
PIN 1
• Low Capacitance (0.30 pF Max, I/O to GND)
X3DFN2
CASE 152AF
M
• Protection for the Following IEC Standards:
IEC 61000−4−2 (Level 4)
ISO10605 330 pF / 2 kW 30 kV Contact
• Low ESD Clamping Voltage
XDFN2
CASE 711AM
A M
G
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
P, A
M
= Specific Device Code
= Date Code
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
PIN CONFIGURATION
AND SCHEMATIC
Typical Applications
• USB 3.0
• MHL 2.0
• eSATA
1
2
MAXIMUM RATINGS (T = 25°C unless otherwise noted)
J
Rating
Symbol
Value
−55 to +125
−55 to +150
260
Unit
°C
Operating Junction Temperature Range
Storage Temperature Range
T
J
=
T
stg
°C
Lead Solder Temperature −
Maximum (10 Seconds)
T
L
°C
IEC 61000−4−2 Contact (ESD)
IEC 61000−4−2 Air (ESD)
ESD
ESD
15
15
kV
kV
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 7 of this data sheet.
See Application Note AND8308/D for further description of
survivability specs.
© Semiconductor Components Industries, LLC, 2015
1
Publication Order Number:
February, 2015 − Rev. 4
ESD8451/D
ESD8451, SZESD8451
ELECTRICAL CHARACTERISTICS
I
(T = 25°C unless otherwise noted)
A
I
PP
Symbol
Parameter
R
DYN
V
RWM
Working Peak Voltage
I
HOLD
I
R
Maximum Reverse Leakage Current @ V
RWM
I
I
T
V
V
BR
Breakdown Voltage @ I
V
V
V V
C RWM HOLD
BR
T
R
I
I
V
V
V
V
R
T
BR
HOLD RWM
C
I
T
Test Current
I
V
Holding Reverse Voltage
Holding Reverse Current
Dynamic Resistance
Maximum Peak Pulse Current
HOLD
HOLD
HOLD
I
R
DYN
R
DYN
−I
PP
I
PP
V
C
= V
+ (I * R
)
HOLD
PP
DYN
V
C
Clamping Voltage @ I
PP
V
C
= V
+ (I * R
)
HOLD
PP
DYN
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise specified)
A
Parameter
Symbol
Conditions
Min
Typ
Max
3.3
Unit
V
Reverse Working Voltage
Breakdown Voltage
V
RWM
I/O Pin to GND
I = 1 mA, I/O Pin to GND
V
BR
5.5
7.9
8.5
V
T
Reverse Leakage Current
Reverse Holding Voltage
Holding Reverse Current
Clamping Voltage (Note 1)
I
V
= 3.3 V, I/O Pin to GND
500
nA
V
R
RWM
V
I/O Pin to GND
2.05
17
HOLD
HOLD
I
I/O Pin to GND
mA
V
V
V
IEC61000−4−2, 8 KV Contact
C
ESD8451MUT5G
Clamping Voltage
TLP (Note 2)
11.0
19.0
9.0
V
I
PP
= 8 A
IEC 61000−4−2 Level 2 equivalent
( 4 kV Contact, 4 kV Air)
C
I
I
= 16 A
PP
IEC 61000−4−2 Level 4 equivalent
( 8 kV Contact, 8 kV Air)
ESD8451N2T5G
Clamping Voltage
TLP (Note 2)
V
V
I
PP
= 8 A
IEC 61000−4−2 Level 2 equivalent
( 4 kV Contact, 4 kV Air)
C
= 16 A
16.0
PP
IEC 61000−4−2 Level 4 equivalent
( 8 kV Contact, 8 kV Air)
ESD8451MUT5G
Dynamic Resistance
R
R
Pin1 to Pin2
Pin2 to Pin1
1.0
1.0
W
W
DYN
DYN
ESD8451N2T5G
Dynamic Resistance
Pin1 to Pin2
Pin2 to Pin1
0.84
0.84
Junction Capacitance
Junction Capacitance
C
C
V
R
V
R
= 0 V, f = 1 MHz
0.20
0.19
0.30
0.25
pF
pF
J
J
= 0 V, f = 2.5 GHz
1. For test procedure see Figure 12 and application note AND8307/D.
2. ANSI/ESD STM5.5.1 − Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model.
TLP conditions: Z = 50 W, t = 100 ns, t = 4 ns, averaging window; t = 30 ns to t = 60 ns.
0
p
r
1
2
www.onsemi.com
2

ESD8451, SZESD8451
TYPICAL CHARACTERISTICS
1.0
0.9
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
−3.5 −2.5
0.1
0
−3.5 −2.5
−1.5
−0.5
0.5
(V)
1.5
2.5
3.5
−1.5
−0.5
0.5
(V)
1.5
2.5
3.5
V
BIAS
V
BIAS
Figure 1. ESD8451MUT5G CV Characteristics
Figure 2. ESD8451N2T5G CV Characteristics
2
0
2
0
m1
m1
m2
m2
−2
−2
−4
−6
−4
−6
−8
−8
−10
−10
−12
−14
−12
−14
1E7
1E8
1E9
1E10 3E10
1E7
1E8
1E9
1E10 3E10
FREQUENCY (Hz)
FREQUENCY (Hz)
Figure 3. ESD8451MUT5G S21 Insertion Loss
Figure 4. ESD8451N2T5G S21 Insertion Loss
1.0
0.9
1.0
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
0.1
0
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
8
9
10
FREQUENCY (GHz)
FREQUENCY (GHz)
Figure 5. ESD8451MUT5G Capacitance over
Frequency
Figure 6. ESD8451N2T5G Capacitance over
Frequency
www.onsemi.com
3
ESD8451, SZESD8451
TYPICAL CHARACTERISTICS
20
18
10
20
18
10
8
16
14
12
10
8
8
16
14
12
10
8
6
6
4
4
6
6
4
2
0
4
2
0
2
0
2
0
0
2
4
6
8
10 12 14 16 18 20 22 24
0
2
4
6
8
10 12 14 16 18 20
V , VOLTAGE (V)
C
V , VOLTAGE (V)
C
Figure 7. ESD8451MUT5G Positive TLP I−V
Curve
Figure 8. ESD8451N2T5G Positive TLP I−V
Curve
10
8
−20
−18
10
8
−20
−18
−16
−14
−12
−10
−8
−16
−14
−12
−10
−8
6
6
4
4
−6
−6
−4
2
0
−4
2
0
−2
0
−2
0
0
2
4
6
8
10 12 14 16 18 20 22 24
0
2
4
6
8
10 12 14 16 18 20
V , VOLTAGE (V)
C
V , VOLTAGE (V)
C
Figure 9. ESD8451MUT5G Negative TLP I−V
Curve
Figure 10. ESD8451N2T5G Negative TLP I−V
Curve
www.onsemi.com
4
ESD8451, SZESD8451
Latch−Up Considerations
stable operating point of the circuit and the system is
therefore latch−up free. In the non−latch up free load line
case, the IV characteristic of the snapback protection device
ON Semiconductor’s 8000 series of ESD protection
devices utilize a snap−back, SCR type structure. By using
this technology, the potential for a latch−up condition was
taken into account by performing load line analyses of
common high speed serial interfaces. Example load lines for
latch−up free applications and applications with the
potential for latch−up are shown below with a generic IV
characteristic of a snapback, SCR type structured device
overlaid on each. In the latch−up free load line case, the IV
characteristic of the snapback protection device intersects
intersects the load−line in two points (V
, I
OPA OPA
) and
(V , I ). Therefore in this case, the potential for
OPB OPB
latch−up exists if the system settles at (V
, I
) after a
OPB OPB
transient. Because of this, ESD8451 should not be used for
HDMI applications – ESD8104 or ESD8040 have been
designed to be acceptable for HDMI applications without
latch−up. Please refer to Application Note AND9116/D for
a more in−depth explanation of latch−up considerations
using ESD8000 series devices.
the load−line in one unique point (V , I ). This is the only
OP OP
ESD8451 Latch*up free:
USB 2.0 LS/FS, USB 2.0 HS,
USB 3.0 SS, DisplayPort
ESD8451 Potential Latch*up:
HDMI 1.4/1.3a TMDS
Figure 11. Example Load Lines for Latch−up Free Applications and Applications with the Potential for Latch−up
Table 1. SUMMARY OF SCR REQUIREMENTS FOR LATCH−UP FREE APPLICATIONS
VBR (min)
(V)
IH (min)
(mA)
VH (min)
(V)
ON Semiconductor ESD8000 Series
Recommended PN
Application
HDMI 1.4/1.3a TMDS
USB 2.0 LS/FS
USB 2.0 HS
3.465
3.301
0.482
2.800
3.600
54.78
1.76
N/A
1.0
1.0
1.0
1.0
1.0
ESD8104, ESD8040
ESD8004, ESD8451
ESD8004, ESD8451
USB 3.0 SS
N/A
ESD8004, ESD8006, ESD8451
ESD8004, ESD8006, ESD8451
DisplayPort
25.00
www.onsemi.com
5
ESD8451, SZESD8451
IEC61000−4−2 Waveform
IEC 61000−4−2 Spec.
I
peak
First Peak
Current
(A)
100%
90%
Test Volt-
age (kV)
Current at
30 ns (A)
Current at
60 ns (A)
Level
1
2
3
4
2
4
6
8
7.5
15
4
8
2
4
6
8
I @ 30 ns
22.5
30
12
16
I @ 60 ns
10%
t
P
= 0.7 ns to 1 ns
Figure 12. IEC61000−4−2 Spec
50 W Coax
Cable
Transmission Line Pulse (TLP) Measurement
L
Attenuator
S
Transmission Line Pulse (TLP) provides current versus
voltage (I−V) curves in which each data point is obtained
from a 100 ns long rectangular pulse from a charged
transmission line. A simplified schematic of a typical TLP
system is shown in Figure 13. TLP I−V curves of ESD
protection devices accurately demonstrate the product’s
ESD capability because the 10s of amps current levels and
under 100 ns time scale match those of an ESD event. This
is illustrated in Figure 14 where an 8 kV IEC 61000−4−2
current waveform is compared with TLP current pulses at
8 A and 16 A. A TLP I−V curve shows the voltage at which
the device turns on as well as how well the device clamps
voltage over a range of current levels.
÷
50 W Coax
Cable
I
M
V
M
10 MW
DUT
V
C
Oscilloscope
Figure 13. Simplified Schematic of a Typical TLP
System
Figure 14. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms
www.onsemi.com
6

ESD8451, SZESD8451
ORDERING INFORMATION
Device
†
Package
Shipping
ESD8451N2T5G,
SZESD8451N2T5G*
XDFN2
(Pb−Free)
8000 / Tape & Reel
15000 / Tape & Reel
ESD8451MUT5G,
X3DFN2
SZESD8451MUT5G*
(Pb−Free)
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
*SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP
Capable.
www.onsemi.com
7
ESD8451, SZESD8451
PACKAGE DIMENSIONS
X3DFN2, 0.62x0.32, 0.355P, (0201)
CASE 152AF
ISSUE A
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
A B
D
2. CONTROLLING DIMENSION: MILLIMETERS.
PIN 1
INDICATOR
(OPTIONAL)
MILLIMETERS
DIM MIN
MAX
0.33
0.05
0.28
0.66
0.36
A
A1
b
D
E
0.25
−−−
E
TOP VIEW
0.22
0.58
0.28
e
0.355 BSC
0.23
L2 0.17
0.05
0.05
C
C
A
RECOMMENDED
2X
MOUNTING FOOTPRINT*
A1
SIDE VIEW
SEATING
PLANE
C
2X
0.74
0.30
1
e
2X b
1
2
2X
0.31
DIMENSIONS: MILLIMETERS
M
0.05
C A B
2X L2
See Application Note AND8398/D for more mounting details
M
0.05
C A B
BOTTOM VIEW
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
www.onsemi.com
8
ESD8451, SZESD8451
PACKAGE DIMENSIONS
XDFN2 1.0x0.6, 0.65P (SOD−882)
CASE 711AM
ISSUE O
NOTES:
0.10
C
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. EXPOSED COPPER ALLOWED AS SHOWN.
A B
E
D
PIN 1
INDICATOR
MILLIMETERS
DIM MIN
MAX
0.44
0.05
0.53
A
A1
b
0.34
−−−
0.43
0.05
C
TOP VIEW
D
E
e
1.00 BSC
0.60 BSC
0.65 BSC
NOTE 3
A
0.10
0.10
C
L
0.20
0.30
C
RECOMMENDED
A1
SEATING
PLANE
C
SOLDER FOOTPRINT*
SIDE VIEW
1.20
2X
2X
0.47
e
0.60
b
e/2
PIN 1
M
0.05
C A B
1
DIMENSIONS: MILLIMETERS
2X
L
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
M
0.05
C A B
BOTTOM VIEW
HDMI is a registered trademark of HDMI Licensing, LLC.
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC owns the rights to a number of patents, trademarks,
copyrights, trade secrets, and other intellectual property. A listing of SCILLC’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. SCILLC
reserves the right to make changes without further notice to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any
particular purpose, nor does SCILLC assume any liability arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without
limitation special, consequential or incidental damages. “Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications
and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC
does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for
surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where
personal injury or death may occur. Should Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and
its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly,
any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture
of the part. SCILLC is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
ESD8451/D
厂商 型号 描述 页数 下载

ETC

 		SZE-002T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ETC

 		SZE-003T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ONSEMI

 		SZESD7016 低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ] 8 页

ONSEMI

 		SZESD7016MUTAG 低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ] 8 页

ONSEMI

 		SZESD7104MTWTAG [ Trans Voltage Suppressor Diode ] 11 页

ONSEMI

 		SZESD7205DT5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205M3T5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205WTT1G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7351HT1G [ Transient Voltage Suppressors ] 8 页

ONSEMI

 		SZESD7351P2T5G [ Transient Voltage Suppressors ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.214553s
