SZESD7016

型号：

SZESD7016

描述：

低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ]

品牌：

ONSEMI[ ONSEMI ]

页数：

8 页

PDF大小：

437 K

下载PDF手册

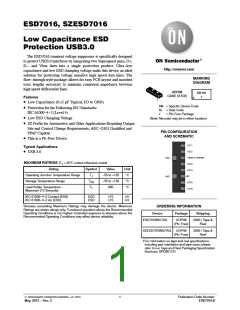

ESD7016, SZESD7016
Low Capacitance ESD
Protection USB3.0
The ESD7016 transient voltage suppressor is specifically designed
to protect USB3.0 interfaces by integrating two Superspeed pairs, D+,
D−, and Vbus lines into a single protection product. Ultra−low
capacitance and low ESD clamping voltage make this device an ideal
solution for protecting voltage sensitive high speed data lines. The
flow−through style package allows for easy PCB layout and matched
trace lengths necessary to maintain consistent impedance between
high speed differential lines.
http://onsemi.com
MARKING
DIAGRAM
UDFN8
CASE 517CB
6M MG
G
Features
1
• Low Capacitance (0.15 pF Typical, I/O to GND)
6M = Specific Device Code
• Protection for the Following IEC Standards:
M
G
= Date Code
= Pb−Free Package
(Note: Microdot may be in either location)
IEC 61000−4−2 (Level 4)
• Low ESD Clamping Voltage
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
• This is a Pb−Free Device
PIN CONFIGURATION
AND SCHEMATIC
I/O 1
I/O 2
Typical Applications
• USB 3.0
Vbus or Ground
I/O 3
N/C
N/C
MAXIMUM RATINGS (T = 25°C unless otherwise noted)
J
Rating
Symbol
Value
−55 to +125
−55 to +150
260
Unit
°C
I/O 4
Operating Junction Temperature Range
Storage Temperature Range
T
J
T
stg
°C
I/O 5
I/O 6
Lead Solder Temperature −
T
L
°C
Maximum (10 Seconds)
IEC 61000−4−2 Contact (ESD)
IEC 61000−4−2 Air (ESD)
ESD
ESD
15
15
kV
kV
Stresses exceeding Maximum Ratings may damage the device. Maximum
Ratings are stress ratings only. Functional operation above the Recommended
Operating Conditions is not implied. Extended exposure to stresses above the
Recommended Operating Conditions may affect device reliability.
ORDERING INFORMATION
Device
Package
Shipping
ESD7016MUTAG
UDFN8
(Pb−Free)
3000 / Tape &
Reel
SZESD7016MUTAG
UDFN8
(Pb−Free)
3000 / Tape &
Reel
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2013
1
Publication Order Number:
May, 2013 − Rev. 3
ESD7016/D
ESD7016, SZESD7016
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise specified)
A
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
V
Reverse Working Voltage
Breakdown Voltage
V
RWM
I/O Pin to GND
I = 1 mA, I/O Pin to GND
5.0
V
BR
5.5
V
T
Reverse Leakage Current
Clamping Voltage (Note 1)
Clamping Voltage (Note 2)
I
V
= 5 V, I/O Pin to GND
1.0
10
mA
V
R
RWM
V
I
PP
= 1 A, I/O Pin to GND (8 x 20 ms pulse)
C
C
C
V
V
IEC61000−4−2, 8 kV Contact
See Figures 1 and 2
V
Clamping Voltage
TLP (Note 3)
See Figures 6 through 9
I
PP
I
PP
=
=
8 A
16 A
14.6
20.5
Junction Capacitance
C
V
V
= 0 V, f = 1 MHz between I/O Pins and GND
= 0 V, f = 1 MHz between I/O Pins and GND
0.15
0.03
0.20
pF
pF
J
R
Junction Capacitance
Difference
DC
J
R
1. Surge current waveform per Figure 5.
2. For test procedure see Figures 3 and 4 and application note AND8307/D.
3. ANSI/ESD STM5.5.1 − Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model.
TLP conditions: Z = 50 W, t = 100 ns, t = 4 ns, averaging window; t = 30 ns to t = 60 ns.
0
p
r
1
2
90
80
70
60
50
40
30
20
10
0
0
−10
−20
−30
−40
−50
−60
−70
−80
−90
−10
−100
−20
−20
0
20
40
60
TIME (ns)
80
100
120
140
0
20
40
60
80
100
120 140
TIME (ns)
Figure 1. IEC61000−4−2 +8 KV Contact
Figure 2. IEC61000−4−2 −8 KV Contact
Clamping Voltage
Clamping Voltage
http://onsemi.com
2

ESD7016, SZESD7016
IEC61000−4−2 Waveform
IEC 61000−4−2 Spec.
I
peak
Test
Voltage
(kV)
First Peak
Current
(A)
100%
90%
Current at
30 ns (A)
Current at
60 ns (A)
Level
1
2
3
4
2
4
6
8
7.5
15
4
8
2
4
6
8
I @ 30 ns
22.5
30
12
16
I @ 60 ns
10%
t
P
= 0.7 ns to 1 ns
Figure 3. IEC61000−4−2 Spec
Oscilloscope
ESD Gun
TVS
50 W
Cable
50 W
Figure 4. Diagram of ESD Clamping Voltage Test Setup
The following is taken from Application Note
AND8308/D − Interpretation of Datasheet Parameters
for ESD Devices.
systems such as cell phones or laptop computers it is not
clearly defined in the spec how to specify a clamping voltage
at the device level. ON Semiconductor has developed a way
to examine the entire voltage waveform across the ESD
protection diode over the time domain of an ESD pulse in the
form of an oscilloscope screenshot, which can be found on
the datasheets for all ESD protection diodes. For more
information on how ON Semiconductor creates these
screenshots and how to interpret them please refer to
AND8307/D and AND8308/D.
ESD Voltage Clamping
For sensitive circuit elements it is important to limit the
voltage that an IC will be exposed to during an ESD event
to as low a voltage as possible. The ESD clamping voltage
is the voltage drop across the ESD protection diode during
an ESD event per the IEC61000−4−2 waveform. Since the
IEC61000−4−2 was written as a pass/fail spec for larger
100
t
r
PEAK VALUE I
@ 8 ms
RSM
90
80
70
60
50
40
30
20
PULSE WIDTH (t ) IS DEFINED
P
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8 ms
HALF VALUE I /2 @ 20 ms
RSM
t
P
10
0
0
20
40
t, TIME (ms)
60
80
Figure 5. 8 X 20 ms Pulse Waveform
http://onsemi.com
3
ESD7016, SZESD7016
22
20
18
16
14
12
10
8
−22
−20
−18
−16
−14
−12
−10
−8
6
−6
4
−4
2
−2
0
0
0
2
4
6
8
10 12 14 16 18 20 22 24 26
VOLTAGE (V)
0
2
4
6
8
10 12 14 16 18 20 22 24 26
VOLTAGE (V)
Figure 6. Positive TLP I−V Curve
Figure 7. Negative TLP I−V Curve
50 W Coax
Cable
Transmission Line Pulse (TLP) Measurement
L
Attenuator
S
Transmission Line Pulse (TLP) provides current versus
voltage (I−V) curves in which each data point is obtained
from a 100 ns long rectangular pulse from a charged
transmission line. A simplified schematic of a typical TLP
system is shown in Figure 8. TLP I−V curves of ESD
protection devices accurately demonstrate the product’s
ESD capability because the 10s of amps current levels and
under 100 ns time scale match those of an ESD event. This
is illustrated in Figure 9 where an 8 kV IEC 61000−4−2
current waveform is compared with TLP current pulses at
8 A and 16 A. A TLP I−V curve shows the voltage at which
the device turns on as well as how well the device clamps
voltage over a range of current levels.
÷
50 W Coax
Cable
I
M
V
M
10 MW
DUT
V
C
Oscilloscope
Figure 8. Simplified Schematic of a Typical TLP
System
Figure 9. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms
http://onsemi.com
4

ESD7016, SZESD7016
Without ESD7016
With ESD7016
Figure 10. USB3.0 Eye Diagram with and without ESD7016, 5 Gb/s
4
2
ESD7016
IO−GND
0
−2
−4
−6
−8
−10
1.E+06
1.E+07
1.E+08
1.E+09
1.E+10
FREQUENCY (Hz)
Figure 11. ESD7016 Insertion Loss
http://onsemi.com
5
ESD7016, SZESD7016
I/O
I/O
I/O
I/O
I/O
I/O
Pin 1 Pin 2 Pin 4 Pin 5
Pin 7
Pin 8
Pinout Option 1:
USB 3.0 Type A
Connector
2 Ground connections between high
speed pairs to minimize crosstalk.
StdA_SSTX+
Vbus
StdA_SSTX−
D−
GND_DRAIN
D+
GND
Pin 3
GND
Pin 6
StdA_SSRX+
=
GND
StdA_SSRX−
I/O
I/O
VBUS
Pin 3 Pin 4 Pin 5
I/O
I/O
I/O
Pin 7
I/O
Pin 8
Pinout Option 2:
Pin 1 Pin 2
USB 3.0 Type A
Connector
Single ground connection and Vbus
protection for fully integrated solution.
StdA_SSTX+
Vbus
StdA_SSTX−
D−
Vbus
GND_DRAIN
D+
GND
Pin 6
StdA_SSRX+
=
GND
StdA_SSRX−
Figure 12. USB3.0 Type A Connector Layout Diagrams
http://onsemi.com
6
ESD7016, SZESD7016
USB 3.0 Micro B
Connector
Vbus
ESD9X
D−
D+
ID
GND
ESD7016
ID
N/C
N/C
MicB_SSTX−
MicB_SSTX+
GND_DRAIN
MicB_SSRX−
MicB_SSRX+
Figure 13. USB3.0 Micro B Connector Layout Diagram
http://onsemi.com
7
ESD7016, SZESD7016
PACKAGE DIMENSIONS
UDFN8, 3.3x1.0, 0.4P
CASE 517CB
ISSUE O
NOTES:
L
L
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED
TERMINAL AND IS MEASURED BETWEEN
0.15 AND 0.20 MM FROM TERMINAL TIP.
D
A B
E
PIN ONE
REFERENCE
L1
DETAIL A
2X
0.10
C
ALTERNATE
MILLIMETERS
CONSTRUCTIONS
DIM MIN
MAX
0.55
0.05
A
A1
A3
b
0.45
0.00
0.13 REF
0.10
C
2X
TOP VIEW
EXPOSED Cu
MOLD CMPD
A
0.15
0.25
DETAIL B
(A3)
0.05
0.05
C
D
D2
E
3.30 BSC
0.25
0.45
1.00 BSC
DETAIL B
E2
e
G2
L
0.45
0.55
C
ALTERNATE
0.40 BSC
1.19 BSC
0.20 0.30
CONSTRUCTION
SEATING
PLANE
A1
C
SIDE VIEW
L1
L2
−−−
0.30
0.15
0.40
8X b
M
0.10
0.05
C A B
e/2
e
DETAIL A
RECOMMENDED
SOLDERING FOOTPRINT*
M
NOTE 3
C
8
1
2X
0.65
1.66
2X
0.50
L2
7X
L
2X
D2
2X
E2
G2
BOTTOM VIEW
M
M
0.10
0.05
C A B
C
1.20
7X
0.40
8X
0.25
0.40
0.50
PITCH
DIMENSION: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
ESD7016/D
厂商 型号 描述 页数 下载

ETC

 		SZE-002T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ETC

 		SZE-003T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ONSEMI

 		SZESD7016MUTAG 低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ] 8 页

ONSEMI

 		SZESD7104MTWTAG [ Trans Voltage Suppressor Diode ] 11 页

ONSEMI

 		SZESD7205DT5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205M3T5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205WTT1G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7351HT1G [ Transient Voltage Suppressors ] 8 页

ONSEMI

 		SZESD7351P2T5G [ Transient Voltage Suppressors ] 8 页

ONSEMI

 		SZESD7351XV2T1G [ Transient Voltage Suppressors ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.202673s
