SZESD7104MTWTAG

型号：

SZESD7104MTWTAG

品牌：

ONSEMI[ ONSEMI ]

页数：

11 页

PDF大小：

638 K

下载PDF手册

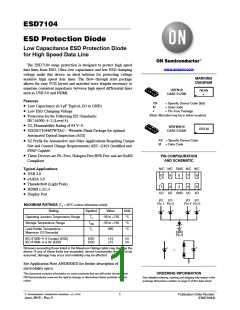

ESD7104
ESD Protection Diode
Low Capacitance ESD Protection Diode
for High Speed Data Line
The ESD7104 surge protection is designed to protect high speed
data lines from ESD. Ultra−low capacitance and low ESD clamping
voltage make this device an ideal solution for protecting voltage
sensitive high speed data lines. The flow−through style package
allows for easy PCB layout and matched trace lengths necessary to
maintain consistent impedance between high speed differential lines
such as USB 3.0 and HDMI.
www.onsemi.com
MARKING
DIAGRAM
UDFN10
CASE 517BB
7M MG
G
Features
7M
M
G
= Specific Device Code (tbd)
= Date Code
= Pb−Free Package
• Low Capacitance (0.3 pF Typical, I/O to GND)
• Low ESD Clamping Voltage
(Note: Microdot may be in either location)
• Protection for the Following IEC Standards:
IEC 61000−4−2 (Level 4)
• UL Flammability Rating of 94 V−0
• SZESD7104MTWTAG − Wettable Flank Package for optimal
Automated Optical Inspection (AOI)
WDFNW10
XXX M
CASE 515AH
XX = Specific Device Code
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
M
= Date Code
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
Compliant
PIN CONFIGURATION
AND SCHEMATIC
N/C N/C GND N/C N/C
Typical Applications
• USB 3.0
10
9
8
7
6
• eSATA 3.0
• Thunderbolt (Light Peak)
• HDMI 1.3/1.4
• Display Port
1
2
3
4
5
I/O I/O GND I/O I/O
I/O
I/O
I/O
I/O
Pin 1 Pin 2
Pin 4 Pin 5
MAXIMUM RATINGS (T = 25°C unless otherwise noted)
J
Rating
Symbol
Value
−55 to +125
−55 to +150
260
Unit
°C
Operating Junction Temperature Range
Storage Temperature Range
T
J
T
stg
°C
Lead Solder Temperature −
Maximum (10 Seconds)
T
L
°C
GND
Pin 3
IEC 61000−4−2 Contact (ESD)
IEC 61000−4−2 Air (ESD)
ESD
ESD
15
15
kV
kV
Stresses exceeding those listed in the Maximum Ratings table may damage the
device. If any of these limits are exceeded, device functionality should not be
assumed, damage may occur and reliability may be affected.
=
See Application Note AND8308/D for further description of
survivability specs.
ORDERING INFORMATION
See detailed ordering, marking and shipping information in the
package dimensions section on page 9 of this data sheet.
This document contains information on some products that are still under development.
ON Semiconductor reserves the right to change or discontinue these products without
notice.
© Semiconductor Components Industries, LLC, 2016
1
Publication Order Number:
June, 2019 − Rev. 5
ESD7104/D
ESD7104
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise specified)
A
Parameter
Symbol
Conditions
Min
Typ
Max
Unit
V
Reverse Working Voltage
Breakdown Voltage
V
RWM
I/O Pin to GND
I = 1 mA, I/O Pin to GND
5.0
V
BR
5.5
V
T
Reverse Leakage Current
Clamping Voltage (Note 1)
Clamping Voltage (Note 2)
Clamping Voltage (Note 3)
I
V
= 5 V, I/O Pin to GND
1.0
10
mA
V
R
RWM
V
I
PP
= 1 A, I/O Pin to GND (8 x 20 ms pulse)
C
C
C
V
V
IEC61000−4−2, 8 KV Contact
See Figures 1 and 2
V
I
PP
I
PP
=
=
8 A
16 A
14.1
19.5
V
Junction Capacitance
Junction Capacitance
C
C
V
V
= 0 V, f = 1 MHz between I/O Pins
0.2
0.3
0.35
pF
pF
J
J
R
= 0 V, f = 1 MHz between I/O Pins and GND
0.3
R
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
1. Surge current waveform per Figure 5.
2. For test procedure see Figures 3 and 4 and application note AND8307/D.
3. ANSI/ESD STM5.5.1 − 2008 Electrostatic Discharge Sensitivity Testing using Transmission Line Pulse (TLP) Model.
TLP conditions: Z = 50 W, t = 100 ns, t = 4 ns, averaging window; t = 30 ns to t = 60 ns.
0
p
r
1
2
80
70
10
0
60
50
40
−10
−20
−30
30
−40
20
10
−50
−60
−70
−80
0
−10
−20
0
20
40
60
TIME (ns)
80
100 120 140
−20
0
20
40
60
80
100 120 140
TIME (ns)
Figure 1. IEC61000−4−2 +8 KV Contact
Figure 2. IEC61000−4−2 −8 KV Contact
Clamping Voltage
Clamping Voltage
www.onsemi.com
2

ESD7104
IEC61000−4−2 Waveform
IEC 61000−4−2 Spec.
I
peak
First Peak
Current
(A)
100%
90%
Test Volt-
age (kV)
Current at
30 ns (A)
Current at
60 ns (A)
Level
1
2
3
4
2
4
6
8
7.5
15
4
8
2
4
6
8
I @ 30 ns
22.5
30
12
16
I @ 60 ns
10%
t
P
= 0.7 ns to 1 ns
Figure 3. IEC61000−4−2 Spec
Device
Under
Test
Oscilloscope
ESD Gun
50 W
Cable
50 W
Figure 4. Diagram of ESD Clamping Voltage Test Setup
The following is taken from Application Note
AND8308/D − Interpretation of Datasheet Parameters
for ESD Devices.
systems such as cell phones or laptop computers it is not
clearly defined in the spec how to specify a clamping voltage
at the device level. ON Semiconductor has developed a way
to examine the entire voltage waveform across the ESD
protection diode over the time domain of an ESD pulse in the
form of an oscilloscope screenshot, which can be found on
the datasheets for all ESD protection diodes. For more
information on how ON Semiconductor creates these
screenshots and how to interpret them please refer to
AND8307/D.
ESD Voltage Clamping
For sensitive circuit elements it is important to limit the
voltage that an IC will be exposed to during an ESD event
to as low a voltage as possible. The ESD clamping voltage
is the voltage drop across the ESD protection diode during
an ESD event per the IEC61000−4−2 waveform. Since the
IEC61000−4−2 was written as a pass/fail spec for larger
100
t
r
PEAK VALUE I
@ 8 ms
RSM
90
80
70
60
50
40
30
20
PULSE WIDTH (t ) IS DEFINED
P
AS THAT POINT WHERE THE
PEAK CURRENT DECAY = 8 ms
HALF VALUE I /2 @ 20 ms
RSM
t
P
10
0
0
20
40
t, TIME (ms)
60
80
Figure 5. 8 x 20 ms Pulse Waveform
www.onsemi.com
3
ESD7104
22
20
18
16
14
12
10
8
−22
−20
−18
−16
−14
−12
−10
−8
6
−6
4
2
0
−4
−2
0
0
2
4
6
8
10 12 14 16 18 20 22 24
VOLTAGE (V)
0
−2 −4 −6 −8 −10 −12 −14 −16 −18 −20 −22 −24
VOLTAGE (V)
Figure 6. Positive TLP I−V Curve
Figure 7. Negative TLP I−V Curve
50 W Coax
Cable
Transmission Line Pulse (TLP) Measurement
L
Attenuator
S
Transmission Line Pulse (TLP) provides current versus
voltage (I−V) curves in which each data point is obtained
from a 100 ns long rectangular pulse from a charged
transmission line. A simplified schematic of a typical TLP
system is shown in Figure 8. TLP I−V curves of ESD
protection devices accurately demonstrate the product’s
ESD capability because the 10s of amps current levels and
under 100 ns time scale match those of an ESD event. This
is illustrated in Figure 9 where an 8 kV IEC 61000−4−2
current waveform is compared with TLP current pulses at
8 A and 16 A. A TLP I−V curve shows the voltage at which
the device turns on as well as how well the device clamps
voltage over a range of current levels.
÷
50 W Coax
Cable
I
M
V
M
10 MW
DUT
V
C
Oscilloscope
Figure 8. Simplified Schematic of a Typical TLP
System
Figure 9. Comparison Between 8 kV IEC 61000−4−2 and 8 A and 16 A TLP Waveforms
www.onsemi.com
4

ESD7104
Without ESD
With ESD7104
Figure 10. USB3.0 Eye Diagram with and without ESD7104. 5.0 Gb/s, 400 mVPP
Without ESD
With ESD7104
Figure 11. HDMI1.4 Eye Diagram with and without ESD7104. 3.4 Gb/s, 400 mVPP
Without ESD
With ESD7104
Figure 12. ESATA3.0 Eye Diagram with and without ESD7104. 6 Gb/s, 400 mVPP
www.onsemi.com
5
ESD7104
4
2
ESD7104 IO−GND
0
−2
−4
−6
−8
−10
1.E+06
1.E+07
1.E+08
1.E+09
1.E+10
FREQUENCY (Hz)
Figure 13. ESD7104 Insertion Loss
www.onsemi.com
6
ESD7104
USB 3.0 Type A
Connector
StdA_SSTX+
Vbus
StdA_SSTX−
ESD7104
D−
ESD7L5.0
GND_DRAIN
StdA_SSRX+
D+
GND
StdA_SSRX−
Figure 14. USB3.0 Standard A Connector Layout Diagram
USB 3.0 Micro B
Connector
ESD7104
Vbus
D−
D+
ID
GND
ESD7104
MicB_SSTX−
MicB_SSTX+
GND_DRAIN
MicB_SSRX−
MicB_SSRX+
Figure 15. USB3.0 Micro B Connector Layout Diagram
www.onsemi.com
7
ESD7104
HDMI
Type A Connector
ESD7104
D2+
GND
D2−
D1+
GND
D1−
ESD7104
D0+
GND
D0−
CLK+
GND
CLK−
CEC
N/C (or HEC_DAT – HDMI1.4)
SCL
SDA
GND
5V
HPD (and HEC_DAT – HDMI1.4)
NUP4114
Figure 16. HDMI Layout Diagram
e S ATA
Connector
GND
A+
ESD7104
A−
GND
B−
B+
GND
Figure 17. eSATA Layout Diagram
www.onsemi.com
8
ESD7104
DEVICE ORDERING INFORMATION
†
Device
Marking
Package
Shipping
ESD7104MUTAG
7M
UDFN10
3000 / Tape & Reel
3000 / Tape & Reel
3000 / Tape & Reel
(Pb−Free)
SZESD7104MUTAG
7M
UDFN10
(Pb−Free)
SZESD7104MTWTAG
(In Development)
TBD
WDFNW10
(Pb−Free)
†For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specifications Brochure, BRD8011/D.
www.onsemi.com
9
ESD7104
PACKAGE DIMENSIONS
UDFN10 2.5 x 1, 0.5P
CASE 517BB
ISSUE O
NOTES:
1. DIMENSIONING AND TOLERANCING PER
ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. DIMENSION b APPLIES TO PLATED
TERMINAL AND IS MEASURED BETWEEN
0.15 AND 0.30mm FROM TERMINAL.
L
L
D
B
E
A
L1
PIN ONE
REFERENCE
DETAIL A
OPTIONAL
CONSTRUCTIONS
MILLIMETERS
2X
0.10 C
DIM
A
MIN
0.45
0.00
MAX
0.55
0.05
A1
A3
b
2X
0.10
C
MOLD CMPD
TOP VIEW
EXPOSED Cu
0.13 REF
0.15
0.35
0.25
0.45
b2
D
DETAIL B
2.50 BSC
1.00 BSC
0.50 BSC
A3
A
A3
E
0.10
0.08
C
C
e
L
0.30
---
0.40
0.05
A1
L1
DETAIL B
10X
A1
OPTIONAL
SEATING
PLANE
CONSTRUCTION
C
SIDE VIEW
RECOMMENDED
SOLDERING FOOTPRINT*
2X b2
10X
L
10X
0.50
DETAIL A
2X
0.45
5
1
10
6
1.30
e
8X b
PACKAGE
OUTLINE
0.10
0.05
C
C
A
B
8X
0.25
NOTE 3
0.50
PITCH
BOTTOM VIEW
DIMENSIONS: MILLIMETERS
*For additional information on our Pb−Free strategy and soldering
details, please download the ON Semiconductor Soldering and
Mounting Techniques Reference Manual, SOLDERRM/D.
www.onsemi.com
10
ESD7104
PACKAGE DIMENSIONS
WDFNW10 2.5x1.0, 0.5P
CASE 515AH
ISSUE O
ON Semiconductor and
are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries.
ON Semiconductor owns the rights to a number of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent
coverage may be accessed at www.onsemi.com/site/pdf/Patent−Marking.pdf. ON Semiconductor reserves the right to make changes without further notice to any products herein.
ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
Buyer is responsible for its products and applications using ON Semiconductor products, including compliance with all laws, regulations and safety requirements or standards,
regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON Semiconductor data sheets and/or
specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer
application by customer’s technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not
designed, intended, or authorized for use as a critical component in life support systems or any FDA Class 3 medical devices or medical devices with a same or similar classification
in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended or unauthorized
application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and
expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such
claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor is an Equal Opportunity/Affirmative Action Employer. This
literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
19521 E. 32nd Pkwy, Aurora, Colorado 80011 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
◊
ESD7104/D
厂商 型号 描述 页数 下载

ETC

 		SZE-002T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ETC

 		SZE-003T-P0.3 1.5毫米俯仰/可撤离压接式连接器[ 1.5mm pitch/Disconnectable Crimp style connectors ] 4 页

ONSEMI

 		SZESD7016 低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ] 8 页

ONSEMI

 		SZESD7016MUTAG 低电容ESD保护的USB3.0[ Low Capacitance ESD Protection USB3.0 ] 8 页

ONSEMI

 		SZESD7205DT5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205M3T5G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7205WTT1G [ ESD Protection Diodes ] 8 页

ONSEMI

 		SZESD7351HT1G [ Transient Voltage Suppressors ] 8 页

ONSEMI

 		SZESD7351P2T5G [ Transient Voltage Suppressors ] 8 页

ONSEMI

 		SZESD7351XV2T1G [ Transient Voltage Suppressors ] 8 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.218159s
