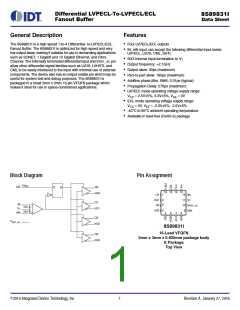

Differential LVPECL-To-LVPECL/ECL
Fanout Buffer
8S89831I
Data Sheet
General Description
Features
The 8S89831I is a high speed 1-to-4 Differential- to-LVPECL/ECL
Fanout Buffer. The 8S89831I is optimized for high speed and very
low output skew, making it suitable for use in demanding applications
such as SONET, 1 Gigabit and 10 Gigabit Ethernet, and Fibre
Channel. The internally terminated differential input and VREF_AC pin
allow other differential signal families such as LVDS, LVHSTL and
CML to be easily interfaced to the input with minimal use of external
components. The device also has an output enable pin which may be
useful for system test and debug purposes. The 8S89831I is
packaged in a small 3mm x 3mm 16-pin VFQFN package which
makes it ideal for use in space-constrained applications.
• Four LVPECL/ECL outputs
• IN, nIN input can accept the following differential input levels:
LVPECL, LVDS, CML, SSTL
• 50internal input termination to VT
• Output frequency: >2.1GHz
• Output skew: 30ps (maximum)
• Part-to-part skew: 185ps (maximum)
• Additive phase jitter, RMS: 0.31ps (typical)
• Propagation Delay: 570ps (maximum)
• LVPECL mode operating voltage supply range:
V
CC = 2.5V 5%, 3.3V 5%, VEE = 0V
• ECL mode operating voltage supply range:
CC = 0V, VEE = -3.3V 5%, -2.5V 5%
V
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package
Block Diagram
Pin Assignment
Pullup
EN
Q0
D
Q
16 15 14 13
nQ0
1
2
3
Q1
nQ1
Q2
12
11
10
IN
VT
Q1
IN
VT
VREF_AC
nIN
50Ω
50Ω
nQ1
nQ2
4
9
nIN
5
6
7
8
Q2
VREF_AC
nQ2
8S89831I
16-Lead VFQFN
Q3
3mm x 3mm x 0.925mm package body
nQ3
K Package
Top View
©2016 Integrated Device Technology, Inc
1
Revision A January 27, 2016
8S89831I Data Sheet
Table 1. Pin Descriptions
Number
1, 2
Name
Type
Output
Description
Q1, nQ1
Q2, nQ2
Q3, nQ3
Differential output pair. LVPECL/ECL interface levels.
Differential output pair. LVPECL/ECL interface levels.
Differential output pair. LVPECL/ECL interface levels.
3, 4
Output
Output
5, 6
7, 14
8
Vcc
Power
Power supply pins.
Synchronizing clock enable. When LOW, Qx outputs will go LOW and nQx outputs will
go HIGH on the next LOW transition at IN input. Input threshold is VCC/2. Includes a
37kpull-up resistor. Default state is HIGH when left floating. The internal latch is
clocked on the falling edge of the input signal IN. LVTTL / LVCMOS interface levels.
EN
Input
Pullup
9
nIN
VREF_AC
VT
Input
Output
Input
Inverting differential LVPECL clock input. RT = 50termination to VT.
Reference voltage for AC-coupled applications.
10
11
Termination input. IREF_AC (max.) < 2mA.
Non-inverting LVPECL differential clock input.
RT = 50termination to VT.
12
IN
Input
13
VEE
Power
Output
Negative supply pin.
15, 16
Q0, nQ0
Differential output pair. LVPECL/ECL interface levels.
NOTE: Pullup refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
RPULLUP
Input Pullup Resistor
37
k
©2016 Integrated Device Technology, Inc
2
Revision A January 27, 2016
8S89831I Data Sheet
Function Tables
Table 3A. Control Input Function Table
Input
EN
0
Outputs
Q0:Q3
Disabled; LOW
Enabled
nQ0:nQ3
Disabled; HIGH
Enabled
1
NOTE: After EN switches, the clock outputs are disabled or
enabled following a falling input clock edge as shown in Figure 1.
EN
VCC/2
tS
VCC/2
tH
nIN
IN
VIN
tPD
→
←
nQx
Qx
VOUT
Figure 1. EN Timing Diagram
Table 3B. Truth Table
Inputs
Outputs
IN
0
nIN
1
EN
1
Q0:Q3
nQ0:nQ3
0
1
0
1
0
1
1
X
X
0
0 (NOTE 1)
1(NOTE 1)
NOTE 1: On the next negative transition of the input signal (IN).
©2016 Integrated Device Technology, Inc
3
Revision A January 27, 2016
8S89831I Data Sheet
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Negative Supply Voltage, VEE
Inputs, VI (LVPECL mode)
Inputs, VI (ECL mode)
4.6V (LVPECL mode, VEE = 0V)
-4.6V (ECL mode, VCC = 0V)
-0.5V to VCC + 0.5V
0.5V to VEE – 0.5V
Outputs, IO
Continuous Current
Surge Current
50mA
100mA
Input Current, IN, nIN
50mA
VT Current, IVT
100mA
VREF_AC Input Sink/Source Current, IREF_AC
Operating Temperature Range, TA
Package Thermal Impedance, JA, (Junction-to-Ambient)
Storage Temperature, TSTG
2mA
-40°C to +85°C
74.7C/W (0 mps)
-65C to 150C
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VCC = 2.5V 5%, 3.3V 5%, TA = -40°C to 85°C
Symbol Parameter
VCC Positive Supply Voltage
IEE Power Supply Current
Test Conditions
Minimum
Typical
Maximum
3.465
45
Units
V
2.375
3.3
mA
Table 4B. LVCMOS/LVTTL DC Characteristics, VCC = 2.5V 5%, 3.3V 5%, TA = -40°C to 85°C
Symbol
VIH
Parameter
Test Conditions
Minimum
Typical
Maximum
VCC + 0.3
0.8
Units
V
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
2.2
0
VIL
V
IIH
VCC = VIN = 3.465V
10
µA
µA
IIL
VCC = 3.465V, VIN = 0V
-150
©2016 Integrated Device Technology, Inc
4
Revision A January 27, 2016
8S89831I Data Sheet
Table 4C. Differential DC Characteristics, VCC = 2.5V 5%, 3.3V 5%, TA = -40°C to 85°C
Symbol
RIN
Parameter
Test Conditions
Minimum
Typical
Maximum
60
Units
Differential Input Resistance
Input High Voltage
Input Low Voltage
(IN, nIN)
(IN, nIN)
(IN, nIN)
IN to VT, nIN to VT
40
1.2
0
50
VIH
VCC
V
VIL
VIH – 0.15
1.2
V
VIN
Input Voltage Swing
Differential Input Voltage Swing
Input Current; NOTE 1
Bias Voltage
0.15
0.3
V
VDIFF_IN
IIN
V
(IN, nIN)
35
mA
V
VREF_AC
VCC – 1.45
VCC – 1.37
VCC – 1.32
NOTE 1: Guaranteed by design.
Table 4D. LVPECL DC Characteristics, VCC = 2.5V 5%, 3.3V 5%, TA = -40°C to 85°C
Symbol
VOH
Parameter
Test Conditions
Minimum
VCC – 1.175
VCC – 2.0
0.6
Typical
Maximum
VCC – 0.85
VCC – 1.575
1.0
Units
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
Output Voltage Swing
V
V
V
V
VOL
VOUT
VDIFF_OUT Differential Output Voltage Swing
1.2
2.0
NOTE 1: Outputs terminated with 50to VCC – 2V.
©2016 Integrated Device Technology, Inc
5
Revision A January 27, 2016
8S89831I Data Sheet
AC Electrical Characteristics
Table 5. AC Characteristics, VCC = 0V; VEE = -3.3V 5%, -2.5V 5% or VCC = 2.5V 5%, 3.3V 5%, VEE = 0V,
TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Output Swing 450mV
Input Swing: 150mV
Input Swing: 800mV
Minimum
2.1
Typical
Maximum
Units
GHz
ps
fMAX
Output Frequency
300
570
510
30
Propagation Delay; (Differential);
NOTE 1
tPD
255
ps
tsk(o)
Output Skew; NOTE 2, 4
ps
tsk(pp)
Part-to-Part Skew; NOTE 3, 4
185
ps
Buffer Additive Jitter; RMS; refer
to Additive Phase Jitter Section
155.52MHz, Integration Range:
12kHz – 20MHz
tjit
0.31
ps
ps
Clock Enable
EN to IN/nIN
Setup Time
tS
300
Clock Enable
EN to IN/nIN
Hold Time
tH
300
100
ps
ps
tR / tF
Output Rise/Fall Time
20% to 80%
250
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE: All parameters characterized at 1GHz unless otherwise noted.
NOTE 1: Measured from the differential input crossing point to the differential output crossing point.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the output differential
cross points.
NOTE 3: Defined as skew between outputs on different devices operating at the same supply voltage and with equal load conditions. Using
the same type of inputs on each device, the outputs are measured at the differential cross points.
NOTE 4: This parameter is defined in accordance with JEDEC Standard 65.
©2016 Integrated Device Technology, Inc
6
Revision A January 27, 2016
8S89831I Data Sheet
Parameter Measurement Information
V
CC
2V
nIN
IN
VIN
VIH
Cross Points
VIL
SCOPE
V
Qx
CC
V
EE
nQx
VEE
nIN
IN
V
,
IN
-0.375V to -1.465V
VOUT
Single-Ended Voltage Swing
Output Load AC Test Circuit
nIN
IN
V
,
DIFF_IN
VDIFF_OUT
Part 1
nQx
Differential Voltage Swing = 2 x VIN
Qx
Part 2
nQy
Differential Input Level
Qy
tsk(pp)
nQx
Qx
Part-to-Part Skew
nQy
Qy
Output Skew
VDIFF_IN, VDIFF_OUT
VIN, VOUT
1600mV
(typical)
800mV
(typical)
nIN
IN
nQ0:nQ3
Single-ended & Differential Input Voltage Swing
Q0:Q3
tPD
Propagation Delay
©2016 Integrated Device Technology, Inc
7
Revision A January 27, 2016
8S89831I Data Sheet
Parameter Measurement Information, continued
nIN
nQ0:nQ3
80%
80%
tR
IN
VOUT
20%
20%
EN
Q0:Q3
tSET-UP
tHOLD
tF
Setup & Hold Time
Output Rise/Fall Time
Application Information
Recommendations for Unused Output Pins
Outputs:
LVPECL Outputs
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
©2016 Integrated Device Technology, Inc
8
Revision A January 27, 2016
8S89831I Data Sheet
3.3V Differential Input with Built-In 50Termination Interface
The IN /nIN with built-in 50terminations accept LVDS, LVPECL,
LVHSTL, CML, SSTL and other differential signals. Both signals must
meet the VIN and VIH input requirements. Figures 2A to 2D show
interface examples for the IN/nIN input with built-in 50terminations
driven by the most common driver types. The input interfaces
suggested here are examples only. If the driver is from another
vendor, use their termination recommendation. Please consult with
the vendor of the driver component to confirm the driver termination
requirements.
Figure 2A. IN/nIN Input with Built-In 50
Figure 2B. IN/nIN Input with Built-In 50
Driven by an LVDS Driver
Driven by an LVPECL Driver
3.3V
3.3V
Zo = 50Ω
Zo = 50Ω
R1
R2
25
25
IN
VT
nIN
Receiver
With
SSTL
Built-In
50Ω
Figure 2C. IN/nIN Input with Built-In 50
Figure 2D. IN/nIN Input with Built-In 50
Driven by a CML Driver with Open Collector
Driven by an SSTL Driver
©2016 Integrated Device Technology, Inc
9
Revision A January 27, 2016
8S89831I Data Sheet
2.5V LVPECL Input with Built-In 50Termination Interface
The IN /nIN with built-in 50terminations accept LVDS, LVPECL,
CML, SSTL and other differential signals. Both signals must meet the
VIN and VIH input requirements. Figures 3A to 3D show interface
examples for the IN/nIN with built-in 50termination input driven by
the most common driver types. The input interfaces suggested here
are examples only. If the driver is from another vendor, use their
termination recommendation. Please consult with the vendor of the
driver component to confirm the driver termination requirements.
Figure 3A. IN/nIN Input with Built-In 50
Figure 3B. IN/nIN Input with Built-In 50
Driven by an LVDS Driver
Driven by an LVPECL Driver
2.5V
2.5V
Zo = 50Ω
Zo = 50Ω
R1
R2
25Ω
25Ω
IN
VT
nIN
Receiver
With
SSTL
Built-In
50Ω
Figure 3C. IN/nIN Input with Built-In 50
Figure 3D. IN/nIN Input with Built-In 50
Driven by a CML Driver with Open Collector
Driven by an SSTL Driver
©2016 Integrated Device Technology, Inc
10
Revision A January 27, 2016
8S89831I Data Sheet
Termination for 3.3V LVPECL Outputs
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 4A and 4B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
The differential outputs are low impedance follower outputs that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125
125
3.3V
3.3V
Z
o = 50
+
_
Input
Zo = 50
R1
84
R2
84
Figure 4A. 3.3V LVPECL Output Termination
Figure 4B. 3.3V LVPECL Output Termination
©2016 Integrated Device Technology, Inc
11
Revision A January 27, 2016
8S89831I Data Sheet
Termination for 2.5V LVPECL Outputs
Figure 5A and Figure 5B show examples of termination for 2.5V
LVPECL driver. These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 5B can be eliminated and the termination is
shown in Figure 5C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
50Ω
R1
R3
250Ω
250Ω
+
50Ω
50Ω
50Ω
+
–
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
2.5V LVPECL Driver
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 5A. 2.5V LVPECL Driver Termination Example
Figure 5B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 5C. 2.5V LVPECL Driver Termination Example
©2016 Integrated Device Technology, Inc
12
Revision A January 27, 2016
8S89831I Data Sheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 6. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 6. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
©2016 Integrated Device Technology, Inc
13
Revision A January 27, 2016
8S89831I Data Sheet
Schematic Example
Figure 7 shows a schematic example of the 8S89831I. This
schematic provides examples of input and output handling. The
8S89831I input has built-in 50termination resistors. The input can
directly accept various types of differential signal without AC couple.
For AC couple termination, the 8S89831I also provides the
VREF_AC pin for proper offset level after the AC couple. This
example shows the 8S89831I input driven by a 2.5V LVPECL driver
with AC couple. The 8S89831I outputs are LVPECL driver. In this
example, we assume the traces are long transmission line and the
receiver is high input impedance without built-in matched load. An
example of 3.3V LVPECL termination is shown in this schematic.
Additional termination approaches are shown in the LVPECL
Termination Application Note.
3.3V
3.3V
3.3V
C2
R3
R5
Zo = 50
Zo = 50
133
133
0.1u
-
+
2.5V
C5
Zo = 50
9
4
3
2
1
R4
82.5
R6
82.5
nIN
VREF_AC
VT
IN
nQ2
Q2
nQ1
Q1
10
11
12
Zo = 50
LVPECL
C6
C7
0.1u
3.3V
R1
100
R2
100
U1
ICS8S89831i
3.3V
R7
R9
Zo = 50
Zo = 50
133
133
3.3V
-
+
C1
0.1u
R8
82.5
R10
82.5
Figure 7. 8S89831I Application Schematic Example
©2016 Integrated Device Technology, Inc
14
Revision A January 27, 2016
8S89831I Data Sheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8S89831I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8S89831I is the sum of the core power plus the power dissipation in the load(s).
The following is the power dissipation for VCC = 3.3V + 5% = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipation in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 45mA = 155.925mW
Power (outputs)MAX = 32.94mW/Loaded Output pair
If all outputs are loaded, the total power is 4 * 32.94mW = 131.76mW
•
Power Dissipation for internal termination RT
Power (RT)MAX = (VIN_MAX)2 / RT_MIN = (1.2V)2 / 80= 18mW
Total Power_MAX (3.3V, with all outputs switching) = 155.925mW + 131.76mW + 18mW = 305.685mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad, and directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.306W * 74.7°C/W = 107.9°C. This is well below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance JA for 16 Lead VFQFN, Forced Convection
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
©2016 Integrated Device Technology, Inc
15
Revision A January 27, 2016
8S89831I Data Sheet
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pairs.
The LVPECL output driver circuit and termination are shown in Figure 8.
VCC
Q1
VOUT
RL
50Ω
VCC - 2V
Figure 8. LVPECL Driver Circuit and Termination
To calculate worst case power dissipation into the load, use the following equations which assume a 50load, and a termination voltage of
VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.85V
(VCC_MAX – VOH_MAX) = 0.85V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.575V
(VCC_MAX – VOL_MAX) = 1.575V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.85V)/50] * 0.85V = 19.55mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.575V)/50] * 1.575V = 13.39mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 32.94mW
©2016 Integrated Device Technology, Inc
16
Revision A January 27, 2016
8S89831I Data Sheet
Reliability Information
Table 7. JA vs. Air Flow Table for a 16 Lead VFQFN
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for 8S89831I is: 328
This device is pin and function compatible and a suggested replacement for 889831.
©2016 Integrated Device Technology, Inc
17
Revision A January 27, 2016
8S89831I Data Sheet
Package Outline and Package Dimensions
Package Outline - K Suffix for 16 Lead VFQFN
Seating Plane
(Ref.)
ND& NE
Even
(ND-1)x e
(R ef.)
A1
Index Area
L
A3
E2
e
N
N
(Typ.)
2
If ND & NE
are Even
1
Anvil
Singulation
or
Sawn
Singulation
2
(NE -1)x e
(Re f.)
E2
2
Top View
D
b
e
Thermal
Base
A
(Ref.)
ND &NE
Odd
D2
2
0. 08
C
Chamfer 4x
0.6 x 0.6 max
OPTIONAL
D2
C
Bottom View w/Type A ID
Bottom View w/Type C ID
2
1
2
1
CHAMFER
RADIUS
N N-1
N N-1
4
4
There are 2 methods of indicating pin 1 corner at the back of the VFQFN package:
1. Type A: Chamfer on the paddle (near pin 1)
2. Type C: Mouse bite on the paddle (near pin 1)
Table 8. Package Dimensions
JEDEC Variation: VEED-2/-4
All Dimensions in Millimeters
Symbol
Minimum
Maximum
N
16
A
0.80
0
1.00
0.05
A1
A3
0.25 Ref.
b
ND & NE
D & E
D2 & E2
e
0.18
0.30
4
3.00 Basic
1.00
0.30
1.80
0.50 Basic
L
0.50
Reference Document: JEDEC Publication 95, MO-220
©2016 Integrated Device Technology, Inc
18
Revision A January 27, 2016
8S89831I Data Sheet
Ordering Information
Table 9. Ordering Information
Part/Order Number
8S89831AKILF
8S89831AKILFT
Marking
831A
831A
Package
“Lead-Free” 16 Lead VFQFN
“Lead-Free” 16 Lead VFQFN
Shipping Packaging
Tube
Temperature
-40C to 85C
-40C to 85C
Tape & Reel
©2016 Integrated Device Technology, Inc
19
Revision A January 27, 2016
8S89831I Data Sheet
Revision History Sheet
Rev
Table
Page
Description of Change
Date
11
Deleted Differential Input with Built-in 50Termination Unused Input Handling application
section. This section does not apply when there is only one input.
A
4/22/10
1/27/16
15
Power Considerations - in Power Dissipation section, corrected Power (RT) calculation.
Calculation = 18mW from 98mW. Total Power and Junction Temperature calculations
have also been updated.
Removed ICS from part numbers where needed.
General Description - Deleted ICS chip.
1
A
T9
19
Ordering Information - Deleted quantity in tape in reel. Deleted LF note below table.
Updated header and footer.
©2016 Integrated Device Technology, Inc
20
Revision A January 27, 2016
8S89831I Data Sheet
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
www.idt.com/go/support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
DISCLAIMER Integrated Device Technology, Inc. (IDT) reserves the right to modify the products and/or specifications described herein at any time, without notice, at IDT's sole discretion. Performance specifications
and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein
is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any particular purpose, an implied warranty of merchantability,
or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners.
For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary.
Copyright ©2016 Integrated Device Technology, Inc. All rights reserved.
厂商 型号 描述 页数 下载

IDT

 		8S89200 [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILF [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILFT [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89202 [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILF [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILFT [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89296 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI8 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89831AKILF [ Differential LVPECL-To-LVPECL/ECL Fanout Buffer ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.186555s
