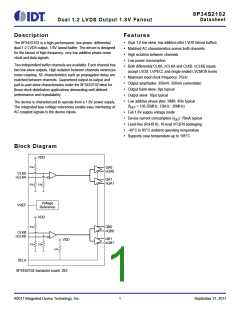

8P34S2102
Datasheet
Dual 1:2 LVDS Output 1.8V Fanout
Features
Description
▪ Dual 1:2 low skew, low additive jitter LVDS fanout buffers
The 8P34S2102 is a high-performance, low-power, differential
dual 1:2 LVDS output, 1.8V fanout buffer. The device is designed
for the fanout of high-frequency, very low additive phase-noise
clock and data signals.
▪ Matched AC characteristics across both channels
▪ High isolation between channels
▪ Low power consumption
Two independent buffer channels are available. Each channel has
two low-skew outputs. High isolation between channels minimizes
noise coupling. AC characteristics such as propagation delay are
matched between channels. Guaranteed output-to-output and
part-to-part skew characteristics make the 8P34S2102 ideal for
those clock distribution applications demanding well-defined
performance and repeatability.
▪ Both differential CLKA, nCLKA and CLKB, nCLKB inputs
accept LVDS, LVPECL and single-ended LVCMOS levels
▪ Maximum input clock frequency: 2GHz
▪ Output amplitudes: 350mV, 500mV (selectable)
▪ Output bank skew: 8ps typical
▪ Output skew: 10ps typical
▪ Low additive phase jitter, RMS: 45fs typical
The device is characterized to operate from a 1.8V power supply.
The integrated bias voltage references enable easy interfacing of
AC-coupled signals to the device inputs.
(fREF = 156.25MHz, 12kHz - 20MHz)
▪ Full 1.8V supply voltage mode
▪ Device current consumption (IDD): 76mA typical
▪ Lead-free (RoHS 6), 16-lead VFQFN packaging
▪ -40°C to 85°C ambient operating temperature
▪ Supports case temperature up to 105°C
Block Diagram
VDD
51k
QA0
nQA0
CLKA
nCLKA
QA1
nQA1
51k
51k
Voltage
Reference
VREF
VDD
51k
51k
QB0
nQB0
CLKB
nCLKB
QB1
nQB1
VDD
51k
51k
SELA
8P34S2102 transistor count: 293
©2017 Integrated Device Technology, Inc.
1
September 21, 2017
8P34S2102 Datasheet
Pin Assignments
Figure 1. Pin Assignments for 3mm x 3mm VFQFN Package – Top View
11
10
9
12
13
14
15
VREF
nCLKA
CLKA
VDD
8
7
6
5
QB0
nQB0
QB1
8P34S2102
nQB1 16
1
2
3
4
Pin Descriptions
Table 1. Pin Descriptions
Number
Name
Type[a]
Description
1
2
GND
SELA
CLKB
nCLKB
VDD
Power
Power supply ground.
Input (PU)
Input (PD)
Control input. Output amplitude select.
3
Non-inverting differential clock/data input for channel B.
4
Input (PD/PU) Inverting differential clock/data input for channel B.
5
Power
Power supply pin.
6
CLKA
nCLKA
VREF
QA0
Input (PD)
Non-inverting differential clock/data input for channel A.
7
Input (PD/PU) Inverting differential clock/data input for channel A.
8
Output
Output
Output
Output
Output
Output
Output
Output
Output
Power
Bias voltage reference for CLKA, nCLKA and CLKB, nCLKB input pairs.
9
Differential output A0. LVDS interface levels.
Differential output A0. LVDS interface levels.
Differential output A1. LVDS interface levels.
Differential output A1. LVDS interface levels.
Differential output B0. LVDS interface levels.
Differential output B0. LVDS interface levels.
Differential output B1. LVDS interface levels.
Differential output B1. LVDS interface levels.
Exposed pad of package. Connect to ground.
10
11
12
13
14
15
16
ePad
nQA0
QA1
nQA1
QB0
nQB0
QB1
nQB1
GND_EPAD
[a] Pull-up (PU) and pull-down (PD) resistors are indicated in parentheses. Pull-up and pull-down refers to internal input resistors.
See Table 4, DC Input Characteristics, for typical values.
©2017 Integrated Device Technology, Inc.
2
September 21, 2017
8P34S2102 Datasheet
Function Tables
Table 2. SELA Output Amplitude Selection Table
SELA
QA, QB Output Amplitude (mV)
0
350
500
1 (default)
Absolute Maximum Ratings
The absolute maximum ratings are stress ratings only. Stresses greater than those listed below can cause permanent damage to the
device. Functional operation of the 8P34S2102 at absolute maximum ratings is not implied. Exposure to absolute maximum rating
conditions may affect device reliability.
Table 3. Absolute Maximum Ratings
Item
Rating
Supply voltage, VDD
Inputs, VI
4.6V
-0.5V to VDD + 0.5V
Outputs, IO
Continuous current
Surge current
10mA
15mA
Input sink/source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
ESD - Human Body Model[a]
125°C
-65°C to 150°C
2000V
ESD - Charged Device Model[a]
1500V
[a] According to JEDEC JS-001-2012/JESD22-C101E.
DC Electrical Characteristics
Table 4. DC Input Characteristics
Symbol
CIN
RPULLDOWN
RPULLUP
Parameter
Input capacitance
Test Conditions
Minimum
Typical
Maximum
Units
2
pF
k
k
Input pull-down resistor
Input pull-up resistor
51
51
©2017 Integrated Device Technology, Inc.
3
September 21, 2017

8P34S2102 Datasheet
Table 5. Power Supply DC Characteristics, VDD = 1.8V ± 5%, TA = -40°C to 85°C
Symbol
Parameter
Power supply voltage
Test Conditions
Minimum
Typical
Maximum
Units
VDD
1.71
1.8
1.89
V
QA[0:1], QB[0:1]
outputs terminated
100between nQx, Qx
500mV amplitude
350mV amplitude
93
76
120
96
mA
mA
Power supply
current
IDD
Table 6. LVCMOS Inputs DC Characteristics, VDD = 1.8V ± 5%, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VIH
VIL
IIH
Input high voltage
SELA
SELA
SELA
SELA
0.65 · VDD
-0.3
VDD + 0.3
0.35 · VDD
10
V
V
Input low voltage
Input high current
Input low current
VIN = VDD = 1.89V
µA
µA
IIL
VIN = 0V, VDD = 1.89V
-150
Table 7. Differential Inputs Characteristics, VDD = 1.8V ± 5%, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
IIH
Input high current
CLKA, nCLKA
VIN = VDD = 1.89V
150
µA
CLKB, nCLKB
CLKA, CLKB
nCLKA, nCLKB
VIN = 0V, VDD = 1.89V
VIN = 0V, VDD = 1.89V
IREF = +100µA, VDD = 1.8V
-10
-150
0.9
µA
µA
V
IIL
Input low current
VREF
Reference voltage[a]
1.30
[a] VREF specification is applicable to the AC-coupled input interfaces shown in Figure 5 and Figure 6.
Table 8. LVDS DC Characteristics, VDD = 1.8V ± 5%, TA = -40°C to 85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VOD
VOS
VOD Magnitude Change
VOS Magnitude Change
50
50
mV
mV
©2017 Integrated Device Technology, Inc.
4
September 21, 2017
8P34S2102 Datasheet
AC Electrical Characteristics
[a]
Table 9. AC Electrical Characteristics, VDD = 1.8V ± 5%, TA = -40°C to 85°C
Test Conditions
Symbol
fREF
Parameter
Minimum Typical
Maximum
Units
Input frequency
Input edge rate
2
GHz
V/ns
ps
V/t
tPD
1.5
Propagation delay[b], [c] CLKA to any QAx, CLKB to any nQBx
Output skew[d], [e]
100
225
10
8
400
30
tsk(o)
tsk(b)
tsk(p)
tsk(pp)
ps
Output bank skew[e], [f]
Pulse skew[g]
Part-to-part skew[e], [h]
25
ps
fREF = 100MHz
5
20
ps
200
75
ps
Buffer Additive Phase
Jitter, RMS;
500mV amplitude;
refer to Additive Phase
Jitter
f
REF = 156.25MHz;
60
45
fs
Integration range: 1kHz – 40MHz
tJIT
fREF = 156.25MHz square wave, VPP = 1V;
Integration range: 12kHz – 20MHz
55
fs
N(30M) Clock single-side band
30MHz offset from carrier and noise floor
< -160
-71
dBc/Hz
dB
phase noise
f
QA = 491.52MHz, fQB = 61.44MHz;
Spurious suppression,
measured between neighboring outputs
tJIT, SP
coupling between
channels
f
QA = 491.52MHz, fQB = 15.36MHz;
-82
dB
measured between neighboring outputs
10% to 90%, outputs loaded with 100
20% to 80%, outputs loaded with 100
220
110
400
250
1.2
ps
ps
V
tR / tF
VPP
VPP_DIFF
Output rise/ fall time
Input voltage
amplitude
CLKA,
CLKB
0.15
0.3
Differential
input voltage
amplitude
CLKA,
CLKB
2.4
V
V
VCMR
Common mode
input voltage[i]
1.1
VDD – (VPP/2)
SELA = 0, outputs loaded with 100
SELA = 1, outputs loaded with 100
SELA = 0
247
300
350
500
454
650
mV
mV
V
Differential
output voltage
VOD
0.77
0.68
VOS
Offset voltage
SELA = 1
V
[a] Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device
is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
[b] Measured from the differential input crossing point to the differential output crossing point.
[c] Input VPP = 400mV.
©2017 Integrated Device Technology, Inc.
5
September 21, 2017
8P34S2102 Datasheet
[d] Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential cross
points.
[e] This parameter is defined in accordance with JEDEC Standard 65.
[f]
Defined as skew within a bank of outputs at the same voltage and with equal load conditions.
[g] Output pulse skew is the absolute value of the difference of the propagation delay times: tPLH - tPHL .
[h] Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
[i]
Common Mode Input Voltage is defined as the cross-point voltage.
©2017 Integrated Device Technology, Inc.
6
September 21, 2017
8P34S2102 Datasheet
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a specified offset from the fundamental frequency to the power value
of the fundamental. This ratio is expressed in decibels (dBm) or a ratio of the power in the 1Hz band to the power in the fundamental.
When the required offset is specified, the phase noise is called a dBc value, which simply means dBm at a specified offset from the
fundamental. By investigating jitter in the frequency domain, we get a better understanding of its effects on the desired application over
the entire time record of the signal. It is mathematically possible to calculate an expected bit error rate given a phase noise plot.
Figure 2. Additive Phase Jitter. Frequency: 156.25MHz, Integration range: 12kHz to 20MHz = 45fs typical
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
©2017 Integrated Device Technology, Inc.
7
September 21, 2017
8P34S2102 Datasheet
Applications Information
Recommendations for Unused Input and Output Pins
Inputs
CLK/nCLK Inputs
For applications not requiring the use of the differential input, both CLK and nCLK can be left floating. Though not required, but for
additional protection, a 1kresistor can be tied from CLK to ground.
Outputs
LVDS Outputs
All unused LVDS output pairs can be either left floating or terminated with 100across. If they are left floating there should be no trace
attached.
VREF
The unused VREF pin can be left floating. We recommend that there is no trace attached.
Wiring the Differential Input to Accept Single-Ended Levels
Figure 3 shows how a differential input can be wired to accept single ended levels. The reference voltage V1 = VDD/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help filter noise on the DC bias. This bias circuit should be located as
close to the input pin as possible. The ratio of R1 and R2 might need to be adjusted to position the V1in the center of the input voltage
swing. For example, if the input clock swing is 1.8V and VDD = 1.8V, R1 and R2 value should be adjusted to set V1 at 0.9V. The values
below are for when both the single ended swing and VDD are at the same voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50applications, R3 and R4 can be 100. The values of the resistors can be increased to reduce the loading
for slower and weaker LVCMOS driver.
When using single-ended signaling, the noise rejection benefits of differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the amplitude be reduced while maintaining an edge rate faster than
1V/ns. The datasheet specifies a lower differential amplitude, however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less than -0.3V and VIH cannot be more than VDD + 0.3V. Though some of
the recommended components might not be used, the pads should be placed in the layout. They can be utilized for debugging purposes.
The datasheet specifications are characterized and guaranteed by using a differential signal.
Figure 3. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
©2017 Integrated Device Technology, Inc.
8
September 21, 2017

8P34S2102 Datasheet
1.8V Differential Clock Input Interface
The CLK /nCLK accepts LVDS, LVPECL and other differential signals. The differential input signal must meet both the VPP and VCMR
input requirements. Figure 4 to Figure 6 show interface examples for the CLK /nCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver termination requirements.
Figure 4. Differential Input Driven by an LVDS Driver - DC Coupling
Figure 5. Differential Input Driven by an LVDS Driver - AC Coupling
Figure 6. Differential Input Driven by an LVPECL Driver - AC Coupling
©2017 Integrated Device Technology, Inc.
9
September 21, 2017


8P34S2102 Datasheet
LVDS Driver Termination
For a general LVDS interface, the recommended value for the termination impedance (ZT) is between 90and 132. The actual value
should be selected to match the differential impedance (Z0) of your transmission line. A typical point-to-point LVDS design uses a 100
parallel resistor at the receiver and a 100differential transmission-line environment. In order to avoid any transmission-line reflection
issues, the components should be surface mounted and must be placed as close to the receiver as possible. IDT offers a full line of LVDS
compliant devices with two types of output structures: current source and voltage source.
The standard termination schematic as shown in Figure 7 can be used with either type of output structure. Figure 8, which can also be
used with both output types, is an optional termination with center tap capacitance to help filter common mode noise. The capacitor value
should be approximately 50pF. If using a non-standard termination, it is recommended to contact IDT and confirm if the output structure is
current source or voltage source type. In addition, since these outputs are LVDS compatible, the input receiver’s amplitude and
common-mode input range should be verified for compatibility with the output.
Figure 7. Standard LVDS Termination
Figure 8. Optional LVDS Termination
©2017 Integrated Device Technology, Inc.
10
September 21, 2017


8P34S2102 Datasheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 9. The solderable area on the PCB, as defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the thermal/electrical performance. Sufficient clearance should be designed
on the PCB between the outer edges of the land pattern and the inner edges of pad pattern for the leads to avoid any shorts.
While the land pattern on the PCB provides a means of heat transfer and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat pipes”. The number of vias (i.e. “heat pipes”) are application specific
and dependent upon the package power dissipation as well as electrical conductivity requirements. Thus, thermal and electrical analysis
and/or testing are recommended to determine the minimum number needed. Maximum thermal and electrical performance is achieved
when an array of vias is incorporated in the land pattern. It is recommended to use as many vias connected to ground as possible. It is
also recommended that the via diameter should be 12 to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is desirable to
avoid any solder wicking inside the via during the soldering process which may result in voids in solder between the exposed pad/slug
and the thermal land. Precautions should be taken to eliminate any solder voids between the exposed heat slug and the land pattern.
Note: These recommendations are to be used as a guideline only.
For more information, refer to the application note on the Surface Mount Assembly of Amkor’s Thermally/ Electrically Enhance Leadframe
Base Package, Amkor Technology.
Figure 9. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
SOLDER
SOLDER
PIN
EXPOSED HEAT SLUG
PIN
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
©2017 Integrated Device Technology, Inc.
11
September 21, 2017

8P34S2102 Datasheet
Case Temperature Considerations
This device supports applications in a natural convection environment which does not have any thermal conductivity through ambient air.
The printed circuit board (PCB) is typically in a sealed enclosure without any natural or forced air flow and is kept at or below a specific
temperature. The device package design incorporates an exposed pad (ePad) with enhanced thermal parameters which is soldered to
the PCB where most of the heat escapes from the bottom exposed pad. For this type of application, it is recommended to use the
junction-to-board thermal characterization parameter JB (Psi-JB) to calculate the junction temperature (TJ) and ensure it does not
exceed the maximum allowed junction temperature in the Absolute Maximum Rating table.
The junction-to-board thermal characterization parameter, JB, is calculated using the following equation:
TJ = TCB + JB x PD, where
TJ = Junction temperature at steady state condition in (oC).
T
CB = Case temperature (Bottom) at steady state condition in (oC).
JB = Thermal characterization parameter to report the difference between junction temperature and the temperature of the board
measured at the top surface of the board.
PD = power dissipation (W) in desired operating configuration.
TJ
TCB
The ePad provides a low thermal resistance path for heat transfer to the PCB and represents the key pathway to transfer heat away from
the IC to the PCB. It’s critical that the connection of the exposed pad to the PCB is properly constructed to maintain the desired IC case
temperature (TCB). A good connection ensures that temperature at the exposed pad (TCB) and the board temperature (TB) are relatively
the same. An improper connection can lead to increased junction temperature, increased power consumption and decreased electrical
performance. In addition, there could be long-term reliability issues and increased failure rate.
Example Calculation for Junction Temperature (TJ): TJ = TCB + JB x PD
Package type
Body size (mm)
ePad size (mm)
Thermal Via
16 VFQFN
3 x 3 x 0.9
1.7 x 1.7
2 x 2 Matrix
1.3oC/W
105oC
JB
TCB
PD
0.21W
For the variables above, the junction temperature is equal to 105.3oC. Since this is below the maximum junction temperature of 125oC,
there are no long term reliability concerns. In addition, since the junction temperature at which the device was characterized using forced
convection is 119oC, this device can function without the degradation of the specified AC or DC parameters.
©2017 Integrated Device Technology, Inc.
12
September 21, 2017
8P34S2102 Datasheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8P34S2102.
Equations and example calculations are also provided.
1. Power Dissipation.
The following is the power dissipation for VDD = 1.8V + 5% = 1.89V, which gives worst case results.
Maximum current at 85°C: VDD_MAX = 112mA.
▪ Power_MAX = VDD_MAX * IDD_MAX = 1.89V * 112mA = 211.68mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that
the bond wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow
and a multi-layer board, the appropriate value is 74.7°C/W per Table 10 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.21168W * 74.7°C/W = 100.8°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the
type of board (multi-layer).
Table 10. Thermal Resistance JA for 16-lead VFQFN, Forced Convection
JA (°C/W) vs. Air Flow (m/s)
0
1
2
Meters per Second
16-lead VFQFN Multi-Layer PCB, JEDEC Standard Test Boards
74.7
65.3
58.5
Package Outline Drawings
The package outline drawings are located in the last section of this document. The package information is the most current data available
and is subject to change without notice or revision of this document.
©2017 Integrated Device Technology, Inc.
13
September 21, 2017

8P34S2102 Datasheet
Marking Diagram
1. “XXX” indicates the last three characters of the Asm lot number.
2. Line 2:
▪ “YWW” indicates the date code (Y is the last digit of the year, and
“WW” is a work week number that the part was assembled.
▪ “$”: mark code.
3. Line 3 indicates the truncated part number.
Ordering Information
Table 11. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Temperature
8P34S2102NLGI
8P34S2102NLGI8
S202I
S202I
Tray
Tape & Reel, Pin 1 Orientation:
EIA-481-C
16-lead VFQFN, Lead-Free
-40°C to 85°C
8P34S2102NLGI/W
S202I
Tape & Reel, Pin 1 Orientation:
EIA-481-D/E
Table 12. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
8
Quadrant 1 (EIA-481-C)
/W
Quadrant 2 (EIA-481-D/E)
©2017 Integrated Device Technology, Inc.
14
September 21, 2017
8P34S2102 Datasheet
Revision History
Revision Date
Description of Change
September 21, 2017
▪ Updated the package outline drawings; however, no mechanical changes
▪ Completed other minor improvements
October 20, 2016
Initial datasheet.
Corporate Headquarters
Sales
Tech Support
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.IDT.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time,
without notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same
way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability
of IDT's products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not
convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be rea-
sonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc.. All rights reserved.
©2017 Integrated Device Technology, Inc.
15
September 21, 2017
厂商 型号 描述 页数 下载

IDT

 		8P34S1102I [ 1:2 LVDS Output 1.8V Fanout Buffer ] 16 页

IDT

 		8P34S1102I_17 [ 1:2 LVDS Output 1.8V Fanout Buffer ] 16 页

IDT

 		8P34S1102NLGI [ 1:2 LVDS Output 1.8V Fanout Buffer ] 16 页

IDT

 		8P34S1102NLGI8 [ 1:2 LVDS Output 1.8V Fanout Buffer ] 16 页

IDT

 		8P34S1212NLGI [ 1:12 LVDS Output 1.8V Fanout Buffer ] 19 页

IDT

 		8P34S1212NLGI8 [ 1:12 LVDS Output 1.8V Fanout Buffer ] 19 页

IDT

 		8P34S2102 [ Dual 1:2 LVDS Output 1.8V Fanout Buffer ] 19 页

IDT

 		8P34S2102NLGI [ Dual 1:2 LVDS Output 1.8V Fanout Buffer ] 19 页

IDT

 		8P34S2102NLGI/W [ Dual 1:2 LVDS Output 1.8V Fanout Buffer ] 19 页

IDT

 		8P34S2102NLGI8 [ Dual 1:2 LVDS Output 1.8V Fanout Buffer ] 19 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.212812s
