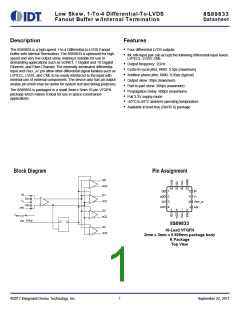

Low Skew , 1-To-4 Differential-To-LVDS
Fanout Buffer w /Internal Termination
8S89833
Datasheet
Description
Features
The 8S89833 is a high speed 1-to-4 Differential-to-LVDS Fanout
Buffer with Internal Termination. The 8S89833 is optimized for high
speed and very low output skew, making it suitable for use in
demanding applications such as SONET, 1 Gigabit and 10 Gigabit
Ethernet, and Fibre Channel. The internally terminated differential
input and VREF_AC pin allow other differential signal families such as
LVPECL, LVDS, and CML to be easily interfaced to the input with
minimal use of external components. The device also has an output
enable pin which may be useful for system test and debug purposes.
• Four differential LVDS outputs
• IN, nIN input pair can accept the following differential input levels:
LVPECL, LVDS, CML
• Output frequency: 2GHz
• Cycle-to-cycle jitter, RMS: 3.5ps (maximum)
• Additive phase jitter, RMS: 0.03ps (typical)
• Output skew: 30ps (maximum)
• Part-to-part skew: 200ps (maximum)
• Propagation Delay: 600ps (maximum)
• Full 3.3V supply mode
The 8S89833 is packaged in a small 3mm x 3mm 16-pin VFQFN
package which makes it ideal for use in space-constrained
applications.
• -40°C to 85°C ambient operating temperature
• Available in lead-free (RoHS 6) package
Pin Assignment
Block Diagram
Q0
nQ0
16 15 14 13
1
2
3
Q0
nQ0
Q1
12
11
10
IN
IN
Q1
VT
50Ω
50Ω
VT
nQ1
VREF_AC
nQ1
4
nIN
9
nIN
5
6
7
8
Q2
VREF_AC
nQ2
Pullup
EN
D
Q
8S89833
Q3
16-Lead VFQFN
3mm x 3mm x 0.925mm package body
K Package
nQ3
Top View
©2017 Integrated Device Technology, Inc.
1
September 22, 2017
8S89833 Datasheet
Table 1. Pin Descriptions
Number
Name
Type
Description
Differential output pair. Normally terminated with 100across the pair. LVDS interface
levels.
1, 2
Q0, nQ0
Output
Differential output pair. Normally terminated with 100across the pair. LVDS interface
levels.
3, 4
Q1, nQ1
Output
Differential output pair. Normally terminated with 100across the pair. LVDS interface
levels.
5, 6
Q2, nQ2
VDD
Output
Power
7, 14
Power supply pins.
Synchronizing output enable pin. When LOW, disables outputs. When HIGH, enables
outputs. Internally connected to a 37kpullup resistor. LVTTL / LVCMOS interface levels.
8
9
EN
nIN
Input
Input
Pullup
Inverting differential LVPECL clock input. RT = 50termination to VT.
Reference voltage for AC-coupled applications. Equal to VDD - 1.4V (approx.). Maximum
sink/source current is ±2mA.
10
VREF_AC
Output
Input termination center-tap. Each side of the differential input pair terminates to a VT pin.
The VT pins provide a center-tap to a termination network for maximum interface flexibility.
11
VT
Input
12
13
IN
Input
Non-inverting differential clock input. RT = 50termination to VT.
GND
Power
Power supply ground.
Differential output pair. Normally terminated with 100across the pair. LVDS interface
levels.
15, 16
Q3, nQ3
Output
NOTE: Pullup refers to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
RPULLUP
Input Pullup Resistor
37
k
©2017 Integrated Device Technology, Inc.
2
September 22, 2017
8S89833 Datasheet
Function Tables
Table 3. Control Input Function Table
Inputs
Outputs
IN
0
nIN
1
EN
1
Q[0:3]
nQ[0:3]
0
1
1
1
0
1
0
X
X
0
Disabled LOWNOTE 1
Disabled HIGHNOTE 1
NOTE 1: On the next negative transition of the input signal (IN).
EN
VDD/2
tS
VDD/2
tH
nIN
IN
VIN
tPD
→
←
nQx
Qx
VOD
Figure 1. EN Timing Diagram
©2017 Integrated Device Technology, Inc.
3
September 22, 2017
8S89833 Datasheet
Absolute Maximum Ratings
Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device.
These ratings are stress specifications only. Functional operation of product at these conditions or any conditions beyond
those listed in the DC Characteristics or AC Characteristics is not implied. Exposure to absolute maximum rating conditions for
extended periods may affect product reliability.
Item
Rating
Supply Voltage, VDD
Inputs, VI
4.6V
-0.5V to VDD + 0.5V
Outputs, IO
Continuos Current
Surge Current
10mA
15mA
Input Current, IN, nIN
±50mA
VT Current, IVT
±100mA
Input Sink/Source, IREF_AC
± 2mA
Operating Temperature Range, TA
Package Thermal Impedance, JA, (Junction-to-Ambient)
Storage Temperature, TSTG
-40°C to +85°C
74.7C/W (0 mps)
-65C to 150C
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, VDD = 3.3V ± 0.3V, TA = -40°C to 85°C
Symbol Parameter
VDD Positive Supply Voltage
IDD Power Supply Current
Test Conditions
Minimum
Typical
Maximum
3.6
Units
V
3.0
3.3
100
mA
Table 4B. LVCMOS/LVTTL DC Characteristics, VDD = 3.3V ± 0.3V, TA = -40°C to 85°C
Symbol
VIH
Parameter
Test Conditions
Minimum
2.2
Typical
Maximum
VDD + 0.3
0.8
Units
V
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
VIL
-0.3
V
IIH
VDD = VIN = 3.6V
10
µA
µA
IIL
VDD = 3.6V, VIN = 0V
-150
©2017 Integrated Device Technology, Inc.
4
September 22, 2017
8S89833 Datasheet
Table 4C. Differential DC Characteristics, VDD = 3.3V ± 0.3V, TA = -40°C to 85°C
Symbol
RDIFF_IN
RIN
Parameter
Test Conditions
Minimum
Typical
100
Maximum
120
Units
Differential Input Resistance
Input Resistance
(IN, nIN)
80
IN-to-VT
40
1.2
50
60
VIH
Input High Voltage
Input Low Voltage
(IN, nIN)
(IN, nIN)
VDD
V
VIL
0
VIH – 0.15
1.2
V
VIN
Input Voltage Swing
Differential Input Voltage Swing
Bias Voltage
0.15
V
VDIFF_IN
VREF_AC
IIN
0.3
V
VDD – 1.44
VDD – 1.38
VDD – 1.32
35
V
Input Current; NOTE 1
IN-to-VT
mA
NOTE 1: Guaranteed by design.
Table 4D. LVDS DC Characteristics, VDD = 3.3V ± 0.3V, TA = -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
mV
V
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
247
454
50
VOD
VOS
1.2
1.4
1.6
50
V
VOS
VOS Magnitude Change
mV
©2017 Integrated Device Technology, Inc.
5
September 22, 2017
8S89833 Datasheet
AC Electrical Characteristics
Table 5. AC Characteristics, VDD = 3.3V ± 0.3V, TA = -40°C to 85°C
Symbol Parameter
fOUT Output Frequency
Test Conditions
Minimum
Typical
Maximum
Units
2
GHz
Propagation Delay,
(Differential); NOTE 1
tPD
IN-to-Qx
400
600
ps
tsk(o)
tsk(pp)
tjit(cc)
Output Skew; NOTE 2, 3
30
200
3.5
ps
ps
ps
Part-to-Part Skew; NOTE 3, 4
Cycle-to-Cycle Jitter, RMS; NOTE 5, 6
ƒ = 622.08MHz,
Integration Range: 12kHz - 20MHz
0.03
ps
ps
ps
Buffer Additive Jitter; RMS; refer to
Additive Phase Jitter Section
tjit
ƒ 156.25MHz,
Integration Range: 12kHz - 20MHz
0.25
Clock Enable
EN to IN/nIN
Setup Time
tS
300
Clock Enable
EN to IN/nIN
Hold Time
tH
500
75
ps
ps
tR / tF
Output Rise/Fall Time
20% – 80%
200
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE: All parameters characterized at 1.4GHz unless otherwise noted.
NOTE 1: Measured from the differential input crossing point to the differential output crossing point.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions.
Measured at the output differential cross points.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
NOTE 5: Tested at ƒ 750MHz.
NOTE 6: The cycle-to-cycle jitter is dependent on the input source and measurement equipment.
©2017 Integrated Device Technology, Inc.
6
September 22, 2017
8S89833 Datasheet
Additive Phase Jitter
The spectral purity in a band at a specific offset from the
fundamental. When the required offset is specified, the phase noise
is called a dBc value, which simply means dBm at a specified offset
from the fundamental. By investigating jitter in the frequency
domain, we get a better understanding of its effects on the desired
application over the entire time record of the signal. It is
mathematically possible to calculate an expected bit error rate given
a phase noise plot.
fundamental compared to the power of the fundamental is called the
dBc Phase Noise. This value is normally expressed using a Phase
noise plot and is most often the specified plot in many applications.
Phase noise is defined as the ratio of the noise power present in a
1Hz band at a specified offset from the fundamental frequency to the
power value of the fundamental. This ratio is expressed in decibels
(dBm) or a ratio of the power in the 1Hz band to the power in the
Additive Phase Jitter @ 622.08MHz
12kHz to 20MHz = 0.03ps (typical)
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements has
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device.
This is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
The source generator “IFR2042 10kHz – 6.4GHz Low Noise Signal
Generator as external input to an Agilent 8133A 3GHz Pulse
Generator”.
©2017 Integrated Device Technology, Inc.
7
September 22, 2017
8S89833 Datasheet
Parameter Measurement Information
V
DD
SCOPE
nIN
IN
Qx
V
DD
3.3V±0.3V
POWER SUPPLY
VIN
VIH
Cross Points
+
Float GND –
nQx
VIL
GND
LVDS Output Load AC Test Circuit
Differential Input Level
Part 1
nQx
nQx
Qx
Qx
Part 2
nQy
nQy
Qy
Qy
tsk(pp)
Part-to-Part Skew
Output Skew
nQ[0:3]
nIN
IN
Q[0:3]
tcycle n
tcycle n+1
nQ[0:3]
tjit(cc) = tcycle n – tcycle n+1
|
|
1000 Cycles
Q[0:3]
tPD
Cycle-to-Cycle Jitter, RMS
Propagation Delay
©2017 Integrated Device Technology, Inc.
8
September 22, 2017
8S89833 Datasheet
Parameter Measurement Information, continued
nQ[0:3]
VDIFF_IN
VIN
80%
80%
tR
VOD
20%
20%
Q[0:3]
tF
Differential Voltage Swing = 2 x Single-ended VIN
Single-Ended & Differential Input Voltage Swing
Output Rise/Fall Time
Differential Output Voltage Setup
Offset Voltage Setup
©2017 Integrated Device Technology, Inc.
9
September 22, 2017
8S89833 Datasheet
Applications Information
3.3V Differential Input with Built-In 50Termination Interface
The IN /nIN with built-in 50terminations accept LVDS, LVPECL,
CML and other differential signals. Both differential signals must
meet the VIN and VIH input requirements. Figures 2A to 2D show
interface examples for the IN/nIN input with built-in 50terminations
driven by the most common driver types. The input interfaces
suggested here are examples only. If the driver is from another
vendor, use their termination recommendation. Please consult with
the vendor of the driver component to confirm the driver termination
requirements.
Figure 2A. IN/nIN Input with Built-In 50
Figure 2B. IN/nIN Input with Built-In 50
Driven by an LVDS Driver
Driven by an LVPECL Driver
3.3V
3.3V
3.3V CML with
Built-In Pullup
Zo = 50Ω
Zo = 50Ω
C1
C2
IN
50Ω
50Ω
VT
nIN
V_REF_AC
Receiver with
Built-In 50Ω
Figure 2C. IN/nIN Input with Built-In 50
Figure 2D. IN/nIN Input with Built-In 50Driven by a
CML Driver with Built-In 50Pullup
Driven by a CML Driver with Open Collector
Recommendations for Unused Output Pins
Outputs
LVDS Outputs
All unused LVDS output pairs can be either left floating or terminated
with 100across. If they are left floating, we recommend that there
is no trace attached.
©2017 Integrated Device Technology, Inc.
10
September 22, 2017
8S89833 Datasheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 3. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
Thermally/Electrically Enhance Leadframe Base Package, Amkor
Technology.
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 3. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
LVDS Driver Termination
A general LVDS interface is shown in Figure 4. Standard termination
for LVDS type output structure requires both a 100parallel resistor
at the receiver and a 100differential transmission line environment.
In order to avoid any transmission line reflection issues, the 100
resistor must be placed as close to the receiver as possible. IDT
offers a full line of LVDS compliant devices with two types of output
structures: current source and voltage source. The standard
termination schematic as shown in Figure X can be used with either
type of output structure. If using a non-standard termination, it is
recommended to contact IDT and confirm if the output is a current
source or a voltage source type structure. In addition, since these
outputs are LVDS compatible, the amplitude and common mode
input range of the input receivers should be verified for compatibility
with the output.
+
LVDS
Receiver
–
LVDS Driver
100Ω
100Ω Differential Transmission Line
Figure 4. Typical LVDS Driver Termination
©2017 Integrated Device Technology, Inc.
11
September 22, 2017
8S89833 Datasheet
Power Considerations
This section provides information on power dissipation and junction temperature for the 8S89833.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8S89833 is the sum of the core power plus the analog power plus the power dissipated in the load(s).
The following is the power dissipation for VDD = 3.3V + 0.3V = 3.63V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (coreM) AX = VDD_MAX * IDD_MAX = 3.63V * 100mA = 363mW
Power Dissipation for internal termination R
T
Power (RT)MAX = (VIN_MAX)2 / RT_MIN = (1.2V)2 / 80= 18mW
Total Power_MAX = 363mW + 18mW = 381mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.381W * 74.7°C/W = 113.5°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance JA for 16 Lead VFQFN Forced Convection
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Reliability Information
Table 7. JA vs. Air Flow Table for a 16 Lead VFQFN
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for 8S89833 is: 353
This device is pin and function compatible and a suggested replacement for 889833.
©2017 Integrated Device Technology, Inc.
12
September 22, 2017
8S89833 Datasheet
Package Outline Drawings
The package outline drawings are located in the last section of this document. The package information is the most current data available and
is subject to change without notice or revision of this document.
Ordering Information
Table 9. Ordering Information
Part/Order Number
8S89833AKILF
8S89833AKILFT
Marking
833A
833A
Package
“Lead-Free” 16 Lead VFQFN
“Lead-Free” 16 Lead VFQFN
Shipping Packaging
Tube
2500 Tape & Reel
Temperature
-40C to 85C
-40C to 85C
Revision History
Revision Date
Description of Change
September 22, 2017
▪ Updated the package outline drawings; however, no mechanical changes
▪ Completed other minor improvements
August 24, 2016
February 8, 2016
▪ Table 4C Differential DC Characteristics Table, typo correction:
– VIL row, maximum spec changed from VIN - 0.15V to VIH - 0.15V.
▪ Deleted “I” suffix from the part number.
▪ Removed ICS from part number where needed.
▪ Removed LF note below Ordering Information table.
▪ Updated header and footer.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
www.IDT.com/go/support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time, without
notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed
in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any
particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual
property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc. All rights reserved.
©2017 Integrated Device Technology, Inc.
13
September 22, 2017
厂商 型号 描述 页数 下载

IDT

 		8S89200 [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILF [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89200BKILFT [ Low Skew, 2:1 LVDS MUX with 1:8 Fanout and Internal Termination ] 20 页

IDT

 		8S89202 [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILF [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89202BKILFT [ Low Skew, 2:1 LVPECL MUX with 1:8 Fanout and Internal Termination ] 23 页

IDT

 		8S89296 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89296NLGI8 [ LVDS Programmable Delay Line ] 16 页

IDT

 		8S89831AKILF [ Differential LVPECL-To-LVPECL/ECL Fanout Buffer ] 21 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.223738s
