8P79818NLGI/W

型号：

8P79818NLGI/W

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

34 页

PDF大小：

869 K

下载PDF手册

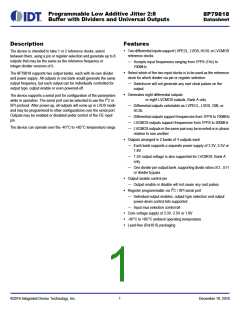

Programmable Low Additive Jitter 2:8
8P79818
Datasheet
Buffer with Dividers and Universal Outputs
Description
Features
▪ Two differential inputs support LVPECL, LVDS, HCSL or LVCMOS
The device is intended to take 1 or 2 reference clocks, select
between them, using a pin or register selection and generate up to 8
outputs that may be the same as the reference frequency or
integer-divider versions of it.
reference clocks
— Accepts input frequencies ranging from 1PPS (1Hz) to
700MHz
▪ Select which of the two input clocks is to be used as the reference
The 8P79818 supports two output banks, each with its own divider
and power supply. All outputs in one bank would generate the same
output frequency, but each output can be individually controlled for
output type, output enable or even powered-off.
clock for which divider via pin or register selection
— Switchover will not generate any runt clock pulses on the
output
▪ Generates eight differential outputs
The device supports a serial port for configuration of the parameters
while in operation. The serial port can be selected to use the I2C or
SPI protocol. After power-up, all outputs will come up in LVDS mode
and may be programmed to other configurations over the serial port.
Outputs may be enabled or disabled under control of the OE input
pin.
or eight LVCMOS outputs, Bank A only
— Differential outputs selectable as LVPECL, LVDS, CML or
HCSL
— Differential outputs support frequencies from 1PPS to 700MHz
— LVCMOS outputs support frequencies from 1PPS to 200MHz
The device can operate over the -40°C to +85°C temperature range.
— LVCMOS outputs in the same pair may be inverted or in-phase
relative to one another
▪ Outputs arranged in 2 banks of 4 outputs each
— Each bank supports a separate power supply of 3.3V, 2.5V or
1.8V
— 1.5V output voltage is also supported for LVCMOS, Bank A
only
— One divider per output bank, supporting divide ratios of 2...511
or divider bypass
▪ Output enable control pin
— Output enable or disable will not cause any runt pulses
▪ Register programmable via I2C / SPI serial port
— Individual output enables, output type selection and output
power-down control bits supported
— Input mux selection control bit
▪ Core voltage supply of 3.3V, 2.5V or 1.8V
▪ -40°C to +85°C ambient operating temperature
▪ Lead-free (RoHS 6) packaging
©2016 Integrated Device Technology, Inc.
1
December 19, 2016
8P79818 Datasheet
Block Diagram
Figure 1: Block Diagram
Bank A
QA0
nQA0
DIV A
(2 to 511)
QA1
nQA1
PU
CLK_SEL
QA2
Div‐by‐1
nQA2
PD
CLK0
QA3
nQA3
nCLK0
PU/PD
Bank B
QB0
PD
CLK1
nQB0
DIV B
(2 to 511)
nCLK1
QB1
PU/PD
PU
nQB1
OE
QB2
nQB2
Div‐by‐1
PU
PU
PU
SCLK
QB3
nQB3
SDATA/SDI
SA0/nCS
Logic
PD
nI2C/SPI
8P79818 transistor count: 33,394
©2016 Integrated Device Technology, Inc.
2
December 19, 2016
8P79818 Datasheet
Pin Assignment
Figure 2: Pin Assignments for 5mm x 5mm 32-Lead VFQFN Package (Top View)
31 30 29 28 27 26 25
32
1
2
3
4
5
6
7
8
24
23
22
21
20
19
18
17
SDO
QA0
CLK_SEL
QB0
nQA0
QA1
nQB0
QB1
8P79818
nQA1
VCCOA
QA2
nQB1
VCCOB
QB2
nQA2
nQB2
10 11 12 13 14 15 16
9
Pin Description and Characteristic Tables
Table 1: Pin Description
Number
Name
Type[a]
Description
2
1
2
SDO
QA0
Output
Output
Output
Output
Output
Power
Output
Output
Output
Output
SPI mode data output signal. Unused in I C mode.
Positive differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Output supply for output Bank A.
3
nQA0
QA1
4
5
nQA1
VCCOA
QA2
6
7
Positive differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank A. Refer to Output Drivers section for details.
Select protocol for serial port:
8
nQA2
QA3
9
10
nQA3
2
11
nI2C/SPI
Input (PD)
0 = I C mode
1 = SPI mode
12
13
VCC
Power
Core logic supply.
2
SA0/nCS
Input (PU)
SPI chip select input (active low) in SPI mode. Base address bit 0 in I C mode.
©2016 Integrated Device Technology, Inc.
3
December 19, 2016
8P79818 Datasheet
Table 1: Pin Description (Cont.)
Master output enable control
14
OE
Input (PU)
0 = All outputs high-impedance
1 = All outputs enabled or disabled under control of register bits
15
16
17
18
19
20
21
22
23
nQB3
QB3
Output
Output
Output
Output
Power
Output
Output
Output
Output
Negative differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Output supply for output Bank B.
nQB2
QB2
VCCOB
nQB1
QB1
Negative differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Negative differential clock output. Included in Bank B. Refer to Output Drivers section for details.
Positive differential clock output. Included in Bank B. Refer to Output Drivers section for details.
nQB0
QB0
Input clock selection control pin. This pin may be disabled by register control, but if enabled
(default) its function is:
24
CLK_SEL
Input (PU)
0 = CLK0 is selected
1 = CLK1 is selected
25
26
CLK1
Input (PD)
Non-inverting differential clock input.
Inverting differential clock input. VCC/2 when left floating (set by the internal pull-up and
pull-down resistors).
nCLK1
Input (PU/ PD)
27
28
VCC
Power
Core logic supply.
2
SCLK
Input (PU)
Serial port input clock for either SPI or I C mode.
Input/Output
(PU)
Input (PU)
2
In I C mode, this is the bi-directional data signal for the serial port
SDATA/
SDI
29
In SPI mode, this is the data input signal.
30
31
VCC
Power
Core logic supply.
Inverting differential clock input. VCC/2 when left floating (set by the internal pull-up and
pull-down resistors).
nCLK0
Input (PU/ PD)
32
CLK0
VEE
Input (PD)
Ground
Non-inverting differential clock input.
Must be connected to ground (GND).
EP
a. Pull-up (PU) and pull-down (PD) resistors are indicated in parentheses. Pullup and Pulldown refer to internal input resistors. See Table 10,
DC Input/ Output Characteristics, for typical values.
©2016 Integrated Device Technology, Inc.
4
December 19, 2016
8P79818 Datasheet
Principles of Operation
Input Selection
The 8P79818 supports two input references: CLK0 and CLK1 that may be driven with differential or single-ended clock signals. Either or both
may be used as the source frequency for either output divider under control of the CLK_SEL input pin or under register control.
The CLK_SEL pin is the default selection mechanism and selects whether both dividers are driven by the CLK0, nCLK0 input (CLK_SEL =
Low) or by the CLK1, nCLK1 input (CLK_SEL = High).
If the user enables register control via the SEL_REG control bit, then there are 4 selection options available as shown in Table 2.
Table 2: Input Selection Register Control (SEL_REG = 1)
CLK_SEL [1:0]
Description
0
0
0
1
Divider A & B both driven from CLK0
Divider A driven from CLK1 &
Divider B driven from CLK0
Divider A driven from CLK0 &
Divider B driven from CLK1
1
1
0
1
Divider A & B both driven from CLK1
Output Dividers
Each bank of outputs has its own divider. All outputs in the same bank will be driven by that divider and so will all have the same frequency.
Divider A supplies the QA output bank and Divider B supplies the QB output bank. Each divider is capable of being driven by the same or a
different input frequency. Each divider can pass that input frequency directly to the outputs or to divide it by any integer from 2 up to 511.
Output Drivers
The QA[0:3] and QB[0:3] clock outputs are provided with register-controlled output drivers. By selecting the output drive type in the appropriate
register, any of these outputs can support LVCMOS, LVPECL, CML, HCSL or LVDS logic levels.
CML operation supports both a 400mV peak-peak swing and an 800mV peak-peak swing selection.
The operating voltage ranges of each output bank is determined by its independent output power pin (VCCOA or VCCOB). Output voltage levels
of 1.8V, 2.5V or 3.3V are supported for differential operation and LVCMOS operation. In addition, LVCMOS output operation supports 1.5V
VCCO
.
A global OE input pin is provided. If the OE pin is negated (Low), then all outputs will be in a high-impedance state. If the OE pin is asserted
(High), then each output will behave as indicated by its individual register enable bit. Using the global OE pin to enable or disable outputs will
not result in any ‘runt’ clock pulses on the outputs.
Each output bank may be enabled or disabled using the SYNC_DISx register bit. Using these bits to enable or disable outputs will not result in
any ‘runt’ clock pulses on the outputs.
Individual outputs within a bank may be enabled or disabled using the DIS_Qxm register bits. These bits however may result in ‘runt’ pulses on
the outputs if the output is otherwise enabled, so it is recommended that the entire bank be disabled via the appropriate SYNC_DISx register
bit while an individual output is being enabled using the DIS_Qxm bit to avoid a possible ‘runt’ pulse on the output. If ‘runt’ pulses are not a
concern, then the DIS_Qxm bits may be used directly.
LVCMOS Operation
When a given output is configured to provide LVCMOS levels, then both the Q and nQ outputs will toggle at the selected output frequency. All
the previously described configuration and control apply equally to both outputs. Frequency, voltage levels and enable / disable status apply to
both the Q and nQ pins.
When configured as LVCMOS, the Q & nQ outputs can be selected to be phase-aligned with each other or inverted relative to one another.
Phase-aligned outputs will have increased simultaneous switching currents which can negatively affect phase noise performance and power
consumption. It is recommended that use of this selection be kept to a minimum.
©2016 Integrated Device Technology, Inc.
5
December 19, 2016
8P79818 Datasheet
Power-Saving Modes
To allow the device to consume the least power possible for a given application, the following functions are included under register control:
▪ Any unused output can be individually powered-off.
▪ If either bank is completely unused, all logic, including the dividers for that bank may be completely powered-off.
▪ Clock gating on logic that is not being used.
Device Start-up Behavior
The device will power-up with all outputs enabled in LVDS mode and all dividers bypassed.
Serial Control Port Description
Serial Control Port Configuration Description
The device has a serial control port capable of responding as a slave in an I2C or SPI compatible configuration, to allow access to any of the
internal registers for device programming or examination of internal status. All registers are configured to have default values. See the
specifics for each register for details. Selection of I2C versus SPI protocol will be done via the nI2C/SPI input pin.
SPI Mode Operation
SPI mode can be enabled via pin selection from power-up. The following information assumes SPI mode has been selected.
In a read operation (R/W bit is '1'), data on SDO will be clocked out on the falling edge of SCLK.
In a write operation (R/W bit is '0'), data on SDI will be clocked in on the rising edge of SCLK.
Figure 3: SPI Read Sequencing Diagram
©2016 Integrated Device Technology, Inc.
6
December 19, 2016
8P79818 Datasheet
During SPI Write operations, the user may continue to hold nCS low and provide further bytes of data for up to a total of 16 bytes in a single
block write. Data is written directly into the appropriate register as it is received.
Figure 4: SPI Write Sequencing Diagram
Figure 5: SPI Read/Write Timing Diagram
tsu1
tpwh
tpwl
nCS
th2
tsu2
SCLK
SDI
R/W
A0
td2
td1
Hi‐Z
Hi‐Z
SDO
Table 3: Timing Characteristics in SPI Mode[a]
Symbol
Parameter
Min
Typ
Max
Unit
tpw
tpw1
tpw2
tsu1
th1
SCLK Period
20
8
ns
ns
ns
ns
ns
ns
ns
ns
ns
SCLK Pulse Width Low
SCLK Pulse Width High
8
Valid nCS to SCLK Rising Setup Time
Valid nCS After Valid SCLK Hold Time (CLKE = 0/1)
Valid SDI to SCLK Rising Setup Time
10
10
5
tsu2
th2
Valid SDI after valid SCLK Hold Time
5
td1
SCLK falling (rising in CLKE = 1 case) to Valid Data Delay Time
nCS rising edge to SDO High Impedance Delay Time
5
td2
10
Time between Consecutive Read-Read or Read-Write Accesses
(nCS rising edge to nCS falling edge)
tcsh
20
ns
a. Specifications guaranteed by design and characterization.
©2016 Integrated Device Technology, Inc.
7
December 19, 2016
8P79818 Datasheet
2
I C Mode Operation
The I2C interface is designed to fully support v1.0 of the I2C specification for normal and fast mode operation. The device acts as a slave
device on the I2C bus at 100kHz or 400kHz using an address of 110110x (binary), where the value of ‘x’ is set by the SA0/nCS input pin. The
interface accepts byte-oriented block write and block read operations. One address byte specifies the register address of the byte position of
the first register to write or read. Data bytes (registers) are accessed in sequential order from the lowest to the highest byte (most significant
bit first). Read and write block transfers can be stopped after any complete byte transfer. During a write operation, data will be written to the
registers directly as each byte is received.
For full electrical I2C compliance, it is recommended to use external pull-up resistors for SDATA and SCLK. The internal pull-up resistors have
a size of 51ktypical.
Figure 6: Slave Read and Write Cycle Sequencing
Current Read
S
Dev Addr + R
A
A
A
Data 0
A
Data 1
A
A
Data n
Data 0
A
A
P
Sequential Read
S
Dev Addr + W
Offset Addr MSB
Offset Addr MSB
A
A
Sr
Dev Addr + R
A
A
Data 1
A
A
Data n
A
P
Sequential Write
S
Dev Addr + W
Data 0
A
Data 1
A
Data n
A
P
S = start
from master to slave
from slave to master
Sr = repeated start
A = acknowledge
A = none acknowledge
P = stop
©2016 Integrated Device Technology, Inc.
8
December 19, 2016
8P79818 Datasheet
Register Descriptions
Table 4: Register Blocks
Register Ranges Offset (Hex)
Register Block Description
0 1
2 5
6 9
A B
C F
Device control
Bank A control
Bank B control
Reserved
Divide ratios
©2016 Integrated Device Technology, Inc.
9
December 19, 2016
8P79818 Datasheet
Table 5: Device Control Register Bit Field Locations
Address (Hex)
D7
D6
CLK_SEL[1:0]
BKB_Vx
D5
D4
D3
D2
D1
D0
0
1
CLKMODE
BKA_Vx
SEL_REG
Rsvd
Rsvd
Rsvd
DIV_SYNC
SYNC_DISA SYNC_DISB PWR_DNA
PWR_DNB
DIS_DIVA
DIS_DIVB
Bit Field Name
Field Type
Default Value
Description
Clock switchover mode selection:
0 = Forced clock switch (may result in glitches as clocks switch)
CLKMODE
R/W
R/W
0b
1 = Glitch-less clock switch (may remain on original clock source if that
source is no longer toggling)
Select which input clock is to be used as the reference clock. These bits are
only in effect when SEL_REG = 1:
00 = CLK0, nCLK0 input drives both Divider A & Divider B
CLK_SEL[1:0]
00b
01 = CLK1, nCLK1 input drives Divider A & CLK0, nCLK0 drives Divider B
10 = CLK0, nCLK0 input drives Divider A & CLK1, nCLK1 drives Divider B
11 = CLK1, nCLK1 input drives both Divider A & Divider B
Determines if input clock selection is to be performed by pin or register:
SEL_REG
Rsvd
R/W
R/W
0b
0 = CLK_SEL input pin controls reference selection mux
1 = CLK_SEL register bits controls reference selection mux
Reserved. Always write ‘0’ to this bit location. Read values are not defined.
Divider synchronization control:
0 = Dividers running normally
DIV_SYNC
R/W
0b
1 = Dividers in reset (output clocks halted)
1–>0 transition on this bit will synchronize the Bank A & Bank B output
dividers
Bank A voltage setting for optimal performance:
0 = VCCOA is 3.3V
BKA_Vx
BKB_Vx
R/W
R/W
0b
0b
1 = VCCOA is 2.5V,1.8V, and 1.5V
Bank B voltage setting for optimal performance:
0 = VCCOB is 3.3V
1 = VCCOB is 2.5V,1.8V
Glitch-free output enable bit for Bank A outputs:
0 = Outputs in Bank A are enabled glitch-lessly as indicated by their individual
DIS_QAm bits
1 = All outputs for Bank A are high-impedance
SYNC_DISA
SYNC_DISB
R/W
R/W
0b
0b
Glitch-free output enable bit for Bank B outputs:
0 = Outputs in Bank B are enabled glitch-lessly as indicated by their individual
DIS_QBm bits
1 = All outputs for Bank B are high-impedance
©2016 Integrated Device Technology, Inc.
10
December 19, 2016
8P79818 Datasheet
Bit Field Name
Field Type
Default Value
Description
Power-down control for Bank A outputs:
0 = All outputs for Bank A are powered (SYNC_DISA should be 1 when
powering-up the bank to prevent glitches on the output)
1 = All outputs in Bank A are powered-off
PWR_DNA
R/W
0b
Power-down control for Bank B outputs:
0 = All outputs for Bank B are powered (SYNC_DISB should be 1 when
powering-up the bank to prevent glitches on the output)
1 = All outputs in Bank B are powered-off
PWR_DNB
R/W
0b
Power-down output divider for Bank A (DIVA must be set to 000h to bypass):
0 = Output divider for Bank A is powered
DIS_DIVA
DIS_DIVB
R/W
R/W
0b
0b
1 = Output divider for Bank A is powered-down
Power-down output divider for Bank B (DIVB must be set to 000h to bypass):
0 = Output divider for Bank B is powered
1 = Output divider for Bank B is powered-down
©2016 Integrated Device Technology, Inc.
11
December 19, 2016
8P79818 Datasheet
Table 6: Bank A Control Register Bit Field Locations
Address (Hex)
D7
D6
D5
D4
D3
D2
D1
D0
QA_POL0
2
3
4
5
Rsvd
TERM_A
MODE_QA3[2:0]
MODE_QA1[2:0]
DIS_QA0
QA_POL3
QA_POL2
QA_POL1
Rsvd
Rsvd
MODE_QA2[2:0]
MODE_QA0[2:0]
DIS_QA3
DIS_QA2
DIS_QA1
Rsvd
Bit Field Name
Field Type
Default Value
Description
Indicates termination used on Bank A outputs when HCSL mode is selected:
TERM_A
R/W
0b
0h
0 = 33/ 50
1 = 50
Output polarity selection for output pair nQAm, QAm in LVCMOS mode:
QA_POLm
R/W
R/W
0 = nQAm pin is inverted relative to QAm pin when in LVCMOS mode
1 = nQAm and QAm pins are in-phase when in LVCMOS mode
Output driver mode of operation for output pair QAm, nQAm:
000 = high-impedance
001 = LVPECL
010 = LVDS (default)
011 = LVCMOS
MODE_QAm[2:0]
010b
100 = HCSL
101 = CML 400mV swing
110 = CML 800mV swing
111 = Reserved
Disable output pair QAm, nQAm:
0 = Output pair QAm, nQAm is enabled (disable output bank using
SYNC_DISA to prevent runt pulses when enabling)
DIS_QAm
Rsvd
R/W
R/W
0b
1 = Output pair QAm, nQAm is powered-down
Reserved. Always write 0 to this bit location. Read values are not defined.
©2016 Integrated Device Technology, Inc.
12
December 19, 2016
8P79818 Datasheet
Table 7: Bank B Control Register Bit Field Locations
Address (Hex)
D7
D6
D5
D4
D3
D2
D1
D0
6
7
8
9
Rsvd
TERM_B
MODE_QB3[2:0]
MODE_QB1[2:0]
DIS_QB0
Rsvd
Rsvd
Rsvd
Rsvd
Rsvd
Rsvd
MODE_QB2[2:0]
MODE_QB0[2:0]
DIS_QB3
DIS_QB2
DIS_QB1
Rsvd
Bit Field Name
Field Type
Default Value
Description
Indicates termination used on Bank B outputs when HCSL mode is selected:
TERM_B
R/W
0b
0 = 33/ 50
1 = 50
Output driver mode of operation for output pair QBm, nQBm:
000 = high-impedance
001 = LVPECL
010 = LVDS (default)
011 = Rsvd
MODE_QBm[2:0]
R/W
010b
100 = HCSL
101 = CML 400mV swing
110 = CML 800mV swing
111 = Reserved
Disable output pair QBm, nQBm:
0 = Output pair QBm, nQBm is enabled (disable output bank using
SYNC_DISB to prevent runt pulses when enabling)
DIS_QBm
Rsvd
R/W
R/W
0b
1 = Output pair QBm, nQBm is powered-down
Reserved. Always write 0 to this bit location. Read values are not defined.
©2016 Integrated Device Technology, Inc.
13
December 19, 2016
8P79818 Datasheet
Table 8: Divide Ratio Register Field Locations
Address (Hex)
D7
D6
D5
D4
D3
D2
D1
D0
C
D
E
F
DIVA[7:0]
DIVB[7:0]
Rsvd
DIVB[8]
DIVA[8]
Rsvd
Bit Field Name
Field Type
Default Value
Description
Divider ratio for Bank A outputs:
00h 01h = Bypass divider and pass reference clock directly to the Bank A
outputs
DIVA[8:0]
R/W
000h
02h 1FFh = ratio to be used by the A divider is value written here. For
example writing a 4 in this field will results in a divide ratio of 4 being used.
Divider ratio for Bank B outputs:
00h 01h = Bypass divider and pass reference clock directly to the Bank B
outputs
DIVB[8:0]
Rsvd
R/W
R/W
000h
02h 1FFh = ratio to be used by the B divider is value written here. For
example writing a 4 in this field will results in a divide ratio of 4 being used.
Reserved. Always write 0 to this bit location. Read values are not defined.
©2016 Integrated Device Technology, Inc.
14
December 19, 2016
8P79818 Datasheet
Absolute Maximum Ratings
The absolute maximum ratings are stress ratings only. Stresses greater than those listed below can cause permanent damage to the device.
Functional operation of the 8P79818 at absolute maximum ratings is not implied. Exposure to absolute maximum rating conditions may affect
device reliability.
Table 9: Absolute Maximum Ratings
Item
Rating
Supply voltage, VCCX[a] to GND
3.6V
Inputs SCLK, SDATA/SDI, SA0/nCS, CLK_SEL, CLK0, nCLK0,
CLK1, nCLK1, OE, nI2C/SPI
0.5V to 3.6V
Outputs, IO QA[0:3], nQA[0:3], QB[0:3], nQB[0:3]
Continuous current
40mA
60mA
Surge current
Outputs, VO QA[0:3], nQA[0:3], QB[0:3], nQB[0:3]
Outputs, VO SDO, SDATA/SDI
0.5V to 3.6V
0.5V to 3.6V
125°C
Operating junction temperature
Storage temperature, TSTG
65°C to 150°C
260°C
Lead temperature (Soldering, 10s)
a. VCCx denotes VCC, VCCOA, or VCCOB
.
©2016 Integrated Device Technology, Inc.
15
December 19, 2016
8P79818 Datasheet
DC Characteristics
Table 10: DC Input/ Output Characteristics
Symbol
Parameter
Test Conditions
Minimum Typical Maximum Units
Cin
Input capacitance
LVPECL
0.5
0.8
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
pF
k
k
LVDS
1.2
QA[0:3], nQA[0:3]
QB[0:3], nQB[0:3]
VCCOX[a] = 3.465V or 2.625V
CML 400mV
CML 800mV
LVCMOS
LVPECL
0.48
0.44
2.33
1.4
Power
Bank A
V
V
V
CCOA = 3.465V or 2.625V
dissipation
capacitance
(per output)
CPD
LVDS
1.5
QA[0:3], nQA[0:3]
QB[0:3], nQB[0:3]
CCOX = 1.89V
CML 400mV
CML 800mV
LVCMOS
0.53
0.3
Bank A
CCOA = 1.89V or 1.575V
2.1
RPULLUP
Input pull-up resistor
51
RPULLDOWN Input pull-down resistor
51
LVCMOS output type selected
CCOA = 3.3V+5%
24
15
26
46
V
LVCMOS output type selected
CCOA = 2.5V+5%
V
ROUT
Output impedance
QA[3:0], nQA[3:0]
LVCMOS output type selected
CCOA = 1.8V+5%
V
LVCMOS output type selected
CCOA = 1.5V+5%
V
a. VCCOx denotes VCCOA and VCCOB
.
©2016 Integrated Device Technology, Inc.
16
December 19, 2016
8P79818 Datasheet
,
Supply Voltage Characteristics
Table 11: Power Supply Characteristics, VCC = 3.3V ±5%, VEE = 0V, TA = -40°C to +85°C[a]
[b] [c]
,
,
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VCC
Core supply voltage
3.135
3.465
V
VCCOA
VCCOB
,
Output supply voltage
Core supply current
1.71
VCC
V
ICC
ICCOA
23
26
mA
mA
mA
mA
DIV-by-1
DIV A = DIV B = 2
157
125
183
177
140
206
Output supply current
Power supply current
ICCOB
IEE
a. Internal dynamic switching current at maximum fOUT is included.
b. All outputs configured for LVEPCL logic levels and not terminated.
c. VCC VCCOA and VCCOB
.
[b] [c]
Table 12: Power Supply Characteristics, VCC = 2.5V ±5%, VEE = 0V, TA = -40°C to +85°C[a]
,
,
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VCC
Core supply voltage
2.375
2.625
V
VCCOA
VCCOB
,
Output supply voltage
Core supply current
1.71
VCC
V
ICC
ICCOA
18
20
mA
mA
mA
mA
DIV-by-1
DIV A = DIV B = 2
156
124
177
175
139
199
Output supply current
Power supply current
ICCOB
IEE
a. Internal dynamic switching current at maximum fOUT is included.
b. All outputs configured for LVEPCL logic levels and not terminated.
c. VCC VCCOA and VCCOB
.
©2016 Integrated Device Technology, Inc.
17
December 19, 2016
8P79818 Datasheet
[b] [c]
Table 13: Power Supply Characteristics, VCC = 1.8V ±5%, VEE = 0V, TA = -40°C to +85°C[a]
,
,
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VCC
Core supply voltage
1.71
1.89
V
VCCOA
VCCOB
,
Output supply voltage
Core supply current
1.71
VCC
V
ICC
ICCOA
14
16
mA
mA
mA
mA
DIV-by-1
DIV A = DIV B = 2
143
117
161
160
132
181
Output supply current
Power supply current
ICCOB
IEE
a. Internal dynamic switching current at maximum fOUT is included.
b. All outputs configured for LVEPCL logic levels and not terminated.
c. VCC VCCOA and VCCOB
.
Table 14: Output Supply Current, VCC = 3.3V, 2.5V or 1.8V, VEE = 0V, TA = 25°C[a] [b]
,
VCCOx[d] = 3.3V
VCCOx[d] = 2.5V
VCCOx[d] = 1.8V
V
CC = 3.3V,
76
96
73 119 60 75
96
67 92 58 68
87
66 72 53
60
71
mA
Bank A
output
supply
current
TA = 25°C
ICCOA
VCC
=
3.3V 5%, 88 114 87 149 70 88 113 85 111 67 80 104 78 86 63
TA = 85°C
mA
V
CC = 3.3V,
Bank B
output
supply
current
76
96
73 119 60 75
96
67 92 58 68
87
66 72 53
60
71
mA
mA
TA = 25°C
ICCOB
VCC = 3.3V,
TA = 85°C
88 114 87 149 70 88 113 85 111 67 80 104 78 86 63
a. All outputs not terminated.
b. VCC VCCOA and VCCOB
c. Internal dynamic switching current at maximum fOUT is included.
d. VCCOx denotes VCCOA and VCCOB
.
.
©2016 Integrated Device Technology, Inc.
18
December 19, 2016
8P79818 Datasheet
DC Electrical Characteristics
Table 15: LVCMOS/LVTTL Control / Status Signals DC Characteristics, VEE = 0V, TA = -40°C to +85°C
Symbol
Parameter
Test Conditions
VCC = 3.3V
VCC = 2.5V
Minimum
Typical
Maximum Units
2.20
1.85
1.25
–0.3
–0.3
–0.3
VCC 0.3
VCC 0.3
VCC 0.3
0.8
V
V
V
V
V
V
VIH
Input high voltage
VCC = 1.8V
VCC = 3.3V
VIL
Input low voltage
V
CC = 2.5V
0.7
VCC = 1.8V
0.7
SA0/nCS, SDATA/SDI,
SCLK, CLK_SEL, OE
5
A
A
A
Input
high current
VCC = VIN = 3.465V, 2.625V or
1.89V
IIH
nI2C/SPI
150
SA0/nCS, SDATA/SDI,
SCLK, CLK_SEL,OE
–150
Input
low current
V
V
CC = 3.465V, 2.625V or 1.89V,
IN = 0V
IIL
nI2C/SPI
–5
2.6
1.8
A
V
V
CC = 3.3V ±5%, IOH = –5mA
Output
high voltage
VOH
SDATA/SDI, SDO
VCC = 2.5V ±5%, IOH = –5mA
VCC = 1.8V ±5%, IOH = –5mA
V
V
Output
low voltage
V
CC = 3.3V ±5% or 2.5V ±5% or
VOL
SDATA/SDI, SDO
0.5
V
1.8V ±5%, IOL = 5mA
,
Table 16: Differential Input DC Characteristics, VCC = 3.3V±5%, 2.5V±5% or 1.8V±5%, VEE = 0V,
TA = -40°C to +85°C
Symbol
Parameter
CLKx, nCLKx[a]
Test Conditions
Minimum
Typical
Maximum Units
Input
high current
IIH
V
CC = VIN = 3.465V or 2.625V
150
A
CLKx[a]
nCLKx[a]
Peak-to-peak voltage[b]
Common mode input voltage[b], [c]
VCC = 3.465V or 2.625V, VIN = 0V
VCC = 3.465V or 2.625V, VIN = 0V
–5
–150
0.15
0
A
A
V
Input
low current
IIL
VPP
1.3
VCMR
VCC
V
a. CLKx denotes CLK0, CLK1. nCLKx denotes nCLK0, nCLK1.
b. VIL should not be less than –0.3V. VIH should not be higher than VCC
c. Common mode voltage is defined as the cross-point.
.
©2016 Integrated Device Technology, Inc.
19
December 19, 2016
8P79818 Datasheet
Table 17: LVPECL DC Characteristics, VCC = 3.3V±5%, 2.5V±5% or 1.8V±5%, VEE = 0V, TA = -40°C to +85°C
VCCOx[a] = 3.3V±5%
Min Typ Max
VCCOx[a] = 2.5V±5%
Min Typ Max
VCCOx[a] = 1.8V±5%
Min Typ Max
Symbol
Parameter
Units
Output
Qx,
VCCOx
1.30
-
VCCOx
0.80
-
-
VCCOx
1.35
-
VCCOx
0.80
-
-
VCCOx
1.50
-
VCCOx
0.90
-
VOH
V
high voltage[b] nQx[c]
Output
low voltage
Qx,
VCCOx
2.00
-
VCCOx
1.75
VCCOx
2.00
-
VCCOx
1.75
VOL
VEE
0.25
V
nQx[c]
a. VCCOx denotes VCCOA and VCCOB
b. Outputs terminated with 50to VCCOx – 2V when VCCOx = 3.3V±5% or 2.5V±5%. Outputs terminated with 50to ground when
CCOx = 1.8V±5%.
.
V
c. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3. nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2, nQB3.
Table 18: LVDS DC Characteristics, VCC = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%,
V
CCOA = VCCOB = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%, TA = -40°C to +85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VOD
VOD
VOS
Differential output voltage
VOD magnitude change
Offset voltage
Qx, nQx[a]
Qx, nQx[a]
Qx, nQx[a]
Qx, nQx[a]
247
480
50
mV
mV
V
Terminated 100across
Qx and nQx
1.125
1.375
50
VOS
VOS magnitude change
mV
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2, nQB3.
Table 19: CML (400mV Swing) DC Characteristics, VCC = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%,
V
CCOA = VCCOB = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%, TA = -40°C to +85°C
Symbol
Parameter
Output high voltage
Test Conditions
Minimum
Typical
Maximum
Units
[b]
VOH
VOL
Qx, nQx[a]
Qx, nQx[a]
Qx, nQx[a]
VCCOx[b] – 0.10
VCCOx[b] – 0.50
300
VCCOx
V
V
Terminated with 50to
Output low voltage
VCCOx[b] – 0.30
[b]
VCCOx
VOUT
Output voltage swing
500
mV
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2, nQB3.
b. VCCOx denotes VCCOA and VCCOB
.
Table 20: CML (800mV Swing) DC Characteristics, VCC = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%, VCCOA = VCCOB
3.3V ±5%, 2.5V ±5% or 1.8V ±5%, TA = -40°C to +85°C
=
Symbol
Parameter
Output high voltage
Test Conditions
Minimum
Typical
Maximum
Units
VOH
VOL
Qx, nQx[a]
Qx, nQx[a]
Qx, nQx[a]
VCCOx[b] – 0.10
VCCOx[b] – 0.95
575
VCCOx
VCCOx[b] – 0.70
1000
V
V
Terminated with 50to
Output low voltage
[b]
VCCOx
VOUT
Output voltage swing
mV
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2, nQB3.
b. VCCOx denotes VCCOA and VCCOB
.
©2016 Integrated Device Technology, Inc.
20
December 19, 2016
8P79818 Datasheet
Table 21: LVCMOS Clock Outputs DC Characteristics, VCC = 3.3V±5%, 2.5V±5% or 1.8V±5%, VEE = 0V,
TA = -40°C to +85°C
VCCOA = 3.3V±5% VCCOA = 2.5V±5% VCCOA = 1.8V ±5% VCCOA = 1.5V ±5%
Conditions Min Typ Max Min Typ Max Min Typ Max Min Typ Max Units
Test
Symbol
Parameter
Output high voltage
QAx, nQAx[a]
VOH
I
OH = –8mA
2.6
1.1
1.1
1.1
V
V
Output low voltage
QAx, nQAx[a]
VOL
IOL = 8mA
0.5
0.5
0.5
0.5
a. QAm denotes QA0, QA1, QA2, QA3. nQAm denotes nQA0, nQA1, nQA2, nQA3.
Table 22: Input Frequency Characteristics, VCC = 3.3V±5%, 2.5V±5% or 1.8V±5%, TA = -40°C to +85°C
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
LVPECL,LVDS,
HCSL, CML
1PPS
1PPS
700MHz
200MHz
Input frequency,
CLKx, nCLKx
fIN
LVCMOS
idc
Input duty cycle[a]
50
%
2
I C operation
100
400
50
kHz
MHz
fSCLK
Serial port clock SCLK
SPI operation
a. Any deviation from a 50% duty cycle on the input may be reflected in the output duty cycle.
©2016 Integrated Device Technology, Inc.
21
December 19, 2016
8P79818 Datasheet
AC Electrical Characteristics
Table 23: AC Characteristics, VCC = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%,
V
CCOA = VCCOB = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%, TA = -40°C to +85°C
Symbol
Parameter[a]
LVPECL, LVDS
Test Conditions
Minimum Typical Maximum Units
1PPS
700MHz
fOUT
Output frequency
HCSL, CML[b]
LVCMOS
1PPS
125
200MHz
700
LVPECL
20% to 80%
ps
ps
VCCOx[c] = 3.3V 20% to 80%
VCCOx[c] = 2.5V 20% to 80%
VCCOx[c] = 1.8V 20% to 80%
20% to 80%
125
550
LVDS
175
100
125
550
675
825
ps
ps
ps
CML, 400mV
CML, 800mV
Output rise and fall
times
tR / tF
20% to 80%
V
CCOA = 3.3V
VCCOA = 2.5V
CCOA = 1.8V
20% to 80%
20% to 80%
20% to 80%
20% to 80%
200
800
ps
LVCMOS
V
VCCOA = 1.5V
650
15
20
10
10
50
1300
50
ps
ps
ps
ps
ps
ps
LVPECL
LVDS
Bank skew[d], [e], [f] CML
60
tsk(b)
35
HCSL
35
LVCMOS
100
LVPECL,LVDS,
HCSL, CML
Even divide ratios
45
50
55
%
LVPECL,LVDS,
HCSL, CML
Odd divide ratios / bypass
43
45
40
40
38
50
50
50
50
50
57
55
60
60
62
%
%
%
%
%
Even divide ratios
Output
odc
VCCOA = 3.3V,
2.5V, or 1.8V
duty cycle[g]
LVCMOS
LVCMOS
Odd divide ratios /
bypass
Even divide ratios
VCCOA = 1.5V
Odd divide ratios /
bypass
MUXISOL Mux isolation
Noise floor
156.25MHz, VSWING = 800mV
61
dB
Offset >10MHz from156.25MHz carrier
–154
dBc/Hz
a. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
b. CML denotes CML 400mV and CML 800mV, unless otherwise stated.
c. VCCOx denotes VCCOA and VCCOB
.
©2016 Integrated Device Technology, Inc.
22
December 19, 2016
8P79818 Datasheet
d. This parameter is guaranteed by characterization. Not tested in production.
e. This parameter is defined in accordance with JEDEC Standard 65.
f. Defined as skew within a bank of outputs at the same supply voltage and with equal load conditions.
g. Measured using 50% duty cycle on input reference.
Table 24: HCSL AC Characteristics, VCC = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%,
V
CCOA = VCCOB = 3.3V ±5%, 2.5V ±5% or 1.8V ±5%, TA = -40°C to +85°C
Symbol
Parameter[a]
Rise/ fall edge rate[c]
Test Conditions[b]
Minimum
Typical
Maximum
Units
V
V
CCOx = 3.3V or 2.5V
CCOx = 1.8V
0.6
4
4
V/ns
V/ns
mV
tSLEW
0.45
VMAX
VMIN
Absolute max. output voltage[d], [e]
Absolute min. output voltage[d], [f]
Absolute crossing voltage[g], [h]
VCCOx = 3.3V, 2.5V, 1.8V
VCCOx = 3.3V, 2.5V, 1.8V
1150
–150
mV
VCROSS
V
V
CCOx = 3.3V, 2.5V, 1.8V
CCOx = 3.3V, 2.5V, 1.8V
550
140
mV
VCROSS Total variation of VCROSS over all edges[g], [i]
mV
a. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
b. VCCOx denotes VCCOA and VCCOB
.
c. Measured from –150mV to 150mV on the differential waveform (derived from Qx minus nQx). The signal must be monotonic through the
measurement region for rise and fall time. The 300mV measurement window is centered on the differential zero crossing.
d. Measurement taken from single ended waveform.
e. Defined as the maximum instantaneous voltage including overshoot.
f. Defined as the minimum instantaneous voltage including undershoot.
g. Measured at crossing point where the instantaneous voltage value of the rising edge of Qm equals the falling edge of nQm.
h. Refers to the total variation from the lowest crossing point to the highest, regardless of which edge is crossing. Refers to all crossing points
for this measurement.
i. Defined as the total variation of all crossing voltages of rising Qm and falling nQm, This is the maximum allowed variance in VCROSS for any
particular system.
©2016 Integrated Device Technology, Inc.
23
December 19, 2016
8P79818 Datasheet
Table 25: Additive Jitter, VCC = 3.3V, 2.5V or 1.8V, VCCOA = VCCOB = 3.3V, 2.5V, 1.8V or 1.5V
(1.5V only supported for LVCMOS outputs), TA = 25°C
Symbol
Parameter
Test Conditions[a]
Minimum
Typical
Maximum
Units
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
VCCOx[b] = 3.3V or 2.5V
VCCOx[b] = 1.8V
77
90
92
117
60
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fs
fOUT
156.25MHz
=
LVPECL
LVDS
50
fOUT
625MHz
=
60
84
85
104
185
61
fOUT
156.25MHz
=
126
48
RMS additive jitter
(random);
fOUT
625MHz
=
tjit(f)
57
84
Integration range:
12kHz – 20MHz
92
132
133
73
fOUT
156.25MHz
=
92
HCSL
61
fOUT
625MHz
=
67
93
V
V
CCOA = 3.3V or 2.5V
CCOA = 1.8V
98
166
204
314
fOUT
156.25MHz
=
LVCMOS
128
198
VCCOA = 1.5V
a. All outputs configured for the specific output type, as shown in the table.
b. VCCOx denotes VCCOA and VCCOB
.
©2016 Integrated Device Technology, Inc.
24
December 19, 2016
8P79818 Datasheet
Applications Information
Recommendations for Unused Input and Output Pins
Inputs:
CLK/nCLK Inputs
For applications not requiring the use of the differential input, both CLK and nCLK can be left floating. Though not required, but for additional
protection, a 1kresistor can be tied from CLK to ground.
LVCMOS Control Pins
All control pins have internal pullups and pulldowns; additional resistance is not required but can be added for additional protection. A 1k
resistor can be used.
Outputs:
LVCMOS Outputs
All unused LVCMOS outputs can be left floating. It is recommended that there is no trace attached.
LVPECL Outputs
All unused LVPECL outputs can be left floating. We recommend that there is no trace attached. Both sides of the differential output pair should
either be left floating or terminated.
LVDS Outputs
All unused LVDS output pairs can be either left floating or terminated with 100across. If they are left floating, there should be no trace
attached.
Differential Outputs
All unused Differential outputs can be left floating. It is recommended that there is no trace attached.
Power Dissipation and Thermal Considerations
The 8P79818 is a multi-functional, high speed device that targets a wide variety of clock frequencies and applications. Since this device is
highly programmable with a broad range of features and functionality, the power consumption will vary as each of these features and functions
is enabled.
The 8P79818 device was designed and characterized to operate within the ambient industrial temperature range of -40°C to +85°C. The
ambient temperature represents the temperature around the device, not the junction temperature. When using the device in extreme cases,
such as maximum operating frequency and high ambient temperature, external air flow may be required in order to ensure a safe and reliable
junction temperature. Extreme care must be taken to avoid exceeding 125°C junction temperature.
The power calculation examples below were generated using a maximum ambient temperature and supply voltage. For many applications, the
power consumption will be much lower. Please contact IDT technical support for any concerns on calculating the power dissipation for your
own specific configuration.
©2016 Integrated Device Technology, Inc.
25
December 19, 2016
8P79818 Datasheet
Power Domains
The 8P79818 device has a number of separate power domains that can be independently enabled and disabled via register accesses (all
power supply pins must still be connected to a valid supply voltage). Figure 7 below indicates the individual domains and the associated power
pins.
Figure 7: 8P79818 Power Domains
©2016 Integrated Device Technology, Inc.
26
December 19, 2016
8P79818 Datasheet
Power Consumption Calculation
Determining total power consumption involves several steps:
1.Determine the power consumption using maximum current values for core voltage from Table 11, Table 12 and Table 13, Page 18 for the
appropriate case of how many dividers are enabled.
2.Determine the nominal power consumption of each enabled output path.
a. This consists of a base amount of power that is independent of operating frequency, as shown in Table 27 through Table 43 (depending
on the chosen output protocol).
b. Then there is a variable amount of power that is related to the output frequency. This can be determined by multiplying the output
frequency by the FQ_Factor shown in Table 27 through Table 43.
3.All of the above totals are then summed.
Example Calculations
Table 26: Example 1. Common Customer Configuration (3.3V Core Voltage)
Bank
Configuration
Frequency (MHz)
VCCO
Bank A
Bank B
LVDS
LVDS
125
125
3.3V
2.5V
▪ Core supply current, ICC = 24.7mA (max.)
▪ Output supply current, Bank A = 0.06 125 71.615 = 79.115mA
▪ Output supply current, Bank B = 0.06 125 71.615 = 79.115mA
▪ Total device current = 24.7mA + 79.115mA 79.115mA = 182.93mA
▪ Total device power = 3.465V 183.93mA = 633.934mW
With an ambient temperature of 85°C and no airflow, the junction temperature is:
TJ = 85°C 35.23°C/W 0.634W = 107.3°C
©2016 Integrated Device Technology, Inc.
27
December 19, 2016
8P79818 Datasheet
Thermal Considerations
Once the total power consumption has been determined, it is necessary to calculate the maximum operating junction temperature for the device
under the environmental conditions it will operate in. Thermal conduction paths, air flow rate and ambient air temperature are factors that can
affect this. The thermal conduction path refers to whether heat is to be conducted away via a heat-sink, via airflow or via conduction into the
PCB through the device pads (including the ePAD). Thermal conduction data is provided for typical scenarios in Table 44, Page 30. Please
contact IDT for assistance in calculating results under other scenarios.
Current Consumption Data and Equations
Table 27: 3.3V LVDS Output Calculation Table
Table 30: 3.3V LVPECL Output Calculation Table
FQ_Factor (mA/MHz),
FQ_Factor (mA/MHz),
LVDS
per output
Base_Current (mA)
LVPECL
per output
Base_Current (mA)
Qx, nQx[a]
0.06
71.615
Qx, nQx[a]
0.05
53.475
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 28: 2.5V LVDS Output Calculation Table
Table 31: 2.5V LVPECL Output Calculation Table
FQ_Factor (mA/MHz),
FQ_Factor (mA/MHz),
LVDS
per output
Base_Current (mA)
LVPECL
per output
Base_Current (mA)
Qx, nQx[a]
0.06
71.544
Qx, nQx[a]
0.04
20.874
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 29: 1.8V LVDS Output Calculation Table
Table 32: 1.8V LVPECL Output Calculation Table
FQ_Factor (mA/MHz),
FQ_Factor (mA/MHz),
LVDS
per output
Base_Current (mA)
LVPECL
per output
Base_Current (mA)
Qx, nQx[a]
0.1
50.284
Qx, nQx[a]
0.04
19.962
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 33: 3.3V HCSL Output Calculation Table
FQ_Factor (mA/MHz),
HCSL
per output
Base_Current (mA)
Qx, nQx[a]
0.05
54.911
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
©2016 Integrated Device Technology, Inc.
28
December 19, 2016
8P79818 Datasheet
Table 34: 3.3V CML Output (400mV) Calculation
Table
Table 39: 1.8V CML Output (800mV) Calculation
Table
FQ_Factor (mA/MHz),
FQ_Factor (mA/MHz),
per output
CML
per output
Base_Current (mA)
CML
Qx, nQx[a]
Base_Current (mA)
Qx, nQx[a]
0.03
51.889
0.02
47.334
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 35: 2.5V CML Output (400mV) Calculation
Table
Table 40: 3.3V LVCMOS Output Calculation Table
LVCMOS
Base_Current (mA)
FQ_Factor (mA/MHz),
Qx, nQx[a]
62.289
CML
per output
Base_Current (mA)
Qx, nQx[a]
0.02
49.220
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 41: 2.5V LVCMOS Output Calculation Table
Table 36: 1.8V CML Output (400mV) Calculation
Table
LVCMOS
Base_Current (mA)
Qx, nQx[a]
51.097
FQ_Factor (mA/MHz),
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
CML
per output
Base_Current (mA)
Qx, nQx[a]
0.02
47.326
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 42: 1.8V LVCMOS Output Calculation Table
LVCMOS
Base_Current (mA)
Qx, nQx[a]
47.745
Table 37: 3.3V CML Output (800mV) Calculation
Table
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
FQ_Factor (mA/MHz),
CML
per output
Base_Current (mA)
Qx, nQx[a]
0.02
51.474
Table 43: 1.5V LVCMOS Output Calculation Table
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
LVCMOS
Base_Current (mA)
Qx, nQx[a]
41.485
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
Table 38: 2.5V CML Output (800mV) Calculation
Table
FQ_Factor (mA/MHz),
CML
per output
Base_Current (mA)
Qx, nQx[a]
0.02
48.906
a. Qx denotes QA0, QA1, QA2, QA3, QB0, QB1, QB2, QB3.
nQx denotes nQA0, nQA1, nQA2, nQA3, nQB0, nQB1, nQB2,
nQB3.
©2016 Integrated Device Technology, Inc.
29
December 19, 2016
8P79818 Datasheet
Applying the values to the following equation will yield output current by frequency: (mA) = FQ_Factor Frequency (MHz) Base_Current
where:
Qx Current is the specific output current according to output type and frequency
FQ_Factor is used for calculating current increase due to output frequency
Base_Current is the base current for each output path independent of output frequency
The second step is to multiply the power dissipated by the thermal impedance to determine the maximum power gradient, using the following
equation:
TJ = TA (JA Pdtotal
)
where:
TJ is the junction temperature (°C)
TA is the ambient temperature (°C)
JA is the thermal resistance value from Table 44, Page 30, dependent on ambient airflow (°C/W)
Pdtotal is the total power dissipation of the 8P79818 under usage conditions, including power dissipated due to loading (W)
Note that for LVPECL outputs the power dissipation through the load is assumed to be 27.95mW. When selecting LVCMOS outputs, power
dissipation through the load will vary based on a variety of factors including termination type and trace length. For these examples, power
dissipation through loading will be calculated using CPD (found in Table 10, Page 16) and output frequency:
2
PdOUT = CPD fOUT VCCO
where:
Pdout is the power dissipation of the output (W)
C
PD is the power dissipation capacitance (pF)
OUT is the output frequency of the selected output (MHz)
CCO is the voltage supplied to the appropriate output (V)
f
V
Table 44: JA vs. Air Flow Table for a 32-lead 5mm x 5mm VFQFN
JA vs. Air Flow
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
35.23°C/W
31.6°C/W
30.0°C/W
©2016 Integrated Device Technology, Inc.
30
December 19, 2016
8P79818 Datasheet
Package Drawings
Figure 8: Package Drawings
©2016 Integrated Device Technology, Inc.
31
December 19, 2016
8P79818 Datasheet
Figure 9: Package Drawings (Continued)
©2016 Integrated Device Technology, Inc.
32
December 19, 2016
8P79818 Datasheet
Marking Diagram
1. Line 1 is the prefix of the part number.
2. Line 2 and Line 3 is the part number.
3. Line 4 “YYWW$”
a. “YY” are the last digits of the year and “WW” is the work week that the part was assembled.
b. “$” denotes mark code.
Ordering Information
Table 45: Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Temperature
8P79818NLGI
8P79818NLGI8
8P79818NLGI/W
IDT8P79818NLGI
IDT8P79818NLGI
IDT8P79818NLGI
32-lead VFQFN, Lead Free
32-lead VFQFN, Lead Free
32-lead VFQFN, Lead Free
Tray
-40°C to +85°C
-40°C to +85°C
-40°C to +85°C
Tape & Reel
Tape & Reel
Table 46: Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
NLGI8
Quadrant 1 (EIA-481-C)
USER DIRECTION OF FEED
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
NLGI/W
Quadrant 2 (EIA-481-D)
USER DIRECTION OF FEED
©2016 Integrated Device Technology, Inc.
33
December 19, 2016
8P79818 Datasheet
Revision History
Revision Date
Description of Change
December 19, 2016
Initial datasheet.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
www.IDT.com/go/support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
DISCLAIMER Integrated Device Technology, Inc. (IDT) reserves the right to modify the products and/or specifications described herein at any time, without notice, at IDT's sole discretion. Performance spec-
ifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed in customer products. The information
contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any particular purpose, an implied
warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intellectual property rights of
IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be rea-
sonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc. All rights reserved.
©2016 Integrated Device Technology, Inc
34
December 19, 2016
厂商 型号 描述 页数 下载

IDT

 		8P73S674 [ Clock signal division and distribution ] 15 页

IDT

 		8P73S674NLGI [ 1.8V LVPECL Clock Divider ] 15 页

IDT

 		8P73S674NLGI8 [ 1.8V LVPECL Clock Divider ] 15 页

IDT

 		8P73S674_16 [ 1.8V LVPECL Clock Divider ] 15 页

IDT

 		8P791208 [ Low Additive Jitter 2:8 Buffer with CMOS/ Differential Outputs ] 32 页

IDT

 		8P791208NLGI [ Low Additive Jitter 2:8 Buffer with CMOS/ Differential Outputs ] 32 页

IDT

 		8P791208NLGI/W [ Low Additive Jitter 2:8 Buffer with CMOS/ Differential Outputs ] 32 页

IDT

 		8P791208NLGI8 [ Low Additive Jitter 2:8 Buffer with CMOS/ Differential Outputs ] 32 页

IDT

 		8P791208_18 [ Low Addit ive Jit ter 2:8 Buffer with CMOS / Different ial Outputs ] 31 页

IDT

 		8P79818 [ Programmable Low Additive Jitter 2:8 Buffer with Dividers and Universal Outputs ] 34 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.195394s
