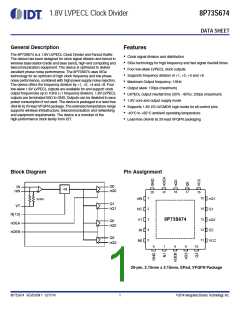

1.8V LVPECL Clock Divider
8P73S674
DATA SHEET
General Description
Features
The 8P73S674 is a 1.8V LVPECL Clock Divider and Fanout Buffer.
The device has been designed for clock signal division and fanout in
wireless base station (radio and base band), high-end computing and
telecommunication equipment. The device is optimized to deliver
excellent phase noise performance. The 8P73S674 uses SiGe
technology for an optimum of high clock frequency and low phase
noise performance, combined with high power supply noise rejection.
The device offers the frequency division by ÷1, ÷2, ÷4 and ÷8. Four
low-skew 1.8V LVPECL outputs are available for and support clock
output frequencies up to 1GHz (÷1 frequency division). 1.8V LVPECL
• Clock signal division and distribution
• SiGe technology for high-frequency and fast signal rise/fall times
• Four low-skew LVPECL clock outputs
• Supports frequency division of ÷1, ÷2, ÷4 and ÷8
• Maximum Output frequency: 1GHz
• Output skew: 100ps (maximum)
• LVPECL output rise/fall time (20% - 80%): 220ps (maximum)
• 1.8V core and output supply mode
outputs are terminated 50to GND. Outputs can be disabled to save
power consumption if not used. The device is packaged in a lead-free
(RoHS 6) 20-lead VFQFN package. The extended temperature range
supports wireless infrastructure, telecommunication and networking
end equipment requirements. The device is a member of the
high-performance clock family from IDT.
• Supports 1.8V I/O LVCMOS logic levels for all control pins
• -40°C to +85°C ambient operating temperature
• Lead-free (RoHS 6) 20-lead VFQFN packaging
Block Diagram
Pin Assignment
Q0
nQ0
IN
nIN
÷N
19
18
17
20
16
1
2
3
4
5
15
14
13
12
11
nIN
NC
VT
IN
nQ1
Q1
2x 50
Q1
nQ1
VT
N[1:0]
8P73S674
nQ2
Q2
Q2
nQ2
nOEA
nOEB
Q3
nQ3
N0
VCC
6
7
8
9
10
20-pin, 2.15mm x 2.15mm, EPad, VFQFN Package
8P73S674 REVISION 1 12/17/14
1
©2014 Integrated Device Technology, Inc.
8P73S674 DATA SHEET
Pin Descriptions and Characteristics
Table 1. Pin Descriptions
Number
Name
nIN
NC
Type
Description
1
2
3
4
5
6
7
Input
Unused
—
—
—
Clock signal inverting differential input. Internal termination 50to VT.
Not connected.
VT
—
Leave open if IN, nIN is used with LVDS signals.
Clock signal non-inverting differential input. Internal termination 50to VT.
Frequency divider control. 1.8V LVCMOS/LVTTL interface levels.
Power supply ground.
IN
Input
Input
Power
Input
—
N0
Pulldown
—
GND
N1
Pulldown
Frequency divider control. 1.8V LVCMOS/LVTTL interface levels.
Output enable control for the Q1, Q2 and Q3 outputs. 
1.8V LVCMOS/LVTTL interface levels.
8
nOEB
Input
Pulldown
9
nQ3
Q3
Output
Output
Power
Output
Output
Output
Output
Power
Output
Output
—
—
—
—
—
—
—
—
—
—
Differential clock output 3. 1.8V LVPECL output levels.
Supply voltage for the clock outputs.
10
11
12
13
14
15
16
17
18
VCC
Q2
Differential clock output 2. 1.8V LVPECL output levels.
nQ2
Q1
Differential clock output 1. 1.8V LVPECL output levels.
Supply voltage for the clock outputs.
nQ1
VCC
Q0
Differential clock output 0. 1.8V LVPECL output levels.
nQ0
Output enable control for the Q0 output. 
1.8V LVCMOS/LVTTL interface levels.
19
20
nOEA
GND
Input
Power
Power
Pulldown
—
—
Power supply ground.
Exposed package pad negative supply voltage (GND). 
Return current path for the Q0, Q1, Q2 and Q3 outputs.
EPAD
GND_EP
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
4
RPULLDOWN
Input Pulldown Resistor
51
k
1.8V LVPECL CLOCK DIVIDER
2
REVISION 1 12/17/14
8P73S674 DATA SHEET
Truth Tables
Table 3A. N Clock Divider
Input
N1
N0
Divider Value
0 (default)
0 (default)
÷1
÷2
÷4
÷8
0
1
1
1
0
1
Table 3B. nOEA Output Enable
Input
nOEA
Output
Q0
0 (default)
Output is enabled
Output is disabled in logic low state
1
Table 3C. nOEB Output Enable
Input
Output
nOEB
Q1, Q2, Q3
0 (default)
1
Outputs are enabled
Outputs are disabled in logic low state
REVISION 1 12/17/14
3
1.8V LVPECL CLOCK DIVIDER
8P73S674 DATA SHEET
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Electrical Characteristics
or AC Electrical Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability
.
Item
Rating
Supply Voltage, VCC
Inputs
4.6V
-0.5V to VCC + 0.5V
30mA
Input Current, IN, nIN
VT Current, IVT
60mA
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Junction Temperature
125C
Storage Temperature, TSTG
-65C to 150C
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, V = 1.8V 0.15V, T = -40°C to +85°C
CC
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
1.8
Maximum
1.95
Units
V
Core Supply Voltage
Power Supply Current
1.65
ICC
Outputs Unloaded
62
73
mA
Table 4B. LVCMOS/LVTTL DC Characteristics, V = 1.8V 0.15V, T = -40°C to +85°C
CC
A
Symbol
VIH
Parameter
Test Conditions
Minimum
1.2
Typical
Maximum
1.8
Units
Input High Voltage
Input Low Voltage
V
V
VIL
-0.3
0.3
Input High
Current
N0, N1,
nOEA, nOEB
IIH
IIL
V
CC = 1.95V, VIN = 1.95V
150
µA
µA
Input Low
Current
N0, N1,
nOEA, nOEB
VCC = 1.95V, VIN = 0V
-10
Table 4C. Differential Input DC Characteristics, V = 1.8V 0.15V, T = -40°C to +85°C
CC
A
Symbol
RIN
Parameter
Test Conditions
Minimum
Typical
Maximum
130
Units
Differential Input
Resistance
IN, nIN
IN, nIN
Across IN and nIN with VT floated
70
100
IIN
Input Current
25
mA
1.8V LVPECL CLOCK DIVIDER
4
REVISION 1 12/17/14
8P73S674 DATA SHEET
Table 4D. LVPECL DC Characteristics, V = 1.8V 0.15V, T = -40°C to +85°C
CC
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
VCC – 0.75
VCC – 1.5
Units
VOH
VOL
Output High Voltage1
Output Low Voltage1
VCC – 1.1
V
V
Peak-to-Peak Output 
VSWING
0.6
1.0
V
Voltage Swing1
NOTE 1: Outputs terminated with 50to GND.
AC Electrical Characteristics
1 2
,
Table 5. AC Characteristics, V = 1.8V 0.15V, T = -40°C to +85°C
CC
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
VPP
Input Voltage Swing
IN, nIN
0.2
1
V
Differential Input
Voltage Swing
VDIFF_IN
IN, nIN
IN, nIN
0.4
0.9
2
V
V
Common Mode Input
Voltage3
VCMR
V
CC –VPP/2
N = ÷1
N = ÷2
N = ÷4
N = ÷8
1000
500
250
125
1000
100
600
900
500
410
220
MHz
MHz
MHz
MHz
MHz
ps
fOUT
Output Frequency, Q[3:0]
fIN
Input Frequency, IN, nIN
Output Skew4, 5
tsk(o)
40
N = ÷1
200
400
ps
tPD
Propagation Delay
N = ÷2, ÷4, ÷8
ps
tsk(pp)
tR / tF
Part-to-Part Skew4, 6
ps
10%-90%
20%-80%
270
150
ps
Output
Rise/Fall Time
ps
Phase Jitter Noise Floor, >100kHz
offset7
tjit(Ø)
any Q, fOUT = 1000MHz
-153
dBc/Hz
122.88 MHz; 1kHz-40MHz
122.88 MHz; 12kHz-20MHz
50% Input Duty Cycle
100
60
180
120
55
fs
fs
%
tjit(Ø)
Additive Phase Noise, RMS
Output Duty Cycle
odc
45
50
NOTE 1: Outputs terminated with 50to GND.
NOTE 2: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the
device is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after
thermal equilibrium has been reached under these conditions.
NOTE 3: Common mode input voltage is defined as the signal crosspoint.
NOTE 4: This parameter is defined in accordance with JEDEC standard 65.
NOTE 5: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the output differential
crosspoints.
NOTE 6: Defined as skew between outputs on different devices operating at the same supply voltage, same temperature, same frequency
and with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the output differential
crosspoints.
NOTE 7: VCMR is set to 1.12V.
REVISION 1 12/17/14
5
1.8V LVPECL CLOCK DIVIDER
8P73S674 DATA SHEET
Parameter Measurement Information
1.8V 0.15V
V
CC
SCOPE
V
CC
Qx
nIN
IN
nQx
GND
V
EE
1.8V LVPECL Output Load Test Circuit
Differential Input Level
Part 1
nQx
nQx
Qx
Qx
Part 2
nQy
nQy
Qy
Qy
tsk(pp)
Output Skew
Part-to-Part Skew
nQ[0:3]
Q[0:3]
nQ[0:3]
Q[0:3]
Output Rise/Fall Time
Output Duty Cycle/Pulse Width/Period
1.8V LVPECL CLOCK DIVIDER
6
REVISION 1 12/17/14
8P73S674 DATA SHEET
Applications Information
Recommendations for Unused Output Pins
Inputs:
Outputs:
LVCMOS Control Pins
LVPECL Outputs
All unused LVPECL output pairs can be left floating. We recommend
that there is no trace attached. Both sides of the differential output
pair should either be left floating or terminated.
All control pins have internal pulldowns; additional resistance is not
required but can be added for additional protection. A 1kresistor
can be used.
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 1. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 1. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
REVISION 1 12/17/14
7
1.8V LVPECL CLOCK DIVIDER
8P73S674 DATA SHEET
1.8V Differential Clock Input Interface
The IN /nIN accepts LVDS and other differential signals. The
differential input signal must meet both the VPP and VCMR input
requirements. Figure 2A to Figure 2C show interface examples for
the IN /nIN input driven by the most common driver types. The input
interfaces suggested here are examples only. If the driver is from
another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V, 1.8V
1.8V
3.3V, 2.5V, 1.8V
1.8V
Zo = 50
Zo = 50
Zo = 50
Zo = 50
IN
IN
VT
nIN
VT
nIN
Receiver
Receiver
LVPECL
LVDS
Figure 2A. Differential Input Driven by an LVDS Driver
Figure 2C. Differential Input Driven by an LVPECL Driver
1.8V
1.8V
Zo = 50
Zo = 50
IN
VT
nIN
Receiver
CML
Figure 2B. Differential Input Driven by a CML Driver
1.8V LVPECL CLOCK DIVIDER
8
REVISION 1 12/17/14
8P73S674 DATA SHEET
Power Considerations
This section provides information on power dissipation and junction temperature for the 8P73S674. 
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8P73S674 is the sum of the core power plus the power dissipated due to loading. 
The following is the power dissipation for VCC = 1.8V + 0.15V = 1.95V, which gives worst case results.
The following calculation is for 85°C. The maximum current at 85°C is 68.3mA.
NOTE: Please refer to Section 3 for details on calculating power dissipated due to loading.
•
•
Power (core)MAX = VCC_MAX * ICC_MAX = 1.95V * 68.3mA = 133.2mW
Power (outputs)MAX = 31.5mW/Loaded Output pair
If all outputs are loaded, the total power is 4 * 31.5mW = 126mW
•
Power Dissipation for internal termination RT
Power (RT)MAX = 2 * [(IIN_MAX)2 * 50] = 2 * (25mA)2 * 50= 62.5mW
Total Power_MAX = Power (core)MAX + Power (outputs)MAX + Power (RT)MAX = 133.2+ 126mW + 62.5mW = 321.7mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad and it directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 62.2°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.322W * 70.7°C/W = 108°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance for 20-Lead VFQFN, Forced Convection
JA
JA by Velocity
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
70.7°C/W
67.0°C/W
65.3°C/W
REVISION 1 12/17/14
9
1.8V LVPECL CLOCK DIVIDER
8P73S674 DATA SHEET
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pairs.
LVPECL output driver circuit and termination are shown in Figure 3.
VCC
Q1
VOUT
RL
Figure 3. LVPECL Driver Circuit and Termination
To calculate power dissipation due to loading, use the following equations which assume a 50load.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.75V
(VCC_MAX – VOH_MAX) = 0.75V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.5V
(VCC_MAX – VOL_MAX) = 1.5V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX)/RL] * (VCC_MAX – VOH_MAX) 
= [(VCC_MAX – 0.75)/RL] * (VCC_MAX – VOH_MAX) 
= [(1.95V – 0.75V)/50] * 0.75V = 18mW
Pd_L = [(VOL_MAX)/RL] * (VCC_MAX – VOL_MAX) 
= [(VCC_MAX – 1.5v)/RL] * (VCC_MAX – VOL_MAX) 
= [(1.95V – 1.5V)/50] * 1.5V = 13.5mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 31.5mW
1.8V LVPECL CLOCK DIVIDER
10
REVISION 1 12/17/14
8P73S674 DATA SHEET
Reliability Information
Table 7. vs. Air Flow Table for a 20-Lead VFQFN
JA
JA at 0 Air Flow
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
70.7°C/W
67.0°C/W
65.3°C/W
Transistor Count
The transistor count for the 8P73S674 is: 1,238
REVISION 1 12/17/14
11
1.8V LVPECL CLOCK DIVIDER
8P73S674 DATA SHEET
Package Information
1.8V LVPECL CLOCK DIVIDER
12
REVISION 1 12/17/14
8P73S674 DATA SHEET
Ordering Information
Table 8. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Tray
Temperature
-40°C to +85°C
-40°C to +85°C
8P73S674NLGI
8P73S674NLGI8
8P73S674NLGI
8P73S674NLGI
20-Lead VFQFN, Lead-Free
20-Lead VFQFN, Lead-Free
Tape & Reel
REVISION 1 12/17/14
13
1.8V LVPECL CLOCK DIVIDER
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
Sales
Tech Support
email: clocks@idt.com
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in
this document, including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined
in the independent state and are not guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether
express or implied, including, but not limited to, the suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This
document is presented only as a guide and does not convey any license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
While the information presented herein has been checked for both accuracy and reliability, Integrated Device Technology (IDT) assumes no responsibility for either its use or for the infringement of any patents or
other rights of third parties, which would result from its use. No other circuits, patents, or licenses are implied. This product is intended for use in normal commercial applications. Any other applications, such as
those requiring extended temperature ranges, high reliability or other extraordinary environmental requirements are not recommended without additional processing by IDT. IDT reserves the right to change any
circuitry or specifications without notice. IDT does not authorize or warrant any IDT product for use in life support devices or critical medical instruments.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Product specification subject to change without notice. Other trademarks and service marks used herein, including protected
names, logos and designs, are the property of IDT or their respective third party owners.
Copyright ©2014 Integrated Device Technology, Inc.. All rights reserved.
8P73S674 DATA SHEET
REVISION 1 12/17/14
15
1.8V LVPECL CLOCK DIVIDER
