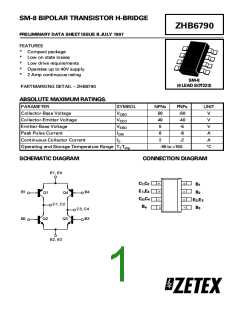

SM-8 BIPOLAR TRANSISTOR H-BRIDGE
ZHB6790
PRELIMINARY DATA SHEET ISSUE B JULY 1997
FEATURES
*
*
*
*
*
Compact package
Low on state losses
Low drive requirements
Operates up to 40V supply
2 Amp continuous rating
SM-8
(8 LEAD SOT223)
PARTMARKING DETAIL – ZHB6790
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VCBO
VCEO
VEBO
ICM
NPNs
PNPs
-50
-40
-5
UNIT
V
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
50
40
5
V
V
Peak Pulse Current
6
-6
A
Continuous Collector Current
IC
2
-2
A
Operating and Storage Temperature Range Tj:Tstg
-55 to +150
°C
SCHEMATIC DIAGRAM
CONNECTION DIAGRAM
E1, E4
C1,C2
B1
B2
E1,E4
C3,C4
B4
B1
B2
B4
Q1
Q2
Q4
E2,E3
B3
C1, C2
C3, C4
B3
Q3
E2, E3
ZHB6790
THERMAL CHARACTERISTICS
PARAMETER
SYMBOL
Ptot
VALUE
UNIT
Total Power Dissipation at Tamb = 25°C*
Any single transistor “on”
Q1 and Q3 “on” or Q2 and Q4 “on” equally
1.25
2
W
W
Derate above 25°C*
Any single transistor “on”
Q1 and Q3 “on” or Q2 and Q4 “on” equally
10
16
mW/ °C
mW/ °C
Thermal Resistance - Junction to Ambient*
Any single transistor “on”
Q1 and Q3 “on” or Q2 and Q4 “on” equally
100
62.5
°C/ W
°C/ W
100
80
60
40
20
0
60
50
40
30
20
10
0
100us 1ms 10ms 100ms 1s
Pulse Width
10s
100s
100us 1ms 10ms 100ms 1s
Pulse Width
10s
100s
Transient Thermal Resistance
Q1 and Q3 or Q2 and Q4 "On"
Transient Thermal Resistance
Single Transistor "On"
10
2.0
1.5
1.0
0.5
0
1
0.1
1
10
0.1
0
20
40
60
T - Temperature (°C)
80 100 120 140 160
Pcb Area (inches squared)
Pd v Pcb Area Comparison
Derating curve
* The power which can be dissipated assuming the device is mounted in a typical manner on a PCB
with copper equal to 2 inches square.
†"Two devices on" is the standard operating condition for the bridge. Eg. opposing NPN/PNP pairs
rurned on.
ZHB6790
PNP TRANSISTORS
ELECTRICAL CHARACTERISTICS (at T
= 25°C).
amb
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Collector-Base Breakdown V(BR)CBO
Voltage
-50
-40
-5
V
V
V
IC=-100µA
IC=-10mA*
IE=-100µA
Collector-Emitter
Breakdown Voltage
V(BR)CEO
Emitter-Base Breakdown
Voltage
V(BR)EBO
Collector Cutoff Current
Emitter Cutoff Current
ICBO
-0.1
-0.1
VCB=-30V
VEB=-4V
µA
µA
IEBO
Collector-Emitter
Saturation Voltage
VCE(sat)
-0.14
-0.25
-0.45
-0.75
V
V
V
V
IC=-100mA, IB=-0.5mA*
IC=-500mA, IB=-5mA*
IC=-1A, IB=-10mA*
IC=-2A, IB=-50mA*
Base-Emitter
Saturation Voltage
VBE(sat)
VBE(on)
hFE
-1.0
V
V
IC=-1A, IB=-10mA*
IC=-1A, VCE=-2V*
Base-Emitter
Turn-On Voltage
-0.75
Static Forward Current
Transfer Ratio
300
200
150
IC=-100mA, VCE=-2V
IC=-1A, VCE=-2V*
IC=-2A, VCE=-2V*
Transition Frequency
fT
100
MHz IC=-50mA, VCE=-5V
f=50MHz
Input Capacitance
Output Capacitance
Switching Times
Cibo
225
24
pF
pF
ns
VEB=-0.5V, f=1MHz
VCB=-10V, f=1MHz
IC=-500mA,
Cobo
ton
toff
35
600
IB1= -50mA
IB2=-50mA, VCC=-10V
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%.
ZHB6790
NPN TRANSISTORS
ELECTRICAL CHARACTERISTICS (at T
= 25°C).
amb
PARAMETER
SYMBOL MIN. TYP. MAX. UNIT CONDITIONS.
Collector-Base Breakdown V(BR)CBO
Voltage
50
40
5
V
V
V
IC=100µA
IC=10mA*
IE=100µA
Collector-Emitter
Breakdown Voltage
V(BR)CEO
Emitter-Base Breakdown
Voltage
V(BR)EBO
Collector Cutoff Current
Emitter Cutoff Current
ICBO
0.1
0.1
VCB=35V
VEB=4V
µA
µA
IEBO
Collector-Emitter
Saturation Voltage
VCE(sat)
0.1
V
V
V
V
IC=100mA, IB=0.5mA*
IC=500mA, IB=2.5mA*
IC=1A, IB=5mA*
0.16
0.5
0.35
IC=2A, IB=30mA*
Base-Emitter
Saturation Voltage
VBE(sat)
VBE(on)
hFE
0.9
V
V
IC=1A, IB=10mA*
IC=1A, VCE=2V*
Base-Emitter
Turn-On Voltage
0.73
Static Forward Current
Transfer Ratio
500
400
150
IC=100mA, VCE=2V*
IC=1A, VCE=2V*
IC=2A, VCE=2V*
Transition Frequency
fT
150
MHz IC=50mA, VCE=5V
f=50MHz
Input Capacitance
Output Capacitance
Switching Times
Cibo
200
16
pF
pF
ns
VEB=0.5V, f=1MHz
VCB=10V, f=1MHz
IC=500mA, IB!=50mA
Cobo
ton
toff
33
1300
IB2=50mA, VCC=10V
*Measured under pulsed conditions. Pulse width=300µs. Duty cycle 2%.
ZHB6790
PNP TRANSISTOR
TYPICAL CHARACTERISTICS
I
- Collector Current (Amps)
I
- Collector Current (Amps)
VCE(sat) v IC
VCE(sat) v IC
I
- Collector Current (Amps)
I
- Collector Current (Amps)
hFE v IC
VBE(sat) v IC
I
- Collector Current (Amps)
VBE(on) v IC
ZHB6790
NPN TRANSISTOR
TYPICAL CHARACTERISTICS
I
- Collector Current (Amps)
I - Collector Current (Amps)
VCE(sat) v IC
VCE(sat) v IC
I
- Collector Current (Amps)
I
- Collector Current (Amps)
hFE v IC
VBE(sat) v IC
I
- Collector Current (Amps)
VBE(on) v IC
ZHB6790
SAFE OPERATING AREA
10
1
10
1
100m
10m
100m
10m
100m
1
10
100
100m
1
10
100
VCE - Collector Emitter Voltage (V)
VCE - Collector Emitter Voltage (V)
Safe Operating Area (Minimum Copper)
see note below
Safe Operating Area (Full Copper)
see note below
Note: The Safe OperatingArea (SOA)chartsshownare a combinationoftheworstcase secondary
breakdown characteristics for the NPN/PNP pair, and the thermal curves demonstrating the
power dissipation capability of the energised ZHB part (opposing NPN-PNP switched on) when
mounted on a 50mm x 50mm FR4 PCB. The two cases show:
i) full copper present and
ii) with minimal copper present - this being defined as an SM-8 footprint with 1.5mm tracks to
the edge of the PCB.
For example, on a 50mm x 50mm full copper PCB, the ZHB6790 will safely dissipate 2W under
DC conditions, taking note of continuous current ratings and voltage limits. Higher powers can
be tolerated for pulsed operation, while the shorter pulse widths (100µs and 1ms) being relevant
for assessment of switching conditions.
The ZHB6790 ’H’-Bridge can be modelled within SPICE using the following transistor models
configured in the standard ’H’-Bridge topology, as shown in the schematic diagram ofthisdatasheet.
ZETEX H Bridge NPN transistors Spice model Last revision 4/7/97
.MODEL H6790N NPN IS =2.505E-12 NF =1.0058 BF =1360 IKF=1.3 VAF=35
+ISE=.24E-12 NE =1.38 NR =1.001 BR =125 IKR=1 VAR=8 ISC=.435E-12
+NC =1.213 RB =.2 RE =.043 RC =.04 CJC=54.3E-12 MJC=.475 VJC=.765
+CJE=247E-12 TF =.851E-9 TR =15.7E-9
*
*
*ZETEX H Bridge PNP transistors Spice model Last revision 4/7/97
.MODEL H6790P PNP IS=1.09684E-12 NF=1.0102 BF=650 IKF=1.7 VAF=23.5
+ISE=9.88593E-14 NE=1.47256 NR=1.00391 BR=270 IKR=0.2 VAR=30
+ISC=5.4933E-14 NC=1.07427 RB=0.055 RE=0.049 RC=0.078 CJC=96E-12
+MJC=0.495 VJC=0.67 CJE=275E-12 TF=0.75E-9 TR=10.8E-9
*
(C) 1997 ZETEX PLC
The copyright in these models and the design embodied belong to Zetex PLC (“Zetex”). They are supplied
free of charge by Zetex for the purpose of research and design and may be used or copied intact (including
this notice) for that purpose only. All other rights are reserved. The models are believed accurate but no
condition or warranty as to their merchantability or fitness for purpose is given and no liability in respect of
any use is accepted by Zetex PLC, its distributors or agents. Zetex PLC, Fields New Road, Chadderton,
ZHB6790
He
E
A
A1
o
45°
c
Lp
Dim
Millimetres
Inches
3
Min Typ Max
Min
–
Typ
Max
0.067
0.004
–
A
A1
b
–
0.02
–
–
–
1.7
0.1
–
–
0.0008
–
–
0.7
–
0.028
c
0.24
6.3
3.3
–
0.32
6.7
3.7
–
0.009
0.248
0.130
–
–
0.013
0.264
0.145
–
D
–
–
E
–
–
0.180
0.060
–
e1
e2
He
Lp
4.59
1.53
–
–
–
–
–
6.7
0.9
7.3
–
0.264
0.035
0.287
–
–
–
Zetex plc.
Fields New Road, Chadderton, Oldham, OL9-8NP, United Kingdom.
Telephone: (44)161 622 4422 (Sales), (44)161 622 4444 (General Enquiries)
Fax: (44)161 622 4420
Zetex GmbH
Zetex Inc.
Zetex (Asia) Ltd.
3510 Metroplaza, Tower 2
Hing Fong Road,
Kwai Fong, Hong Kong
Telephone:(852) 26100 611
Fax: (852) 24250 494
These are supported by
agents and distributors in
major countries world-wide
Zetex plc 1997
Internet:
http://www.zetex.com
Streitfeldstraße 19
D-81673 München
Germany
Telefon: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
47 Mall Drive, Unit 4
Commack NY 11725
USA
Telephone: (516) 543-7100
Fax: (516) 864-7630
This publication is issued to provide outline information only which (unless agreed by the Company in writing) may not be used, applied
or reproduced for any purpose or form part of any order or contract or be regarded as a representation relating to the products or
services concerned. The Company reserves the right to alter without notice the specification, design, price or conditions of supply of any
product or service.
