www.zetex.com
Company proprietary – Sales network use only

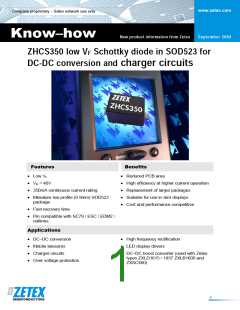

Know–how
New product information from Zetex
September 2004
ZHCS350 low VF Schottky diode in SOD523 for
DC-DC conversion and charger circuits
Features
Benefits
• Low VF
• Reduced PCB area
• VR = 40V
• High efficiency at higher current operation
• Replacement of larger packages
• Suitable for use in slim displays
• Cost and performance competitive
• 350mA continuous current rating
• Miniature low profile (0.9mm) SOD523
package
• Fast recovery time
• Pin compatible with SC79 / ESC / EDM2 /
outlines
Applications
• DC–DC conversion
• Mobile telecoms
• High frequency rectification
• LED display drivers
• Charger circuits
• DC–DC boost converter (used with Zetex
types ZXLD1615 / 1937 ZXLB1600 and
ZXSC400)
• Over voltage protection
1
www.zetex.com
Functional Description
The ZHCS350 offers low VF performance at The excellent VF specified from 30 – 350mA
the maximum current possible in this and VR of 40V provided in this low profile
miniature low profile diode package. It offers package enables
a
wide range of
designers the potential to reduce the PCB applications to be addressed ie chargers,
area used whilst maintaining the circuit LED backlighting displays and converter
performance previously achieved using a circuits including fly back designs.
larger packaged device.
Capacitance
Part
VR
IF
IFSM
VF at
IR at
Package
Number
at VR = 25V,
f = 1MHz
Typ.
Max
V
Max
mA
Max
A
Max
IF
Max.
µA
VR
V
mV
mA
pF
ZHCS350
40
350
4.2
810
350
12
30
3.3
SOD523
This new type above further complements and extends Zetex’ existing high performance low VF Schottky range;
short form detail of the existing types is provided in the table below .
ZHCS2000
ZHCS1000
ZHCS750
ZHCS500
ZHCS400
ZHCS1006
ZHCS756
ZHCS506
40
40
40
40
40
60
60
60
2000
1000
750
500
400
900
750
500
20
12
500
500
490
550
500
600
610
630
2000
1000
750
300
100
100
40
30
30
30
30
30
45
45
45
50
25
25
20
20
17
17
10
SOT23-6
SOT23
SOT23
SOT23
SODT23
SOT23
SOT23
SOT23
12
6.75
6.75
12
500
400
40
1000
750
100
100
40
12
5.5
500
Applications Information
The following diagrams – a charger and converter circuit – will both benefit from the use of
the Zetex ZHCS350 Schottky diode. In cases where the circuit demands higher current,
users should consider alternatives from the Zetex low VF range, shown in the table above.
Linear
+
Charge IC
2
www.zetex.com
Competition
Schottky specifications in the SOD523 are It should be noted that if identified in
expected to achieve high volumes very quickly competitive situations these types can be
and some of Zetex competitors have recognized replaced with Zetex high performance
this potential, introducing
a
number of ZHCS350.
alternative types in the SOD523 or equivalent
outline.
The types listed in table (right) offer varied
performance capability and voltage options but
the Rohm device is competitive.
Company
Zetex
ZHCS350
40
Rohm
RB521S-30
30
Toshiba
ISS388
40
Toshiba
1SS389
10
Philips
IPS79SB31
30
Part number
Voltage (V)
Target customers
Typical applications include:
Zetex has achieved high volume sales of its
low VF Schottkys to industrial and telecom
PSU manufacturers, producers of mobile
phones and other hand held portables. This
typically includes digital cameras, mobile
phones, PDAs, GPS and portable test
equipment.
Charging circuits
High frequency rectification
Over voltage protection
Handheld instruments, DC–DC boost
Cell phones
General purpose DC–DC conversion
3
www.zetex.com
Pricing
The price list will be updated in September As a guide ZHCS350TA is $0.16 at 1k and
2004 and will contain the full pricing matrix.
$0.11 at 10k.
Do you have a key customer
you’d like to send samples to?
Contact us at:
Ordering Information
The SOD523 device is introduced with 100%
matte tin plated external leads only and can
be ordered as follows:
europe.sales@zetex.com
asia.sales@zetex.com
usa.sales@zetex.com
• #UZHCS350TA – samples available now
• UZHCS350TA – production available now
This numbering convention will apply until Zetex is completely Pb-free, at which time the U
prefix will not be required. (Target date for conversion is Q2 2005.)
TA reels contain 3,000 parts. Where larger reels are required the TC reel contains 10,000
parts.
Support
• Datasheet – the ZHCS350 datasheet will be available on the Zetex web site from
September 2004.
• Press release – a press release will be issued in September 2004.
New Schottky in development
A low leakage alternative ZLLS350 in this SOD523 package is currently being developed
and scheduled for release in Q4 2004. This Schottky will offer excellent high current
operation at higher temperatures specifically benefiting applications where extended battery
life is and space considerations are of prime importance.
Conclusion
As with many Zetex products, what we show on our collateral is not the limit of what we can
achieve.
If you see other product opportunities, please let us know. Your local Zetex office will be
pleased to offer any technical support, pricing and sample requests.
Ref. ZHCS350KNG – Sept 2004
Europe
Americas
Asia Pacific
Corporate HQ
Zetex GmbH
Streitfeldstraße 19
81673 München
Germany
Zetex Inc
Zetex (Asia) Ltd
3701-04 Metroplaza Tower 1
Hing Fong Road
Kwai Fong
Zetex plc
700 Veterans Memorial Hwy
Hauppauge
NY 11788
Lansdowne Road
Chadderton
Oldham, OL9 9TY
United Kingdom
USA
Hong Kong
Tel: (49) 89 45 49 49 0
Fax: (49) 89 45 49 49 49
europe.sales@zetex.com
Tel: 631 360 2222
Fax: 631 360 8222
usa.sales@zetex.com
Tel: (852) 26100 611
Fax: (852) 24250 494
asia.sales@zetex.com
44 161 622 4444
44 161 622 4446
hq@zetex.com
www.zetex.com
