XZCR2711037T2

型号:

XZCR2711037T2

品牌:

SCHNEIDER[ SCHNEIDER ELECTRIC ]

页数:

2 页

PDF大小:

65 K

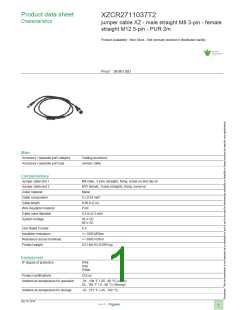

Product data sheet
Characteristics
XZCR2711037T2
jumper cable XZ - male straight M8 3-pin - female
straight M12 5-pin - PUR 2m
Product availability : Non-Stock - Not normally stocked in distribution facility
Price* : 36.80 USD
Main
Accessory / separate part category
Cabling accessory
Accessory / separate part type
Jumper cable
Complementary
Jumper cable end 1
Jumper cable end 2
Collar material
M8 male, :3 pins (straight), fixing: screw-on and clip-on
M12 female, :5 pins (straight), fixing: screw-on
Metal
Cable composition
Cable length
3 x 0.34 mm²
6.56 ft (2 m)
PUR
Wire insulation material
Cable outer diameter
System Voltage
0.2 in (5.2 mm)
45 V DC
60 V AC
Line Rated Current
Insulation resistance
Resistance across terminals
Product weight
4 A
>= 1000 MOhm
<= 5000 mOhm
0.21 lb(US) (0.093 kg)
Environment
IP degree of protection
IP65
IP67
IP69K
Product certifications
CULus
Ambient air temperature for operation
-31...194 °F (-35...90 °C) (static)
23...194 °F (-5...90 °C) (flexing)
Ambient air temperature for storage
-31...212 °F (-35...100 °C)
Dec 19, 2018
1
Ordering and shipping details
Category
22483 - MACHINE CABLES
Discount Schedule
GTIN
DS3
003389110113808
Nbr. of units in pkg.
Package weight(Lbs)
Returnability
1
0.12
N
Country of origin
CZ
Offer Sustainability
Sustainable offer status
RoHS (date code: YYWW)
Green Premium product
Compliant - since 0649 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh
Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile
Product end of life instructions
California proposition 65
- - - - - - - Substance 1
Available
Available
WARNING: This product can expose you to chemicals including:
Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and
- - - - - - - Substance 2
Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
reproductive harm.
- - - - - - - More information
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months
2
