XZCPA0941L10

型号:

XZCPA0941L10

品牌:

SCHNEIDER[ SCHNEIDER ELECTRIC ]

页数:

2 页

PDF大小:

57 K

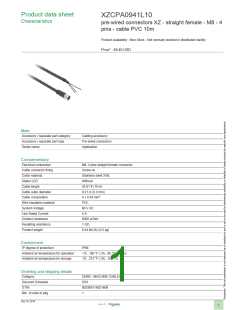

Product data sheet
Characteristics
XZCPA0941L10
pre-wired connectors XZ - straight female - M8 - 4
pins - cable PVC 10m
Product availability : Non-Stock - Not normally stocked in distribution facility
Price* : 49.40 USD
Main
Accessory / separate part category
Accessory / separate part type
Series name
Cabling accessory
Pre-wired connectors
Application
Complementary
Electrical connection
Cable connector fixing
Collar material
M8, 4 pins straight female connector
Screw-on
Stainless steel 316L
Without
Status LED
Cable length
32.81 ft (10 m)
0.21 in (5.3 mm)
4 x 0.34 mm²
PVC
Cable outer diameter
Cable composition
Wire insulation material
System Voltage
60 V AC
Line Rated Current
Contact resistance
Insulating resistance
Product weight
4 A
5000 µOhm
1 GΩ
0.44 lb(US) (0.2 kg)
Environment
IP degree of protection
IP68
Ambient air temperature for operation
Ambient air temperature for storage
-13...185 °F (-25...85 °C) (static)
-31...212 °F (-35...100 °C)
Ordering and shipping details
Category
22483 - MACHINE CABLES
Discount Schedule
GTIN
DS3
003389119021609
1
Nbr. of units in pkg.
Dec 19, 2018
1
Package weight(Lbs)
Returnability
0.90000000000000002
N
Country of origin
PL
Offer Sustainability
RoHS (date code: YYWW)
Compliant - since 0601 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
California proposition 65
- - - - - - - Substance 1
- - - - - - - Substance 2
WARNING: This product can expose you to chemicals including:
Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and
Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
reproductive harm.
- - - - - - - More information
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months
