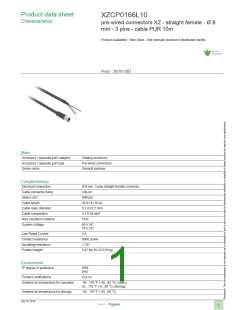

Product data sheet
Characteristics
XZCP0166L10
pre-wired connectors XZ - straight female - Ø 8
mm - 3 pins - cable PUR 10m
Product availability : Non-Stock - Not normally stocked in distribution facility
Price* : 29.70 USD
Main
Accessory / separate part category
Accessory / separate part type
Series name
Cabling accessory
Pre-wired connectors
General purpose
Complementary
Electrical connection
Cable connector fixing
Status LED
Ø 8 mm, 3 pins straight female connector
Clip-on
Without
Cable length
32.81 ft (10 m)
0.2 in (5.2 mm)
3 x 0.34 mm²
PUR
Cable outer diameter
Cable composition
Wire insulation material
System Voltage
60 V AC
75 V DC
Line Rated Current
Contact resistance
Insulating resistance
Product weight
4 A
5000 µOhm
1 GΩ
0.47 lb(US) (0.215 kg)
Environment
IP degree of protection
IP65
IP67
Product certifications
CULus
Ambient air temperature for operation
-40...176 °F (-40...80 °C) (static)
23...176 °F (-5...80 °C) (flexing)
Ambient air temperature for storage
-40...176 °F (-40...80 °C)
Dec 19, 2018
1
Ordering and shipping details
Category
22483 - MACHINE CABLES
Discount Schedule
GTIN
DS3
003389110762976
Nbr. of units in pkg.
Package weight(Lbs)
Returnability
1
0.52000000000000002
N
Country of origin
CZ
Offer Sustainability
Sustainable offer status
RoHS (date code: YYWW)
Green Premium product
Compliant - since 0649 - Schneider Electric declaration of conformity
Schneider Electric declaration of conformity
REACh
Reference not containing SVHC above the threshold
Reference not containing SVHC above the threshold
Product environmental profile
Product end of life instructions
California proposition 65
- - - - - - - Substance 1
Available
Available
WARNING: This product can expose you to chemicals including:
Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and
- - - - - - - Substance 2
Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other
reproductive harm.
- - - - - - - More information
For more information go to www.p65warnings.ca.gov
Contractual warranty
Warranty period
18 months
2
