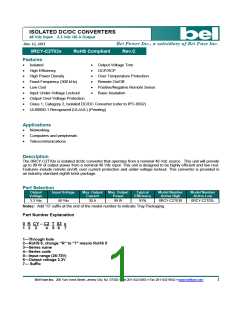

ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RCY-C2T03x
Features
RoHS Compliant
Rev.C
Isolated
Output Voltage Trim
OCP/SCP
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Low Cost
Over Temperature Protection
Remote On/Off
Positive/Negative Remote Sense
Basic Insulation
Input Under-Voltage Lockout
Output Over-Voltage Protection
Class 1, Category 2, Isolated DC/DC Converter (refer to IPC-9592)
UL60950-1 Recognized (UL/cUL) (Pending)
Applications
Networking
Computers and peripherals
Telecommunications
Description
The 0RCY-C2T03x is isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide
up to 99 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost.
Features include remote on/off, over current protection and under-voltage lockout. This converter is provided in
an industry standard eighth brick package.
Part Selection
Output
Input Voltage
Max. Output Max. Output
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
Current
Power
3.3 Vdc
48 Vdc
30 A
99 W
93%
0RCY-C2T030
0RCY-C2T03L
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R CY – C2 T 03 x
1
2
3
4
5 6
7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (36-75V)
6---Output voltage 3.3V
7--- Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Unit
V
Parameter
Min
-0.3
-0.3
1500
-40
Typ
Max
80
18
-
Notes
Continuous Input Voltage
Remote On/Off
-
-
-
-
-
V
I/O Isolation Voltage
Ambient Temperature
Storage Temperature
V
85
125
C
C
-55
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
Remote Off Input Current
-
-
-
-
3.8
120
15
A
70
10
mA
mA
Input Reflected Ripple Current
(rms)
With simulated source impedance of
10 uH, 5Hz to 20MHz. Use a 100
uF/100 V electrolytic cap with ESR=1
ohm max, at 200 KHz@25°C.
-
-
5
-
10
30
mA
Input Reflected Ripple Current
(pk-pk)
mA
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
-
-
0.1
A2s
V
33
32
35.5
34.5
V
Note: All specifications are typical at 25 C unless otherwise stated.
Output Specifications
Parameter
Min
Typ
Max
Unit
Notes
Output Voltage Set Point
3.234
3.30
3.366
V
Vin=48 V, Io=50%load
Load Regulation
Line Regulation
-
-
±4
±8
±9
mV
mV
±16.5
Regulation Over Temperature
(-40deg.C-85deg.C)
-
±30
±50
mV
0-20MHz BW, with a 1µF ceramic
capacitor and the minimum external
Tantalum cap at output.
Ripple and Noise (rms)
Ripple and Noise (pk-pk)
Output Current Range
Output DC Current Limit
Short Circuit Surge Transient
Turn on Time
-
10
55
-
20
90
30
44
4
mV
mV
A
-
0
33
-
-
A
2
-
A2s
mS
%
-
25
-
Overshoot at Turn on
Output Capacitance
-
0
-
470
5600
uF
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Transient Response
Overshoot
-
-
-
-
50
150
50
100
250
100
250
mV
uS
△V 25%~50%
of Max Load
di/dt=0.1 A/us, Vin=48 Vdc, with a 1µF
ceramic capacitor and the minimum
external Tantalum cap at output.
Settling Time
Overshoot
mV
uS
△V 50%~25%
of Max Load
Settling Time
150
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Efficiency
90
93
-
%
Measured at Vin=48 V, full load.
Switching Frequency
270
-
300
330
-
kHz
pF
%
Isolation Capacitance
2200
Output Voltage Trim Range
Remote Sense Compensation
Over Temperature Protection
Over Voltage Protection
90
-
-
110
10
-
Vin=48V, full load and short feedback
optocoupler.
-
125
-
%
-
C
%
3.8
4.5
Vin=48 V, full load, in hiccup Mode
Calculated Per Bell Core SR-332
(Io=80%load, Ta = 25 C)
MTBF
TBD
Hours
Dimensions
Inches (L × W × H)
-
2.30 x 0.90 x 0.37
Millimeters (L × W × H)
58.42 x 22.78 x 9.50
Weight
-
28
-
g
Note: All specifications are typical at 25 C unless otherwise stated.
Control Specifications
Parameter
Min
Typ
Max
Unit
Notes
Remote On/Off
Signal Low (Unit On)
Signal High (Unit Off)
Signal Low (Unit Off)
Signal High (Unit On)
Current Sink
-0.7
2.4
-0.7
2.4
0
-
-
-
-
-
0.8
18
0.8
18
1
V
V
When Remote On/Off pin is open,
unit is off.
Active Low
Active High
V
When Remote On/Off pin is open,
unit is on.
V
mA
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and GND pin. The Trim Up resistor should be connected between the Trim pin and the
Vout pin. Only one of the resistors should be used for any given application.
Vout
511
Rtrimdown
10.22
k
Module
Module
Trim
GND
delta
Rtrimdown
Rtrimup
(100delta)Vo 5.11626
1.225delta
Rtrimup 
10.22
k
Vout
Trim
GND
Note:
Vo _ req Vo
delta 
100
%

Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=3.3 V
Efficiency Data
Efficiency Curve
94%
92%
90%
88%
86%
84%
82%
80%
78%
76%
74%
72%
70%
36 V
48 V
75 V
3.00
7.50
15.00
22.50
30.00
Output Current (A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curve
Vin=48V, with maximum junction temperature of semiconductors derated to 120 degree C
Ripple and Noise Waveforms
Io=0A Vin=48V
Io=30A Vin=48V
Note: Ripple and noise with a 1uF ceramic cap and a 10 uF Tantalum cap at output, and Ta=25 deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Transient Response Waveforms
Vout=3.3V 75% to 50% Load Transients at Vin=48V
Vout=3.3V 50% to 75% Load Transients at Vin=48V
Note: Transient Response at di/dt=0.1A/uS, External 330uF Tantalum Cap, Ta=25deg C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
Pin Connections
Pin
Name
Pin Dia
1
2
3
4
5
6
7
8
Vin+
On/Off
Vin-
0.040’’
0.040’’
0.040’’
0.060’’
0.040’’
0.040’’
0.040’’
0.060’’
Vout-
Sense-
Trim
Sense+
Vout+
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 Tel 201-432-0463 Fax 201-432-9542 www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /30 A Output
Jan. 12, 2011
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
2011-01-12
C
Change max input current (full load) from 4.5A to 3.8A in input
specifications.
JZ Wang
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
2011 Bel Fuse Inc. Specifications subject to change without notice. 011211
