0RCB-60T03C

型号：

0RCB-60T03C

描述：

隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ]

品牌：

BEL[ BEL FUSE INC. ]

页数：

10 页

PDF大小：

220 K

下载PDF手册

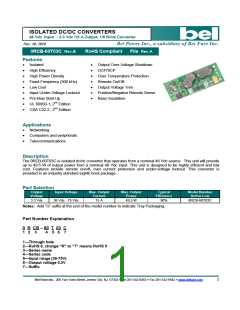

ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
0RCB-60T03C Rev.B
Features
RoHS Compliant
File Rev.A
•
•
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
•
Output Over-Voltage Shutdown
OCP/SCP
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Low Cost
Over Temperature Protection
Remote On/Off
Output Voltage Trim
Positive/Negative Remote Sense
Basic Insulation
Input Under-Voltage Lockout
Pre-Bias Start Up
UL 60950-1, 2nd Edition
CSA C22.2 , 2nd Edition
Applications
•
•
•
Networking
Computers and peripherals
Telecommunications
Description
The 0RCB-60T03C is isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide
up to 49.5 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low
cost. Features include remote on/off, over current protection and under-voltage lockout. This converter is
provided in an industry standard eighth brick package.
Part Selection
Output
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active Low
Voltage
3.3 Vdc
36 Vdc - 75 Vdc
15 A
49.5 W
90%
0RCB-60T03C
Notes: Add “G” suffix at the end of the model number to indicate Tray Packaging.
Part Number Explanation
0 R CB – 60 T 03 C
1 2
3
4
5 6
7
1---Through hole
2---RoHS 6, change “R” to “7” means RoHS 5
3---Series name
4---Series code
5---Input range (36-75V)
6---Output voltage 3.3V
7---Suffix
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
1
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Absolute Maximum Ratings
Parameter
Unit
Min
-0.3
-0.3
-
Typ
Max
80
Notes
Input Voltage (continuous)
Remote On/Off
-
-
-
-
-
-
V
V
18
I/O Isolation Voltage
1500
-
V
Input to Each Output Resistance
Ambient Temperature
10
M ohm
°C
-40
-55
85
Storage Temperature
125
°C
Note: Ratings used beyond the maximum ratings may cause a reliability degradation of the converter or may
permanently damage the device.
Input Specifications
Parameter
Min
Typ
Max
Unit
Notes
Input Voltage
36
48
75
V
Input Current (full load)
Input Current (no load)
-
-
-
-
1.8
80
A
mA
Tested with simulated source
impedance of 10 uH, 5 Hz to 20 MHz;
use a 47 uF/100 V electrolytic
capacitor with ESR = 1 ohm max. at
200 kHz at 25 °C.
Input Reflected Ripple Current
(pk-pk)
-
-
15
mA
Input Fuse (not internally)
I2t Inrush Current Transient
Turn-on Voltage Threshold
Turn-off Voltage Threshold
-
-
-
-
-
-
5.0
0.1
A
A2s
V
32
28.5
35
31.7
V
Note: All specifications are typical at 25 °C unless otherwise stated.
Output Specifications (continued)
Parameter
Min
Typ
Max
Unit
Notes
Over all line, load & temperature
conditions.
Output Voltage Range
3.201
3.3
3.399
V
Output Voltage Trim Range
Output Over-Voltage Clamp Non-Latching
Output Current
2.97
3.69
-
-
-
-
-
-
3.63
4.62
15
V
V
A
Current Limit Threshold
15.2
0
26
A
External Admissible Capacitive Load
10000
uF
Vin=72 V, max load on output, 20
Ripple and Noise (pk-pk)
-
-
130
mV MHz BW, 10uF tantalum and 1uF
ceramic capacitor.
Turn on Time
-
-
-
-
220
15
mS
mS
Rise Time
Transient Response
di/dt=0.1A/us, Vin=48Vdc,
Ta=25°C, with a 1µF ceramic
capacitor and a 10uF Tantalum
cap at the output.cap at the
output.
Vpk-pk
-
-
-
-
230
200
mV
50% ~ 75% ~ 50%
Max Load
Settling Time
uS
Note: All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
2
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
General Specifications
Parameter
Min
Typ
Max
Unit
Notes
Efficiency
87
90
-
%
Measured with full load at all conditions.
Switching Frequency
Isolation capacitance
270
-
300
330
-
kHz
pF
3900
The total voltage increased by trim and
remote sense should not exceed 10%Vo.
Remote Sense Compensation
-
-
10
%
Over Temperature Protection
Weight
-
-
125
26
-
-
°C
g
Calculated Per Bell Core SR-332 (Vin=48
V, Vo=3.3 V, Io=12 A, Ta = 25 °C)
MTBF
2,370,000
hours
-
Dimensions
Inches (L × W × H)
Millimeters (L × W × H)
2.30 x 0.896 x 0.374
58.42 x 22.76 x 9.50
Note: All specifications are typical at 25 °C unless otherwise stated.
Remote On/Off
Parameter
Min
Typ
Max
Unit
Notes
Signal Low (Unit On)
-0.3
-
0.8
V
Active Low
The remote on/off pin open, Unit off.
Signal High (Unit Off)
Current Sink
2.4
0
-
-
18
1
V
mA
Efficiency Data
Efficient Curve
92%
90%
88%
86%
84%
82%
80%
78%
76%
74%
72%
70%
38.4 V
48 V
60 V
72 V
5
10
15
Output Current (A)
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
3
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Output Trim Equations
Equations for calculating the trim resistor are shown below. The Trim Down resistor should be connected
between the Trim pin and Sense (-) pin. The Trim Up resistor should be connected between the Trim pin and the
Sense (+). Only one of the resistors should be used for any given application.
Sense(+)
511
Rtrimdown=
−10.22
[
kΩ
]
Module
Module
delta
Trim
Rtrimdown
Rtrimup
Sense(-)
(100 + delta)⋅Vo⋅5.11 511
Rtrimup = (
−
[
−10.22) kΩ
]
1.225⋅delta
delta
Sense(+)
Trim
Note:
(
)
Vo _ req −Vo
delta =
×100
[%]
Sense(-)
Vo
Vo_req=Desired (trimmed) output voltage [V]
Output voltage Vo=3.305 V
Fundamental Circuit Diagram
1
8
4
2
Control
Control
3
7
Choke
Isolated
Feedback
5
6
Capacitor
Resistor
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
4
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curves
Vin=48V, with maximum junction temperature of semiconductors derated to 120 degree C.
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
5
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Thermal Derating Curves (continued)
Temperature reference points on top side
Temperature reference points on bottom side
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
6
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Safety
Material flammability: UL94V-0
Electromagnetic Compatibility EMC
1. Electric field
2. Fast transient/burst
IEC801-3(1984), IEC1000-4-3
IEC801-4(1988), IEC1000-4-4
Input RFI level conducted and radiated (subject to test by customer)
Compliance to EN55022 class A (both q.peak and average) with the following inductive and capacitive filter
C4
+Vin
-Vin
T1
T1
Conv.positive
input
C1
C2
C3
Conv.negative
input
C5
C1=3.3 uF /100 V;
C2=C3= 47 uF/100 V;
C4=C5=1000 pF/250 Volt;
T1=3 mH.
Level [dB? ]
80
60
x+
x
x
+
x
+
x
+
+
40
20
0
x
+
-20
150k 300k 500k
1M
2M 3M 4M 6M
10M
30M
Frequency [Hz]
x x MES 05-1012-12L_fin QP
+ + MES 05-1012-12L_fin AV
MES 05-1012-12L_pre PK
MES 05-1012-12L_pre AV
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
7
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Transient Response Waveforms
Note: Dynamic load transient at Vin = 48 V, Ta = 25 °C, Io=(50%~75%~50%)Ionom, di/dt=0.1 A/uS.
Ripple and Noise Waveforms
C1=10 uF tantalum, C2=1 uF ceramic;
R=50 ohm;
C=220 nF
Vin =38.4 V and Iout = 15 A
Vin =48 V and Iout = 15 A
Vin =72 V and Iout = 15 A
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
8
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Mechanical Outline
Pin Connections
Pin
Name
Function
Pin Dia
1
Vin+
0.040’’
Positive input voltage
Input to turn converter
on and off, referenced
to Vin-
2
On/Off
0.040’’
3
4
5
6
7
8
Vin-
Vout-
0.040’’
0.062’’
0.040’’
0.040’’
0.040’’
0.062’’
Negative input voltage
Negative output voltage
Negative remote sense
Output voltage trim
Positive output voltage
Positive output voltage
Sense-
Trim
Sense+
Vout+
Note: The module doesn't guarantee at least 0.7mm as clearance
distance on bottom side. This issue should be considered if
any copper traces are on the top side of the user's board.
Notes: 1. Pin 5 must be connected to Vout-.
2. Leave Pin 6 open for nominal voltage.
3. Pin 7 must be connected to Vout+.
Note: This module is recommended and compatible with Pb-Free Wave Soldering and must be soldered
using a peak solder temperature of no more than 260 ºC for less than 5 seconds.
Note:
1) All Pins: Material - Copper Alloy;
Finish – 3 micro inches minimum Gold over 50 micro inches minimum Nickel plate.
2) Undimensioned components are shown for visual reference only.
3) All dimensions in inches (mm); Tolerances: x.xx +/-0.02 in. (x.x +/-0.5mm) x.xxx +/-0.010 in. (x.xx +/-0.25mm).
Bel Fuse Inc. 206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
9
ISOLATED DC/DC CONVERTERS
48 Vdc Input 3.3 Vdc /15 A Output, 1/8 Brick Converter
Nov. 30, 2010
Bel Power Inc., a subsidiary of Bel Fuse Inc.
Revision History
Date
Revision
Changes Detail
Approval
XF Jiang
XF Jiang
2009-11-26
2010-11-30
A
B
First Release
Add UL 60950-1, 2nd Edition and CSA C22.2, 2nd Edition in the first
page.
RoHS Compliance
Complies with the European Directive 2002/95/EC, calling for the elimination of lead and
other hazardous substances from electronic products.
©2010 Bel Fuse Inc. Specifications subject to change without notice. 113010
10
CORPORATE
FAR EAST
EUROPE
Bel Fuse Inc.
Bel Fuse Ltd.
Bel Fuse Europe Ltd.
206 Van Vorst Street
Jersey City, NJ 07302
Tel 201-432-0463
Fax 201-432-9542
www.belfuse.com
8F/ 8 Luk Hop Street
San Po Kong
Kowloon, Hong Kong
Tel 852-2328-5515
Fax 852-2352-3706
www.belfuse.com
Preston Technology Management Centre
Marsh Lane, Suite G7, Preston
Lancashire, PR1 8UD, U.K.
Tel 44-1772-556601
Fax 44-1772-888366
www.belfuse.com
厂商 型号 描述 页数 下载

BEL

 		0RCB-60T025 [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T02L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T03B [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T03L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCB-60T05L [ DC-DC Regulated Power Supply Module ] 9 页

BEL

 		0RCM-20S 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 3 页

BEL

 		0RCM-20S12H [ DC-DC Regulated Power Supply Module, ROHS COMPLIANT, QUARTER BRICK PACKAGE-5 ] 3 页

BEL

 		0RCM-20S12HG [ DC-DC Regulated Power Supply Module, ROHS COMPLIANT, QUARTER BRICK PACKAGE-5 ] 3 页

BEL

 		0RCM-20S12L 隔离式DC / DC转换器[ ISOLATED DC/DC CONVERTERS ] 3 页

BEL

 		0RCM-20S12LG [ 暂无描述 ] 3 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.185510s
