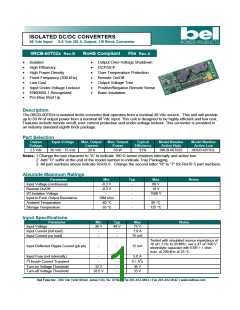

ISOLATED DC/DC CONVERTERS
48 Vdc Input 2.5 Vdc /20 A Output, 1/8 Brick Converter
0RCB-60T02x Rev.B
RoHS Compliant
File Rev.A
•
•
•
•
•
•
•
•
Isolated
•
•
•
•
•
•
•
Output Over-Voltage Shutdown
OCP/SCP
High Efficiency
High Power Density
Fixed Frequency (300 kHz)
Low Cost
Over Temperature Protection
Remote On/Off
Output Voltage Trim
Positive/Negative Remote Sense
Basic Insulation
Input Under-Voltage Lockout
EN60950-1 Recognized
Pre-Bias Start Up
Description
The 0RCB-60T02x is isolated dc/dc converter that operates from a nominal 48 Vdc source. This unit will provide
up to 50 W of output power from a nominal 48 Vdc input. This unit is designed to be highly efficient and low cost.
Features include remote on/off, over current protection and under-voltage lockout. This converter is provided in
an industry standard eighth brick package.
Part Selection
Output
Input Voltage
Max. Output
Current
Max. Output
Power
Typical
Efficiency
Model Number
Active High
Model Number
Active Low
Voltage
2.5 Vdc
36 Vdc - 75 Vdc
20 A
50 W
91%
0RCB-60T025
0RCB-60T02L
Notes: 1.Change the last character to “A” to indicate 100 Ω sense resistors internally and active low.
2. Add “G” suffix at the end of the model number to indicate Tray Packaging.
3. All part numbers above indicate RoHS 6. Change the second letter "R" to "7" for RoHS 5 part numbers.
Absolute Maximum Ratings
Parameter
Input Voltage (continuous)
Remote On/Off
Min
-0.3 V
-0.3 V
-
Typ
Max
80 V
18 V
1500 V
-
Notes
-
-
-
-
-
-
I/O Isolation Voltage
Input to Each Output Resistance
Ambient Temperature
Storage Temperature
10M ohm
-40 °C
-55 °C
85 °C
125 °C
Input Specifications
Parameter
Min
Typ
Max
Notes
Input Voltage
36 V
48 V
75 V
1.8 A
75 mA
Input Current (full load)
Input Current (no load)
-
-
-
-
Tested with simulated source impedance of
10 uH, 5 Hz to 20 MHz; use a 47 uF/100 V
electrolytic capacitor with ESR = 1 ohm
max. at 200 kHz at 25 °C.
Input Reflected Ripple Current (pk-pk)
-
-
15 mA
Input Fuse (not internally)
I2t Inrush Current Transient
-
-
-
-
5.0 A
0.1 A2s
Turn-on Voltage Threshold
Turn-off Voltage Threshold
32 V
-
-
36 V
33 V
28.5 V
