JYC0175

型号:

JYC0175

描述:

设计用于表面安装的微型透镜型[ miniature lens type designed for surface mounting ]

品牌:

IDEA[ IDEA.LNC. ]

页数:

2 页

PDF大小:

47 K

JYC0175
Page 1 of 2

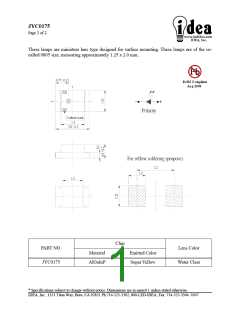

These lamps are miniature lens type designed for surface mounting. These lamps are of the so-
called 0805 size, measuring approximately 1.25 x 2.0 mm..
Chip
PART NO.
JYC0175
Lens Color
Water Clear
Material
AlGaInP
Emitted Color
Super Yellow
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
JYC0175
Page 2 of 2
Absolute Maximum Ratings at T = 25 °C
a
Parameter
Symbol
Rating
Units
I
Forward Current
25
-40 to +85
-40 to +90
260 (for 5 seconds)
2000
mA
°C
F
T
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
opr
T
°C
stg
T
°C
sol
ESD
V
P
60
mW
d
Peak Forward Current
(Duty 1/10 @ 1KHz)
I (Peak)
120
5
mA
V
F
V
Reverse Voltage
R
Electronic Optical Characteristics
Parameter
Luminous Intensity
Viewing Angle
Symbol
Min.
Typ.
43
Max.
Units
mcd
deg
Condition
I
I = 20 mA
17
V
F
2θ
I = 20 mA
130
1/2
F
Peak
Wavelength
λ
I = 20 mA
591
589
15
nm
nm
nm
p
F
Dominant
Wavelength
λ
I = 20 mA
d
F
Spectrum Radiation
Bandwidth
I = 20 mA
∆λ
F
V
I = 20 mA
Forward Voltage
Reverse Current
1.7
2.0
2.4
10
V
F
F
I
V = 5 V
µA
R
R
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
