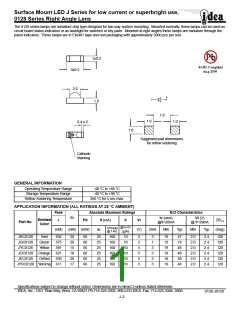

Surface Mount LED J Series for low current or superbright use,
0128 Series Right Angle Lens
The 0128 series lamps are miniature chip type designed for two-way surface mounting. Mounted normally, these lamps can be used as
circuit board status indicators or as backlight for switches or key pads. Mounted at right angles these lamps are miniature through the
panel indicators. These lamps are in EIA481 tape and reel packaging with approximately 2000 pcs per reel.
1±0.2
3±0.2
2.0
+
-
1.0
1.8
1.0
1.0
0.4 x 2
1.0
Suggested pad dimensions
for reflow soldering
Cathode
Marking
GENERAL INFORMATION
Operating Temperature Range
Storage Temperature Range
Reflow Soldering Temperature
-40 °C to +85 °C
-40 °C to +90 °C
260 °C for 5 sec max
APPLICATION INFORMATION (ALL RATINGS AT 25 °C AMBIENT)
Peak
Absolute Maximum Ratings
E/O Characteristics
∆λ
Iv (mcd)
@If=20mA
Vf (V)
@ If=20mA
Emitted
Color
2Θ1/2
Pd
If (mA)
Ir
Vr
λ
Part No.
@Vr=5V
1/10 duty
(nM)
(nM) (mW)
dc
(V)
2mA
Min
Typ
Min
Typ
(Deg)
@ 1 khz
(µA)
JRC0128
JGC0128
JYC0128
JOC0128
JEC0128
Red
632
575
591
621
639
20
20
15
18
20
17
60
60
60
60
60
60
25
25
25
25
25
25
160
10
10
10
10
10
10
5
5
5
5
5
5
3
1
3
3
2
3
19
13
19
19
18
19
47
19
48
48
38
48
2.0
2.0
2.0
2.0
2.0
2.0
2.4
2.4
2.4
2.4
2.4
2.4
120
120
120
120
120
120
Green
Yellow
Orange
OrRed
160
160
160
160
JYOC0128 YelOrng 611
160
Specifications subject to change without notice. Dimensions are in mm±0.3 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0508
013S-J0128
J–2
