JYC0348

型号:

JYC0348

描述:

LED灯[ LED LAMPS ]

品牌:

IDEA[ IDEA.LNC. ]

页数:

2 页

PDF大小:

41 K

JYC0348

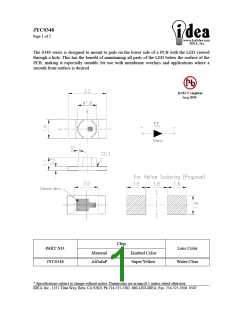

Page 1 of 2
The 0348 series is designed to mount to pads on the lower side of a PCB with the LED viewed
through a hole. This has the benet of maintaining all parts of the LED below the surface of the
PCB, making it especially suitable for use with membrane overlays and applications where a
smooth front surface is desired.
Chip
PART NO.
JYC0348
Lens Color
Water Clear
Material
AlGaInP
Emitted Color
Super Yellow
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
JYC0348
Page 2 of 2
Absolute Maximum Ratings at Ta = 25 °C
Parameter
Symbol
IF
Rating
25
Units
mA
°C
Forward Current
Topr
Tstg
Tsol
ESD
Pd
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
-40 to +85
-40 to +90
260 (for 5 seconds)
2000
°C
°C
V
120
mW
Peak Forward Current
(Duty 1/10 @ 1KHz)
IF (Peak)
VR
200
5
mA
V
Reverse Voltage
Electronic Optical Characteristics
Parameter
Luminous Intensity
Viewing Angle
Symbol
IV
Min.
Typ.
90
Max.
Units
mcd
deg
Condition
IF = 20 mA
IF = 20 mA
60
2θ1/2
130
Peak
Wavelength
λp
λd
IF = 20 mA
IF = 20 mA
IF = 20 mA
591
589
15
nm
nm
nm
Dominant
Wavelength
Spectrum Radiation
Bandwidth
∆λ
VF
IR
IF = 20 mA
VR = 5 V
Forward Voltage
Reverse Current
2.0
2.4
10
V
µA
* Specifications subject to change without notice. Dimensions are in mm±0.1 unless stated otherwise.
IDEA, Inc., 1351 Titan Way, Brea, CA 92821 Ph:714-525-3302, 800-LED-IDEA; Fax: 714-525-3304 0507
