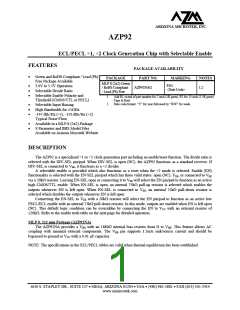

ARIZONA MICROTEK, INC.
AZP92
ECL/PECL ÷1, ÷2 Clock Generation Chip with Selectable Enable
FEATURES
PACKAGE AVAILABILITY
•
Green and RoHS Compliant / Lead (Pb)
Free Package Available
3.0V to 5.5V Operation
PACKAGE
PART NO.
MARKING
NOTES
MLP 8 (2x2) Green
/ RoHS Compliant
/ Lead (Pb) Free
P1G
<Date Code>
•
•
•
AZP92NAG
1,2
Selectable Divide Ratio
Selectable Enable Polarity and
Threshold (CMOS/TTL or PECL)
Selectable Input Biasing
High Bandwidth for ≥1GHz
-147 dBc/Hz (÷1), -150 dBc/Hz (÷2)
Typical Noise Floor
1
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.5K parts)
Tape & Reel.
2
Date code format: “Y” for year followed by “WW” for week.
•
•
•
•
•
Available in a MLP 8 (2x2) Package
S Parameter and IBIS Model Files
Available on Arizona Microtek Website
DESCRIPTION
The AZP92 is a specialized ÷1 or ÷2 clock generation part including an enable/reset function. The divide ratio is
selected with the DIV-SEL pin/pad. When DIV-SEL is open (NC), the AZP92 functions as a standard receiver. If
DIV-SEL is connected to VEE, it functions as a ÷2 divider.
A selectable enable is provided which also functions as a reset when the ÷2 mode is selected. Enable (EN)
functionality is selected with the EN-SEL pin/pad which has three valid states: open (NC), VEE, or connected to VEE
via a 20kΩ resistor. Leaving EN-SEL open or connecting it to VEE will select the EN pin/pad to function as an active
high CMOS/TTL enable. When EN-SEL is open, an internal 75kΩ pull-up resistor is selected which enables the
outputs whenever EN is left open. When EN-SEL is connected to VEE, an internal 75kΩ pull-down resistor is
selected which disables the outputs whenever EN is left open.
Connecting the EN-SEL to VEE with a 20kΩ resistor will select the EN pin/pad to function as an active low
PECL/ECL enable with an internal 75kΩ pull-down resistor. In this mode, outputs are enabled when EN is left open
(NC). This default logic condition can be overridden by connecting the EN to VCC with an external resistor of
≤20kΩ. Refer to the enable truth table on the next page for detailed operation.
MLP 8, 2x2 mm Package (AZP92NA)
The AZP92NA provides a VBB with an 1880Ω internal bias resistor from D to VBB. This feature allows AC
coupling with minimal external components. The VBB pin supports 1.5mA sink/source current and should be
bypassed to ground or VCC with a 0.01 μF capacitor.
NOTE: The specifications in the ECL/PECL tables are valid when thermal equilibrium has been established.
1630 S. STAPLEY DR., SUITE 127 • MESA, ARIZONA 85204 • USA • (480) 962-5881 • FAX (623) 505-2414
www.azmicrotek.com
AZP92
SIGNAL DESCRIPTION
PIN/PAD FUNCTION
D
Data Input
Q/Q¯
Data Outputs
VBB/D¯
EN
EN-SEL
DIV-SEL
VEE
Reference Voltage Output
Enable/Reset Input
Enable Logic Select
Divide Ratio Select
Negative Supply
VCC
Positive Supply
ENABLE TRUTH TABLE
EN
CMOS Low or VEE
CMOS High, VCC or NC Data
CMOS Low, VEE or NC
CMOS High or VCC
PECL Low, VEE or NC
PECL High or VCC
DIVIDE TRUTH TABLE
EN-SEL
NC
NC
VEE
VEE
20kΩ to VEE
20kΩ to VEE
Q
Low
Q¯
DIV-SEL
DIVIDE
RATIO
÷1
High
Data
High
Data
Data
High
NC
Low
1
VEE
÷2
Data
Data
Low
1
DIV-SEL connection must
be ≤1Ω.
D
EN (EN-SEL CONNECTED TO
(PECL)
V
EE VIA 20k RESISTOR)
EN (EN-SEL OPEN OR
(CMOS)
CONNECTED TO VEE
)
(DIV-SEL
OPEN)
Q
(DIV-SEL
CONNECTED
Q
TO VEE
)
TIMING DIAGRAM
June 2009 REV - 9
www.azmicrotek.com
2
AZP92
AZP92NA
MLP 8, 2x2 mm
TOP VIEW
June 2009 REV - 9
www.azmicrotek.com
3
AZP92
Absolute Maximum Ratings are those values beyond which device life may be impaired.
Symbol
Characteristic
Rating
Unit
VCC
VI
VEE
VI
PECL Power Supply
(VEE = 0V)
(VEE = 0V)
(VCC = 0V)
(VCC = 0V)
— Continuous
— Surge
0 to +6.0
0 to +6.0
-6.0 to 0
-6.0 to 0
50
Vdc
Vdc
Vdc
Vdc
PECL Input Voltage
ECL Power Supply
ECL Input Voltage
Output Current
IHGOUT
mA
100
TA
TSTG
Operating Temperature Range
Storage Temperature Range
-40 to +85
-65 to +150
°C
°C
100K ECL DC Characteristics (VEE = -3.0V to -5.5V, VCC = GND)
-40°C
0°C
25°C
85°C
Symbol
Characteristic
Unit
Min
-1085
-1900
Max
-880
-1555
Min
-1025
-1900
Max
-880
-1620
Min
-1025
-1900
Max
-880
-1620
Min
-1025
-1900
Max
-880
-1620
VOH
VOL
Output HIGH Voltage1
Output LOW Voltage1
Input HIGH Voltage
D/D¯, EN (ECL)2
mV
mV
VIH
VIL
-1165
-390
VCC
-1165
-390
VCC
-1165
-390
VCC
-1165
-390
VCC
mV
mV
EN (CMOS)3 VEE+2000
VEE+2000
VEE+2000
VEE+2000
Input LOW Voltage
D/D¯, EN (ECL)2
EN (CMOS)3
Reference Voltage
-2250
VEE
-1390
-1475
VEE + 800
-1250
-2250
VEE
-1390
-1475
VEE + 800
-1250
-2250
VEE
-1390
-1475
VEE + 800
-1250
-2250
VEE
-1390
-1475
VEE + 800
-1250
VBB
IIH
mV
μA
Input HIGH Current EN
150
150
150
150
Input LOW Current
EN (ECL)2
IIL
0.5
-150
0.5
-150
0.5
-150
0.5
-150
μA
EN (CMOS)3
IEE
Power Supply Current4
31
31
31
34
mA
1.
2.
3.
4.
Specified with outputs terminated through 50Ω resistors to VCC - 2V.
EN-SEL connected to VEE through a 20kΩ resistor.
EN-SEL connected VEE or left open (NC).
DIV-SEL left open (NC).
100K LVPECL DC Characteristics (VEE = GND, VCC = +3.3V)
-40°C
0°C
25°C
85°C
Symbol
Characteristic
Unit
Min
2215
1400
Max
2420
1745
Min
2275
1400
Max
2420
1680
Min
2275
1400
Max
2420
1680
Min
2275
1400
Max
2420
1680
VOH
VOL
Output HIGH Voltage1,2
Output LOW Voltage1,2
Input HIGH Voltage1
D/D¯, EN (PECL)3
EN (CMOS)4
mV
mV
VIH
VIL
2135
2000
2910
VCC
2135
2000
2910
VCC
2135
2000
2910
VCC
2135
2000
2910
VCC
mV
mV
Input LOW Voltage1
D/D¯, EN (PECL)3
EN (CMOS)4
1050
GND
1910
1825
800
2050
150
1050
GND
1910
1825
800
2050
150
1050
GND
1910
1825
800
2050
150
1050
GND
1910
1825
800
2050
150
VBB
IIH
Reference Voltage1
Input HIGH Current EN
mV
μA
Input LOW Current
EN (PECL)3
IIL
0.5
-150
0.5
-150
0.5
-150
0.5
-150
μA
EN (CMOS)4
IEE
Power Supply Current5
31
31
31
34
mA
1.
2.
3.
4.
5.
For supply voltages other that 3.3V, use the ECL table values and ADD supply voltage value.
Specified with outputs terminated through 50Ω resistors to VCC - 2V.
EN-SEL connected to VEE through a 20kΩ resistor.
EN-SEL connected VEE or left open (NC).
DIV-SEL left open (NC).
June 2009 REV - 9
www.azmicrotek.com
4
AZP92
100K PECL DC Characteristics (VEE = GND, VCC = +5.0V)
-40°C
0°C
25°C
85°C
Symbol
Characteristic
Unit
Min
3915
3100
Max
4120
3445
Min
3975
3100
Max
4120
3380
Min
3975
3100
Max
4120
3380
Min
3975
3100
Max
4120
3380
VOH
VOL
Output HIGH Voltage1,2
Output LOW Voltage1,2
Input HIGH Voltage1
D/D¯, EN (PECL)3
EN (CMOS)4
mV
mV
VIH
VIL
3835
2000
4610
VCC
3835
2000
4610
VCC
3835
2000
4610
VCC
3835
2000
4610
VCC
mV
mV
Input LOW Voltage1
D/D¯, EN (PECL)3
EN (CMOS)4
2750
GND
3610
3525
800
3750
150
2750
GND
3610
3525
800
3750
150
2750
GND
3610
3525
800
3750
150
2750
GND
3610
3525
800
3750
150
VBB
IIH
Reference Voltage1
Input HIGH Current EN
mV
μA
Input LOW Current
EN (PECL)3
IIL
0.5
-150
0.5
-150
0.5
-150
0.5
-150
μA
EN (CMOS)4
IEE
Power Supply Current5
31
31
31
34
mA
1.
2.
3.
4.
5.
For supply voltages other that 5.0V, use the ECL table values and ADD supply voltage value.
Specified with outputs terminated through 50Ω resistors to VCC - 2V.
EN-SEL connected to VEE through a 20kΩ resistor.
EN-SEL connected VEE or left open (NC).
DIV-SEL left open (NC).
AC Characteristics (VEE = -3.0V to -5.5V; VCC = GND or VEE = GND; VCC = +3.0V to +5.5V)
-40°C
Typ
0°C
Typ
25°C
Typ
85°C
Typ
Symbol
Characteristic
Unit
Min
Max
Min
Max
Min
Max
Min
Max
Propagation Delay
D to Q/Q¯ Outputs1
EN to Q/Q¯ Outputs1
Duty Cycle Skew2
Input Swing3
tPLH / tPHL
tSKEW
(SE)
(SE)
450
600
20
450
600
20
450
600
20
450
600
20
ps
ps
5
5
5
5
VPP (AC)
Differential (D/D¯)
Single Ended (D)4
Output Rise/Fall1
(20% - 80%)
150
300
1000
2000
150
300
1000
2000
150
300
1000
2000
150
300
1000
2000
mV
tr / tf
80
200
80
200
80
200
80
200
ps
1.
2.
3.
4.
Specified with outputs terminated through 50Ω resistors to VCC - 2V.
Duty cycle skew is the difference between a tPLH and tPHL propagation delay through a device.
The peak-to-peak input swing is the range for which AC parameters are guaranteed.
Range valid for AC coupled signals only.
AC PP INPUT (Differential)
D
D
VPP (AC)
June 2009 REV - 9
www.azmicrotek.com
5
AZP92
Typical Large Signal Outputs, Q/Q¯
1000
900
800
700
600
500
400
300
200
100
0
0
500
1000
1500
2000
2500
3000
3500
4000
FREQUENCY (MHz)
Measured with 750mv D input, Q/Q¯ each terminated to VCC-2V via 50 Ω resistors.
June 2009 REV - 9
www.azmicrotek.com
6
AZP92
PACKAGE DIAGRAM
MLP 8 2x2mm
Pin 1 Dot
By Marking
2.000±0.050
MLP 8
(2x2mm)
2.000±0.050
TOP VIEW
Pin 1 Identification
R0.100 TYP
0.350±0.050
0.250±0.050
8
7
6
5
1
2
3
4
1.200±0.050 1.750
exp. pad Ref.
0.500 bsc
0.600±0.050
exp. pad
BOTTOM VIEW
1
2
3
4
0.750±0.050
0.000-0.050
0.203±0.025
SIDE VIEW
Note: All dimensions are in mm
June 2009 REV - 9
www.azmicrotek.com
7
AZP92
TAPE & REEL PACKAGING
MLP 8 2x2mm
Direction of Travel
Carrier Tape Width
Package
Suffix Reel Diameter Quantity
Carrier Tape Pitch
MLP 8 (2x2mm)
R1
R2
7”
13”
1000
2500
8mm
8mm
4mm
4mm
June 2009 REV - 9
www.azmicrotek.com
8
AZP92
Arizona Microtek, Inc. reserves the right to change circuitry and specifications at any time without prior notice. Arizona Microtek, Inc.
makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does Arizona
Microtek, Inc. assume any liability arising out of the application or use of any product or circuit and specifically disclaims any and all
liability, including without limitation special, consequential or incidental damages. Arizona Microtek, Inc. does not convey any license
rights nor the rights of others. Arizona Microtek, Inc. products are not designed, intended or authorized for use as components in systems
intended to support or sustain life, or for any other application in which the failure of the Arizona Microtek, Inc. product could create a
situation where personal injury or death may occur. Should Buyer purchase or use Arizona Microtek, Inc. products for any such
unintended or unauthorized application, Buyer shall indemnify and hold Arizona Microtek, Inc. and its officers, employees, subsidiaries,
affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly
or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Arizona Microtek, Inc. was negligent regarding the design or manufacture of the part.
June 2009 REV - 9
www.azmicrotek.com
9
厂商 型号 描述 页数 下载

AZM

 		AZP51 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP51SG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP51_12 低相位噪声正弦波/ CMOS到LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave/CMOS to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52SG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52_13 低相位噪声正弦波/ CMOS到LVPECL缓冲器/转换器[ Low Phase Noise Sine Wave / CMOS to LVPECL Buffer / Translator ] 9 页

AZM

 		AZP53 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP53PG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP53QG 低相位噪声正弦波/ CMOS[ Low Phase Noise Sine Wave/CMOS ] 13 页

AZM

 		AZP53_13 低相位噪声正弦波/ CMOS到LVPECL缓冲器/转换器[ Low Phase Noise Sine Wave / CMOS to LVPECL Buffer / Translator ] 13 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.201208s
