AZP51_12

型号：

AZP51_12

描述：

低相位噪声正弦波/ CMOS到LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave/CMOS to LVPECL Buffer/Divider ]

品牌：

AZM[ ARIZONA MICROTEK, INC ]

页数：

9 页

PDF大小：

490 K

下载PDF手册

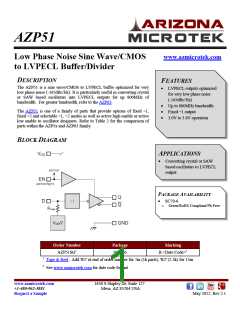

AZP51
www.azmicrotek.com
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
DESCRIPTION
FEATURES
The AZP51 is a sine wave/CMOS to LVPECL buffer optimized for very
low phase noise (-165dBc/Hz). It is particularly useful in converting crystal
or SAW based oscillators into LVPECL outputs for up 800MHz of
bandwidth. For greater bandwidth, refer to the AZP63.
•
LVPECL outputs optimized
for very low phase noise
(-165dBc/Hz)
•
•
•
Up to 800MHz bandwidth
Fixed ÷1 output
The AZP51 is one of a family of parts that provide options of fixed ÷1,
fixed ÷2 and selectable ÷1, ÷2 modes as well as active high enable or active
low enable to oscillator designers. Refer to Table 2 for the comparison of
parts within the AZP5x and AZP63 family.
3.0V to 3.6V operation
BLOCK DIAGRAM
APPLICATIONS
•
Converting crystal or SAW
based oscillators to LVPECL
output
PACKAGE AVAILABILITY
SC70-6
•
o
Green/RoHS Compliant/Pb-Free
Order Number
Package
Marking
B <Date Code>2
AZP51SG1
SC70-6
1
2
Tape & Reel - Add 'R1' at end of order number for 7in (1k parts), 'R2' (2.5k) for 13in
See www.azmicrotek.com for date code format
www.azmicrotek.com
+1-480-962-5881
1630 S Stapley Dr, Suite 127
Mesa, AZ 85204 USA
Request a Sample
May 2012, Rev 2.1
Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
PIN DESCRIPTION AND CONFIGURATION
Table 1 - Pin Description
Pin
1
Name
VDD
GND
D
Type
Power
Power
Input
Function
Positive Supply
Negative Supply
Sine or CMOS Input
Enable
VDD
GND
D
1
2
3
6
5
4
Q
2
3
Q
4
EN
Input
5
Output
Output
LVPECL Output
LVPECL Output
Q
Q
6
EN
Figure 1 – Pin Configuration
ENGINEERING NOTES
FUNCTIONALITY
The AZP51 is one of a family of parts that provide options of fixed ÷1, fixed ÷2 and selectable ÷1, ÷2 modes as well as
active high enable or active low enable to oscillator designers. Table 2 details the differences between the parts to assist
designers in selecting the optimal part for their design.
Table 3 lists the specific AZP51 functional operation.
Figure 2 plots the S-parameters of the D input. S-parameter and IBIS model files for the AZP51 are also available for
download.
Table 2 - AZP51-54 & AZP63 Family
EN pull-
up/pull-down
Part Number
Divide Ratio
EN Logic
Bandwidth
AZP51
AZP52
AZP53
AZP54
AZP63
÷1
÷2
active HIGH
active HIGH
selectable
active LOW
selectable
Pull-up
Pull-up
selectable
Pull-down
selectable
> 800MHz
> 800MHz
> 800MHz
> 800MHz
≥ 1GHz
Selectable ÷1 or ÷2
÷1
Selectable ÷1 or ÷2
www.azmicrotek.com
+1-480-962-5881
2
Request a Sample
May 2012, Rev 2.1

Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
Table 3 - AZP51 Functional Operation
Inputs
EN
Outputs
Part Number
D
Q
Low
High
Z3
Q
High
Low
Z3
Low
High
X2
High, NC1
Low
AZP51
1
2
3
Not connected
Don't care
Tri-State
Figure 2- S11, Parameters, D Input
www.azmicrotek.com
+1-480-962-5881
3
Request a Sample
May 2012, Rev 2.1


Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
INPUT TERMINATION
The D input bias is VDD/2 fed through an internal 10kΩ resistor. For clock applications, an input signal of at least
750mVpp ensures the AZP51 meets AC specifications. The input should also be AC coupled to maintain a 50% duty cycle
on the outputs. The input can be driven to any voltage between 0V and VDD without damage or waveform degradation.
Input signal
D
10kΩ
A/R
VDD/2
Figure 3 - Input Termination
OUTPUT TERMINATION TECHNIQUES
The LVPECL compatible output stage of the AZP51 uses a current drive topology to maximize switching speed as
illustrated below in Figure 4. Two current source PMOS transistors (M1-M2) feed the output pins. M5 is an NMOS
current source which is switched by M3 and M4. When M4 is on, M5 takes current from M2. This produces an output
current of 5.1mA (low output state). M3 is off, and the entire 21.1mA flows through the output pin. The associated output
voltage swings match LVPECL levels when external 50Ω resistors terminate the outputs.
Both Q and Q¯ should always be terminated identically to avoid waveform distortion and circulating current caused by
unsymmetrical loads. This rule should be followed even if only one output is in use.
VDD (+3.3 V)
Output
Stage
M1
M2
External
Circuitry
Vbp
21.1mA
21.1mA
Q
Q
21.1mA - High
5.1mA - Low
50Ω
50Ω
M3
M4
D
M5
VTT = VDD - 2.0V
Vbn
16mA
Figure 4 - Typical Output Termination
www.azmicrotek.com
+1-480-962-5881
4
Request a Sample
May 2012, Rev 2.1

Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
DUAL SUPPLY LVPECL OUTPUT TERMINATION
The standard LVPECL loads are a pair of 50Ω resistors connected between the outputs and VDD-2.0V (Figure 4). The
resistors provide both the DC and the AC loads, assuming 50Ω interconnect. If an additional supply is available within the
application, a four resistor termination configuration is possible (Figure 5).
VDD (+3.3 V)
Output
Stage
VDD (+3.3 V)
External
Circuitry
M1
M2
Vbp
130Ω
130Ω
21.1mA
21.1mA
Q
Q
21.1mA - High
5.1mA - Low
82Ω
82Ω
M3
M4
D
M5
Vbn
16mA
Figure 5 - Dual Supply Output Termination
THREE RESISTOR TERMINATION
Another termination variant eliminates the need for the additional supply (Figure 6). Alternately three resistors and
one capacitor accomplish the same termination and reduce power consumption.
VDD (+3.3 V)
Output
Stage
M1
M2
External
Circuitry
Vbp
21.1mA
21.1mA
Q
Q
21.1mA - High
5.1mA - Low
50Ω
50Ω
M3
M4
D
0.01µF
50Ω
M5
Vbn
16mA
Figure 6 - Three Resistor Termination
www.azmicrotek.com
+1-480-962-5881
5
Request a Sample
May 2012, Rev 2.1


Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
EVALUATION BOARD (EBP53)
Arizona Microtek’s evaluation board EBP53 provides the most convenient way to test and prototype AZP51 series
circuits. Built for the AZP53Q 1.5x1.0 mm package, it is designed to support both dual and single supply operation. Dual
supply operation (VDD=+2.0V, VSS=-1.3V) enables direct coupling to 50Ω time domain test equipment (Figure 7).
VDD (+2.0 V)
Output
Stage
Test
Equipment
M1
M2
Vbp
Terminations
21.1mA
21.1mA
Q
Q
21.1mA - High
5.1mA - Low
50Ω
50Ω
M3
M4
D
M5
Vbn
16mA
VSS (-1.3 V)
Figure 7 - Split Supply LVPECL Output Termination
AC TERMINATION
Clock applications or phase noise/frequency domain testing scenarios typically require AC coupling. Figure 8 below
shows the AC coupling technique. The 200Ω resistors form the required DC loads, and the 50Ω resistors provide the AC
termination. The parallel combination of the 200Ω and 50Ω resistors results in a net 40Ω AC load termination. In many
cases this will work well. If necessary, the 50Ω resistors can be increased to about 56Ω. Alternately, bias tees combined
with current setting resistors will eliminate the lowered AC load impedance. The 50Ω resistors are typically connected to
ground but can be connected to the bias level needed by the succeeding stage.
www.azmicrotek.com
+1-480-962-5881
6
Request a Sample
May 2012, Rev 2.1

Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
VDD (+3.3 V)
M2
Output
Stage
M1
External
Circuitry
Vbp
21.1mA
21.1mA
0.01µF
Q
Q
0.01µF
21.1mA - High
5.1mA - Low
200Ω
200Ω
50Ω
50Ω
M3
M4
D
M5
Vbn
16mA
GND or VT
Figure 8 - AC Termination
PERFORMANCE DATA
Table 4 - Absolute Maximum Ratings
Absolute Maximum Ratings are those values beyond which device life may be impaired.
Symbol
VDD
Characteristic
Power Supply
Rating
0 to +5.5
-0.5 to VDD + 0.5
-40 to +85
-65 to +150
2500
Unit
V
VI
Input Voltage
V
TA
Operating Temperature Range
Storage Temperature Range
Human Body Model
Machine Model
°C
°C
V
TSTG
ESDHBM
ESDMM
ESDCDM
200
V
Charged Device Model
2500
V
www.azmicrotek.com
+1-480-962-5881
7
Request a Sample
May 2012, Rev 2.1

Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
Table 5 - DC Characteristics
DC Characteristics (VDD = 3.0V to 3.6V unless otherwise specified, TA = -40 to 85 °C)
Unit
V
Symbol
Characteristic
Conditions
-40 C
Min
2.05
2.05
2.05
1.365
1.43
1.49
Typ
Max
2.415
2.48
VOH
Output HIGH Voltage1
25 C
85 C
-40 C
25 C
85 C
VDD = 3.3V
VDD = 3.3V
2.54
1.615
1.68
VOL
Output LOW Voltage1
V
1.74
Output Leakage
IZ
EN=Low
-10
2
10
μA
Current, Tri-state2
High Level Input
Voltage
VIH
EN
V
Low Level Input
Voltage
VIL
IPD
EN
EN
0.8
V
Pull-down Current
-2.2
10k
22
μA
D Input to Internal VDD/2
Reference
RBIAS
IDD
Bias Resistor
Ω
Power Supply Current
Power Supply Current
Outputs Tri-state1
35
8
mA
mA
D Input ≤ VIL
IDDZ
EN=Low
1 Specified with outputs terminated through 50Ω resistors to VDD - 2V or Thevenin equivalent.
2 Measured at Q / Q pins.
Table 6 - AC Characteristics
AC Characteristics (VDD = 3.0V to 3.6V, TA = -40 to 85 °C)
Symbol
Characteristic
Output Rise/Fall1,2
Min
Max
Unit
tr / tf
80
250
ps
(20% - 80%)
fMAX
VINMAX
VINMIN
nP
Maximum Input Frequency - Sine wave2
Maximum Recommended Input Signal
Minimum Recommended Input Signal
Phase Noise1,2 - 1MHz offset
800
VDD
MHz
V p-p
V p-p
0.2
-165 dBc/Hz
1 Specified with outputs terminated through 50Ω resistors to VCC - 2V or Thevenin equivalent.
2 1.5 v p-p sine wave input, AC coupled to D pin.
www.azmicrotek.com
+1-480-962-5881
8
Request a Sample
May 2012, Rev 2.1
Arizona Microtek, Inc.
AZP51
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Divider
PACKAGE DIAGRAM
SC70-6
Green/RoHS compliant/Pb-Free
MSL=1
Arizona Microtek, Inc. reserves the right to change circuitry and specifications at any time without prior notice.
Arizona Microtek, Inc. makes no warranty, representation or guarantee regarding the suitability of its products for
any particular purpose, nor does Arizona Microtek, Inc. assume any liability arising out of the application or use of
any product or circuit and specifically disclaims any and all liability, including without limitation special,
consequential or incidental damages. Arizona Microtek, Inc. does not convey any license rights nor the rights of
others. Arizona Microtek, Inc. products are not designed, intended or authorized for use as components in systems
intended to support or sustain life, or for any other application in which the failure of the Arizona Microtek, Inc.
product could create a situation where personal injury or death may occur. Should Buyer purchase or use Arizona
Microtek, Inc. products for any such unintended or unauthorized application, Buyer shall indemnify and hold
Arizona Microtek, Inc. and its officers, employees, subsidiaries, affiliates, and distributors harmless against all
claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of
personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that
Arizona Microtek, Inc. was negligent regarding the design or manufacture of the part.
www.azmicrotek.com
+1-480-962-5881
9
Request a Sample
May 2012, Rev 2.1
厂商 型号 描述 页数 下载

AZM

 		AZP51 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP51SG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52SG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP52_13 低相位噪声正弦波/ CMOS到LVPECL缓冲器/转换器[ Low Phase Noise Sine Wave / CMOS to LVPECL Buffer / Translator ] 9 页

AZM

 		AZP53 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP53PG 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

AZM

 		AZP53QG 低相位噪声正弦波/ CMOS[ Low Phase Noise Sine Wave/CMOS ] 13 页

AZM

 		AZP53_13 低相位噪声正弦波/ CMOS到LVPECL缓冲器/转换器[ Low Phase Noise Sine Wave / CMOS to LVPECL Buffer / Translator ] 13 页

AZM

 		AZP54 低相位噪声的正弦波LVPECL缓冲器/分频器[ Low Phase Noise Sine Wave to LVPECL Buffer/Divider ] 9 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.191058s
