NXSW108

型号：

NXSW108

描述：

规格FOR NICHIA片式白光LED[ SPECIFICATIONS FOR NICHIA CHIP TYPE WHITE LED ]

品牌：

NICHIA[ NICHIA CORPORATION ]

页数：

13 页

PDF大小：

288 K

下载PDF手册

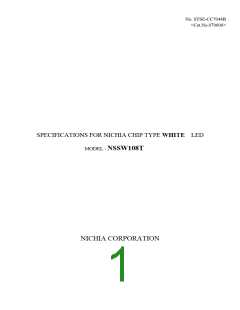

No. STSE-CC7044B
<Cat.No.070606>
SPECIFICATIONS FOR NICHIA CHIP TYPE WHITE LED
MODEL : NSSW108T
NICHIA CORPORATION
Nichia STSE-CC7044B
<Cat.No.070606>
1.SPECIFICATIONS
(1) Absolute Maximum Ratings
Item
(Ta=25°C)
Unit
Symbol
IF
Absolute Maximum Rating
Forward Current
35
mA
Pulse Forward Current
Reverse Voltage
IFP
VR
100
mA
V
5
Power Dissipation
Operating Temperature
Storage Temperature
Soldering Temperature
PD
123
-30 ~ + 85
-40 ~ +100
mW
°C
°C
for 10sec.
for 3sec.
Topr
Tstg
Tsld
Reflow Soldering : 260°C
Hand Soldering : 350°C
<
<
IFP Conditions
: Pulse Width 10msec. and Duty 1/10
=
=
(2) Initial Electrical/Optical Characteristics
Item Symbol Condition
Forward Voltage
(Ta=25°C)
Typ.
(3.2)
-
Max.
3.5
Unit
V
VF
IR
IF=20[mA]
VR= 5[V]
Reverse Current
50
µA
Luminous Intensity
(Chromaticity Coordinate 1)
Iv
IF=20[mA]
(2.30)
-
cd
½
x
y
-
-
IF=20[mA]
IF=20[mA]
0.310
0.320
-
-
-
-
Chromaticity Coordinate 1
Luminous Intensity
(Chromaticity Coordinate 2)
Luminous Flux
(Chromaticity Coordinate 2)
Iv
IF=20[mA]
IF=20[mA]
(2.15)
(5.7)
-
-
cd
lm
φv
½
x
y
-
-
IF=20[mA]
IF=20[mA]
0.300
0.295
-
-
-
-
Chromaticity Coordinate 2
½ Please refer to CIE 1931 chromaticity diagram.
(3) Ranking
(Ta=25°C)
Item
Symbol Condition
Min.
2.30
2.20
2.10
2.00
1.90
1.80
Max.
2.40
2.30
2.20
2.10
2.00
1.90
Unit
cd
cd
cd
cd
Rank A23
Rank A22
Rank A21
Rank A20
Rank A19
Rank A18
Iv
Iv
Iv
Iv
Iv
Iv
IF=20[mA]
IF=20[mA]
IF=20[mA]
IF=20[mA]
IF=20[mA]
IF=20[mA]
Luminous Intensity
cd
cd
½ Luminous Intensity Measurement allowance is ± 7%.
Color Ranks
Rank a52
(IF=20mA,Ta=25°C)
Rank a56
x
x
y
0.2800 0.2720 0.2820 0.2880
0.2480 0.2580 0.2720 0.2620
0.2830 0.2800 0.2880 0.2910
0.2440 0.2480 0.2620 0.2580
y
Rank a57
Rank a62
x
y
x
y
0.2720 0.2793 0.2820
0.2580 0.2755 0.2720
0.2880 0.2820 0.2910 0.2960
0.2620 0.2720 0.2870 0.2760
-1-
Nichia STSE-CC7044B
<Cat.No.070606>
Rank a66
Rank a67
x
y
x
y
0.2910 0.2880 0.2960 0.2980
0.2580 0.2620 0.2760 0.2710
0.2820 0.2793 0.2887 0.2910
0.2720 0.2755 0.2916 0.2870
Rank bj2
Rank bj6
x
y
0.2960 0.2910 0.2990 0.3040
0.2760 0.2870 0.3010 0.2900
x
y
0.2980 0.2960 0.3040 0.3062
0.2710 0.2760 0.2900 0.2853
Rank bj7
Rank bk2
x
y
0.2910 0.2887 0.2968 0.2990
0.2870 0.2916 0.3058 0.3010
x
y
0.3040 0.2990 0.3070 0.3120
0.2900 0.3010 0.3150 0.3040
Rank bk6
Rank bk7
x
y
0.3062 0.3040 0.3120 0.3142
0.2853 0.2900 0.3040 0.2993
x
y
0.2990 0.2968 0.3048 0.3070
0.3010 0.3058 0.3198 0.3150
ꢀColor Coordinates Measurement allowance is ± 0.005.
ꢀOne delivery will include up to four color ranks and six luminous intensity ranks of the products.
The quantity-ratio of the ranks is decided by Nichia.
2.INITIAL OPTICAL/ELECTRICAL CHARACTERISTICS
Please refer to figure’s page.
3.OUTLINE DIMENSIONS AND MATERIALS
Please refer to figure’s page.
Material as follows ;
Package
Encapsulating Resin
Electrodes
:
:
:
Heat-Resistant Polymer
Silicone Resin (with Diffused + Phosphor)
Ag Plating Copper Alloy
4.PACKAGING
· The LEDs are packed in cardboard boxes after taping.
Please refer to figure’s page.
The label on the minimum packing unit shows ; Part Number, Lot Number, Ranking, Quantity
· In order to protect the LEDs from mechanical shock, we pack them in cardboard boxes for transportation.
· The LEDs may be damaged if the boxes are dropped or receive a strong impact against them,
so precautions must be taken to prevent any damage.
· The boxes are not water resistant and therefore must be kept away from water and moisture.
· When the LEDs are transported, we recommend that you use the same packing method as Nichia.
5.LOT NUMBER
The first six digits number shows lot number.
The lot number is composed of the following characters;
ꢁꢂꢃꢃꢃꢃ- Uꢄ
ꢁ - Year
( 6 for 2006, 7 for 2007 )
ꢂ - Month ( 1 for Jan., 9 for Sep., A for Oct., B for Nov. )
ꢃꢃꢃꢃ - Nichia's Product Number
U - Ranking by Color Coordinates
ꢄ - Ranking by Luminous Intensity
-2-
Nichia STSE-CC7044B
<Cat.No.070606>
6.RELIABILITY
(1) TEST ITEMS AND RESULTS
Standard
Number of
Test Item
Resistance to
Soldering Heat
(Reflow Soldering)
Solderability
Test Method
JEITA ED-4701
300 301
Test Conditions
Tsld=260°C, 10sec.
(Pre treatment 30°C,70%,168hrs.)
Note
2 times
Damaged
0/50
JEITA ED-4701
300 303
JEITA ED-4701
300 307
JEITA ED-4701
100 105
JEITA ED-4701
200 203
JEITA ED-4701
200 201
JEITA ED-4701
100 103
JEITA ED-4701
200 202
Tsld=215 ± 5°C, 3sec.
(Lead Solder)
0°C ~ 100°C
1 time
over 95%
20 cycles
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
0/50
(Reflow Soldering)
Thermal Shock
15sec. 15sec.
Temperature Cycle
-40°C ~ 25°C ~ 100°C ~ 25°C
30min. 5min. 30min. 5min.
25°C ~ 65°C ~ -10°C
90%RH 24hrs./1cycle
Ta=100°C
100 cycles
10 cycles
1000 hrs.
1000 hrs.
1000 hrs.
1000 hrs.
500 hrs.
Moisture Resistance Cyclic
High Temperature Storage
Temperature Humidity
Storage
Low Temperature Storage
Ta=60°C, RH=90%
Ta=-40°C
Steady State Operating Life
Condition 1
Steady State Operating Life
Condition 2
Steady State Operating Life
of High Temperature
Steady State Operating Life
of High Humidity Heat
Steady State Operating Life
of Low Temperature
Vibration
Ta=25°C, IF=20mA
Ta=25°C, IF=35mA
Ta=85°C, IF=8.5mA
60°C, RH=90%, IF=15mA
Ta=-30°C, IF=20mA
1000 hrs.
500 hrs.
1000 hrs.
48min.
JEITA ED-4701
400 403
100 ~ 2000 ~ 100Hz Sweep 4min.
200m/s2
3directions, 4cycles
3mm, 5 ± 1 sec.
Substrate Bending
Adhesion Strength
JEITA ED-4702
JEITA ED-4702
1 time
1 time
0/50
0/50
5N, 10 ± 1 sec.
(2) CRITERIA FOR JUDGING DAMAGE
Criteria for Judgement
Min. Max.
Item
Symbol Test Conditions
Forward Voltage
Reverse Current
Luminous Intensity
VF
IR
IF=20mA
-
U.S.L.*)¯ 1.1
U.S.L.*)¯ 2.0
-
VR=5V
-
IV
IF=20mA
L.S.L.**)¯ 0.7
*) U.S.L. : Upper Standard Level
**) L.S.L. : Lower Standard Level
-3-
Nichia STSE-CC7044B
<Cat.No.070606>
7.CAUTIONS
The LEDs are devices which are materialized by combining Blue LEDs and special phosphors.
Consequently, the color of the LEDs is changed a little by an operating current.
Care should be taken after due consideration when using LEDs.
(1) Moisture Proof Package
· When moisture is absorbed into the SMT package it may vaporize and expand during soldering.
There is a possibility that this can cause exfoliation of the contacts and damage to the optical
characteristics of the LEDs.
to a minimum in the package.
For this reason, the moisture proof package is used to keep moisture
· The moisture proof package is made of an aluminum moisture proof bag.
A package of
a moisture absorbent material (silica gel) is inserted into the aluminum moisture proof bag.
The silica gel changes its color from blue to pink as it absorbs moisture.
(2) Storage
· Storage Conditions
Before opening the package :
The LEDs should be kept at 30°C or less and 90%RH or less. The LEDs should be used within a
year.
When storing the LEDs, moisture proof packaging with absorbent material (silica gel)
is recommended.
After opening the package :
The LEDs should be kept at 30°C or less and 70%RH or less.
The LEDs should be soldered
within 168 hours (7days) after opening the package.
If unused LEDs remain, they should be
stored in moisture proof packages, such as sealed containers with packages of moisture absorbent
material (silica gel). It is also recommended to return the LEDs to the original moisture proof bag
and to reseal the moisture proof bag again.
· If the moisture absorbent material (silica gel) has faded away or the LEDs have exceeded the storage
time, baking treatment should be performed using the following conditions.
Baking treatment : more than 24 hours at 65 ± 5°C
· Nichia LED electrodes and leadframes are silver plated copper alloy. The silver surface may be affected
by environments which contain corrosive substances. Please avoid conditions which may cause the LED
to corrode, tarnish or discolor. This corrosion or discoloration might lower solderability or might
affect on optical characteristics.
· Please avoid rapid transitions in ambient temperature, especially in high humidity environments where
condensation can occur.
(3) Heat Generation
· Thermal design of the end product is of paramount importance.
Please consider the heat generation
of the LED when making the system design. The coefficient of temperature increase per input
electric power is affected by the thermal resistance of the circuit board and density of LED placement
on the board, as well as other components. It is necessary to avoid intense heat generation and operate
within the maximum ratings given in this specification.
· The operating current should be decided after considering the ambient maximum temperature of LEDs.
-4-
Nichia STSE-CC7044B
<Cat.No.070606>
(4) Soldering Conditions
· The LEDs can be soldered in place using the reflow soldering method.
Nichia cannot make a
guarantee on the LEDs after they have been assembled using the dip soldering method.
· Recommended soldering conditions
Reflow Soldering
Lead Solder
120 ~ 150°C
120 sec. Max.
240°C Max.
Hand Soldering
Lead-free Solder
180 ~ 200°C
120 sec. Max.
Pre-heat
Pre-heat time
Peak
Temperature 350°C Max.
Soldering time 3 sec. Max.
(one time only)
260°C Max.
temperature
Soldering time
Condition
10 sec. Max.
refer to
10 sec. Max.
refer to
Temperature - profile 1. Temperature - profile 2.
(N2 reflow is recommended.)
ꢀ Although the recommended soldering conditions are specified in the above table, reflow or hand
soldering at the lowest possible temperature is desirable for the LEDs.
ꢀ A rapid-rate process is not recommended for cooling the LEDs down from the peak temperature.
[Temperature-profile (Surface of circuit board)]
Use the conditions shown to the under figure.
<1 : Lead Solder>
<2 : Lead-free Solder>
1~ 5°C / sec.
2.5 ~ 5°C / sec.
260°C Max.
10sec. Max.
240°C Max.
10sec. Max.
Pre-heating
Pre-heating
1~ 5°C / sec.
180 ~ 200°C
120sec.Max.
2.5 ~ 5°C / sec.
120 ~ 150°C
60sec.Max.
Above 220°C
60sec.Max.
Above 200°C
120sec.Max.
[Recommended soldering pad design]
Use the following conditions shown in the figure.
1.5
0.9
1.5
(Unit : mm)
· Occasionally there is a brightness decrease caused by the influence of heat or ambient atmosphere
during air reflow. It is recommended that the User use the nitrogen reflow method.
· Repairing should not be done after the LEDs have been soldered. When repairing is unavoidable,
a double-head soldering iron should be used. It should be confirmed beforehand whether the
characteristics of the LEDs will or will not be damaged by repairing.
· Reflow soldering should not be done more than two times.
· When soldering, do not put stress on the LEDs during heating.
· After soldering, do not warp the circuit board.
(5) Cleaning
· It is recommended that isopropyl alcohol be used as a solvent for cleaning the LEDs.
When using
other solvents, it should be confirmed beforehand whether the solvents will dissolve the package and the
resin or not. Freon solvents should not be used to clean the LEDs because of worldwide regulations.
· Do not clean the LEDs by the ultrasonic. When it is absolutely necessary, the influence of ultrasonic
cleaning on the LEDs depends on factors such as ultrasonic power and the assembled condition.
Before cleaning, a pre-test should be done to confirm whether any damage to the LEDs will occur.
-5-
Nichia STSE-CC7044B
<Cat.No.070606>
(6) Static Electricity
· Static electricity or surge voltage damages the LEDs.
It is recommended that a wrist band or an anti-electrostatic glove be used when handling the LEDs.
· All devices, equipment and machinery must be properly grounded. It is recommended that precautions
be taken against surge voltage to the equipment that mounts the LEDs.
· When inspecting the final products in which LEDs were assembled, it is recommended to check
whether the assembled LEDs are damaged by static electricity or not. It is easy to find
static-damaged LEDs by a light-on test or a VF test at a lower current (below 1mA is recommended).
· Damaged LEDs will show some unusual characteristics such as the leak current remarkably
increases, the forward voltage becomes lower, or the LEDs do not light at the low current.
Criteria : (VF > 2.0V at IF=0.5mA)
(7) Others
· NSSW108 complies with RoHS Directive.
· Care must be taken to ensure that the reverse voltage will not exceed the absolute maximum rating
when using the LEDs with matrix drive.
· The LED light output is strong enough to injure human eyes. Precautions must be taken to prevent
looking directly at the LEDs with unaided eyes for more than a few seconds.
· Flashing lights have been known to cause discomfort in people; you can prevent this by taking
precautions during use. Also, people should be cautious when using equipment that has had LEDs
incorporated into it.
· The LEDs described in this brochure are intended to be used for ordinary electronic equipment (such
as office equipment, communications equipment, measurement instruments and household appliances).
Consult Nichia’s sales staff in advance for information on the applications in which exceptional quality
and reliability are required, particularly when the failure or malfunction of the LEDs may directly
jeopardize life or health (such as for airplanes, aerospace, submersible repeaters, nuclear reactor
control systems, automobiles, traffic control equipment, life support systems and safety devices).
· User shall not reverse engineer by disassembling or analysis of the LEDs without having prior written
consent from Nichia. When defective LEDs are found, the User shall inform Nichia directly before
disassembling or analysis.
· The formal specifications must be exchanged and signed by both parties before large volume purchase begins.
· The appearance and specifications of the product may be modified for improvement without notice.
-6-
Nichia STSE-CC7044B
<Cat.No.070606>
ICI Chromaticity Diagram
0.9
0.8
0.7
0.6
0.5
0.4
0.3
0.2
0.1
0
520
530
540
510
550
560
570
580
500
590
600
bj2
610
620
bk7
bk2
bk6
bj6
bj7
a67
490
630
a57
a52
a66
a56
a62
480
470
460
0.1
0.2
0.3
0.4
x
0.5
0.6
0.7
0.8
0
½ Color Coordinates Measurement allowance is ± 0.005.
-7-
ꢀ Forward Voltage vs.
ꢀ Forward Current vs.
ꢀ Duty Ratio vs.
Allowable Forward Current
Forward Current
Relative Luminosity
5.0
200
200
Ta=25°C
Ta=25°C
4.0
Ta=25°C
100
50
100
3.0
2.0
1.0
0
20
10
5
50
35
20
1
10
2.0 2.5 3.0 3.5 4.0 4.5 5.0
Forward Voltage VF (V)
0
20 40 60 80 100 120
Forward Current IFP (mA)
1
5
10 20
50 100
Duty Ratio (%)
ꢀ Ambient Temperature vs.
ꢀ Ambient Temperature vs.
ꢀ Ambient Temperature vs.
Forward Voltage
Relative Luminosity
Allowable Forward Current
5.0
2.0
50
40
30
20
IFP=60mA
IFP=20mA
IFP=20mA
4.6
I
=5mA
FP
4.2
3.8
3.4
3.0
2.6
2.2
1.0
0.5
10
8.5
0.2
0
-40 -20
0
20 40 60 80 100
-40 -20
0
20 40 60 80 100
0
20
40
60
80 100
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Ambient Temperature Ta (°C)
Model
NSSW108
Title CHARACTERISTICS
NICHIA CORPORATION
No.
070330762981
ꢀ Forward Current vs.
ꢀ Spectrum
Chromaticity Coordinate
0.34
1.2
1.0
0.8
0.6
0.4
0.2
0
Ta=25°C
Ta=25°C
IF=20mA
1mA
5mA
0.33
0.32
0.31
0.30
20mA
50mA
100mA
0.29 0.30
0.31
0.32 0.33
350
450
550
650
750
0°
Wavelength λ (nm)
x
ꢀ Ambient Temperature vs.
ꢀ Directivity
Y
Chromaticity Coordinate
X
X
10°
1.0
20°
0.34
30°
Ta=25°C
IFP=20mA
Y
40°
IFP=20mA
0.33
X-X
Y-Y
50°
-30°C
0°C
25°C
60°
0.5
0.32
50°C
85°C
70°
80°
0.31
0.30
0
90°
1.0
0.29 0.30 0.31
0.32 0.33
90°
60°
30°
0°
0.5
Radiation Angle
x
Model
NSSW108
Title CHARACTERISTICS
NICHIA CORPORATION
No.
070330762991
2.4
K
A
Cathode mark
C 0.15
2.8
(2.5)
(2)
1.2
0.6
ITEM
MATERIALS
PACKAGE
Heat-Resistant Polymer
Silicone Resin (with Diffused + Phosphor)
Ag Plating Copper Alloy
0.35
Cathode
Anode
ENCAPSULATING RESIN
ELECTRODES
0.7
Unit
mm
Model
Title
NxSW108
(NOTE) The LED may have flash/flange which exceeds
the tolerance of this print.
15/1
Scale
OUTLINE DIMENSIONS
NICHIA CORPORATION
Allow
±0.1
No.
070529763002
STSZ-A763002
Taping part
Reel part
+0
11.4±1
9±0.3
0.2±0.05
φ 180
-3
4±0.1
+0.1
-0
φ 1.5
2±0.05
Cathode mark
0.95±0.1
4±0.1
Label
φ 0.5±0.1
1.35±0.1
WHITE LED
TYPE NxSW108T
LOT xxxxxx-U„
QTY
pcs
RoHS
Reel End of tape
No LEDs
LEDs mounting part
No LEDs
Top cover
tape
Pull direction
Embossed carrier tape
Reel Lead Min.100mm
(No LEDs)
Reel Lead Min.160mm (No LEDs)
Reel Lead Min.400mm
3,500pcs/Reel
Unit
mm
NxSW108T
Model
Title
Taping is based on the JIS C 0806 : Packaging of Electronic
Components on Continuous Tapes.
TAPING DIMENSIONS
070529763012
NICHIA CORPORATION
Scale
Allow
No.
Nichia STSE-CC7044B
<Cat.No.070606>
The reel and moisture absorbent material are put in the moisture proof foil bag
and then heat sealed.
Reel
Label
NICHIA
Seal
WHITE LED
TYPE
LOT
QTY
NxSW108T
xxxxxx-U„
PCS
RoHS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Moisture proof foil bag
Moisture
absorbent material
The box is partitioned with the
cardboard.
Label
NICHIA
WHITE LED
Nichia LED
TYPE
RANK
QTY
NxSW108T
U„
RoHS
PCS
NICHIA CORPORATION
491 OKA, KAMINAKA, ANAN, TOKUSHIMA, JAPAN
Packing unit
Reel/bag
1reel
Quantity/bag (pcs)
Moisture proof foil bag
3,500 MAX.
Cardboard box
Cardboard box S
Cardboard box M
Cardboard box L
Dimensions (mm)
291¯237¯120¯8t
259¯247¯243¯5t
444¯262¯259¯8t
Reel/box
Quantity/box (pcs)
24,500 MAX.
7reel MAX.
15reel MAX.
30reel MAX.
52,500 MAX.
105,000 MAX.
NxSW108T
PACKING
Model
Title
NICHIA CORPORATION
No.
070529763022
-12-
厂商 型号 描述 页数 下载

NXP

 		NXS0102DP [ IC NXS0102 SERIES, 2-BIT TRANSCEIVER, TRUE OUTPUT, PDSO8, 3 MM, PLASTIC, SOT505-2, TSSOP-8, Bus Driver/Transceiver ] 24 页

NXP

 		NXS0102GD [ IC NXS0102 SERIES, 2-BIT TRANSCEIVER, TRUE OUTPUT, PDSO8, 3 X 2 MM, 0.50 MM HEIGHT, PLASTIC, SOT996-2, XSON-8, Bus Driver/Transceiver ] 24 页

NXP

 		NXS0102GF [ IC TRANSCEIVER, PDSO8, 1.35 X 1 MM, 0.50 MM PITCH, PLASTIC, MO-252, SOT1089, XSON-8, Bus Driver/Transceiver ] 24 页

NXP

 		NXS0102GF,115 [ TXRX TRANSLATING DUAL XSON8 ] 24 页

NXP

 		NXS0102GT [ IC TRANSCEIVER, PDSO8, 1 X 1.95 MM, 0.50 MM PITCH, PLASTIC, MO-252, SOT833-1, XSON-8, Bus Driver/Transceiver ] 24 页

NXP

 		NXS0102GT,115 [ TXRX TRANSLATING DUAL XSON8 ] 24 页

NICHIA

 		NXSB064 规格FOR NICHIA片式蓝光LED[ SPECIFICATIONS FOR NICHIA CHIP TYPE BLUE LED ] 14 页

NICHIA

 		NXSG426C 规格FOR NICHIA贴片式LED绿色[ SPECIFICATIONS FOR NICHIA CHIP TYPE GREEN LED ] 13 页

NICHIA

 		NXSW108T 规格FOR NICHIA片式白光LED[ SPECIFICATIONS FOR NICHIA CHIP TYPE WHITE LED ] 13 页

NICHIA

 		NXSX064XT 规格FOR NICHIA片式蓝光LED[ SPECIFICATIONS FOR NICHIA CHIP TYPE BLUE LED ] 14 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.246057s
