XZMG54W

型号:

XZMG54W

描述:

2.0x1.25mm SMD贴片LED LAMP[ 2.0x1.25mm SMD CHIP LED LAMP ]

品牌:

SUNLED[ SUNLED CORPORATION ]

页数:

3 页

PDF大小:

228 K

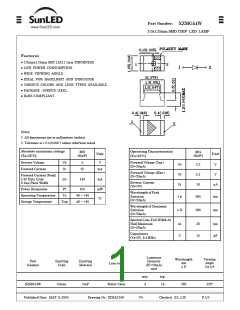

Part Number:
2.0x1.25mm SMD CHIP LED LAMP
XZMG54W
www.SunLED.com
Features
2.0mmx1.25mm SMT LED,1.1mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE : 2000PCS / REEL.
RoHS COMPLIANT.
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.1(0.004") unless otherwise noted.
Absolute maximum ratings
MG
Operating Characteristics
(TA=25°C)
MG
(GaP)
Unit
Unit
(GaP)
(TA=25°C)
Reverse Voltage
Forward Current
VR
IF
5
V
Forward Voltage (Typ.)
(IF=20mA)
VF
VF
IR
2.2
2.5
10
V
V
25
mA
Forward Voltage (Max.)
(IF=20mA)
Forward Current (Peak)
1/10 Duty Cycle
0.1ms Pulse Width
iFS
140
mA
Reverse Current
(VR=5V)
uA
Power Dissipation
PT
TA
105
mW
°C
Wavelength of Peak
Emission
(IF=20mA)
Operating Temperature
Storage Temperature
-40 ~ +85
-40 ~ +85
λ p
565
568
nm
nm
Tstg
Wavelength of Dominant
Emission
λ D
(IF=20mA)
Spectral Line Full Width At
Half-Maximum
(IF=20mA)
∆λ
30
15
nm
pF
Capacitance
(VF=0V, f=1MHz)
C
Luminous
Intensity
(IF=20mA)
mcd
Wavelength
Viewing
Angle
2 θ 1/2
Part
Number
Emitting
Color
Emitting
Material
Lens-color
nm
λ P
min.
4
typ.
14
XZMG54W
Green
GaP
Water Clear
565
120°
Part Number:
2.0x1.25mm SMD CHIP LED LAMP
XZMG54W
www.SunLED.com
MG
Part Number:
2.0x1.25mm SMD CHIP LED LAMP
XZMG54W
www.SunLED.com
Recommended Soldering Pattern (Units: mm ; Tolerance: ± 0.1)
Tape Specification (Units : mm)
Remarks:
If special sorting is required (e.g. binning based on forward voltage, luminous intensity, or wavelength), the typical
accuracy of the sorting process is as follows:
1. Wavelength: +/-1nm
2. Luminous Intensity: +/-15%
3. Forward Voltage: +/-0.1V
Note: Accuracy may depend on the sorting parameters.
