8N60

型号：

8N60

描述：

7.5安培， 600/650伏特N沟道功率MOSFET[ 7.5 Amps, 600/650 Volts N-CHANNEL POWER MOSFET ]

品牌：

UTC[ Unisonic Technologies ]

页数：

8 页

PDF大小：

212 K

下载PDF手册

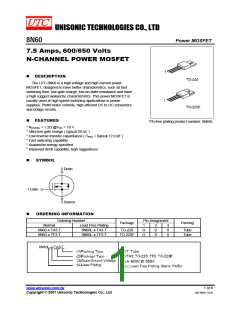

UNISONIC TECHNOLOGIES CO., LTD
8N60
Power MOSFET
7.5 Amps, 600/650 Volts
N-CHANNEL POWER MOSFET
„
DESCRIPTION
The UTC 8N60 is a high voltage and high current power
MOSFET, designed to have better characteristics, such as fast
switching time, low gate charge, low on-state resistance and have
a high rugged avalanche characteristics. This power MOSFET is
usually used at high speed switching applications in power
supplies, PWM motor controls, high efficient DC to DC converters
and bridge circuits.
„
FEATURES
*Pb-free plating product number: 8N60L
* RDS(ON) = 1.2Ω @VGS = 10 V
* Ultra low gate charge ( typical 28 nC )
* Low reverse transfer capacitance ( CRSS = typical 12.0 pF )
* Fast switching capability
* Avalanche energy specified
* Improved dv/dt capability, high ruggedness
„
SYMBOL
2.Drain
1.Gate
3.Source
„
ORDERING INFORMATION
Ordering Number
Pin Assignment
Packing
Package
Normal
Lead Free Plating
1
2
D
D
3
S
S
8N60-x-TA3-T
8N60-x-TF3-T
8N60L-x-TA3-T
8N60L-x-TF3-T
TO-220
G
G
Tube
Tube
TO-220F
www.unisonic.com.tw
Copyright © 2007 Unisonic Technologies Co., Ltd
1 of 8
QW-R502-115,B
8N60
Power MOSFET
„
ABSOLUTE MAXIMUM RATINGS (TC = 25℃, unless otherwise specified)
PARAMETER
SYMBOL
VDSS
RATINGS
UNIT
V
8N60-A
8N60-B
600
650
Drain-Source Voltage
Gate-Source Voltage
V
VGSS
IAR
±30
V
Avalanche Current (Note 1)
Continuous Drain Current
Pulsed Drain Current (Note 1)
Avalanche Energy
7.5
A
TC = 25°C
7.5
A
ID
TC = 100°C
4.6
A
IDM
EAS
30
A
Single Pulsed (Note 2)
Repetitive (Note 1)
230
mJ
mJ
V/ns
W
W
℃
℃
℃
EAR
14.7
4.5
Peak Diode Recovery dv/dt (Note 3)
dv/dt
TO-220
147
Power Dissipation
PD
TO-220F
48
Junction Temperature
Operating Temperature
Storage Temperature
TJ
+150
-55 ~ +150
-55 ~ +150
TOPR
TSTG
Note: Absolute maximum ratings are those values beyond which the device could be permanently damaged.
Absolute maximum ratings are stress ratings only and functional device operation is not implied.
„
THERMAL DATA
PARAMETER
SYMBOL
RATING
62.5
UNIT
°C/W
°C/W
°C/W
°C/W
TO-220
TO-220F
TO-220
TO-220F
Junction-to-Ambient
Junction-to-Case
θJA
62.5
0.85
θJC
2.6
„
ELECTRICAL CHARACTERISTICS (TC =25℃, unless otherwise specified)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN TYP MAX UNIT
OFF CHARACTERISTICS
8N60-A
8N60-B
600
650
V
V
Drain-Source Breakdown Voltage
Drain-Source Leakage Current
Gate-Source Leakage Current
BVDSS
IDSS
VGS = 0 V, ID = 250 µA
VDS = 600 V, VGS = 0 V
VGS = 30 V, VDS = 0 V
VGS = -30 V, VDS = 0 V
10
µA
Forward
Reverse
100 nA
-100 nA
IGSS
Breakdown Voltage Temperature
Coefficient
△BVDSS/△T
J ID = 250 µA, Referenced to 25°C
0.7
V/℃
ON CHARACTERISTICS
Gate Threshold Voltage
VGS(TH)
RDS(ON)
VDS = VGS, ID = 250 µA
VGS = 10 V, ID = 3.75 A
2.0
4.0
1.0 1.2
V
Static Drain-Source On-State Resistance
DYNAMIC CHARACTERISTICS
Input Capacitance
Ω
CISS
COSS
CRSS
965 1255 pF
105 135 pF
VDS = 25 V, VGS = 0 V, f = 1MHz
Output Capacitance
Reverse Transfer Capacitance
SWITCHING CHARACTERISTICS
Turn-On Delay Time
12
16
pF
tD(ON)
tR
tD(OFF)
tF
16.5 45
ns
Turn-On Rise Time
VDD = 300V, ID = 7.5 A, RG = 25Ω
(Note 4, 5)
60.5 130 ns
81 170 ns
64.5 140 ns
Turn-Off Delay Time
Turn-Off Fall Time
Total Gate Charge
QG
28
4.5
12
36
nC
nC
nC
V
DS= 480V,ID= 7.5A, VGS= 10 V
Gate-Source Charge
QGS
QGD
(Note 4, 5)
Gate-Drain Charge
UNISONIC TECHNOLOGIES CO., LTD
2 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
„
ELECTRICAL CHARACTERISTICS(Cont.)
PARAMETER
SYMBOL
TEST CONDITIONS
MIN TYP MAX UNIT
DRAIN-SOURCE DIODE CHARACTERISTICS AND MAXIMUM RATINGS
Drain-Source Diode Forward Voltage
Maximum Continuous Drain-Source Diode
Forward Current
VSD
IS
VGS = 0 V, IS = 7.5 A
1.4
7.5
V
A
Maximum Pulsed Drain-Source Diode
Forward Current
ISM
30
A
Reverse Recovery Time
tRR
V
GS = 0 V, IS = 7.5 A,
365
3.4
ns
dIF/dt = 100 A/µs (Note 4)
Reverse Recovery Charge
QRR
µC
Notes: 1. Repetitive Rating : Pulse width limited by TJ
2. L = 7.3mH, IAS = 7.5A, VDD = 50V, RG = 25 Ω, Starting TJ = 25°C
3. ISD ≤ 7.5A, di/dt ≤200A/µs, VDD ≤ BVDSS, Starting TJ = 25°C
4. Pulse Test: Pulse width ≤ 300µs, Duty cycle ≤ 2%
5. Essentially independent of operating temperature
UNISONIC TECHNOLOGIES CO., LTD
3 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
„
TEST CIRCUITS AND WAVEFORMS
+
D.U.T.
VDS
-
+
-
L
RG
Driver
VDD
* dv/dt controlled by RG
* ISD controlled by pulse period
* D.U.T.-Device Under Test
Same Type
as D.U.T.
VGS
Fig. 1A Peak Diode Recovery dv/dt Test Circuit
P. W.
VGS
(Driver)
Period
D=
P.W.
Period
10V
=
VGS
IFM, Body Diode Forward Current
ISD
(D.U.T.)
di/dt
IRM
Body Diode Reverse Current
Body Diode Recovery dv/dt
VDS
VDD
(D.U.T.)
Body Diode
Forward Voltage Drop
Fig. 1B Peak Diode Recovery dv/dt Waveforms
UNISONIC TECHNOLOGIES CO., LTD
4 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
„
TEST CIRCUITS AND WAVEFORMS (Cont.)
Fig. 2A Switching Test Circuit
Fig. 2B Switching Waveforms
Fig. 3A Gate Charge Test Circuit
Fig. 3B Gate Charge Waveform
L
VDS
BVDSS
IAS
RD
VDD
ID(t)
VDS(t)
VDD
10V
D.U.T.
tp
Time
tp
Fig. 4A Unclamped Inductive Switching Test Circuit
Fig. 4B Unclamped Inductive Switching Waveforms
UNISONIC TECHNOLOGIES CO., LTD
5 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
„
TYPICAL CHARACTERISTICS
Body Diode Forward Voltage vs. Source
Current
On-Resistance Variation vs. Drain Current
and Gate Voltage
6
10
5
150℃
VGS=10V
4
3
25℃
1
VGS=20V
2
Notes:
1. VGS=0V
2. 250µs Test
1
0
Note: TJ=25℃
0.1
0.2
0.4 0.6
0.8
1.2
1.4
1.0
0
5
10
15
20
1.6 1.8
Source-Drain Voltage, VSD (V)
Drain Current, ID (A)
Capacitance Characteristics
(Non-Repetitive)
Gate Charge Characteristics
12
10
8
Ciss=Cgs+Cgd (Cds=shorted)
1900
1700
1500
1300
1100
Coss=Cds+Cgd Crss=Cgd
Ciss
VDS=300V
VDS=480V
VDS=120V
Coss
6
900
700
Crss
4
2
500
300
100
0
Notes:
1. VGS=0V
2. f = 1MHz
Note: ID=8A
0
20
30
25
0
5
10
15
0.1
1
10
Total Gate Charge, QG (nC)
Drain-SourceVoltage, VDS (V)
UNISONIC TECHNOLOGIES CO., LTD
6 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
„
TYPICAL CHARACTERISTICS(Cont.)
Breakdown Voltage Variation vs.
Temperature
On-Resistance Junction Temperature
3.0
1.2
1.1
2.5
2.0
1.5
1.0
0.5
0.0
1.0
0.9
0.8
Note:
1. VGS=0V
2. ID=250µA
Note:
1. VGS=10V
2. ID=4A
-50
200
-100
0
50 100 150
200
0
-100 -50
50 100 150
Junction Temperature, TJ (℃)
Junction Temperature, TJ (℃)
Maximum Drain Current vs. Case
Temperature
Maximum Safe Operating Area
100
10
10
8
Operation in This Area is Limited by RDS(on)
100µs
100µs
1ms
6
10ms
DC
4
1
Notes:
1. TJ=25℃
2. TJ=150℃
3. Single Pulse
2
0
0.1
25
50
75 100
125
150
1
10
100
1000
Drain-Source Voltage, VDS (V)
Case Temperature, TC (℃)
Transient Thermal Response
Curve
1
D=0.5
D=0.2
D=0.1
0.1
D=0.05
0.02
0.01
Notes:
1. θJC (t) = 0.85℃/W Max.
2. Duty Factor, D=t1/t2
3. TJM-TC=PDM×θJC (t)
Single pulse
0.01
10-4 10-3 10-2 10-1 100 101
10-5
Square Wave Pulse Duration, t1 (sec)
UNISONIC TECHNOLOGIES CO., LTD
7 of 8
QW-R502-115,B
www.unisonic.com.tw
8N60
Power MOSFET
UTC assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or
other parameters) listed in products specifications of any and all UTC products described or contained
herein. UTC products are not designed for use in life support appliances, devices or systems where
malfunction of these products can be reasonably expected to result in personal injury. Reproduction in
whole or in part is prohibited without the prior written consent of the copyright owner. The information
presented in this document does not form part of any quotation or contract, is believed to be accurate
and reliable and may be changed without notice.
UNISONIC TECHNOLOGIES CO., LTD
8 of 8
QW-R502-115,B
www.unisonic.com.tw
