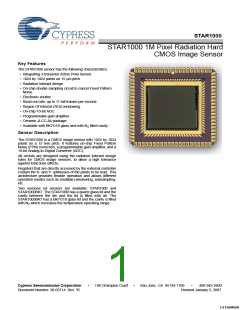

STAR1000
STAR1000 1M Pixel Radiation Hard
CMOS Image Sensor
Key Features
The STAR1000 sensor has the following characteristics:
• Integrating 3-transistor Active Pixel Sensor.
• 1024 by 1024 pixels on 15 µm pitch.
• Radiation tolerant design.
• On-chip double sampling circuit to cancel Fixed Pattern
Noise.
• Electronic shutter.
• Read out rate: up to 11 full frames per second.
• Region Of Interest (ROI) windowing.
• On-chip 10-bit ADC.
• Programmable gain amplifier.
• Ceramic JLCC-84 package.
• Available with BK7G18 glass and with N2 filled cavity.
Sensor Description
The STAR1000 is a CMOS image sensor with 1024 by 1024
pixels on a 15 mm pitch. It features on-chip Fixed Pattern
Noise (FPN) correction, a programmable gain amplifier, and a
10-bit Analog-to-Digital Converter (ADC).
All circuits are designed using the radiation tolerant design
rules for CMOS image sensors, to allow a high tolerance
against total dose effects.
Registers that are directly accessed by the external controller
contain the X- and Y- addresses of the pixels to be read. This
architecture provides flexible operation and allows different
operation modes such as (multiple) windowing, subsampling,
etc.
Two versions od sensors are available: STAR1000 and
STAR1000BK7. The STAR1000 has a quartz glass lid and the
cavity between the die and the lid is filled with air. The
STAR1000BK7 has a BK7G18 glass lid and the cavity is filled
with N2 which increases the temperature operating range.
Cypress Semiconductor Corporation
Document Number: 38-05714 Rev. *B
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised January 5, 2007
[+] Feedback
STAR1000
Image Sensor Specifications
General Specifications
Table 1. General Specification of the STAR1000 Sensor
Parameter
Detector technology
Pixel structure
Photodiode
Specification
CMOS active pixel sensor
3-transistor active pixel
High fill factor photodiode
1024 x 1024 pixels
Comment
Radiation-tolerant pixel design.
Using N-well technique.
Sensitive area format
Pixel size
15 x15 µm2
Pixel output rate
Windowing
12 MHz
Speed can be exchanged for power consumption.
X- and Y- addressing random programmable
Electronic shutter
Electronic rolling shutter.
Range: 1:1024
Integration time is variable in time steps equal to the
row readout time.
Total dose radiation
tolerance
> 250 Krad (Si)
Pixel test structures with a similar design have
shown total dose tolerance up to several Mrad.
Note: Dark current and DSNU are dependent of
radiation dose.
Proton radiation tolerance
SEU tolerance
2,4.1011 proton/cm2
At 60 MeV
> 127,8 MeV cm3 mg-1
Electro-optical Specifications
Table 2. Electro-optical Specifications of the STAR1000 Sensor
Value
Parameter
Comment
Typical Value
400 - 1000
20%
Unit
Spectral range
nm
Quantum efficiency x fill
factor
Average over the visual range. See spectral
response curve.
Full well capacity
135.000
99.000
e-
e-
Saturation capacity to
meet non-linearity within
+ 5%
Output signal swing
Conversion gain
kTC noise
1.1
11.4
47
V
µV/e-
e-
Dynamic range
Fixed pattern noise
69
dB
Local: 1 σ < 0.30%
Global: 1σ <0.56%
of full well
Photo response
non-uniformity at Sat/2
(RMS)
Local: 1 σ < 0.67%
Global: σ <3.93%
of full well
Document Number: 38-05714 Rev. *B
Page 2 of 21
[+] Feedback
STAR1000
Table 2. Electro-optical Specifications of the STAR1000 Sensor (continued)
Value
Parameter
Comment
Typical Value
Unit
Average dark current at
293K
223
ρA/cm2
Dark current signal
DSNU signal
3135
e-/s
Dark current rises 425 e-/s per Krad.
DSNU rises 14 e-/s per Krad.
1.055% of Vsat
Optical cross-talk
at 600 nm
Vertical: 16%
Horizontal: 17.5%
Anti-blooming capacity
Output amplifier gain
x 1000
x1, x2.47, x4.59 and x8.64
9.5
Controlled by 2 bits.
Analogue input
bandwidth
MHz
V
Analogue input signal
range
0.1 to 4.9
10
Analog-to-Digital
converter
bit
Radiation-tolerant version of the ADC on Ibis4 and
other image sensors.
ADC Differential
Non-Linearity (DNL)
<= ±3.5
<= ±5.8
5
LSB
LSB
ADC Integral
Non-Linearity (INL)
Integral non-linearity of ADC is better than linearity
of image sensor.
Supply voltage
V
Digital input signals are 3.3V compatible.
Power dissipation
< 350
< 100
mW
With internal ADC powered.
Without internal ADC powered.
Both values measured at nominal speed (12 MHz).
Document Number: 38-05714 Rev. *B
Page 3 of 21
[+] Feedback
STAR1000
Spectral Response
Figure 1. Spectral Response Curve
0.16
QE 0.3
0.14
0.12
0.1
QE 0.2
0.08
0.06
0.04
0.02
0
QE 0.1
QE0.05
QE 0.01
400
500
600
700
800
900
1000
Wavelenght [nm]
Photo-Voltaic Response
Figure 2. Photo Voltaic Response Curve
1,2
1
0,8
0,6
0,4
0,2
0
0
20000
40000
60000
80000 100000 120000 140000 160000 180000
Number of electrons
Document Number: 38-05714 Rev. *B
Page 4 of 21
[+] Feedback
STAR1000
Absolute Maximum Ratings
Table 3. Absolute Maximum Ratings STAR1000
Limits
Characteristics
Min
Units
Remarks
Max
+7
Any supply voltage
-0.5
-0.5
0
V
V
R
Voltage on any input terminal
Operating temperature
Vdd + 0.5
+60
°C
Temperature range confirmed by
evaluation testing.
Storage temperature
-10
NA
+60
125
°C
°C
Not longer than 1 hour. Temperature range
confirmed by evaluation testing.
Sensor soldering temperature
Hand soldering only. The sensor’s temper-
ature may not rise above this limit. Please
read the soldering and handling section for
more information.
Table 4. Absolute Maximum Ratings STAR1000BK7
Limits
Characteristics
Units
Remarks
Min
-0.5
-0.5
-40
Max
Any supply voltage
+7
Vdd + 0.5
+85
V
V
Voltage on any input terminal
Operating temperature
°C
Temperature range confirmed by
evaluation testing.
Storage temperature
-40
+85
°C
Temperature range confirmed by
evaluation testing.
-40
NA
+120
125
Maximum 1 hour.
Sensor soldering temper-
ature
°C
Hand soldering only. The sensor’s temper-
ature may not rise above this limit. Please
read the soldering and handling section for
more information.
Document Number: 38-05714 Rev. *B
Page 5 of 21
[+] Feedback
STAR1000
DC Operating Conditions
Table 5. DC Operating Conditions
Limits
Symbol
Parameter
Units
Min
Typ
5
Max
VDDA
Analog supply of the image core.
Digital supply of the image core.
Analog supply of the ADC circuitry.
Digital supply of the ADC circuitry.
Power supply of ADC digital output stage.
Reset level for RESET signal.
Reset level for RESET_DS signal.
Analog ground of the image core.
Digital ground of the image core.
Analog ground of the ADC circuitry.
Digital ground of the ADC circuitry.
Logical '1' input voltage.
V
V
V
V
V
V
V
V
V
V
V
V
V
V
V
VDDD
5
VDD_ADC_ANA
VDD_ADC_DIG
VDD_DIG_OUT
VRES
5
5
5
5
VREF
4
5
GNDA
0
0
0
0
GNDD
GND_ADC_ANA
GND_ADC_DIG
VIH
1.8
0
VDDD
VIL
Logical '0' input voltage.
1
VDDD
1
VOH
Logical '1' output voltage.
4.25
VOL
Logical '0' output voltage.
Document Number: 38-05714 Rev. *B
Page 6 of 21
[+] Feedback
STAR1000
Architecture
Floor Plan
Figure 3. Star1000 Floor Plan
10
1024
Reset
Pixel Array
1024 x 1024 pixels
Reset_DS
Vref
D0...D9
Rst
Ld_Y
Y Address
Decoder
and Logic
Col
10-bit ADC
Rst
Rd
1024
10
Clk_ADC
Ain
A0....A9
Rd
1024
10
S
R
Column Amplifiers
1024
Rst
Sig
1024
Progr. Gain
Amplifier
1024
Buffer
Aout
X Register
Clk_X
1024
10
X Address Decoder
Ld_X
The image sensor contains five sections: the pixel array, the
X- and Y- addressing logic, the column amplifiers, the output
amplifier and the ADC. Figure 3. shows an outline diagram of
the sensor, including an indication of the main control signals.
The following paragraphs explain in more detail the function
and operation of the different imager parts.
The reset lines and the read lines of the pixels in a row are
connected together to the Y- decoder logic; the outputs of the
pixels in a column are connected together to a column
amplifier.
Figure 4. Architecture of the 3T Pixel
Pixel Array
T1
The pixel array contains 1024 by 1024 active pixels at 15 µm
pitch. Each pixel contains one photo diode and three
transistors (Figure 4.).
Read
Reset
T2
The photo diode is always in reverse bias. At the beginning of
the integration cycle, a pulse is applied to the reset line (gate
of T1) bringing the cathode of D1 to the reset voltage level.
During the integration period, photon-generated electrons
accumulate on the diode capacitance reducing the voltage on
the gate of T2. The real illumination dependent signal is the
difference between the reset level and the output level after
integration. This difference is created in the column amplifiers.
T2 acts as a source follower and T3 allows connection of the
pixel signal (reset level and output level) to the vertical output
bus.
T3
Document Number: 38-05714 Rev. *B
Page 7 of 21
[+] Feedback
STAR1000
Addressing Logic
amplifier. As a result, the pixels are always reset immediately
after read out as part of the sample procedure. Note that the
maximum integration time of a pixel is the time between two
read cycles.
The addressing logic allows direct addressing of rows and
columns. Instead of the one-hot shift registers that are often
used, address decoders are implemented. One can select a
line by presenting the required address to the address input of
the device and latching it to the Y- decoder logic. Presenting
the X- address to the device address input and latching it to
the X- address decoder can select a column.
Output Amplifier and Analog Multiplexer
The output amplifier combines subtraction of pixel signal level
from reset level with a programmable gain amplifier. Since the
amplifier is AC coupled, it also contains a provision to maintain
and restore the proper DC level.
A typical line read out sequence will first select a line by
applying the Y-address to the Y-decoder. Activation of the
LD_Y input on the Y-logic connects the pixel outputs of the
selected line to the column amplifiers. The individual column
amplifier outputs are connected to the output amplifier by
applying the respective X- addresses to the X- address
decoder. Applying the appropriate Y- address to the Y-
decoder and activating the “Reset” input reset a line. The
integration time of a row is the time between the last reset of
this row and the time when it is selected for read out.
An analog signal multiplexing feeds the pixel signal to the final
unity gain buffer, providing the required drive capability. Apart
from the pixel signal, three other external analog signals can
be fed to the output buffer. All these signals can be digitalised
by the on-chip ADC if the output of this buffer is externally
connected to the input of the ADC.
The purpose of the additional analog inputs (A_IN1, A_IN2,
and A_IN3) is to allow the possibility of processing other
analog signals through the image sensors signal path. These
signals can then be converted by the ADC and processed by
the image controller FPGA. The additional analog inputs are
intended for low frequency or DC signals and have a reduced
bandwidth compared with the image signal path.
The Y- decoder logic has two different reset inputs: RESET
and RESET_DS. Activation of RESET resets the pixel to the
Vdd level; activation of RESET_DS resets the pixel to the
voltage level on the VREF input. This feature allows the appli-
cation of the so called dual slope integration. If dual slope
integration is not needed, VREF is tied to Vdd and RESET_DS
must never be activated.
ADC
The image sensor has a 10-bit ADC that is electrically
separated from the rest of the image sensor circuits and can
be powered down if an external ADC is used. The conversion
takes place at the falling edge of the clock and the output pins
can be disabled to allow operation of the device in a bus
structure.
Column Amplifiers
All outputs from the pixels in a column are connected in parallel
to a column amplifier. This amplifier samples the output
voltage and the reset level of the pixel whose row is selected
at that moment and presents these voltage levels to the output
Document Number: 38-05714 Rev. *B
Page 8 of 21
[+] Feedback
STAR1000
Row Selection and Reset Timing
Timing and Control Signals
Figure 5. shows the timing of the line sequence control signals.
The timing constraints are presented in Table 6.
The pixels addressing is done by direct addressing of rows
and columns. This approach has the advantage of full flexibility
when accessing the pixel array: multiple windowing and
subsampled read out are possible by proper programming.
The address, presented at the address IO pins (A0…A9) is
latched in with the LD-Y pulse (active low). After latching; the
external controller already produces a new address.
The following paragraphs clarify the timing for row and column
readout.
Figure 5. Line Selection and Reset Sequence
A0......A9
Read Address
Reset Address
k
m
k
m
l
l
LD_Y
INTERNAL
Row Selected for Reset
Row Selected for Readout
a
b
S
c
d
g
f
d
RESET
e
b
R
h
i
CAL
(Once each
frame)
ROW
READOUT
Idle
Time Available for Readout of Row Y-1
Time Available for X-readout of Row Y
Latching in a Y- address selects the addressed row and
connects the pixel outputs of that row to the column amplifiers.
Through the sequence of the S and R pulse and the reset
pulse in between the pixel output signal and reset level are
sampled and produced at the output of the column amplifier
(to do the FPN double sampling correction).
At this time horizontal read out of the selected row is started
and another row is reset to effectuate reduced integration time
(electronic rolling shutter).
Document Number: 38-05714 Rev. *B
Page 9 of 21
[+] Feedback
STAR1000
Table 6. Timing Constraints of Line Sequence
Symbol
Min
Typ
Description
a
3.6 µs
Delay between selection of a new row and falling edge on S.
Minimal value: For maximum, speed a new row can already be selected
during X- read out of the previous row.
b
c
d
e
f
0.4 µs
0
Duration of S and R pulse.
100 ns
Delay between falling edge of S and rising edge of reset.
Minimum duration of reset pulse.
200 ns
1.6 µs
0
Delay between falling edge of reset and falling edge of R.
Minimum delay between falling edge on LD_Y and rising edge of reset.
Minimum required extension of Y- address after falling edge of reset pulse.
100 ns
g
g
h
100 ns
200 ns
Position of cal pulse after rising edge of S.
The cal pulse must only be given once per frame.
i
k
l
100 ns
10 ns
20 ns
10 ns
1 µs
Duration of cal pulse.
Address set up time.
Load register value.
Address stable after load.
m
Pixel Read Out Timing
The ADC conversion starts at the falling edge of the CLK-ADC
signal and produces a valid digital output 20 ns after this edge.
The timing constraints are given in Table 7.
Figure 6. shows the timing of the pixel readout sequence. The
external digital controller presents a column address that is
latched by the rising edge of the LD_X pulse. After decoding
the X- address the column selection is clocked in the X-
register by CLK-X. The output amplifier uses the same pulse
to subtract the pixel output level from the pixel reset level and
the signal level. This causes a pipeline effect such that the
analog output of the first pixel is effectively present at the
device output terminal at the third rising edge of the X-CLK
signal.
Important note: The values of the X shift-register tend to leak
away after a while. Therefore it is very important to keep the
CLK_X signal asserted for as long as the sensor is powered
up. If the sensor sits idle and CLK_X is not asserted, the
leakage of the X shift-register will cause multiple columns to
be selected at once. This forces high current through the
sensor and may cause damage.
Document Number: 38-05714 Rev. *B
Page 10 of 21
[+] Feedback
STAR1000
Figure 6. Column Selection and Read Out Sequence
Row Idle Time
A0......A9
X1
X2
X3
X5
X8
X4
X6
X7
LD_X
a
b
CLK_X
X6
X2
X4
X1
X3
X5
Undefined Output Level
ANALOG
OUTPUT
CLK_ADC
c
X1
X3
X4
X2
D9......D0
Table 7. Timing Constraints of Column Read Out
Symbol
Min
20 ns
40 ns
0
Typ
Description
a
b
c
Address setup time.
Address valid time.
20 ns
ADC output valid after falling edge of CLK_ADC.
Document Number: 38-05714 Rev. *B
Page 11 of 21
[+] Feedback
STAR1000
Pin List
Figure 7. displays the pin connections of the STAR1000. The
tables that follow group the connections by their functionality.
Figure 7. STAR1000 Pin Connections
Table 8. Pin List of the STAR1000 Sensor
Pin
1
Pin Name
A3
Pin Type
Input
Input
Input
Input
Input
Input
Input
Input
Pin Description
Digital input.Address inputs for row and column addressing. A9=LSB,
A0=MSB.
2
A4
3
A5
4
A6
5
A7
6
A8
7
A9
8
LD_Y
Digital Input. Latch address (A0…A9) to Y-register (0 = track, 1 = hold).
Page 12 of 21
Document Number: 38-05714 Rev. *B
[+] Feedback
STAR1000
Table 8. Pin List of the STAR1000 Sensor (continued)
Pin
9
Pin Name
LD_X
Pin Type
Input
Pin Description
Digital input. Latch address (A0…A9) to X-register (0 = track, 1 = hold).
Analog power supply of the imager (typical 5V).
Digital ground of the imager.
10
11
12
13
14
VDDA
Supply
Ground
Ground
Input
GNDD
GNDA
Analog ground of the imager.
CLK_X
Digital input. Clock X-register (output valid & stable when CLK_X is high).
RESET_DS
Input
Digital input (high active). Resets row indicated by Y-address (see sensor
timing diagram).
RESET_DS is used for dual-slope integration (see FAQ).
GND is used for normal operation.
15
16
VDDD
Supply
Input
Digital supply of the image sensor.
RESET
Digital input (high active). Resets row indicated by Y-address (see sensor
timing diagram).
17
18
19
S
R
Input
Input
Input
Digital input (high active). Control signal for column amplifier (see sensor
timing diagram).
Digital input (high active). Control signal for column amplifier (see sensor
timing diagram).
NBIAS_DEC
Analog input. Biasing of address decoder.
Connect with 100 kΩ to VDDA and decouple with 100 to GND.
20
21
22
23
24
25
A_IN2
A_IN3
Input
Input
Input
Input
Input
Input
Additional analog inputs. For proper conversion with on-chip ADC, the
input signal must lie within the output signal range of the image sensor
(approximately +2V to +4V).
A_IN1
A_SEL1
A_SEL0
NBIAS_OAMP
Selection of analog channel: '00' selects image sensor ('01' selects A_IN1,
'10' A_IN2, and '11' A_IN3).
Analog input. Bias of output amplifier (speed/power control).
Connect with 100 kΩ to VDDA and decouple with 100 nF to GND for 12.5
MHz output rate (lower resistor values yield higher maximal pixel rates at
the cost of extra power dissipation).
26
PBIAS
Input
Analog input. Biasing of the multiplexer circuitry.
Connect with 20 kω to GND and decouple with 100 nF to VDD.
27
28
29
G1
G0
Input
Input
Input
Digital input. Select output amplifier gain value: G0 = LSB, G1 = MSB ('00'
= unity gain, '01' = x2, '10'= x4, '11'=x8).
CAL
Digital input (active high). Initialization of output amplifier. Output amplifier
outputs BLACKREF in unity gain mode when CAL is high (1).
Apply pulse pattern (see sensor timing diagram).
30
31
OUT
Output
Input
Analog Output Video Signal. Connected to the analog input of the internal
(pin 52) 10-bit ADC or an external ADC.
BLACKREF
Analog input. Control voltage for output signal offset level. Buffered
on-chip, the reference level can be generated by a 100 kω resistive divider.
Connect to 2V DC for use with on-chip ADC.
32
33
VDDA
VDDD
Supply
Supply
Analog power supply of image core (typical 5V).
Digital power supply of image core (typical 5V).
Document Number: 38-05714 Rev. *B
Page 13 of 21
[+] Feedback
STAR1000
Table 8. Pin List of the STAR1000 Sensor (continued)
Pin
34
35
36
Pin Name
GNDA
Pin Type
Ground
Ground
Input
Pin Description
Analog ground of image core.
Digital ground of image core.
GNDD
NBIAS_ARRAY
Analog input. Biasing of the pixel array. Connect with 1MΩ to VDDA and
decouple with 100 nF capacitor to GND.
37
38
TESTPIX_OUT
Output
Input
Output of single test pixel. Is used for electro-optical evaluation.
TESTPIX_RESET
Digital input (active high). Reset signal of single test pixel. Used to reset
the single test pixel during electro-optical evaluation.
39
40
41
42
43
44
45
46
47
48
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
n.c.
TESTPIXARRAY
Output
Output
Analog output of an array of 20 x 35 test pixels where all photodiodes are
connected in parallel. Is used for electro-optical evaluation.
49
PHOTODIODE
Plain Photo Diode (without circuitry). Area of the photodiode = 20 x 35
pixels. Is used for electro-optical evaluation.
50
51
52
NBIAS_ANA
NBIAS_ANA2
IN_ADC
Input
Input
Input
Analog input. Analog biasing of the ADC circuitry. Connect with 100 kΩ to
VDDA and decouple with 100 nF to GND.
Analog input of the internal ADC. Connect to analog output of image
sensor (pin 30).
Input range (typically 2V and 4V) of the internal ADC is set between by
VLOW_ADC (pin 55) and VHIGH_ADC (pin 62).
53
54
55
VDD_ADC_ANA
GND_ADC_ANA
VLOW_ADC
Supply
Ground
Input
Analog power supply of the ADC (typical 5V).
Analog ground of the ADC.
Low reference voltage of internal ADC. Nominal input range of the ADC
is between 2V and 4V. The resistance between VLOW_ADC and
VHIGH_ADC is approximately 1.5 kΩ. Connect with 1k 5Ω to GND and
decouple with 100 nF to GND.
56
57
58
n.c.
PBIASDIG2
BITINVERT
Input
Input
Connect with 20K to GND and decouple with 100 nF to VDDA.
Digital input. Inversion of the ADC output bits. 0 = invert output bits (0 =>
black, 1023; white, 0), 1 = no inversion of output bits (black, 0; white, 1023).
59
TRI_ADC
Input
Digital input. Tri-state control of digital ADC outputs (1 = tri-state, 0 =
normal mode).
60
61
D0
Input
Input
ADC output bits.#D0 = LSB, D9=MSB.
CLK
Digital input. ADC clock. ADC converts on falling edge.
Document Number: 38-05714 Rev. *B
Page 14 of 21
[+] Feedback
STAR1000
Table 8. Pin List of the STAR1000 Sensor (continued)
Pin
Pin Name
Pin Type
Pin Description
62
VHIGH_ADC
Input
High reference voltage of internal ADC. Nominal input range of the ADC
is between 2V and 4V. The resistance between VLOW_ADC and
VHIGH_ADC is about 1.5 kΩ.
Connect with 1k 1 Ω to VDDA and decouple with 100 nF to GND.
63
64
65
66
67
GND_ADC_ANA
VDD_ADC_ANA
VDD_ADC_DIG
GND_ADC_DIG
VDD_DIG_OUT
Ground
Supply
Supply
Output
Supply
Analog ground of the ADC circuitry.
Analog supply of the ADC circuitry (typical 5V).
Digital supply of the ADC circuitry (typical 5V).
Digital ground of the ADC circuitry.
Power supply of ADC digital output. Connect to 5V for normal operation.
Can be brought to lower voltage when image sensor must be interfaced
to low voltage periphery.
68
69
70
71
72
73
74
75
D1
D2
Output
Output
Output
Output
Output
Supply
Ground
Supply
ADC output bits. #D0 = LSB, D9=MSB.
D3
D4
D5
VDDA
GNDA
GND_AB
Analog supply of the image core (typical 5V).
Analog ground of the image core (typical 5V).
Anti-blooming drain control voltage. Default: connect to ground where the
anti-blooming is operational but not maximal. Apply 1V DC for improved
anti-blooming.
76
VREF
Supply
Analog supply. Reset level for RESET_DS. Is used for extended optical
dynamic range. See FAQ for more details.
77
78
79
80
81
82
83
84
VRES
D6
Supply
Output
Output
Output
Output
Input
Analog supply. Reset level for RESET (typical 5V).
ADC output bits.#D0 = LSB, D9=MSB.
D7
D8
D9
A0
Digital input. Address inputs for row and column addressing. A9=LSB,
A0=MSB.
A1
Input
A2
Input
Notes
1. All pins with the same name can be connected together.
2. Unused inputs must always be tied to an appropriate level, e.g., VDD or GND.
3. Note on power up behavior: At power on, the image sensor is in an undefined state. It is advised that after start up an address is latched as soon as possible
into the Y- decoder and the X- decoder to prevent high current consumption.
4. There is no on-chip power supply rejection. This means that every noise signal on the analog supply voltages is copied directly to the analog video signal
(decoupling of the supply voltages as close as possible to the image sensor is recommended).
Document Number: 38-05714 Rev. *B
Page 15 of 21
[+] Feedback
STAR1000
The detector is positioned into the cavity such that the optical
center of the detector coincides with the geometrical center of
the cavity within a tolerance of ± 50 µm in X- and Y direction.
The tolerance on the parallelism of the detector is ± 50 µm in
X- and Y- direction.
Packaging and Geometrical Constraints
Package Drawing
The detector is packaged in an 84-pin J-leaded package.
The detector is mounted into position with thermally and
electrically conductive adhesive. The bottom plate of the cavity
is electrically connected to a ground pin.
Note: The dimensions in Figure 8.are in inches.
Figure 8. Package Drawing
Document Number: 38-05714 Rev. *B
Page 16 of 21
[+] Feedback
STAR1000
Die Alignment
Figure 9. Die Alignment
Parallelism in
X and Y within
+ 50 mm
200 P
Y
Pin 1
Centre of Cavity
and of FPA
X
Centre of
Silicium
Offset Between Centre of
Silicium and Centre of
Cavity:
A
A
X: 52 Pm
Y: 200 Pm
52 P
Die:
0.508+0.01
Bonding Cavity:
0.508+0.051
Glass Window:
1.0+/-0.05
Window Adhesive:
0.08+0.02
Die Cavity:
0.508+0.051
A -
Die Adhesive:
0.08+0.02
Section A
Drawing Not to Scale
Glass Lids
There are 2 glass lid versions available:
• STAR1000 - Quartz glass with air inside the cavity
• STAR1000BK7 - BK7G18 glass with N2 inside the cavity
Document Number: 38-05714 Rev. *B
Page 17 of 21
[+] Feedback
STAR1000
Use a soldering iron with temperature control at the tip. The
soldering iron tip temperature should not exceed 350°C.
Soldering and Handling
Soldering and Handling Conditions
The soldering period for each pin should be less than five
seconds.
Take special care when soldering image sensors onto a circuit
board. Prolonged heating at elevated temperatures may result
in deterioration of the performance of the sensor. The following
recommendations are made to ensure that sensor
performance is not compromised during end users' assembly
processes.
Reflow Soldering
Reflow soldering is not allowed.
Precautions and Cleaning
Avoid spilling solder flux on the cover glass; bare glass and
particularly glass with antireflection filters may be harmed by
the flux. Avoid mechanical or particulate damage to the cover
glass.
Board Assembly
The STAR250 is very sensitive to ESD. Device placement onto
boards should be done in accordance with strict ESD controls
for Class 0, JESD22 Human Body Model, and Class A,
JESD22 Machine Model devices. Assembly operators need to
always wear all designated and approved grounding
equipment; grounded wrist straps at ESD protected
workstations are recommended including the use of ionized
blowers. All tools should be ESD protected.
Use isopropyl alcohol (IPA) as a solvent for cleaning the image
sensor glass lid. When using other solvents, it should be
confirm whether the solvent will dissolve the package and/or
the glass lid.
RoHS (lead free) Compliance
Manual Soldering
This paragraph reports the use of Hazardous chemical
substances as required by the RoHS Directive (excluding
packing material).
When a soldering iron is used the following conditions should
be observed:
Table 9. Chemical Substances in STAR250 Sensor
If there is any intentional content, in which portion
is it contained?
Chemical Substance
Any intentional content
Lead
NO
NO
NO
NO
NO
NO
-
-
-
-
-
-
Cadmium
Mercury
Hexavalent chromium
PBB (Polybrominated biphenyls)
PBDE (Polybrominated diphenyl ethers)
Information on Lead Free Soldering
to produce and maintain the required performance and
function of the intended product
The product cannot withstand a lead free soldering process.
Reflow or wave soldering Is not recommended. Hand
soldering is needed for this part type. Solder 1 pin on each side
and let the sensor cool down for minimum 1 minute before
continuing.
2. A case that the above material, which is used intentionally
in the manufacturing process, is contained in or adhered to
the inquired product.
The following case is not treated as "intentional content":
Note: "Intentional content" is defined as any material
demanding special attention is contained into the inquired
product by these cases:
A case that the above material is contained as an impurity into
raw materials or parts of the intended product. The impurity is
defined as a substance that cannot be removed industrially, or
it is produced at a process like chemical composing or reaction
and it cannot be removed technically.
1. A case that the above material is added as a chemical
composition into the inquired product intentionally in order
Document Number: 38-05714 Rev. *B
Page 18 of 21
[+] Feedback
STAR1000
Ordering Information
Table 10. Ordering Information
FillFactory Part Number
STAR1000
Cypress Part Number
CYIS1SM1000AA-HQC
CYIS1SM1000AA-HHC
Package
Glass Lid
Quartz
Mono/Color
Mono
84-pin JLCC
84-pin JLCC
STAR1000-BK7
BK7G18
Mono
Disclaimer
FillFactory reserves the right to change any information
contained herein without notice.
FillFactory image sensors are only warranteed to meet the
specifications as described in the production data sheet.
Please contact info@FillFactory.com for more information.
Document Number: 38-05714 Rev. *B
Page 19 of 21
[+] Feedback
STAR1000
Visual Basic software (under Windows 2000 or XP) allows the
grabbing and display of images from the sensor. All acquired
images can be stored in different file formats (8 or 16-bit). All
settings can be adjusted dynamically to evaluate the sensors
specs. Default register values can be loaded to start the
software in a desired state.
APPENDIX A: STAR1000 Evaluation System
For evaluating purposes, a STAR1000 evaluation kit is
available.
The STAR1000 evaluation kit consists of a multifunctional
digital board (memory, sequencer, and IEEE 1394 Fire Wire
interface) and an analog image sensor board.
All products and company names mentioned in this document
may be the trademarks of their respective holders.
Document Number: 38-05714 Rev. *B
Page 20 of 21
© Cypress Semiconductor Corporation, 2006. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be
used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its
products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
[+] Feedback
STAR1000
Document History Page
Document Title: STAR1000 1M Pixel Radiation Hard CMOS Image Sensor
Document Number: 38-05714
ISSUE
DATE
ORIG. OF
CHANGE
REV.
ECN NO.
DESCRIPTION OF CHANGE
Initial Cypress release
Converted to Framemaker Format
Package spec label update + ordering information update
**
310213
603177
649371
SEE ECN
SEE ECN
SEE ECN
SIL
*A
*B
QGS
FPW
Document Number: 38-05714 Rev. *B
Page 21 of 21
[+] Feedback
厂商 型号 描述 页数 下载

CYPRESS

 		CYI9530ZXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 11 页

CYPRESS

 		CYI9530ZXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 11 页

CYPRESS

 		CYI9531OXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531OXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531ZXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531ZXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYIA2SC0300AA-BQE 1/3“ VGA格式CMOS图像传感器[ 1/3” VGA-Format CMOS Image Sensor ] 18 页

CYPRESS

 		CYIFS741BSXBT [ Clock Generator, 68MHz, CMOS, PDSO8, SOIC-8 ] 19 页

CYPRESS

 		CYIFS781BSXC 低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ] 12 页

CYPRESS

 		CYIFS781BSXCT 低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.189779s
