CYIS1SM0250-EVAL

型号：

CYIS1SM0250-EVAL

描述：

250K像素辐射硬CMOS图像传感器[ 250K Pixel Radiation Hard CMOS Image Sensor ]

品牌：

CYPRESS[ CYPRESS ]

页数：

24 页

PDF大小：

466 K

下载PDF手册

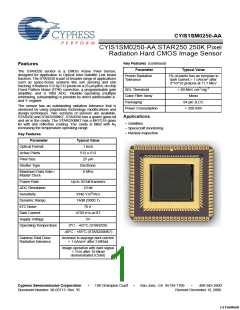

CYIS1SM0250-AA
CYIS1SM0250-AA STAR250 250K Pixel
Radiation Hard CMOS Image Sensor
Key Features (continued)
Features
Parameter
Typical Value
The STAR250 sensor is a CMOS Active Pixel Sensor,
designed for application in Optical Inter-Satellite Link beam
trackers. The STAR250 is part of broader range of applications
such as space-borne systems like sun sensing and star
tracking. It features 512 by 512 pixels on a 25 µm pitch, on chip
Fixed Pattern Noise (FPN) correction, a programmable gain
amplifier, and a 10bit ADC. Flexible operating (multiple
windowing, subsampling) is possible by direct addressable X-
and Y- register.
Proton Radiation
Tolerance
1% of pixels has an increase in
dark current > 1 nA/cm2 after
3*10^10 protons at 11.7 MeV
SEL Threshold
Color Filter Array
Packaging
> 80 MeV cm3 mg-1
Mono
84 pin JLCC
< 350 mW
The sensor has an outstanding radiation tolerance that is
observed by using proprietary technology modifications and
design techniques. Two versions of sensors are available,
STAR250 and STAR250BK7. STAR250 has a quartz glass lid
and air in the cavity. The STAR250BK7 has a BK7G18 glass
lid with anti reflective coating. The cavity is filled with N2
increasing the temperature operating range.
Power Consumption
Applications
• Satellites
• Spacecraft monitoring
• Nuclear inspection
Key Features
Parameter
Optical Format
Active Pixels
Pixel Size
Typical Value
1 Inch
512 x 512
25 µm
Shutter Type
Electronic
8 MHz
Maximum Data Rate /
Master Clock
Frame Rate
Up to 30 full frames/s
10 bit
ADC Resolution
Sensitivity
3340 V.m2/W.s
74dB (5000:1)
76 e-
Dynamic Range
kTC Noise
Dark Current
4750 e-/s at RT
Supply Voltage
Operating Temperature
5V
0°C - +65°C (STAR250)
-40°C - +85°C (STAR250BK7)
Gamma Total Dose
Radiation tolerance
Increase in average dark current
< 1 nA/cm2 after 3 MRad
Image operation with dark signal
< 1V/s after 10 Mrad
demonstrated (Co60)
Cypress Semiconductor Corporation
Document Number: 38-05713 Rev. *B
•
198 Champion Court
•
San Jose, CA 95134-1709
•
408-943-2600
Revised December 12, 2006
[+] Feedback
CYIS1SM0250-AA
Specifications
General Specifications
Table 1. General Specifications
Parameter
Specification
Remarks
Pixel Architecture
3-transistor active pixel
4 diodes per pixel
Radiation-tolerant pixel design
4 photodiodes for improved MTF
Pixel Size
25 x 25 µm2
512 by 512 pixels
8 Mps
Resolution
Pixel Rate
Shutter Type
Electronic
Integration time is variable in time, steps equal to the row
readout time
Frame Rate
29 full frames/second
Double slope
Extended dynamic range
Programmable gain
Supply voltage VDD
Programmable between x1, x2, x4, x8 Selectable through pins G0 and G1
5V
Operational temperature
range
0°C - +65°C
-40°C - +85°C
84 pins JLCC
STAR250 (Quartz glass lid, air in cavity)
STAR250BK7 (BK7G18 glass lid, N2 in cavity)
Package
Electro-optical Specifications
Overview
Table 2. Electro-optical Specifications
Parameter
Detector Technology
Pixel Structure
Specification (all typical)
Comment
CMOS Active Pixel Sensor
3-transistor active pixel
4 diodes per pixel
Radiation-tolerant pixel design
4 Photodiodes for improved MTF
Photodiode
High fill factor photodiode
512 by 512 pixels
25 x 25 µm2
Sensitive Area Format
Pixel Size
Spectral Range
200 - 1000 nm
Max. 35%
See curves
Quantum Efficiency x Fill
Factor
Above 20% between 450 and 750 nm
(Note: Metal FillFactor (MFF) is 63%)
Full Well Capacity
Linear Range within + 1%
Output Signal Swing
Conversion Gain
311K electrons
128K electrons
1.68 V
When output amplifier gain = 1
When output amplifier gain = 1
When output amplifier gain = 1
When output amplifier gain = 1 near dark
Dominated by kTC
5.7 µV/e-
Temporal Noise
76 e-
Dynamic Range
74 dB (5000:1)
At the analog output
Document Number: 38-05713 Rev. *B
Page 2 of 24
[+] Feedback
CYIS1SM0250-AA
Table 2. Electro-optical Specifications (continued)
Parameter
Specification (all typical)
Comment
FPN (Fixed Pattern Noise)
1 < 0.1% of full well
(typical)
Measured local, on central image area 50% of pixels, in
the dark
PRNU (Photo Response
Non-uniformity)
Local: 1 = 0.39% of response
Global: 1 = 1.3% of response
Measured in central image area 50% of pixels, at Qsat/2
Average Dark Current
Signal
4750 e-/s
At RT
DSNU (Dark Signal Non
Uniformity)
3805 e-/s RMS
At RT, scale linearly with integration time
at 600 nm.
MTF
Horizontal: 0.36
Vertical: 0.39
Optical Cross Talk
5% (TBC) to nearest neighbor if central
pixel is homogeneously illuminated
Anti-blooming Capacity
Output Amplifier Gain
Windowing
x 1000 to x 100 000
1, 2, 4 or 8
Controlled by 2 bits
X and Y 9-bit programmable shift
registers
Indicate upper left pixel of each window
Electronic Shutter Range
1: 512
Integration time is variable in time steps equal to the row
readout time
ADC
10 bit
± 3.5 counts
none
ADC Linearity
Missing Codes
ADC Setup Time
ADC Delay Time
Power Dissipation
INL
310 ns
To reach 99% of final value
Average at 8 MHz pixel rate
125 ns
< 350 mW
Document Number: 38-05713 Rev. *B
Page 3 of 24
[+] Feedback
CYIS1SM0250-AA
Spectral Response Curve
Figure 1. Spectral Response Curve
0.2
QE 0.4
QE 0.3
QE 0.2
0.15
0.1
QE 0.1
QE 0.05
QE 0.01
0.05
0
400
500
600
700
800
900
1000
1100
Wavelength [nm]
Figure 2. UV Region Spectral Response Curve
STAR250
UV-measurement
1,00E+00
200
250
300
350
400
450
QE 100%
500
1,00E-01
1,00E-02
1,00E-03
1,00E-04
QE 10%
QE 1%
WaveLength [nm]
Document Number: 38-05713 Rev. *B
Page 4 of 24
[+] Feedback
CYIS1SM0250-AA
Pixel Profile
Figure 3. Pixel Profile
horizontal pixel profile
Vertica pixel profile
Imaginary pixel boundaries
0
5
10
15
20
25
30
35
40
45
50
55
60
65
70
75
80
85
90
95 100 105 110
Scan distance [mm]
The pixel profile is measured using the 'knife edge' method:
the image of a target containing a black to white transition is
scanned over a certain pixel with subpixel resolution steps.
The image sensors settings and the illumination conditions are
adjusted such that the transition covers 50% of the output
range. The scan is performed both horizontal and vertical.
Document Number: 38-05713 Rev. *B
Page 5 of 24
[+] Feedback
CYIS1SM0250-AA
Electrical Specifications
Absolute Maximum Ratings
Table 3. Absolute Maximum Ratings STAR250
Characteristics
Limits
Units
Remarks
Min
-0.5
-0.5
0
Max
+7
Any Supply Voltage
V
V
Voltage on any Input Terminal
Operating Temperature
Vdd + 0.5
+60
°C
°C
°C
Storage Temperature
-10
NA
+60
Sensor soldering Temperature
125
Hand soldering only. The
sensor’s temperature
during soldering should not
exceed this limit.
Table 4. Absolute Maximum Ratings STAR250BK7
Characteristics Limits
Units
Remarks
Min
-0.5
-0.5
-40
-40
-40
NA
Max
+7
Any Supply Voltage
V
Voltage on any Input Terminal
Operating Temperature
Storage Temperature
Vdd + 0.5
+85
V
°C
°C
°C
°C
+85
+120
125
Maximum 1 hour
Sensor soldering Temperature
Hand soldering only. The
sensor’s temperature
during soldering should not
exceed this limit.
Radiation Tolerance
Table 5. Radiation Tolerance
Parameter
Criterion
Qualification level
Gamma Total Dose Radiation
tolerance
Increaseinaveragedarkcurrent See graph
< 1 nA/cm2 after 3 MRad
Imageoperationwithdarksignal 10 Mrad demonstrated (Co60)
< 1V/s
Single (test) pixel operation with 24 Mrad demonstrated (Co60)
dark signal < 1V/s
Proton Radiation Tolerance
SEL Threshold
1% of pixels has an increase in see graph
dark current > 1 nA/cm2 after
3*10^10 protons at 11.7 MeV
> 80 MeV cm3 mg-1
To be confirmed
Figure 4. shows the increase in dark current under total dose
irradiation. This curve is measured when the radiation is at
high dose rate. Annealing results in a significant dark current
decrease.
Document Number: 38-05713 Rev. *B
Page 6 of 24
[+] Feedback
CYIS1SM0250-AA
Figure 4. Dark Current Increase
1,4
1,2
1
0,8
0,6
0,4
0,2
0
0
2
4
6
8
10
12
Total Ionizing Dose [Mrad(Si)]
Figure 5. shows the percentage of pixels with a dark current
increase under 11.7 Mev radiation with protons.
Absolute Ratings are those values beyond that damage to the
device may occur.
Figure 5. Percentage of Pixels with Dark Current Increase
Notes
1. All parameters are characterized for DC conditions after establishing thermal equilibrium.
2. Unused inputs must always be tied to an appropriate logic level, e.g. either VDD or GND.
3. This device contains circuitry to protect the inputs against damage due to high static voltages or electric fields. Take, normal precautions to avoid applying any
voltages higher than the maximum rated voltages to this high-impedance circuit.
Document Number: 38-05713 Rev. *B
Page 7 of 24
[+] Feedback
CYIS1SM0250-AA
DC Operating Conditions
Table 6. DC operating conditions
Symbol
Parameter
Min
Typ
Max
Units
V
VDD_ANA
VDD_DIG
VDD_ADC_ANA
VDD_ADC_DIG
VDD_ADC_DIG_3.3/5
VIH
Analogue supply voltage to imager part
Digital supply voltage to imager part
Analogue supply voltage to ADC
Digital supply voltage to ADC
Supply voltage of ADC output stage
Logical '1' input voltage
5
5
V
5
5
V
V
3.3 to 5
V
2.3
0
Vdd
1
V
VIL
Logical '0' input voltage
V
VOH
Logical '1' output voltage
4.25
4.5
0.1
5
V
VOL
Logical '0' output voltage
1
V
VDD_PIX
Pixel array power supply (default 5V, the device is
then in "soft reset". In order to avoid the image lag
associated with soft reset, reduce this voltage to
3…3.5V "hard reset")
V
VDD_RESL
Reset power supply
5
V
Document Number: 38-05713 Rev. *B
Page 8 of 24
[+] Feedback
CYIS1SM0250-AA
Sensor Architecture
Figure 6. STAR250 Schematic
Clk_YR
SyncYR
Sync_YL
Clk_YL
9
10
512
512
Pixel Array
512 by 512 Pixels
D9...D0
Ld_Y
Col
Sel
Rst
9
9
Clk_ADC
Ain
A8...A0
512
S
R
Column Amplifiers
Rst
1024
1024
Progr. Gain
Amplifier
512
Aout
Sig
9
X Address
Decoder / Shift Register
Ld_X
The base line of the STAR250 sensor design consists of an
imager with a 512 by 512 array of active pixels at 25 µm pitch.
The detector contains on-chip correction for Fixed Pattern
Noise (FPN) in the column amplifiers, a programmable gain
output amplifier and a 10-bit Analog-to-Digital Converter
(ADC). Through additional preset registers the start position of
a window can be programmed to enable fast read out of only
part of the detector array.
the column bus by T3. The Reset and the Read entrance of
the pixel are connected to one of the Y shift registers.
Figure 7. STAR250 Pixel Structure
T1
Read
Reset
T2
Pixel Structure
The image sensor consists of several building blocks as
outlined in Figure 6. The central element is a 512 by 512 pixel
array with square pixels at 25 µm pitch. Unlike classical
designs, the pixels of this sensor contain four photodiodes.
This configuration enhances the MTF and reduces the PRNU.
Figure 7. shows an electrical diagram of the pixel structure.
The four photodiodes are connected in parallel to the reset
transistor (T1). Transistor T2 converts the charge, collected on
the photo diode node, to a voltage signal that is connected to
T3
Document Number: 38-05713 Rev. *B
Page 9 of 24
[+] Feedback
CYIS1SM0250-AA
Shift Registers
The first process resets lines in a progressive scan. At line
reset, all the pixels in a line are drained from any photo
charges collected since their last reset or readout. After reset,
a new exposure cycle starts for that particular line.
The shift registers are located next to the pixel array and
contain as many outputs as the number of rows in the pixel
array. They are designed as "1-hot" registers, (YL and YR shift
register) each allowing selection of one row of pixels at a time.
A clock pulse moves the pointer one position down the register
resulting in the selection of every individual row for either reset
or for readout. The spatial offset between the two selected
rows determines the integration time. A synchronization pulse
to the shift registers loads the value from a preset register into
the shift register forcing the pointer to a predetermined
position. Windowing in the vertical (Y) direction is achieved by
presetting the registers to a row that is not the first row and by
clocking out only the required number of rows.
The second process is the actual readout, which also happens
in an equally fast linewise progressive scan.
During readout, the photo charges collected since the
previous reset are converted into an output voltage. This is
then passed on pixel by pixel to the imager's pixel serial output
and ADC. Readout is destructive, meaning the accumulation
of charges from successive exposure phases is not possible
in the present architecture.
The STAR250 has two Y- shift registers; YL and YR. One is
used for readout of a line (YL) and the other is used to reset a
line (YR). The integration time is equal to the time between the
last reset and the readout of that line, see Figure 8. The
integration time is thus equal to:
Column Amplifiers
All outputs from the pixels in a column are connected in parallel
to a column amplifier. This amplifier samples the output
voltage and the reset level of the pixel whose row is selected
at that moment and presents these voltage levels to the output
amplifier. As a result, the pixels are always reset immediately
after readout as part of the sample procedure and the
maximum integration time of a pixel is the time between two
read cycles.
Integration time = (Nr. Lines * (RBT + pixel period * Nr. Pixels))
with:
• Nr. Lines: Number of Lines between readout and reset (Y).
• Nr. Pixels: Number of pixels read out each line (X).
• RBT: Row Blanking Time = 3.2 µs (typical).
• Pixel period: 1/8 MHz = 125 ns (typical).
Electronic Shutter
In a linescan integrating imager with electronic shutter, there
are two continuous processes of image gathering.
Figure 8. Electronic Shutter
x
Reset line
Read line
y
x
y
Reset sequence
Line number
Time axis
Integration time
Frame time
Document Number: 38-05713 Rev. *B
Page 10 of 24
[+] Feedback
CYIS1SM0250-AA
Programmable Gain Amplifier
Image Readout
The signal from the column amplifiers is fed to an output
amplifier with four presettable gains (adjustable with pins G0
and G1). The offset correction of this amplifier is done through
a black reference procedure. The signal from the output
amplifier is externally available on the analog output
terminator of the device.
In an infinite uninterrupted loop, follow these steps line-by-line:
1. Synchronize the read (YL) and/or reset (YR) registers, in
this cases:
• SYNC_YL - to reinitiate the readout sequence to row
position Y1
• SYNC_YR - to reinitiate the reset pointer to row position
Y1
Analog-to-Digital Converter
For all other lines do not pulse one of these SYNC_Y signals.
The on-chip 10-bit ADC is electrically separated from the other
circuits of the device. The ADC conversion range is set by the
voltages on VLOW_ADC (pin 47) and VHIGH_ADC (pin 70).
Make voltages on these pins equal to about 2V on
VLOW_ADC and 4V on VHIGH_ADC. The voltages are set by
connecting VLOW with 1.2kΩ to GND and VHIGH_ADC with
560Ω to VDD. This way, a resistor ladder is created as shown
in Figure 9.
2. Operate the double sampling column amplifiers with two
RESETs. Apply one to reset the line that is currently
selected to produce the reset reference level for the double
sampling column amplifiers. Apply the other reset to
another line depending on the required integration time
reduction.
3. Perform a Line Readout:
Figure 9. ADC Resistor Ladder
Reset the X read address shift register to the value in its
shadow register (X1).
Perform a pixel readout operation, operating the track/hold
and the ADC.
RADC_VHIGH
Shift the X read address shift register one position further.
Shift the Y read and reset address shift registers one position
further. If either of Y read or reset address shift register comes
to the end of the pixel array (or the ROI), wrap it around to the
start position by pulsing SYNC_YL.
Pin 70: VHIGH_ADC
External
Internal
RADC
Readout Timing
The actual line readout process starts with addressing the line
to read. This is done either by initializing the YL pointer with a
new value, or by shifting it one position beyond its previous
value. (Addressing the line has reset, YR is done in an
analogous fashion). During the "blanking time", after the new
line is addressed on the sensor, the built-in column-parallel
double sampling amplifiers are operated. This renders
offset-corrected values of the line under readout.
External
Pin 47: VLOW_ADC
RADC_VLOW
After the blanking time the pixels of the row addressed by YL
are read by multiplexing all the pixels one by one to the serial
output chain. The pixel is selected by the X pointer, and that
pointer is either initialized with a new value or an increment of
the previous position.
The internal ADC resistance varies according to temperature.
The resistance value increases approximately 4.4 Ω/°C with
increasing temperature. If the ADC range is set externally with
resistors, the conversion range may vary with temperature.
This effect is cancelled out by not making use of resistors but
directly applying voltages on VLOW_ADC and VHIGH_ADC.
The time between row resets and their corresponding row
readouts is the effective exposure time (or integration time).
This time is proportional to the number of lines (DelayLines)
between the line currently under reset and the line currently
under readout: DelayLines = (YR - YL+1). This time is also
equal to the delay between the SYNC_YR pulse and the
subsequent SYNC_YR.
Timing and Readout of the Image Sensor
Image Readout Procedure
The effective integration time tint is calculated as delaylines *
line time. The line time itself is a function of four terms: the time
to output the desired number of pixels in the line (Wframe), and
the overhead ("blanking") time that is needed to select an new
line and perform the double sampling and reset operations.
A preamble or initialization phase is irrelevant. The sensor is
read out continuously. The first frame is generally saturated
and useless because there is no preceding reset of each pixel.
Document Number: 38-05713 Rev. *B
Page 11 of 24
[+] Feedback
CYIS1SM0250-AA
Figure 10. Basic Readout Timing
SYNC_YL
SYNC_YR
T13
T10
CAL
T2
T9
T16
Row Start
Address
T15
T17
LD_Y
CLK_YL
CLK_YR
T14
T12
T1
S
T3
T7
RESET
T4
T4
T6
R
T11
T5
L/R
T8
Time Available for Read Out of Row Y
Row
Y-1
Row Blanking Time
SYNC_YR is not identical to as SYNC_YL. SYNC_YR is used
in case of electronic shutter operation. The CLK_YR is driven
identically as CLK_YL, but the SYNC_YR pulse leads the
SYNC_YL pulse by a certain number of rows. This lead time
is the effective integration (electronic shutter ~) time. Relative
to the row timing, both SYNC pulses are given at the same
time position, once for each frame, but during different rows.
first row. CAL is pulsed on the first row too, 2 µs later than
SYNC_YL.
The minimal idle time is 1.4 µs (before starting reading pixels).
However, do not read out pixels during the complete row initial-
ization process (in between the rising edge on S and the falling
edge on L/R). In this case, the total idle time is minimal. This
timing assumes that the Y start register was loaded in
advance, which can occur at any time but before the pulse on
SYNC_YL or SYNC_YR.
SYNC_YL is pulsed when the first row is read out and
SYNC_YR is pulsed for the electronic shutter to start for this
Table 7. Readout Timing Specifications
Symbol
Min
Typ
Description
T1
1.8 µs
Delay between selection of new row by falling edge on CLK_YL and falling edge on S.
Minimal value. Normally, CLK_YR is low already at the end of the previous sequence.
T2
T3
T4
T5
1.8 µs
0.4 µs
Delay between selection of new a row by SYNC_YL and falling edge on S.
Duration of S and R pulse.
0.1 µs
Duration of RESET pulse.
T4 + 40 ns
0.3 µs
L/R pulse must overlap second RESET pulse at both sides.
Document Number: 38-05713 Rev. *B
Page 12 of 24
[+] Feedback
CYIS1SM0250-AA
Table 7. Readout Timing Specifications (continued)
Symbol
T6
Min
0.8 µs
20 ns
0
Typ
Description
Delay between falling edge on RESET and falling edge on R.
Delay between falling edge on S and rising edge on RESET.
Delay between falling edge on L/R and falling edge on CLK_Y.
Duration of cal pulse. The CAL pulse is given once each frame.
Delay between falling edge of SYNC_YL and rising edge of CAL pulse.
Delay between falling edge on R and rising edge on L/R.
Delay between rising edge of CLK_Y and falling edge on S.
Pulse width SYNC_YL / YR
T7
0.1 µs
1 µs
T8
T9
100 ns
0
1 µs
T10
T11
T12
T13
T14
T15
T16
T17
T18
T19
T20
T21
T22
2 µs
40 ns
0.1 µs
0.1 µs
1 µs
0.5 µs
0.5 µs
Pulse width CLK_YL / YR
10 ns
20 ns
10 ns
10 ns
20 ns
10 ns
Address set-up time
Load X / Y start register value
Address stable after load
SYNC_X pulse width. SYNC_X while CLK_X is high.
40 ns
40 ns
Analogue output is stable during CLK_X low.
CLK_X pulse width: During this clock phase the analogue output ramps to the next
pixel level.
T23
125 ns
ADC digital output stable after falling edge of CLK_ADC
Loading the X- and Y- Start Positions
The following timing constraints apply:
The start positions (start addresses) for "ROI" (Region Of
Interest) are preloaded in the X or Y start register. They
become effective by the application of the SYNC_X,
SYNC_YL and/or SYNC_YR. The start X- or Y address must
be applied to their common address bus, and the
corresponding LD_X or LD_Y pin must be pulsed.
Load the X or Y start addresses in advance, before the X or Y
shift registers are preset by a SYNC pulse. However, if
necessary, they can be load just before the SYNC_X or
SYNC_Y pulse as shown in the Figure 11.
E.g. the X start register can be loaded during the row idle time.
The Y start register can be loaded during readout of the last
row of the previous frame.
On each falling edge of CLK_X, a new pixel of the same row
(line) is accessed. The output stage is in hold when CLK_X is
low and starts generating a new output after a rising edge on
CLK_X.
If the X or Y start address does not change for later frames, it
does not need to be reloaded in the register.
Document Number: 38-05713 Rev. *B
Page 13 of 24
[+] Feedback
CYIS1SM0250-AA
Figure 11. Timing for Loading the X- and Y- Register
Row Blanking Time
Time Available for Read Out of Row Y
Column Start
Address
T15
T17
LD_X
T16
T19
SYNC_X
CLK_X
T18
T20
T21
T22
Analog
Output
Pixel 3
Pixel 1
Pixel 2
CLK ADC
ADC Out
T23
Pixel 1
Pixel 2
Other Signals
used mainly during testing to verify proper operation of the shift
registers.
Tie SELECT signal to VDD for normal operation. This signal
was added for diagnostic reasons and inhibits the pixel array
operation when held low.
TEST DIODE and TESTPIXEL ARRAY are connections to
optical test structures that are used for electro optical
evaluation. TESTDIODE is a plain photodiode with an area of
14x5 pixels. TESTPIXEL_ARRAY is an array (14x5) of pixels
where the photodiodes are connected in parallel. These
structures measure the photocurrent of the diodes directly.
The CAL signal sets the output amplifier DC offset level. When
this signal is active (high) the pixel array is internally
disconnected from the output amplifier, its gain is set to unity
and its input signal is connected to the BLACK_REF input.
Perform this action at least once for each frame.
TESTPIXEL_RESET and TESTPIXEL-OUT are connections
to a single pixel that are used for testing.
EOS_X, EOS_YL and EOS_YR produce a pulse when the
respective shift register comes at its end. These outputs are
Document Number: 38-05713 Rev. *B
Page 14 of 24
[+] Feedback
CYIS1SM0250-AA
Pinlist
Table 8. Power Supply Connections
Pin
10
11
Pin Name
VDD_ANA
Pin Description
Analog power supply 5V.
Digital power supply 5V.
VDD_DIG
31
33
34
49
50
53
66
67
69
VDD_AMP
Power supply of output amplifier 5V.
Digital power supply 5V.
VDD_DIG
VDD_ANA
Analogue power supply 5V.
Reset power supply 5V.
VDD_RESR
VDD_DIG
Digital power supply 5V.
VDD_ADC_ANA
VDD_ADC_ANA
VDD_ADC_DIG
ADC analogue power supply 5V.
ADC analogue power supply 5V.
ADC digital power supply 5V.
VDD_ADC_DIG_3.3/5 ADC 3.3V power supply for digital output of ADC.
For interface with 5V external system: connect to VDD_ADC_DIG.
For interface with 3.3 V external system: connect to 3.3V power supply.
52
76
VDD_PIX
Pixel array power supply [default: 5V, the device is then in "soft reset". In order to avoid
the image lag associated with soft reset, reduce this voltage to 3…3.5 V "hard reset"].
78
79
VDD_DIG
Digital power supply 5V.
Reset power supply 5V.
VDD_RESL
Table 9. Ground Connections
Pin
9
Pin Name
GND_ANA
Pin Description
Analog ground.
12
30
32
35
51
54
65
68
77
GND_DIG
Digital ground.
GND_AMP
Ground of output amplifier.
Digital ground.
GND_DIG
GND_ANA
Analog ground.
GND_DIG
Digital ground.
GND_ADC_ANA
GND_ADC_ANA
GND_ADC_DIG
GND_DIG
ADC analog ground.
ADC analog ground.
ADC digital ground.
Digital ground.
Table 10. Digital Input Signals
Pin
Pin Name
Pin Description
1
S
Control signal for column amplifier.
Apply pulse pattern - see sensor timing diagram.
2
R
Control signal for column amplifier.
Apply pulse pattern - see sensor timing diagram.
Document Number: 38-05713 Rev. *B
Page 15 of 24
[+] Feedback
CYIS1SM0250-AA
Table 10. Digital Input Signals (continued)
Pin
Pin Name
Pin Description
Resets row indicated by left/right shift register.
3
RESET
high active (1= reset row).
Apply pulse pattern - see sensor timing diagram.
4
5
SELECT
L/R
Selects row indicated by left/right shift register.
high active (1=select row).
Apply 5 V DC for normal operation.
Use left or right shift register for SELECT and RESET.
1 = left / 0 = right - see sensor timing diagram.
6
A0
A1
Start address for X- and Y- pointers (LSB).
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers.
Start address for X- and Y- pointers (MSB).
7
8
A2
13
14
15
16
17
18
19
20
21
22
A3
A4
A5
A6
A7
A8
LD_Y
LD_X
CLK_YL
SYNC_YL
Latch address (A0…A8) to Y start register (0 = track, 1 = hold).
Latch address (A0…A8) to X start register(0 = track, 1 = hold).
Clock YL shift register (shifts on falling edge).
Sets YL shift register to location preloaded in Y start register.
Low active (0=sync).
Apply SYNC_YL when CLK_YL is high.
24
25
CLK_X
Clock X shift register (output valid & s when CLK_X is low).
SYNC_X
Sets X shift register to location preloaded in X start register.
Low active (0=sync).
Apply SYNC_X when CLK_X is high.
After SYNC_X, apply falling edge on CLK_X, and rising edge on CLK_X.
27
28
CLK_YR
Clock YR shift register (shifts on falling edge).
SYNC_YR
Sets YR shift register to location preloaded in Y start register.
Low active (0=sync).
Apply SYNC_YR when CLK_YR is high.
36
37
CAL
G0
Initialize output amplifier.
Output amplifier will output BLACKREF in unity gain mode when CAL is high (1).
Apply pulse pattern (one pulse per frame) - see sensor timing diagram.
Select output amplifier gain value: G0 = LSB; G1 = MSB.
00 = unity gain; 01 = x2; 10= x4; 11=x8.
38
71
G1
idem.
CLK_ADC
ADC clock.
ADC converts on falling edge.
75
BITINVERT
1 = invert output bits.
0 = no inversion of output bits.
Document Number: 38-05713 Rev. *B
Page 16 of 24
[+] Feedback
CYIS1SM0250-AA
Table 10. Digital Input Signals (continued)
Pin
Pin Name
Pin Description
Tri-state control of digital ADC outputs
80
TRI_ADC
1 = tri-state; 0 = output
Table 11. Digital Output Signals
Pin
Pin Name
Pin Description
23
EOS_YL
End-of-scan of YL shift register.
Low first clock period after last row (low active).
26
29
EOS_X
End-of-scan of X shift register.
Low first clock period after last active column (low active).
EOS_YR
End-of-scan of YR shift register.
Low first clock period after last row (low active).
55
56
57
58
59
60
61
62
63
64
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
ADC output bit (LSB).
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit.
ADC output bit (MSB).
Table 12. Analog Input Signals
Pin
39
Pin Name
NBIASARR
PBIAS
Pin Description
Connect with 470 k to Vdd and decouple to ground with a 100 nF capacitor.
40
Connect with 39 k to ground and decouple to Vdd with a 100 nF capacitor for 8 MHz
pixel rate. (Lower resistor values yield higher maximal pixel rates at the cost of extra
power dissipation).
41
NBIAS_AMP
Output amplifier speed/power control.
Connect with 51kΩ to VDD and decouple with 100 nF to GND for 8 MHz output rate
(Lower resistor values yield higher maximal pixel rates at the cost of extra power
dissipation).
42
44
BLACKREF
IN_ADC
Control voltage for output signal offset level.
Buffered on-chip, the reference level can be generated by a 100kΩ resistive divider.
Connect to +/- 2 V DC for use with on-chip ADC.
Input, connect to sensor's output.
Input range is between 2 & 4 V (VLOW_ADC & VHIGH_ADC).
45
46
NBIASANA2
NBIASANA
Connect with 100 k to VDD and decouple to GND.
Connect with 100 k to VDD and decouple to GND.
47
70
VLOW_ADC
VHIGH_ADC
Low reference and high reference voltages of ADC should be about 2 and 4V.
The required voltage settings on VLOW_ADC and VHIGH_ADC can be approximated
by tying VLOW_ADC with 1.2kΩ to GND and VHIGH_ADC with 560Ω to VDD.
Document Number: 38-05713 Rev. *B
Page 17 of 24
[+] Feedback
CYIS1SM0250-AA
Table 12. Analog Input Signals (continued)
Pin
Pin Name
Pin Description
Anti-blooming drain control voltage:
48
G_AB
Default: connect to ground. The anti-blooming is operational but not maximal.
Apply 1V DC for improved anti-blooming.
72
73
74
PBIASDIG2
PBIASENCLOAD
PBIASDIG1
Connect with 100K to GND and decouple to VDD.
Connect with 100K to GND and decouple to VDD.
Connect with 47K to GND and decouple to VDD.
Table 13. Analog Output Signals
Pin
Pin Name
Pin Description
43
OUT
Analogue output signal are connected to the analogue input of the ADC.
Table 14. Test Structures
Pin
Pin Name
Pin Description
81
TESTDIODE
Plain photo diode, size: 14 x 25 pixels.
Must be left open for normal operation.
82
83
84
TESTPIX
ARRAY
Array of test pixels, connected in parallel (14 x 25 pixels).
Must be left open for normal operation.
TESTPIXEL_RESET
Reset input of single test pixel.
Must be tied to GND for normal operation.
TESTPIXEL_OUT
Output of single test pixel.
Must be left open for normal operation.
Document Number: 38-05713 Rev. *B
Page 18 of 24
[+] Feedback
CYIS1SM0250-AA
Package
Package with Glass
Note: All dimension in Figure 12. are measured in inches.
Figure 12. STAR250 Package Dimensions
Table 15. Package Specifications:
Type
Material
JLCC-84
Black Alumina BA-914
7.6 x 10-6 /K
Thermal expansion coefficient
Document Number: 38-05713 Rev. *B
Page 19 of 24
[+] Feedback
CYIS1SM0250-AA
Die Alignment
Figure 13. Die Alignment
Parallelism in
X and Y within
+ 50 Pm
68 P
Pin 1
Center of Cavity
and of FPA
Center of
Silicium
Offset Between Center of
Silicium and Center of
Cavity:
A
A
X: 0
Y: 68 Pm
Die:
0.508+0.01
Bonding Cavity:
0.508+0.051
Glass Window:
1.0+/-0.05
Window Adhesive:
0.08+0.02
Die Cavity:
0.508+0.051
A -
Die Adhesive:
0.08+0.02
Section A
Drawing Not to Scale
The die is aligned manually in the package to a tolerance of ±50 µm and the alignment is verified after hardening the die adhesive.
All dimensions in figure 13 are in mm.
Document Number: 38-05713 Rev. *B
Page 20 of 24
[+] Feedback
CYIS1SM0250-AA
Window Specifications
STAR250
Table 16. STAR250 Glass Cover Specifications:
Material
Dimensions
Fused Silica
25 x 25 mm +- 0.2 mm
Thickness
1 mm +- 0.05 mm
Anti reflective coating
Cavity fill
No
Air
STAR250BK7
Table 17. STAR250BK7 Glass Cover Specifications
Material
Dimensions
BK7G18
25 x 25 mm +- 0.2 mm
1 mm +- 0.05 mm
Yes
Thickness
Anti reflective coating
Cavity fill
N2
Document Number: 38-05713 Rev. *B
Page 21 of 24
[+] Feedback
CYIS1SM0250-AA
Use a soldering iron with temperature control at the tip. The
soldering iron tip temperature should not exceed 350°C.
Soldering and Handling
Soldering and Handling Conditions
The soldering period for each pin should be less than five
seconds.
Take special care when soldering image sensors onto a circuit
board. Prolonged heating at elevated temperatures may result
in deterioration of the performance of the sensor. The following
recommendations are made to ensure that sensor
performance is not compromised during end users' assembly
processes.
Reflow Soldering
Reflow soldering is not allowed.
Precautions and Cleaning
Avoid spilling solder flux on the cover glass; bare glass and
particularly glass with antireflection filters may be harmed by
the flux. Avoid mechanical or particulate damage to the cover
glass.
Board Assembly
The STAR250 is very sensitive to ESD. Device placement onto
boards should be done in accordance with strict ESD controls
for Class 0, JESD22 Human Body Model, and Class A,
JESD22 Machine Model devices. Assembly operators need to
always wear all designated and approved grounding
equipment; grounded wrist straps at ESD protected
workstations are recommended including the use of ionized
blowers. All tools should be ESD protected.
Use isopropyl alcohol (IPA) as a solvent for cleaning the image
sensor glass lid. When using other solvents, it should be
confirm whether the solvent will dissolve the package and/or
the glass lid.
RoHS (lead free) Compliance
Manual Soldering
This paragraph reports the use of Hazardous chemical
substances as required by the RoHS Directive (excluding
packing material).
When a soldering iron is used the following conditions should
be observed:
Table 18. Chemical Substances in STAR250 Sensor
If there is any intentional content, in which portion
is it contained?
Chemical Substance
Any intentional content
Lead
NO
NO
NO
NO
NO
NO
-
-
-
-
-
-
Cadmium
Mercury
Hexavalent chromium
PBB (Polybrominated biphenyls)
PBDE (Polybrominated diphenyl ethers)
Information on Lead Free Soldering
to produce and maintain the required performance and
function of the intended product
The product cannot withstand a lead free soldering process.
Reflow or wave soldering is not allowed. Hand soldering only.
Solder 1 pin on each side of the sensor and let it cool down for
at least 1 minute before continuing
2. A case that the above material, which is used intentionally
in the manufacturing process, is contained in or adhered to
the inquired product.
The following case is not treated as "intentional content":
Note: "Intentional content" is defined as any material
demanding special attention is contained into the inquired
product by these cases:
A case that the above material is contained as an impurity into
raw materials or parts of the intended product. The impurity is
defined as a substance that cannot be removed industrially, or
it is produced at a process like chemical composing or reaction
and it cannot be removed technically.
1. A case that the above material is added as a chemical
composition into the inquired product intentionally in order
Document Number: 38-05713 Rev. *B
Page 22 of 24
[+] Feedback
CYIS1SM0250-AA
Ordering Information
Part Numbers
FillFactory part number
STAR250
Cypress Part number
CYIS1SM0250AA-HQC
CYIS1SM0250AA-HHC
CYIS1SM0250-EVAL
Package
Glass Lid
Mono/Color
Mono
84-pin JLCC
84-pin JLCC
84-pin JLCC
Quartz fused silica
BK7G18
STAR250BK7
Mono
Evaluation system
Quartz fused silica
Mono
Evaluation kit
grabbing and display of images from the sensor. All acquired
images can be stored in different file formats (8 or 16-bit). All
setting can be adjusted on the fly to evaluate the sensors
specs. Default register values can be loaded to start the
software in a desired state. Please contact us for more
information.
For evaluating purposes an STAR250 evaluation kit is
available. The STAR250 evaluation kit consists of
multifunctional digital board (memory, sequencer and IEEE
1394 Fire Wire interface) and an analog image sensor board.
Visual Basic software (under Win 2000 or XP) allows the
a
All products and company names mentioned in this document
may be the trademarks of their respective holders
Document Number: 38-05713 Rev. *B
Page 23 of 24
© Cypress Semiconductor Corporation, 2006. The information contained herein is subject to change without notice. Cypress Semiconductor Corporation assumes no responsibility for the use
of any circuitry other than circuitry embodied in a Cypress product. Nor does it convey or imply any license under patent or other rights. Cypress products are not warranted nor intended to be
used for medical, life support, life saving, critical control or safety applications, unless pursuant to an express written agreement with Cypress. Furthermore, Cypress does not authorize its
products for use as critical components in life-support systems where a malfunction or failure may reasonably be expected to result in significant injury to the user. The inclusion of Cypress
products in life-support systems application implies that the manufacturer assumes all risk of such use and in doing so indemnifies Cypress against all charges.
[+] Feedback
CYIS1SM0250-AA
Document History Page
Document Title: CYIS1SM0250-AA STAR250 250K Pixel Radiation Hard CMOS Image Sensor
Document Number: 38-05713
ISSUE
DATE
ORIG. OF
CHANGE
REV.
ECN NO.
DESCRIPTION OF CHANGE
**
*A
*B
310213
603159
649360
SEE ECN
SEE ECN
SEE ECN
SIL
Origination
QGS
FPW
Converted to Framemaker Format
Title update + package spec label
Document Number: 38-05713 Rev. *B
Page 24 of 24
[+] Feedback
厂商 型号 描述 页数 下载

CYPRESS

 		CYI9530ZXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 11 页

CYPRESS

 		CYI9530ZXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 11 页

CYPRESS

 		CYI9531OXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531OXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531ZXC PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYI9531ZXCT PCIX I / O系统时钟发生器，带有EMI控制功能[ PCIX I/O System Clock Generator with EMI Control Features ] 10 页

CYPRESS

 		CYIA2SC0300AA-BQE 1/3“ VGA格式CMOS图像传感器[ 1/3” VGA-Format CMOS Image Sensor ] 18 页

CYPRESS

 		CYIFS741BSXBT [ Clock Generator, 68MHz, CMOS, PDSO8, SOIC-8 ] 19 页

CYPRESS

 		CYIFS781BSXC 低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ] 12 页

CYPRESS

 		CYIFS781BSXCT 低EMI的扩频时钟[ Low EMI Spectrum Spread Clock ] 12 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.220436s
