XZMYK55W-4

型号:

XZMYK55W-4

描述:

3.2x1.6mm SMD贴片LED LAMP[ 3.2X1.6mm SMD CHIP LED LAMP ]

品牌:

SUNLED[ SUNLED CORPORATION ]

页数:

3 页

PDF大小:

182 K

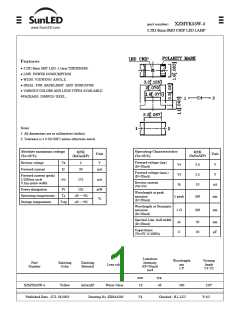

part number:
XZMYK55W-4
www.SunLED.com
3.2X1.6mm SMD CHIP LED LAMP
Features
3.2X1.6mm SMT LED, 1.1mm THICKNESS.
LOW POWER CONSUMPTION.
WIDE VIEWING ANGLE.
IDEAL FOR BACKLIGHT AND INDICATOR.
VARIOUS COLORS AND LENS TYPES AVAILABLE.
PACKAGE: 2000PCS / REEL .
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ± 0.2(0.008") unless otherwise noted.
Operating Characteristics
(T =25°C)
Absolute maximum ratings
MYK
MYK
(InGaAIP)
Unit
Unit
(InGaAIP)
A
(TA=25°C)
Forward voltage (typ.)
(I =20mA)
Reverse voltage
Forward current
V
R
5
V
V
F
F
2.0
2.5
10
V
V
F
IF
30
mA
Forward voltage (max.)
(I =20mA)
V
Forward current (peak)
1/10Duty cycle
0.1ms pulse width
F
iFS
175
mA
Reverse current
(V =5V)
IR
uA
R
Power dissipation
P
T
A
125
mW
°C
Wavelength at peak
emission
(IF=20mA)
Operating temperature
Storage temperature
T
-40 ~ +85
-40 ~ +85
λ peak
λ D
590
590
nm
nm
Tstg
Wavelength at Dominate
emission
(IF=20mA)
Spectral Line half-width
(IF=20mA)
∆λ
20
20
nm
pF
Capacitance
C
(VF=0V, f=1MHz)
Luminous
Intensity
(IF=20mA)
mcd
Wavelength
Viewing
Angle
2 θ 1/2
Part
Number
Emitting
Color
Emitting
Material
Lens-color
nm
λ P
min.
18
typ.
48
XZMYK55W-4
Yellow
InGaAIP
Water Clear
590
120°
Published Date : JUL 28,2003
Drawing No :XDSA1392
V4
Checked : B.L
part number:
XZMYK55W-4
www.SunLED.com
3.2X1.6mm SMD CHIP LED LAMP
MYK
Published Date : JUL 28,2003
Drawing No :XDSA1392
V4
Checked : B.L.LIU
P.2/3
part number:
XZMYK55W-4
www.SunLED.com
3.2X1.6mm SMD CHIP LED LAMP
SMT Reflow Soldering Instructions
Recommended Soldering Pattern (Units : mm;Tolerance:± 0.1)
Tape Specification (Units : mm)
Published Date : JUL 28,2003
Drawing No :XDSA1392
V4
Checked : B.L.LIU
P.3/3
