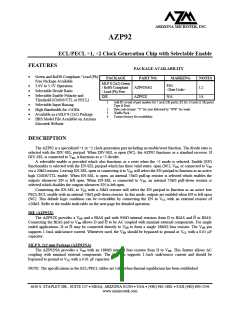

ARIZONA MICROTEK, INC.
AZP92
ECL/PECL ÷1, ÷2 Clock Generation Chip with Selectable Enable
FEATURES
PACKAGE AVAILABILITY
•
Green and RoHS Compliant / Lead (Pb)
Free Package Available
3.0V to 5.5V Operation
PACKAGE
PART NO.
MARKING
NOTES
1,2
MLP 8 (2x2) Green
/ RoHS Compliant
/ Lead (Pb) Free
P1G
<Date Code>
•
•
•
AZP92NAG
Selectable Divide Ratio
Selectable Enable Polarity and
Threshold (CMOS/TTL or PECL)
Selectable Input Biasing
High Bandwidth for ≥1GHz
Available in a MLP 8 (2x2) Package
IBIS Model File Available on Arizona
Microtek Website
DIE
AZP92X
N/A
3,4
1
Add R1 at end of part number for 7 inch (1K parts), R2 for 13 inch (2.5K parts)
•
•
•
•
Tape & Reel.
2
3
4
Date code format: “Y” for year followed by “WW” for week.
Waffle Pack
Contact factory for availability
DESCRIPTION
The AZP92 is a specialized ÷1 or ÷2 clock generation part including an enable/reset function. The divide ratio is
selected with the DIV-SEL pin/pad. When DIV-SEL is open (NC), the AZP92 functions as a standard receiver. If
DIV-SEL is connected to VEE, it functions as a ÷2 divider.
A selectable enable is provided which also functions as a reset when the ÷2 mode is selected. Enable (EN)
functionality is selected with the EN-SEL pin/pad which has three valid states: open (NC), VEE, or connected to VEE
via a 20kΩ resistor. Leaving EN-SEL open or connecting it to VEE will select the EN pin/pad to function as an active
high CMOS/TTL enable. When EN-SEL is open, an internal 75kΩ pull-up resistor is selected which enables the
outputs whenever EN is left open. When EN-SEL is connected to VEE, an internal 75kΩ pull-down resistor is
selected which disables the outputs whenever EN is left open.
Connecting the EN-SEL to VEE with a 20kΩ resistor will select the EN pin/pad to function as an active low
PECL/ECL enable with an internal 75kΩ pull-down resistor. In this mode, outputs are enabled when EN is left open
(NC). This default logic condition can be overridden by connecting the EN to VCC with an external resistor of
≤20kΩ. Refer to the enable truth table on the next page for detailed operation.
DIE (AZP92X)
The AZP92X provides a VBB and a BIAS pad with 940Ω internal resistors from D to BIAS and D¯ to BIAS.
Connecting the BIAS pad to VBB allows D and D¯ to be AC coupled with minimal external components. For single
ended applications, D or D¯ may be connected directly to VBB to form a single 1880Ω bias resistor. The VBB pin
supports 1.5mA sink/source current. Whenever used, the VBB should be bypassed to ground or VCC with a 0.01 μF
capacitor.
MLP 8, 2x2 mm Package (AZP92NA)
The AZP92NA provides a VBB with an 1880Ω internal bias resistor from D to VBB. This feature allows AC
coupling with minimal external components. The VBB pin supports 1.5mA sink/source current and should be
bypassed to ground or VCC with a 0.01 μF capacitor.
NOTE: The specifications in the ECL/PECL tables are valid when thermal equilibrium has been established.
