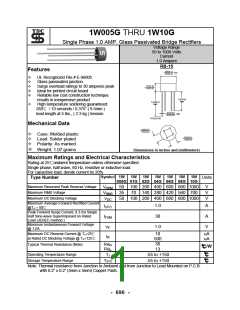

1W005G THRU 1W10G
Single Phase 1.0 AMP. Glass Passivated Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
RB-15
Features
ꢀ
ꢀ
ꢀ
ꢀ
ꢀ
UL Recognized File # E-96005
Glass passivated junction
Surge overload ratings to 30 amperes peak
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
ꢀ
High temperature soldering guaranteed:
260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
Mechanical Data
ꢀ
ꢀ
ꢀ
Case: Molded plastic
Lead: Solder plated
Polarity: As marked
ꢀ Weight: 1.07 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol
1W 1W 1W 1W 1W 1W 1W
005G 01G 02G 04G 06G 08G 10G
Type Number
Units
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
50 100 200 400 600 800 1000
V
V
V
VRRM
VRMS
VDC
35
70 140 280 420 560 700
Maximum DC Blocking Voltage
50 100 200 400 600 800 1000
Maximum Average Forward Rectified Current
@TA = 50℃
1.0
A
A
V
I(AV)
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.0A
30
IFSM
1.0
VF
IR
Maximum DC Reverse Current @ TA=25℃
at Rated DC Blocking Voltage @ TA=125℃
10
500
36
uA
uA
RθJA
RθJL
Typical Thermal Resistance (Note)
℃/W
13
Operating Temperature Range
Storage Temperature Range
℃
℃
TJ
-55 to +150
TSTG
-55 to +150
Note: Thermal resistance from Junction to Ambient and from Junction to Lead Mounted on P.C.B.
with 0.2” x 0.2” (5mm x 5mm) Copper Pads.
- 696 -
