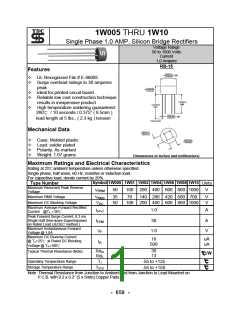

1W005 THRU 1W10
Single Phase 1.0 AMP. Silicon Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
RB-15
Features
ꢀ
ꢀ
UL Recognized File # E-96005
Surge overload ratings to 30 amperes
peak
ꢀ
ꢀ
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs., ( 2.3 kg ) tension
ꢀ
Mechanical Data
ꢀ
ꢀ
ꢀ
ꢀ
Case: Molded plastic
Lead: solder plated
Polarity: As marked
Weight: 1.07 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol 1W005 1W01 1W02 1W04 1W06 1W08 1W10
Type Number
Maximum Recurrent Peak Reverse
Voltage
Units
V
50
100 200 400 600 800 1000
70 140 280 420 560 700
VRRM
Maximum RMS Voltage
35
50
V
V
VRMS
VDC
Maximum DC Blocking Voltage
100 200 400 600 800 1000
Maximum Average Forward Rectified
Current @TA = 50℃
1.0
A
A
V
I(AV)
IFSM
VF
Peak Forward Surge Current, 8.3 ms
Single Half Sine-wave Superimposed
on Rated Load (JEDEC method )
Maximum Instantaneous Forward
Voltage @ 1.0A
30
1.0
Maximum DC Reverse Current
@ TA=25℃ at Rated DC Blocking
Voltage @ TA=100℃
10
500
uA
uA
IR
RθJA
RθJL
36
13
Typical Thermal Resistance (Note)
℃/W
Operating Temperature Range
Storage Temperature Range
℃
℃
TJ
-55 to +125
TSTG
-55 to +150
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on
P.C.B. with 0.2 x 0.2” (5 x 5mm) Copper Pads.
