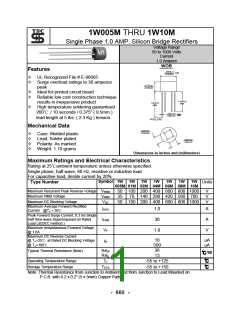

1W005M THRU 1W10M
Single Phase 1.0 AMP. Silicon Bridge Rectifiers
Voltage Range
50 to 1000 Volts
Current
1.0 Ampere
WOB
Features
ꢀ
ꢀ
UL Recognized File # E-96005
Surge overload ratings to 30 amperes
peak
ꢀ
ꢀ
Ideal for printed circuit board
Reliable low cost construction technique
results in inexpensive product
High temperature soldering guaranteed:
260℃ / 10 seconds / 0.375” ( 9.5mm )
lead length at 5 lbs. ( 2.3 Kg ) tension
ꢀ
Mechanical Data
ꢀ
ꢀ
ꢀ
ꢀ
Case: Molded plastic
Lead: Solder plated
Polarity: As marked
Weight: 1.10 grams
Dimensions in inches and (millimeters)
Maximum Ratings and Electrical Characteristics
Rating at 25℃ambient temperature unless otherwise specified.
Single phase, half wave, 60 Hz, resistive or inductive load.
For capacitive load, derate current by 20%
Symbol 1W 1W 1W
1W
1W
1W
1W
Type Number
Units
005M 01M 02M 04M 06M 08M 10M
Maximum Recurrent Peak Reverse Voltage
Maximum RMS Voltage
VRRM
VRMS
VDC
50 100 200 400 600 800 1000
V
V
V
35
70 140 280 420 560 700
Maximum DC Blocking Voltage
50 100 200 400 600 800 1000
Maximum Average Forward Rectified
Current @TA = 50℃
I(AV)
IFSM
VF
1.0
A
A
V
Peak Forward Surge Current, 8.3 ms Single
Half Sine-wave Superimposed on Rated
Load (JEDEC method )
Maximum Instantaneous Forward Voltage
@ 1.0A
30
1.0
Maximum DC Reverse Current
@ TA=25℃ at Rated DC Blocking Voltage
@ TA=100℃
10
500
36
uA
uA
IR
RθJA
RθJL
Typical Thermal Resistance (Note)
℃/W
13
Operating Temperature Range
Storage Temperature Range
℃
℃
TJ
-55 to +125
TSTG
-55 to +150
Note: Thermal Resistance from Junction to Ambient and from Junction to Lead Mounted on
P.C.B. with 0.2 x 0.2” (5 x 5mm) Copper Pads.
- 660 -
