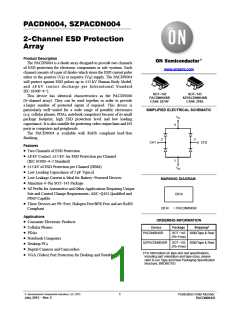

PACDN004, SZPACDN004
2-Channel ESD Protection
Array
Product Description
The PACDN004 is a diode array designed to provide two channels
of ESD protection for electronic components or sub−systems. Each
channel consists of a pair of diodes which steers the ESD current pulse
www.onsemi.com
either to the positive (V ) or negative (V ) supply. The PACDN004
P
N
will protect against ESD pulses up to 15 kV Human Body Model,
and 8 kV contact discharge per International Standard
IEC 61000−4−2.
SOT−143
PACDN004SR
CASE 527AF
SOT−143
SZPACDN004SR
CASE 318A
This device has identical characteristics as the PACDN006
(6−channel array). They can be used together in order to provide
a larger number of protected inputs if required. This device is
particularly well−suited for a wide range of portable electronics
(e.g. cellular phones, PDAs, notebook computers) because of its small
package footprint, high ESD protection level and low loading
capacitance. It is also suitable for protecting video output lines and I/O
ports in computers and peripherals.
SIMPLIFIED ELECTRICAL SCHEMATIC
V
P
4
The PACDN004 is available with RoHS compliant lead−free
finishing.
2
3
CH1
CH2
Features
• Two Channels of ESD Protection
•
8 kV Contact, 15 kV Air ESD Protection per Channel
(IEC 61000−4−2 Standard)
1
•
15 kV of ESD Protection per Channel (HBM)
V
N
• Low Loading Capacitance of 3 pF Typical
• Low Leakage Current is Ideal for Battery−Powered Devices
• Miniature 4−Pin SOT−143 Package
MARKING DIAGRAM
• SZ Prefix for Automotive and Other Applications Requiring Unique
Site and Control Change Requirements; AEC−Q101 Qualified and
PPAP Capable
D014
• These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS
D014
= PACDN004SR
Compliant
Applications
ORDERING INFORMATION
• Consumer Electronic Products
• Cellular Phones
• PDAs
• Notebook Computers
• Desktop PCs
• Digital Cameras and Camcorders
• VGA (Video) Port Protection for Desktop and Portable PCs
†
Device
Package
Shipping
PACDN004SR
SOT−143 3000/Tape & Reel
(Pb−Free)
SZPACDN004SR
SOT−143 3000/Tape & Reel
(Pb−Free)
†For information on tape and reel specifications,
including part orientation and tape sizes, please
refer to our Tape and Reel Packaging Specification
Brochure, BRD8011/D.
© Semiconductor Components Industries, LLC, 2015
1
Publication Order Number:
July, 2015 − Rev. 5
PACDN004/D
PACDN004, SZPACDN004
TYPICAL APPLICATION CIRCUIT
V
CC
1
4
0.22 mF*
PACDN004
2
Video
Driver
Camera
Video
NTSC Video
Connector
Digital Camera Video Port
ESD Protection
* Decoupling capacitor must be placed as close as possible to Pin4.
PACKAGE / PINOUT DIAGRAM
Top View
V
1
2
4
3
V
P
N
CH1
CH2
SOT−143
Table 1. PIN DESCRIPTIONS
PACDN004 (SOT−143)
Pin
1
Name
Type
GND
I/O
Description
V
N
Negative Voltage Supply Rail or Ground Reference Rail
ESD Channel 1
2
CH1
CH2
3
I/O
ESD Channel 2
4
V
P
Supply
Positive Voltage Supply Rail
www.onsemi.com
2
PACDN004, SZPACDN004
SPECIFICATIONS
Table 2. ABSOLUTE MAXIMUM RATINGS
Parameter
Rating
6.0
Units
V
Supply Voltage (V − V )
P
N
Diode Forward DC Current (Note 1)
Operating Temperature Range
Storage Temperature Range
DC Voltage at any Channel Input
Package Power Rating
20
mA
°C
−40 to +85
−65 to +150
°C
(V − 0.5) to (V + 0.5)
V
N
P
225
mW
Stresses exceeding those listed in the Maximum Ratings table may damage the device. If any of these limits are exceeded, device functionality
should not be assumed, damage may occur and reliability may be affected.
1. Only one diode conducting at a time.
Table 3. STANDARD OPERATING CONDITIONS
Parameter
Rating
−40 to +85
0 to 5.5
Units
°C
Operating Temperature Range
Operating Supply Voltage (V − V )
V
P
N
Functional operation above the stresses listed in the Recommended Operating Ranges is not implied. Extended exposure to stresses beyond
the Recommended Operating Ranges limits may affect device reliability.
Table 4. ELECTRICAL OPERATING CHARACTERISTICS (Note 1)
Symbol
Parameter
Supply Current
Conditions
(V − V ) = 5.5 V
Min
Typ
Max
10
Units
mA
I
P
P
N
V
Diode Forward Voltage
I = 20 mA
0.65
0.95
1.0
5
V
F
F
I
Channel Leakage Current
Channel Input Capacitance
0.1
3
mA
LEAK
C
@ 1 MHz, V = 5 V,
pF
IN
P
V
N
= 0 V, V = 2.5 V
IN
V
ESD
ESD Protection
kV
Peak Discharge Voltage at any
Channel Input, in System
a) Human Body Model,
MIL−STD−883, Method 3015
b) Contact Discharge per
IEC 61000−4−2 Standard
(Note 2)
(Notes 2 and 3)
(Notes 2 and 4)
15
8
c) Air Discharge per IEC 61000−4−2 (Notes 2 and 4)
15
V
CL
Channel Clamp Voltage
@ 15 kV ESD HBM
(Notes 2 and 3)
V
Positive Transients
Negative Transients
V
P
V
N
+ 13.0
− 13.0
Product parametric performance is indicated in the Electrical Characteristics for the listed test conditions, unless otherwise noted. Product
performance may not be indicated by the Electrical Characteristics if operated under different conditions.
1. All parameters specified at T = 25°C unless otherwise noted. V = 5 V, V = 0 V unless noted.
A
P
N
2. From I/O pins to V or V only. V bypassed to V with a 0.22 mF ceramic capacitor (see Application Information for more details).
P
N
P
N
3. Human Body Model per MIL−STD−883, Method 3015, C
= 100 pF, R
= 330 W, V = 5.0 V, V grounded.
= 1.5 kW, V = 5.0 V, V grounded.
Discharge
Discharge P N
4. Standard IEC 61000−4−2 with C
= 150 pF, R
Discharge
Discharge P N
www.onsemi.com
3

PACDN004, SZPACDN004
PERFORMANCE INFORMATION
Input Capacitance vs. Input Voltage
Figure 1. Typical Variation of CIN vs. VIN
(VP = 5 V, VN = 0 V, 0.1 mF Chip Capacitor between VP and VN)
APPLICATION INFORMATION
Design Considerations
In order to realize the maximum protection against ESD pulses, care must be taken in the PCB layout to minimize parasitic
series inductances on the Supply/Ground rails as well as the signal trace segment between the signal input (typically
a connector) and the ESD protection device. Refer to Application of Positive ESD Pulse between Input Channel and Ground,
which illustrates an example of a positive ESD pulse striking an input channel. The parasitic series inductance back to the power
supply is represented by L and L . The voltage V on the line being protected is:
1
2
CL
VCL + FwdꢀVoltageꢀDropꢀofꢀD1 ) VSUPPLY ) L1   d(IESD)ńdt ) L2   d(IESD)ńdt
is the ESD current pulse, and V is the positive supply voltage.
where I
ESD
SUPPLY
An ESD current pulse can rise from zero to its peak value in a very short time. As an example, a level 4 contact discharge
per the IEC61000−4−2 standard results in a current pulse that rises from zero to 30 Amps in 1 ns. Here d(I )/dt can be
ESD
−9
approximated by DI
/Dt, or 30/(1x10 ). So just 10 nH of series inductance (L and L combined) will lead to a 300 V
1 2
ESD
increment in V
!
CL
Similarly for negative ESD pulses, parasitic series inductance from the V pin to the ground rail will lead to drastically
N
increased negative voltage on the line being protected.
Another consideration is the output impedance of the power supply for fast transient currents. Most power supplies exhibit
a much higher output impedance to fast transient current spikes. In the V equation above, the V
term, in reality, is
CL
SUPPLY
given by (V + I
x R
), where V and R
are the nominal supply DC output voltage and effective output impedance
DC ESD
OUT
DC
OUT
of the power supply respectively. As an example, a R
10 A.
of 1ĂW would result in a 10 V increment in V for a peak I
of
OUT
CL
ESD
If the inductances and resistance described above are close to zero, the rail−clamp ESD protection diodes will do a good job
of protection. However, since this is not possible in practical situations, a bypass capacitor must be used to absorb the very high
frequency ESD energy. So for any brand of rail−clamp ESD protection diodes, a bypass capacitor should be connected between
the V pin of the diodes and the ground plane (V pin of the diodes) as shown in the Application Circuit diagram below. A value
P
N
of 0.22 mF is adequate for IEC−61000−4−2 level 4 contact discharge protection ( 8 kV). Ceramic chip capacitors mounted with
short printed circuit board traces are good choices for this application. Electrolytic capacitors should be avoided as they have
poor high frequency characteristics. For extra protection, connect a zener diode in parallel with the bypass capacitor to mitigate
www.onsemi.com
4
PACDN004, SZPACDN004
the effects of the parasitic series inductance inherent in the capacitor. The breakdown voltage of the zener diode should be
slightly higher than the maximum supply voltage.
As a general rule, the ESD Protection Array should be located as close as possible to the point of entry of expected
electrostatic discharges. The power supply bypass capacitor mentioned above should be as close to the V pin of the Protection
P
Array as possible, with minimum PCB trace lengths to the power supply, ground planes and between the signal input and the
ESD device to minimize stray series inductance.
Additional Information
See also ON Semiconductor Application Notes AP209, “Design Considerations for ESD Protection” and AP219, “ESD
Protection for USB 2.0 Systems”.
L
2
POSITIVE SUPPLY RAIL
V
P
PATH OF ESD CURRENT PULSE I
ESD
D
D
LINE BEING
1
SYSTEM OR
CIRCUITRY
BEING
L
1
PROTECTED
0.22 mF
ONE
CHANNEL
OF
CHANNEL
INPUT
PROTECTED
2
PACDN004
V
CL
20 A
0 A
GROUND RAIL
V
N
CHASSIS GROUND
Figure 2. Application of Positive ESD Pulse between Input Channel and Ground
www.onsemi.com
5
PACDN004, SZPACDN004
PACKAGE DIMENSIONS
SOT−143
CASE 318A−06
ISSUE U
D
e
NOTES:
1. DIMENSIONING AND TOLERANCING PER ASME Y14.5M, 1994.
2. CONTROLLING DIMENSION: MILLIMETERS.
3. MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH. MINIM­
UM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE
MATERIAL.
4. DIMENSIONS D AND E DO NOT INCLUDE MOLD FLASH, PRO­
TRUSIONS, OR GATE BURRS. MOLD FLASH, PROTRUSIONS,
AND GATE BURRS SHALL NOT EXCEED 0.25 PER SIDE.
DIMENSION E1 DOES NOT INCLUDE INTERLEAD FLASH OR
PROTRUSION. INTERLEAD FLASH AND PROTRUSION SHALL
NOT EXCEED 0.25 PER SIDE.
D
E
A
GAUGE
PLANE
SEATING
PLANE
L
L2
5. DIMENSIONS D AND E1 ARE DETERMINED AT DATUM H.
6. DATUMS A AND B ARE DETERMINED AT DATUM H.
DETAIL A
E1
MILLIMETERS
b1
e1
DIM MIN
MAX
1.12
0.15
0.51
0.94
0.20
3.05
2.64
1.40
3X
b
B
A
A1
b
0.80
0.01
0.30
0.76
0.08
2.80
2.10
1.20
M
0.20
C A-B D
TOP VIEW
b1
c
D
H
c
E
c
0.10
C
E1
e
1.92 BSC
0.20 BSC
0.35 0.70
0.25 BSC
A
DETAIL A
e1
L
A1
SEATING
PLANE
C
SIDE VIEW
END VIEW
L2
RECOMMENDED
SOLDERING FOOTPRINT
1.92
4X
0.75
2.70
0.20
0.96
3X
0.54
DIMENSIONS: MILLIMETERS
www.onsemi.com
6
PACDN004, SZPACDN004
PACKAGE DIMENSIONS
SOT−143, 4 Lead
CASE 527AF
ISSUE A
D
e
SYMBOL
MIN
NOM
MAX
A
A1
A2
b
1.22
0.15
1.07
0.50
0.89
0.20
3.04
2.64
1.40
0.80
0.05
0.75
0.30
0.76
0.08
2.80
2.10
1.20
4
1
3
2
0.90
b2
E1
E
c
D
2.90
E
E1
e
1.30
1.92 BSC
0.20 BSC
0.50
e1
TOP VIEW
b
e1
L
0.40
0.60
L1
L2
θ
0.54 REF
0.25
0°
8°
L2
q
c
A2
A1
A
L
b2
L1
SIDE VIEW
END VIEW
Notes:
(1) All dimensions are in millimeters. Angles in degrees.
(2) Complies with JEDEC TO-253.
ON Semiconductor and
are registered trademarks of Semiconductor Components Industries, LLC (SCILLC). SCILLC reserves the right to make changes without further notice
to any products herein. SCILLC makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does SCILLC assume any liability
arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages.
“Typical” parameters which may be provided in SCILLC data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All
operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights
nor the rights of others. SCILLC products are not designed, intended, or authorized for use as components in systems intended for surgical implant into the body, or other applications
intended to support or sustain life, or for any other application in which the failure of the SCILLC product could create a situation where personal injury or death may occur. Should
Buyer purchase or use SCILLC products for any such unintended or unauthorized application, Buyer shall indemnify and hold SCILLC and its officers, employees, subsidiaries, affiliates,
and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death
associated with such unintended or unauthorized use, even if such claim alleges that SCILLC was negligent regarding the design or manufacture of the part. SCILLC is an Equal
Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
PUBLICATION ORDERING INFORMATION
LITERATURE FULFILLMENT:
N. American Technical Support: 800−282−9855 Toll Free
USA/Canada
Europe, Middle East and Africa Technical Support:
Phone: 421 33 790 2910
Japan Customer Focus Center
Phone: 81−3−5817−1050
ON Semiconductor Website: www.onsemi.com
Order Literature: http://www.onsemi.com/orderlit
Literature Distribution Center for ON Semiconductor
P.O. Box 5163, Denver, Colorado 80217 USA
Phone: 303−675−2175 or 800−344−3860 Toll Free USA/Canada
Fax: 303−675−2176 or 800−344−3867 Toll Free USA/Canada
Email: orderlit@onsemi.com
For additional information, please contact your local
Sales Representative
PACDN004/D
厂商 型号 描述 页数 下载

SIRENZA

 		SZP-2026Z 2.2-2.7GHz 2W的InGaP放大器[ 2.2-2.7GHz 2W InGaP Amplifier ] 12 页

SIRENZA

 		SZP-3026Z 3.0-3.8GHz 2W的InGaP放大器[ 3.0-3.8GHz 2W InGaP Amplifier ] 10 页

SIRENZA

 		SZP-5026Z 的4.9GHz到5.9GHz 2W的InGaP放大器[ 4.9GHz to 5.9GHz 2W InGaP AMPLIFIER ] 14 页

SIRENZA

 		SZP-5026Z-EVB1 的4.9GHz到5.9GHz 2W的InGaP放大器[ 4.9GHz to 5.9GHz 2W InGaP AMPLIFIER ] 14 页

SIRENZA

 		SZP-5026Z-EVB2 的4.9GHz到5.9GHz 2W的InGaP放大器[ 4.9GHz to 5.9GHz 2W InGaP AMPLIFIER ] 14 页

LITTELFUSE

 		SZP6SMB100AT3G [ Trans Voltage Suppressor Diode, 600W, 85.5V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN ] 7 页

LITTELFUSE

 		SZP6SMB10AT3G [ Trans Voltage Suppressor Diode, 600W, 8.55V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN ] 7 页

LITTELFUSE

 		SZP6SMB11CAT3G [ Trans Voltage Suppressor Diode, 600W, 9.4V V(RWM), Bidirectional, 1 Element, Silicon, SMB, 2 PIN ] 5 页

ONSEMI

 		SZP6SMB11CAT3G [ 600 Watt SMB Transient Voltage Suppressor, 11 V, Bidirectional, SMB, 2500-REEL ] 6 页

LITTELFUSE

 		SZP6SMB120AT3G [ Trans Voltage Suppressor Diode, 600W, 102V V(RWM), Unidirectional, 1 Element, Silicon, SMB, 2 PIN ] 7 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.199561s
