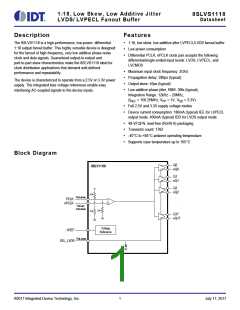

1:18, Low Skew, Low Additive Jitter
LVDS/ LVPECL Fanout Buffer
8SLVS1118
Datasheet
Description
Features
The 8SLVS1118 is a high-performance, low-power, differential
1:18 output fanout buffer. This highly versatile device is designed
for the fanout of high-frequency, very low additive phase-noise
clock and data signals. Guaranteed output-to-output and
part-to-part skew characteristics make the 8SLVS1118 ideal for
clock distribution applications that demand well-defined
performance and repeatability.
▪ 1:18, low skew, low additive jitter LVPECL/LVDS fanout buffer
▪ Low power consumption
▪ Differential PCLK, nPCLK clock pair accepts the following
differential/single-ended input levels: LVDS, LVPECL, and
LVCMOS
▪ Maximum input clock frequency: 2GHz
▪ Propagation delay: 290ps (typical)
▪ Output skew: 40ps (typical)
The device is characterized to operate from a 2.5V or 3.3V power
supply. The integrated bias voltage references enable easy
interfacing AC-coupled signals to the device inputs.
▪ Low additive phase jitter, RMS: 39fs (typical),
Integration Range: 12kHz – 20MHz,
(fREF 156.25MHz, VPP 1V, VDD 3.3V)
▪ Full 2.5V and 3.3V supply voltage modes
▪ Device current consumption: 180mA (typical) IEE for LVPECL
output mode, 400mA (typical) IDD for LVDS output mode
▪ 48-VFQFN, lead-free (RoHS 6) packaging
▪ Transistor count: 1762
▪ -40°C to +85°C ambient operating temperature
▪ Supports case temperature up to 105°C
Block Diagram
Q0
8SLV1118I
nQ0
Q1
nQ1
Q2
nQ2
51k
Pull-down
.
.
.
PCLK
nPCLK
Pull-up /
Pull-down
51k
51k
Q17
nQ17
Voltage
Reference
VREF
Pull-down
SEL_LVDS
51k
©2017 Integrated Device Technology, Inc.
1
July 17, 2017
8SLVS1118 Datasheet
Pin Assignment
Figure 1. Pin Assignment for 7mm 7mm VFQFN Package – Top View
48 47 46 45 44 43 42 41 40 39 38 37
1
nQ10
35 Q10
nQ9
33 Q9
36
GND
2
Q16
3
34
nQ16
4
Q17
5
32
nQ8
Q8
nQ17
6
31
VDD
8SLVS1118
7
30 nQ7
29 Q7
VDD_IN
8
9
VREF
nPCLK
28
27 Q6
nQ6
10
PCLK
26
25
nQ5
Q5
11
12
SEL_LVDS
GND
13 14 15 16 17 18 19 20 21 22 23 24
Pin Descriptions
Table 1. Pin Descriptions[a]
Number
Name
Type
Description
1
2
GND
Q16
Power
Output
Output
Output
Output
Power
Power
Output
Ground supply pin.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Output power supply pin.
3
nQ16
Q17
4
5
nQ17
VDD
6
7
VDD_IN
VREF
nPCLK
PCLK
SEL_LVDS
GND
Power supply pin.
8
Bias voltage reference for the PCLK, nPCLK input pair.
9
Input [PD/PU] Inverting differential clock/data input.
10
11
12
13
14
15
16
Input [PD]
Input [PD]
Power
Non-inverting differential clock/data input.
Control input. Output amplitude select for differential outputs.
Power supply ground.
VDD
Power
Output power supply pin.
Q0
Output
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
nQ0
Output
Q1
Output
©2017 Integrated Device Technology, Inc.
2
July 17, 2017
8SLVS1118 Datasheet
Table 1. Pin Descriptions[a] (Cont.)
Number
Name
Type
Description
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
ePad
nQ1
Q2
Output
Output
Output
Output
Output
Output
Output
Power
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Power
Output
Output
Output
Output
Output
Output
Output
Output
Output
Output
Power
Power
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Output power supply pin.
nQ2
Q3
nQ3
Q4
nQ4
VDD
Q5
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Output power supply pin.
nQ5
Q6
nQ6
Q7
nQ7
Q8
nQ8
Q9
nQ9
Q10
nQ10
VDD
Q11
nQ11
Q12
nQ12
Q13
nQ13
Q14
nQ14
Q15
nQ15
VDD
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Differential output pair. LVPECL/ LVDS interface levels.
Output power supply pin.
GND_EPAD
Exposed pad of package. Connect to ground.
[a] Pull-up (PU) and pull-down (PD) resistors are indicated in parentheses. Pull-up and pull-down refers to internal input resistors.
For typical values, see DC Input Characteristics.
©2017 Integrated Device Technology, Inc.
3
July 17, 2017
8SLVS1118 Datasheet
Function Table
Table 2. SEL_LVDS Output Amplitude Selection Table
SEL_LVDS
Qx Output Amplitude (mV)
0 (default)
1
750 (LVPECL)
450 (LVDS)
Absolute Maximum Ratings
The absolute maximum ratings are stress ratings only. Stresses greater than those listed below can cause permanent damage to the
device. Functional operation of the 8SLVS1118 at absolute maximum ratings is not implied. Exposure to absolute maximum rating
conditions may affect device reliability.
Table 3. Absolute Maximum Ratings
Item
Rating
Supply Voltage, VDD_IN
Inputs, VI
3.6V
-0.5V to 3.6V
Outputs, IO (LVDS)
Continuous Current
Surge current
10mA
15mA
Outputs, IO (LVPECL)
Continuous Current
Surge current
50mA
100mA
Input Sink/source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
ESD – Human Body Model[a]
125°C
-65°C to 150°C
2000V
ESD – Charged Device Model[a]
1500V
[a] According to JEDEC JS-001-2012/JESD22-C101E.
©2017 Integrated Device Technology, Inc.
4
July 17, 2017


8SLVS1118 Datasheet
DC Electrical Characteristics
Table 4. DC Input Characteristics
Symbol
CIN
RPULLDOWN Input Pull-down Resistor
RPULLUP Input Pull-up Resistor
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input Capacitance
2
pF
k
k
51
51
Table 5. Power Supply DC Characteristics, VDD_IN VDD 3.3V ±5%, TA -40°C to 85°C
Symbol
VDD_IN
VDD
Parameter
Power Supply Voltage
Output Supply Voltage
Power Supply Current
Test Conditions
Minimum
3.135
Typical
3.3
Maximum
3.465
3.465
15
Units
V
3.135
3.3
V
IDD_IN
mA
IEE
IDD
Power Supply Current
Output Supply Current
SEL_LVDS = 0
SEL_LVDS = 1
220
480
mA
mA
Table 6. Power Supply DC Characteristics, VDD_IN VDD 2.5V ±5%, TA -40°C to 85°C
Symbol
VDD_IN
VDD
Parameter
Power Supply Voltage
Output Supply Voltage
Power Supply Current
Test Conditions
Minimum
2.375
Typical
2.5
Maximum
2.625
2.625
13
Units
V
2.375
2.5
V
IDD_IN
mA
IEE
IDD
Power Supply Current
Output Supply Current
SEL_LVDS = 0
SEL_LVDS = 1
215
475
mA
mA
Table 7. LVCMOS Inputs DC Characteristics, VDD_IN VDD 2.5V ±5%, 3.3V ±5%, TA -40°C to 85°C
Symbol
Parameter
Input High Voltage
Test Conditions
DD_IN 3.3V ±5%
Minimum
Typical
Maximum
Units
V
DD_IN 0.3
DD_IN 0.3
0.8
V
V
V
V
2
V
V
VIH
V
DD_IN 2.5V ±5%
DD_IN 3.3V ±5%
DD_IN 2.5V ±5%
1.7
-0.3
-0.3
V
VIL
Input Low Voltage
0.7
V
Input High Current
Input Low Current
IIH
IIL
SEL_LVDS
SEL_LVDS
V
DD_IN VIN VDD_MAX
150
µA
µA
V
DD_IN VDD_MAX,
V
IN 0V
-10
©2017 Integrated Device Technology, Inc.
5
July 17, 2017
8SLVS1118 Datasheet
Table 8. LVDS DC Characteristics – VDD 3.3V ±5%, TA -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum Units
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
370
490
50
mV
mV
V
VOD
VOS
1.9
2.7
50
VOS
VOS Magnitude Change
mV
Table 9. LVDS DC Characteristics – VDD 2.5V ± 5%, TA -40°C to 85°C
Symbol
VOD
Parameter
Test Conditions
Minimum
Typical
Maximum Units
Differential Output Voltage
VOD Magnitude Change
Offset Voltage
360
480
50
mV
mV
V
VOD
VOS
1.1
1.9
50
VOS
VOS Magnitude Change
mV
Table 10. LVPECL DC Characteristics, VDD_IN VDD 2.5V ±5%, 3.3V ±5%, TA -40°C to 85°C[a]
Symbol
IIH
Parameter
Test Conditions
Minimum
Typical
Maximum Units
Input High Current
Input Low Current
Reference Voltage
PCLK, nPCLK
V
IN VDD_IN VDD_MAX
150
µA
µA
µA
V
PCLK
V
V
IN 0V, VDD_IN VDD_MAX
IN 0V, VDD_IN VDD_MAX
-10
-150
IIL
nPCLK
VREF
IREF = 100µA, VDD_IN 3.3V
IREF = 100µA, VDD_IN 2.5V
2.05
2.45
1.85
1.55
VOH
VOL
Output High Voltage[b]
Output Low Voltage[b]
VDD – 1.1
VDD – 1.8
VDD – 0.7
VDD – 1.4
V
V
[a] Core supply voltage cannot be lower than the output supply voltage.
[b] Outputs terminated with 50to VDD – 2V.
©2017 Integrated Device Technology, Inc.
6
July 17, 2017


8SLVS1118 Datasheet
AC Electrical Characteristics
Table 11. AC Electrical Characteristics, VDD_IN VDD 2.5V ±5%, 3.3V ±5%, TA -40°C to 85°C[a]
Test Conditions
Symbol
fREF
Parameter
Minimum
Typical
Maximum
Units
Input Frequency
Input Edge Rate
2
GHz
V/ns
ps
V/t
1.5
tPD
Propagation
Delay[b], [c]
PCLK to
any Qx
290
400
tsk(o)
tsk(p)
tsk(pp)
Output Skew[d], [e]
Pulse Skew[f]
Part-to-part Skew[e], [g]
40
4
60
20
ps
ps
ps
fs
f
f
REF 100MHz
200
60
REF 156.25MHz; square wave,
PP 1V;
Integration range: 1kHz – 40MHz
57
Buffer Additive Phase
Jitter, RMS;
VDDIN = VDD = 3.3V
750mV amplitude;
see Additive Phase Jitter
V
tJIT
f
V
REF 156.25MHz square wave,
PP 1V;
39
43
fs
Integration range: 12kHz – 20MHz
N(30M) Clock Single-side
30MHz offset from carrier and
≤-160
dBc/Hz
Band Phase Noise
noise floor
10–90%
20–80%
160
105
300
200
1.2
ps
ps
V
tR / tF
VPP
Output Rise/ Fall Time
Input Voltage
PCLK,
0.15
0.3
Amplitude[h], [i] nPCLK
VPP_DIFF
Differential
Input Voltage
Amplitude
PCLK,
nPCLK
2.4
V
V
V
–
VCMR
Common Mode
1.125
DD
Input Voltage[h], [i], [j]
(V
)
PP/2
VO(pp)
Output Voltage Swing,
Peak-to-peak
SEL_LVDS = 0
SEL_LVDS = 1
SEL_LVDS = 0
SEL_LVDS = 1
0.55
0.30
1.10
0.60
0.73
0.43
1.46
0.86
0.95
0.60
1.90
1.20
V
V
V
V
VDIFF_OUT Differential
Output Voltage Swing,
Peak-to-peak
LVPECL SEL_LVDS 0,
Outputs outputs loaded with 50to VDD − 2V
550
300
730
430
950
600
mV
mV
Differential
Output
Voltage
VOD
LVDS SEL_LVDS 1,
Outputs outputs loaded with 100
©2017 Integrated Device Technology, Inc.
7
July 17, 2017
8SLVS1118 Datasheet
Table 11. AC Electrical Characteristics, VDD_IN VDD 2.5V ±5%, 3.3V ±5%, TA -40°C to 85°C[a]
Test Conditions
Symbol
VOS
Parameter
LVDS
Minimum
Typical
Maximum
Units
SEL_LVDS 1, VDDIN = VDD = 3.3V
SEL_LVDS 1, VDDIN = VDD = 2.5V
2.05
1.25
2.25
1.45
2.45
1.65
V
V
Offset Voltage
Outputs
[a] Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is mounted
in a test socket with maintained transverse airflow greater than 500lfpm. The device will meet specifications after thermal equilibrium has been
reached under these conditions.
[b] Measured from the differential input crossing point to the differential output crossing point.
[c] Input VPP 400mV.
[d] Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential cross points.
[e] This parameter is defined in accordance with JEDEC Standard 65.
[f] Output pulse skew is the absolute value of the difference of the propagation delay times: tPLH – tPHL .
[g] Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and with equal
load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross points.
[h] VIL should not be less than -0.3V. VIH should not be higher than VDD_IN
.
[i] For single-ended LVCMOS input applications, refer to application section, Wiring the Differential Input to Accept Single-Ended Levels.
[j] Common Mode Input Voltage is defined as the cross-point voltage.
©2017 Integrated Device Technology, Inc.
8
July 17, 2017
8SLVS1118 Datasheet
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a specified offset from the fundamental frequency to the power value
of the fundamental. This ratio is expressed in decibels (dBm) or a ratio of the power in the 1Hz band to the power in the fundamental.
When the required offset is specified, the phase noise is called a dBc value, which simply means dBm at a specified offset from the
fundamental. By investigating jitter in the frequency domain, we get a better understanding of its effects on the desired application over
the entire time record of the signal. It is mathematically possible to calculate an expected bit error rate given a phase noise plot.
Figure 2. Additive Phase Jitter. Frequency: 156.25MHz, Integration Range: 12kHz to 20MHz 39fs Typical
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
©2017 Integrated Device Technology, Inc.
9
July 17, 2017
8SLVS1118 Datasheet
Applications Information
Recommendations for Unused Input and Output Pins
Inputs
PCLK/nPCLK Inputs
For applications not requiring the use of the differential input, both PCLK and nPCLK can be left floating. Though not required, but for
additional protection, a 1kresistor can be tied from PCLK to ground.
Outputs
LVDS Outputs
All unused LVDS output pairs can be either left floating or terminated with 100across. If they are left floating there should be no trace
attached.
LVPECL Outputs
All unused LVPECL output pairs can be left floating. We recommend that there is no trace attached. Both sides of the differential output
pair should either be left floating or terminated.
VREF
The unused VREF pin can be left floating. We recommend that there is no trace attached.
Wiring the Differential Input to Accept Single-Ended Levels
Figure 3 shows how a differential input can be wired to accept single ended levels. The reference voltage V1 VDD/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help filter noise on the DC bias. This bias circuit should be located as
close to the input pin as possible. The ratio of R1 and R2 might need to be adjusted to position the V1in the center of the input voltage
swing. For example, if the input clock swing is 1.8V and VDD 1.8V, R1 and R2 value should be adjusted to set V1 at 0.9V. The values
below are for when both the single ended swing and VDD are at the same voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50applications, R3 and R4 can be 100. The values of the resistors can be increased to reduce the loading
for slower and weaker LVCMOS driver.
Figure 3. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
©2017 Integrated Device Technology, Inc.
10
July 17, 2017

8SLVS1118 Datasheet
When using single-ended signaling, the noise rejection benefits of differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the amplitude be reduced while maintaining an edge rate faster than
1V/ns. The datasheet specifies a lower differential amplitude, however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less than -0.3V and VIH cannot be more than VDD 0.3V. Though some of
the recommended components might not be used, the pads should be placed in the layout. They can be utilized for debugging purposes.
The datasheet specifications are characterized and guaranteed by using a differential signal.
2.5V LVPECL Input w ith Built-in 50Termination Interface
The PCLK /nPCLK with built-in 50terminations accept LVDS, LVPECL, LVCMOS and other differential signals. Both VSWING and VOH
must meet the VPP and VCMR input requirements. Figure 4 to Figure 5 show interface examples for PCLK /nPCLK with built-in 50
termination input driven by the most common driver types. The input interfaces suggested here are examples only. If the driver is from
another vendor, use their termination recommendation. Please consult with the vendor of the driver component to confirm the driver
termination requirements.
Figure 4. PCLK/ nPCLK Input with Built-in 50Driven by an LVDS Driver
2.5V
3.3V or 2.5V
Zo = 50Ω
Zo = 50Ω
PCLK
VT
nPCLK
Receiver
With
LVDS
Built-In
50Ω
Figure 5. PCLK/ nPCLK Input with Built-in 50Driven by an LVPECL Driver
2.5V
2.5V
Zo = 50Ω
Zo = 50Ω
PCLK
VT
nPCLK
Receiver
With
LVPECL
R1
Built-In
50Ω
18Ω
©2017 Integrated Device Technology, Inc.
11
July 17, 2017


8SLVS1118 Datasheet
3.3V LVPECL Input w ith Built-in 50Termination Interface
The PCLK /nPCLK with built-in 50terminations accept LVDS, LVPECL, LVCMOS and other differential signals. Both VSWING and VOH
must meet the VPP and VCMR input requirements. Figure 6 to Figure 7 show interface examples for PCLK /nPCLK with built-in 50
termination input driven by the most common driver types. The input interfaces suggested here are examples only. If the driver is from
another vendor, use their termination recommendation. Please consult with the vendor of the driver component to confirm the driver
termination requirements.
Figure 6. PCLK/ nPCLK Input with Built-in 50Driven by an LVDS Driver
2.5V
3.3V or 2.5V
Zo = 50Ω
Zo = 50Ω
PCLK
VT
nPCLK
Receiver
With
LVDS
Built-In
50Ω
Figure 7. PCLK/ nPCLK Input with Built-in 50Driven by an LVPECL Driver
3.3V
2.5V
Zo = 50Ω
Zo = 50Ω
PCLK
VT
nPCLK
Receiver
With
LVPECL
R1
18
Built-In
50Ω
Ω
©2017 Integrated Device Technology, Inc.
12
July 17, 2017


8SLVS1118 Datasheet
LVDS Driver Termination
For a general LVDS interface, the recommended value for the termination impedance (ZT) is between 90and 132. The actual value
should be selected to match the differential impedance (Z0) of your transmission line. A typical point-to-point LVDS design uses a 100
parallel resistor at the receiver and a 100differential transmission-line environment. In order to avoid any transmission-line reflection
issues, the components should be surface mounted and must be placed as close to the receiver as possible. IDT offers a full line of LVDS
compliant devices with two types of output structures: current source and voltage source.
The standard termination schematic as shown in Figure 8 can be used with either type of output structure. Figure 9, which can also be
used with both output types, is an optional termination with center tap capacitance to help filter common mode noise. The capacitor value
should be approximately 50pF. If using a non-standard termination, it is recommended to contact IDT and confirm if the output structure is
current source or voltage source type. In addition, since these outputs are LVDS compatible, the input receiver’s amplitude and
common-mode input range should be verified for compatibility with the output.
Figure 8. Standard LVDS Termination
Figure 9. Optional LVDS Termination
©2017 Integrated Device Technology, Inc.
13
July 17, 2017


8SLVS1118 Datasheet
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
The differential outputs generate ECL/LVPECL compatible outputs. Therefore, terminating resistors (DC current path to ground) or
current sources must be used for functionality. These outputs are designed to drive 50transmission lines. Matched impedance
techniques should be used to maximize operating frequency and minimize signal distortion. Figure 10 and Figure 11 show two different
layouts which are recommended only as guidelines. Other suitable clock layouts may exist and it would be recommended that the board
designers simulate to guarantee compatibility across all printed circuit and clock component process variations.
Figure 10. 3.3V LVPECL Output Termination
Figure 11. 3.3V LVPECL Output Termination
3.3V
R3
R4
125
125
3.3V
3.3V
Zo = 50
Zo = 50
+
_
Input
R1
84
R2
84
©2017 Integrated Device Technology, Inc.
14
July 17, 2017


8SLVS1118 Datasheet
Termination for 2.5V LVPECL Outputs
Figure 12 and Figure 13 show examples of termination for 2.5V LVPECL driver. These terminations are equivalent to terminating 50to
DD – 2V. For VDD 2.5V, the VDD – 2V is very close to ground level. The R3 in Figure 13 can be eliminated and the termination is shown
V
in Figure 14.
Figure 12. 2.5V LVPECL Driver Termination Example
2.5V
2.5V
VDD = 2.5V
R1
R3
250
250
50Ω
50Ω
+
–
2.5V LVPECL Driver
R2
62.5
R4
62.5
Figure 13. 2.5V LVPECL Driver Termination Example
2.5V
VDD = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
R3
18
Figure 14. 2.5V LVPECL Driver Termination Example
2.5V
VDD = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
50
R2
50
©2017 Integrated Device Technology, Inc.
15
July 17, 2017



8SLVS1118 Datasheet
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 15. The solderable area on the PCB, as defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the thermal/electrical performance. Sufficient clearance should be designed
on the PCB between the outer edges of the land pattern and the inner edges of pad pattern for the leads to avoid any shorts.
While the land pattern on the PCB provides a means of heat transfer and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat pipes”. The number of vias (i.e. “heat pipes”) are application specific
and dependent upon the package power dissipation as well as electrical conductivity requirements. Thus, thermal and electrical analysis
and/or testing are recommended to determine the minimum number needed. Maximum thermal and electrical performance is achieved
when an array of vias is incorporated in the land pattern. It is recommended to use as many vias connected to ground as possible. It is
also recommended that the via diameter should be 12mils to 13mils (0.30mm to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the soldering process which may result in voids in solder between the exposed
pad/slug and the thermal land. Precautions should be taken to eliminate any solder voids between the exposed heat slug and the land
pattern.
Note: These recommendations are to be used as a guideline only. For further information, please refer to the application note on the
Surface Mount Assembly of Amkor’s Thermally/ Electrically Enhance Lead-frame Base Package, Amkor Technology.
Figure 15. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (Draw ing not to scale)
SOLDER
SOLDER
PIN
EXPOSED HEAT SLUG
PIN
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
©2017 Integrated Device Technology, Inc.
16
July 17, 2017

8SLVS1118 Datasheet
Case Temperature Considerations
This device supports applications in a natural convection environment which does not have any thermal conductivity through ambient air.
The printed circuit board (PCB) is typically in a sealed enclosure without any natural or forced air flow and is kept at or below a specific
temperature. The device package design incorporates an exposed pad (ePad) with enhanced thermal parameters which is soldered to
the PCB where most of the heat escapes from the bottom exposed pad. For this type of application, it is recommended to use the
junction-to-board thermal characterization parameter JB (Psi-JB) to calculate the junction temperature (TJ) and ensure it does not
exceed the maximum allowed junction temperature in the Absolute Maximum Ratings table.
The junction-to-board thermal characterization parameter, JB, is calculated using the following equation:
TJ TCB JB PD, where
TJ Junction temperature at steady state condition in (oC).
TCB Case temperature (Bottom) at steady state condition in (oC).
JB Thermal characterization parameter to report the difference between junction temperature and the temperature of the board
measured at the top surface of the board.
PD power dissipation (W) in desired operating configuration.
TJ
TCB
The ePad provides a low thermal resistance path for heat transfer to the PCB and represents the key pathway to transfer heat away from
the IC to the PCB. It’s critical that the connection of the exposed pad to the PCB is properly constructed to maintain the desired IC case
temperature (TCB). A good connection ensures that temperature at the exposed pad (TCB) and the board temperature (TB) are relatively
the same. An improper connection can lead to increased junction temperature, increased power consumption and decreased electrical
performance. In addition, there could be long-term reliability issues and increased failure rate.
Example Calculation for Junction Temperature (TJ): TJ TCB JB PD
Package type
Body size (mm)
ePad size (mm)
Thermal Via
48-VFQFN
7 7 0.8
5.65 5.65
5 5 Matrix
1.2oC/W
JB
TCB
PD
105oC
1.715W
For the above variables, the junction temperature is equal to 107.1oC. Since this is below the maximum junction temperature of 125oC,
there are no long-term reliability concerns.
©2017 Integrated Device Technology, Inc.
17
July 17, 2017
8SLVS1118 Datasheet
Pow er Considerations (LVDS Output Mode)
This section provides information on power dissipation and junction temperature for the 8SLVS1118.
Equations and example calculations are also provided.
1. Power Dissipation.
The following is the power dissipation for VDD_IN = VDD = 3.465V, which gives worst case results.
Maximum current at 85°C: IDD_IN_MAX + IDD_MAX = 495mA.
Power_MAX = 3.465V x 495mA = 1715mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that
the bond wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow
and a multi-layer board, the appropriate value is 22.4°C/W per Table 12.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 1.715W * 22.4°C/W = 123.4°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the
type of board (multi-layer).
Table 12. Thermal Resistance JA for 48-VFQFN, Forced Convection
JA (°C/W) vs. Air Flow (m/s)
Meters per Second
0
1
2
48-Lead VFQFN Multi-Layer PCB, JEDEC Standard Test Boards
22.4
18.9
17.4
©2017 Integrated Device Technology, Inc.
18
July 17, 2017

8SLVS1118 Datasheet
Pow er Considerations (LVPECL Output Mode)
This section provides information on power dissipation and junction temperature for the 8SLVS1118.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8SLVS1118 is the sum of the core power plus the power dissipated at the output(s).
The following is the power dissipation for VDD_IN = 3.465V, which gives worst case results.
Note: Please refer to Section 3 for details on calculating power dissipated at the outputs.
Power (core)MAX = VDD_IN * IEE_MAX = 3.465V * 220mA = 762.3mW
Power (outputs)MAX = 35mW/Loaded Output pair
If all outputs are loaded, the total power is 18 * 35mW = 630mW
Total Power_MAX (3.465V, with all outputs switching) = 762.3mW + 630mW = 1392.3mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that
the bond wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow
and a multi-layer board, the appropriate value is 22.4°C/W per Table 13.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 1.3923W * 22.4°C/W = 116.2°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the
type of board (multi-layer).
Table 13. Thermal Resistance JA for 48-VFQFN, Forced Convection
JA by Velocity
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
22.4°C/W
18.9°C/W
17.4°C/W
©2017 Integrated Device Technology, Inc.
19
July 17, 2017

8SLVS1118 Datasheet
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair. LVPECL output driver circuit and termination
are shown in Table 10.
Figure 16. LVPECL Driver Circuit and Termination
VDD
Q1
VOUT
RL
VDD - 2V
To calculate worst case power dissipation at the output(s), use the following equations which assume a 50load, and a termination
voltage of VDD – 2V.
▪ For logic high, VOUT = VOH_MAX = VDD_MAX – 0.7V
(VDD_MAX – VOH_MAX) = 0.7V
▪ For logic low, VOUT = VOL_MAX = VDD_MAX – 1.4V
(VDD_MAX – VOL_MAX) = 1.4V
Pd_H is the power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VDD_MAX – 2V))/RL] * (VDD_MAX – VOH_MAX) = [(2V – (VDD_MAX – VOH_MAX))/RL] * (VDD_MAX – VOH_MAX) =
[(2V – 0.7V)/50] * 0.7V = 18.2mW
Pd_L = [(VOL_MAX – (VDD_MAX – 2V))/RL] * (VDD_MAX – VOL_MAX) = [(2V – (VDD_MAX – VOL_MAX))/RL] * (VDD_MAX – VOL_MAX) =
[(2V – 1.4V)/50] * 1.4V = 16.8mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 35mW
©2017 Integrated Device Technology, Inc.
20
July 17, 2017
8SLVS1118 Datasheet
Package Outline Draw ings
Figure 17. Package Outline Draw ings – Sheet 1
©2017 Integrated Device Technology, Inc.
21
July 17, 2017
8SLVS1118 Datasheet
Figure 18. Package Outline Draw ings – Sheet 2
©2017 Integrated Device Technology, Inc.
22
July 17, 2017
8SLVS1118 Datasheet
Marking Diagram
1. Line 1, line 2, and line 3 indicates the part number.
2. Line 4:
▪ “#” indicates stepping.
▪ “YYWW” indicates the date code
(YY denotes the last two digits of the year, and
“WW” denotes a work week number that the part was assembled.
▪ “$” indicates the mark code.
Ordering Information
Table 14. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Temperature
8SLVS1118NLGI
8SLVS1118NLGI8
IDT8SLVS1118NLGI
IDT8SLVS1118NLGI
48-lead VFQFN, Lead-Free
Tray
48-lead VFQFN, Lead-Free;
Quadrant 1 (EIA-481-C)
Tape & Reel, Pin 1 Orientation:
EIA-481-C
-40°C to
+85°C
8SLVS1118NLGI/W
IDT8SLVS1118NLGI
48-lead VFQFN, Lead-Free;
Quadrant 2 (EIA-481-D/E)
Tape & Reel, Pin 1 Orientation:
EIA-481-D/E
Table 15. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
8SLVS1118NLGI8
Quadrant 1 (EIA-481-C)
8SLVS1118NLGI/W
Quadrant 2 (EIA-481-D/E)
©2017 Integrated Device Technology, Inc.
23
July 17, 2017
8SLVS1118 Datasheet
Revision History
Revision Date
Description of Change
July 17, 2017
Initial release.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.IDT.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time,
without notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same
way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability
of IDT's products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not
convey any license under intellectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be rea-
sonably expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property
of IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc.. All rights reserved.
©2017 Integrated Device Technology, Inc.
