8SLVD1204NLGI

型号：

8SLVD1204NLGI

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

18 页

PDF大小：

374 K

下载PDF手册

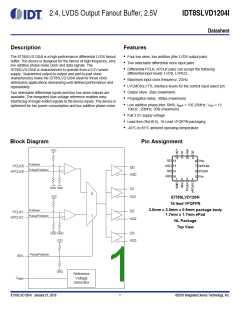

2:4, LVDS Output Fanout Buffer, 2.5V
IDT8SLVD1204I
Datasheet
Description
Features
The IDT8SLVD1204I is a high-performance differential LVDS fanout
buffer. The device is designed for the fanout of high-frequency, very
low additive phase-noise clock and data signals. The
IDT8SLVD1204I is characterized to operate from a 2.5V power
supply. Guaranteed output-to-output and part-to-part skew
characteristics make the IDT8SLVD1204I ideal for those clock
distribution applications demanding well-defined performance and
repeatability.
• Four low skew, low additive jitter LVDS output pairs
• Two selectable differential clock input pairs
• Differential PCLK, nPCLK pairs can accept the following
differential input levels: LVDS, LVPECL
• Maximum input clock frequency: 2GHz
• LVCMOS/LVTTL interface levels for the control input select pin
• Output skew: 20ps (maximum)
Two selectable differential inputs and four low skew outputs are
available. The integrated bias voltage reference enables easy
interfacing of single-ended signals to the device inputs. The device is
optimized for low power consumption and low additive phase noise.
• Propagation delay: 300ps (maximum)
• Low additive phase jitter, RMS; fREF = 156.25MHz, VPP = 1V,
10kHz - 20MHz: 95fs (maximum)
• Full 2.5V supply voltage
• Lead-free (RoHS 6), 16-Lead VFQFPN packaging
• -40°C to 85°C ambient operating temperature
Block Diagram
Pin Assignment
VDD
12 11 10
13
9
Q2
nQ2
Q3
VREF
8
7
6
5
Pulldown
14
15
16
nPCLK0
PCLK0
VDD
PCLK0
Q0
Pullup/Pulldown
nPCLK0
nQ0
nQ3
1
2
3
4
GND GND
Q1
0
VDD
nQ1
IDT8SLVD1204I
16 lead VFQFPN
3.0mm x 3.0mm x 0.9mm package body
1.7mm x 1.7mm ePad
Pulldown
Q2
PCLK1
Pullup/Pulldown
1
nPCLK1
nQ2
NL Package
Top View
GND GND
VDD
Q3
nQ3
Pullup/Pulldown
SEL
GND
Reference
VREF
Voltage
Generator
IDT8SLVD1204I January 21, 2018
1
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Pin Description and Pin Characteristic Tables
Table 1. Pin Descriptions
Number
Name
Type
Description
1
GND
Power
Input
Input
Input
Power supply ground.
Pullup/
Pulldown
Reference select control pin. See Table 3 for function. LVCMOS/LVTTL
interface levels.
2
3
4
SEL
PCLK1
nPCLK1
Pulldown
Non-inverting differential clock/data input.
Pullup/
Pulldown
Inverting differential clock/data input. VDD/2 default when left floating.
5
6
VDD
Power
Input
Power supply pin.
PCLK0
Pulldown
Non-inverting differential clock/data input.
Pullup/
Pulldown
7
nPCLK0
Input
Inverting differential clock/data input. VDD/2 default when left floating.
8
VREF
Output
Output
Output
Output
Output
Bias voltage reference for the PCLK, nPCLK inputs.
Differential output pair 0. LVDS interface levels.
Differential output pair 1. LVDS interface levels.
Differential output pair 2. LVDS interface levels.
Differential output pair 3. LVDS interface levels.
9, 10
11, 12
13, 14
15, 16
Q0, nQ0
Q1, nQ1
Q2, nQ2
Q3, nQ3
NOTE: Pulldown and Pullup refer to internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
Input Pulldown Resistor
Input Pullup Resistor
2
RPULLDOWN
RPULLUP
51
51
k
k
Function Table
Table 3. SEL Input Selection Function Table
Input
SEL
Operation
0
PCLK0, nPCLK0 is the selected differential clock input.
PCLK1, nPCLK1 is the selected differential clock input.
Input buffers are disabled and outputs are static.
1
Open (default)
NOTE: SEL is an asynchronous control.
IDT8SLVD1204I January 21, 2018
2
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of product at these conditions or any conditions beyond those listed in the DC Characteristics or AC
Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Supply Voltage, VDD
Inputs, VI
4.6V
-0.5V to VDD + 0.5V
Outputs, IO
Continuous Current
Surge Current
10mA
15mA
VREF current Sink/Source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
125°C
-65C to 150C
2000V
ESD - Human Body Model, NOTE 1
ESD - Charged Device Model, NOTE 1
1500V
NOTE 1: According to JEDEC/JESD JS-001-2012/22-C101E.
Electrical Characteristics
Table 4A. Power Supply Characteristics, V = 2.5V ± 5%, T = -40°C to 85°C
DD
A
Symbol Parameter
VDD Power Supply Voltage
Test Conditions
Minimum
Typical
Maximum
Units
2.375
2.5
2.625
V
SEL = 0 or 1; fREF = 100MHz;
Q0 to Q3 terminated 100between nQx, Qx
84
84
84
100
100
100
mA
mA
mA
SEL = 0 or 1; fREF = 800MHz;
Q0 to Q3 terminated 100between nQx, Qx
IDD
Power Supply Current
SEL = 0 or 1; fREF = 2GHz;
Q0 to Q3 terminated 100between nQx, Qx
Table 4B. LVCMOS/LVTTL DC Characteristics, V = 2.5V ± 5%, T = -40°C to 85°C
DD
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Open-Pin Voltage
(Default State)
VdI3
SEL
Open
VDD / 2
V
VIH
VIL
IIH
Input High Voltage SEL
Input Low Voltage SEL
Input High Current SEL
Input Low Current SEL
0.7 * VDD
-0.3
VDD + 0.3
0.2 * VDD
150
V
V
VDD = VIN = 2.625V
µA
µA
IIL
VDD = 2.625V, VIN = 0V
-150
IDT8SLVD1204I January 21, 2018
3
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Table 4C. Differential Input DC Characteristics, V = 2.5V ± 5%, T = -40°C to 85°C
DD
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
Units
µA
Input High
Current
PCLK0, nPCLK1
PCLK1, nPCLK1
IIH
V
DD = VIN = 2.625V
VDD = 2.625V, VIN = 0V
VDD = 2.625V, VIN = 0V
IREF = ±1mA
150
PCLK0, PCLK1
-10
µA
Input Low
Current
IIL
nPCLK0,
nPCLK1
-150
µA
VREF
VPP
Reference Voltage for Input Bias
Peak-to-Peak Voltage; NOTE 1
VDD – 1.50
0.1
VDD – 1.35
VDD – 1.15
1.5
V
V
V
f
f
REF < 1.5 GHz
REF > 1.5 GHz
0.2
1.5
Common Mode Input Voltage;
NOTE 1, 2
VCMR
1.0
VDD – 0.6
V
NOTE 1: VIL should not be less than -0.3V.
NOTE 2: Common mode input voltage is defined at the crosspoint.
Table 4D. LVDS DC Characteristics, V = 2.5V ± 5%, T = -40°C to 85°
DD
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
450
Units
mV
mV
V
VOD
Differential Output Voltage
250
VOD
VOS
VOD Magnitude Change
Offset Voltage
50
1.15
1.45
50
VOS
VOS Magnitude Change
mV
IDT8SLVD1204I January 21, 2018
4
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
AC Electrical Characteristics
Table 5. AC Electrical Characteristics, V = 2.5V ± 5%, T = -40°C to 85°C
DD
A
Symbol
Parameter
Test Conditions
Minimum Typical
Maximum
Units
Input
PCLK[0:1],
fREF
2
GHz
Frequency nPCLK[0:1]
Input PCLK[0:1],
Edge Rate nPCLK[0:1]
V/t
1.5
V/ns
ps
Propagation Delay;
NOTE 1
PCLK[0:1], nPCLK[0:1] to any Qx, nQx
for VPP = 0.1V or 0.3V
tPD
120
210
300
tsk(o)
tsk(i)
Output Skew; NOTE 2, 3
Input Skew; NOTE 3
Pulse Skew
20
20
15
ps
ps
ps
tsk(p)
fREF = 100MHz
Part-to-Part Skew;
NOTE 3, 4
tsk(pp)
230
205
135
135
130
95
ps
fs
fs
fs
fs
fs
fs
fs
fs
fs
fREF = 122.88MHz Square Wave, VPP = 1V,
Integration Range: 1kHz – 40MHz
138
92
92
89
65
65
87
64
64
fREF = 122.88MHz Square Wave, VPP = 1V,
Integration Range: 10kHz – 20MHz
f
REF = 122.88MHz Square Wave, VPP = 1V,
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 1kHz – 40MHz
Buffer Additive Phase
Jitter, RMS; refer to
Additive Phase Jitter
Section
fREF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 10kHz – 20MHz
tJIT
f
REF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 12kHz – 20MHz
95
fREF = 156.25MHz Square Wave, VPP = 0.5V,
Integration Range: 1kHz – 40MHz
130
95
fREF = 156.25MHz Square Wave, VPP = 0.5V,
Integration Range: 10kHz – 20MHz
f
REF = 156.25MHz Square Wave, VPP = 0.5V,
95
Integration Range: 12kHz – 20MHz
20% to 80%
outputs loaded with 100
tR / tF
Output Rise/ Fall Time
Mux Isolation; NOTE 5
40
250
ps
MUXISOLATION
fREF = 100MHz
72
dB
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device
is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal
equilibrium has been reached under these conditions.
NOTE 1: Measured from the differential input crosspoint to the differential output crosspoint.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential crosspoint.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential crosspoint.
NOTE 5: Qx, nQx outputs measured differentially. See MUX Isolation diagram in the Parameter Measurement Information section.
IDT8SLVD1204I January 21, 2018
5
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Additive Phase Jitter @ 156.25MHz, V = 1V,
PP
Integration Range (12kHz to 20MHz) = 65fs (typical)
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise
floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
IDT8SLVD1204I January 21, 2018
6
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Parameter Measurement Information
V
DD
V
DD
nPCLK[0:1]
PCLK[0:1]
GND
LVDS Output Load Test Circuit
Differential Input Level
nPCLK[0:1]
PCLK[0:1]
nQx
Qx
nQy
nQy
Qy
Qy
tPLH
tPHL
tsk(p)= |tPHL - tPLH
|
Pulse Skew
Output Skew
Part 1
nQx
nQ[0:3]
80%
80%
Qx
VOD
20%
Part 2
20%
nQy
Q[0:3]
tF
tR
Qy
tsk(pp)
Part-to-Part Skew
Output Rise/Fall Time
IDT8SLVD1204I January 21, 2018
7
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Parameter Measurement Information, continued
nPCLK0
Spectrum of Output Signal Q
PCLK0
MUX selects active
input clock signal
A0
nPCLK1
PCLK1
MUX_ISOLATION = A0 – A1
nQ[0:3]
MUX selects other input
A1
Q[0:3]
tPD2
tPD1
ƒ
Frequency
tsk(i)
(fundamental)
tsk(i) = |tPD1 - tPD2
|
Input Skew
MUX Isolation
nPCLK[0:1]
PCLK[0:1]
nQ[0:3]
Q[0:3]
tPD
Propagation Delay
Offset Voltage Setup
Differential Output Voltage Setup
IDT8SLVD1204I January 21, 2018
8
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Applications Information
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
PCLK/nPCLK Inputs
LVDS Outputs
For applications not requiring the use of a differential input, both the
PCLK and nPCLK pins can be left floating. Though not required, but
for additional protection, a 1kresistor can be tied from PCLK to
ground.
All unused LVDS output pairs can be either left floating or terminated
with 100across. If they are left floating, there should be no trace
attached.
Wiring the Differential Input to Accept Single-Ended Levels
Figure 1 shows how a differential input can be wired to accept single
ended levels. The reference voltage V1 = VDD/2 is generated by the
bias resistors R1 and R2. The bypass capacitor (C1) is used to help
filter noise on the DC bias. This bias circuit should be located as
close to the input pin as possible. The ratio of R1 and R2 might need
to be adjusted to position the V1 in the center of the input voltage
swing. For example, if the input clock swing is 2.5V and VDD = 2.5V,
R1 and R2 value should be adjusted to set V1 at 1.25V. The values
below are for when both the single ended swing and VDD are at the
same voltage. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. In addition, matched termination at
the input will attenuate the signal in half. This can be done in one of
two ways. First, R3 and R4 in parallel should equal the transmission
line impedance. For most 50applications, R3 and R4 can be 100.
The values of the resistors can be increased to reduce the loading for
slower and weaker LVCMOS driver. When using single-ended
signaling, the noise rejection benefits of differential signaling are
reduced. Even though the differential input can handle full rail
LVCMOS signaling, it is recommended that the amplitude be
reduced. The datasheet specifies a lower differential amplitude,
however this only applies to differential signals. For single-ended
applications, the swing can be larger, however VIL cannot be less
than -0.3V and VIH cannot be more than VDD + 0.3V. Though some
of the recommended components might not be used, the pads should
be placed in the layout. They can be utilized for debugging purposes.
The datasheet specifications are characterized and guaranteed by
using a differential signal.
Figure 1. Recommended Schematic for Wiring a Differential Input to Accept Single-ended Levels
IDT8SLVD1204I January 21, 2018
9
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
2.5V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, and other differential
signals. Both signals must meet the VPP and VCMR input
requirements. Figures 2A to 2C show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V
2.5V
2.5V
PCLK
nPCLK
LVPECL
Input
LVPECL
Figure 2A. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver
Figure 2B. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver with AC Couple
PCLK
nPCLK
Figure 2C. PCLK/nPCLK Input Driven by a
2.5V LVDS Driver
IDT8SLVD1204I January 21, 2018
10
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
LVDS Driver Termination
For a general LVDS interface, the recommended value for the
termination impedance (ZT) is between 90and 132. The actual
value should be selected to match the differential impedance (Z0) of
your transmission line. A typical point-to-point LVDS design uses a
100parallel resistor at the receiver and a 100differential
transmission-line environment. In order to avoid any
transmission-line reflection issues, the components should be
surface mounted and must be placed as close to the receiver as
possible. IDT offers a full line of LVDS compliant devices with two
types of output structures: current source and voltage source. The
standard termination schematic as shown in Figure 3A can be used
with either type of output structure. Figure 3B, which can also be
used with both output types, is an optional termination with center tap
capacitance to help filter common mode noise. The capacitor value
should be approximately 50pF. If using a non-standard termination, it
is recommended to contact IDT and confirm if the output structure is
current source or voltage source type. In addition, since these
outputs are LVDS compatible, the input receiver’s amplitude and
common-mode input range should be verified for compatibility with
the output.
ZO ZT
LVDS
Receiver
LVDS
Driver
ZT
Figure 3A. Standard Termination
ZT
ZO ZT
LVDS
Driver
2
ZT
2
LVDS
Receiver
C
Figure 3B. Optional Termination
LVDS Termination
IDT8SLVD1204I January 21, 2018
11
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
VFQFPN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8SLVD1204I January 21, 2018
12
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8SLVD1204I. Equations and example calculations
are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8SLVD1204I is the sum of the core power plus the output power dissipation due to the load. The following
is the power dissipation for VDD = 2.5V + 5% = 2.625V, which gives worst case results.
•
Total Power (core)MAX = VDD_MAX * IDD_MAX = 2.625V * 100mA = 262.5mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.263W * 74.7°C/W = 104.6°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance for 16-Lead VFQFPN, Forced Convection
JA
JA at 0 Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
IDT8SLVD1204I January 21, 2018
13
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Reliability Information
Table 7. vs. Air Flow Table for a 16-Lead VFQFPN
JA
JA at 0 Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for the IDT8SLVD1204I is: 417
IDT8SLVD1204I January 21, 2018
14
©2018 Integrated Device Technology, Inc.
IDT8SLVD1204I DATASHEET
Package Outline Drawings
The package outline drawings are located at the end of this document. The package information is the most current data available and is
subject to change without notice or revision of this document.
Ordering Information
Table 8. Ordering Information
Part/Order Number
Marking
Package
Shipping Packaging
Temperature
8SLVD1204NLGI
1204I
“Lead-Free” 16-Lead VFQFPN
Tube
-40C to 85C
Tape & Reel,
pin 1 orientation: EIA-481-C
8SLVD1204NLGI8
8SLVD1204NLGI/W
1204I
1204I
“Lead-Free” 16-Lead VFQFPN
“Lead-Free” 16-Lead VFQFPN
-40C to 85C
-40C to 85C
Tape & Reel,
pin 1 orientation: EIA-481-D
Table 9. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
Correct Pin 1 ORIENTATION
8
Quadrant 1 (EIA-481-C)
USER DIRECTION OF FEED
Correct Pin 1 ORIENTATION
CARRIER TAPE TOPSIDE
(Round Sprocket Holes)
/W
Quadrant 2 (EIA-481-D)
USER DIRECTION OF FEED
IDT8SLVD1204I January 21, 2018
15
©2018 Integrated Device Technology, Inc.
Revision History
Revision Date
January 21, 2018
July 8, 2014
Description of Change
• Updated the package outline drawings; however, no technical changes.
• Replaced the package term VFQFN with VFQFPN.
Corrected part number
February 26, 2014 Ordering Info: Changed Tray to Tube.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.idt.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time, without
notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed
in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any
particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intel-
lectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc All rights reserved.
IDT8SLVD1204I January 21, 2018
16
©2018 Integrated Device Technology, Inc.
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 1
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 2
Package Revision History
Description
Rev 04 Remove Bookmak at Pdf Format & Update Thickness Tolerance
Change QFN to VFQFPN
Date Created Rev No.
Oct 25, 2017
Jan 18, 2018
Rev 05
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
厂商 型号 描述 页数 下载

RUBYCON

 		8SLE15M 导电性高分子铝固体电解电容器[ CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS ] 2 页

IDT

 		8SLVD1204-33 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI8 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33_18 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI8 [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1212 [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI8 [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212NLGI [ 1:12, LVDS Output Fanout Buffer ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.229354s
