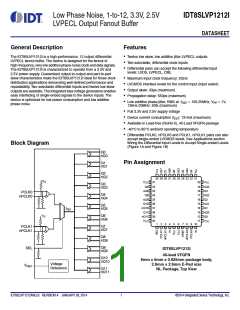

Low Phase Noise, 1-to-12, 3.3V, 2.5V
LVPECL Output Fanout Buffer
IDT8SLVP1212I
DATASHEET
General Description
Features
The IDT8SLVP1212I is a high-performance, 12 output differential
LVPECL fanout buffer. The device is designed for the fanout of
high-frequency, very low additive phase-noise clock and data signals.
The IDT8SLVP1212I is characterized to operate from a 3.3V and
2.5V power supply. Guaranteed output-to-output and part-to-part
skew characteristics make the IDT8SLVP1212I ideal for those clock
distribution applications demanding well-defined performance and
repeatability. Two selectable differential inputs and twelve low skew
outputs are available. The integrated bias voltage generators enables
easy interfacing of single-ended signals to the device inputs. The
device is optimized for low power consumption and low additive
phase noise.
• Twelve low skew, low additive jitter LVPECL outputs
• Two selectable, differential clock inputs
• Differential pairs can accept the following differential input
levels: LVDS, LVPECL, CML
• Maximum input clock frequency: 2GHz
• LVCMOS interface levels for the control input (input select)
• Output skew: 33ps (maximum)
• Propagation delay: 550ps (maximum)
• Low additive phase jitter, RMS at fREF = 156.25MHz, VPP = 1V,
12kHz-20MHz: 60fs (maximum)
• Full 3.3V and 2.5V supply voltage
• Device current consumption (IEE): 131mA (maximum)
• Available in Lead-free (RoHS 6), 40-Lead VFQFN package
• -40°C to 85°C ambient operating temperature
• Differential PCLK0, nPCLK0 and PCLK1, nPCLK1 pairs can also
accept single-ended LVCMOS levels. See Applications section
Wiring the Differential Input Levels to Accept Single-ended Levels
(Figure 1A and Figure 1B)
Block Diagram
Q0
nQ0
Q1
nQ1
Pin Assignment
Q2
nQ2
30 29 28 27 26 25 24 23 22 21
V
CC
V
31
20
V
CC
CC
Q3
nQ3
Q8 32
nQ8 33
Q9 34
19 nQ3
18 Q3
17 nQ2
16 Q2
15 nQ1
14 Q1
13 nQ0
12 Q0
PCLK0
nPCLK0
Q4
nQ4
nQ9 35
Q10 36
nQ10 37
Q11 38
nQ11 39
Q5
nQ5
fREF
V
Q6
nQ6
CC
V
40
11
V
CC
CC
1
2
3
4
5
6
7 8 9 10
Q7
nQ7
PCLK1
nPCLK1
Q8
nQ8
Q9
SEL
IDT8SLVP1212I
40-lead VFQFN
6mm x 6mm x 0.925mm package body,
2.9mm x 2.9mm E-Pad size
NL Package, Top View
nQ9
Q10
nQ10
Voltage
Reference
VREF
Q11
nQ11
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
1
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Table 1. Pin Descriptions
Number
Name
Type
Description
Reference select control. See Table 3A for function.
LVCMOS/LVTTL interface levels.
1
SEL
Input
Pulldown
Pulldown
2
3
PCLK1
nPCLK1
nc
Input
Input
Non-inverting LVPECL differential clock/data input.
Inverting LVPECL differential clock/data input.
Do not connect.
Pulldown/Pullup
4, 10
Unused
5, 6, 11, 20,
31, 40
VCC
Power
Power supply pins.
7
VREF
nPCLK0
PCLK0
Output
Input
Bias voltage reference.
8
Pulldown/Pullup
Pulldown
Inverting LVPECL differential clock/data input.
Non-inverting LVPECL differential clock/data input.
Differential output pair 0. LVPECL interface levels.
Differential output pair 1. LVPECL interface levels.
Differential output pair 2. LVPECL interface levels.
Differential output pair 3. LVPECL interface levels.
Negative power supply pins.
9
Input
12, 13
14, 15
16, 17
18, 19
21, 30
22, 23
24, 25
26, 27
28, 29
32, 33
34, 35
36, 37
38, 39
Q0, nQ0
Q1, nQ1
Q2, nQ2
Q3, nQ3
VEE
Output
Output
Output
Output
Power
Output
Output
Output
Output
Output
Output
Output
Output
Q4, nQ4
Q5, nQ5
Q6, nQ6
Q7, nQ7
Q8, nQ8
Q9, nQ9
Q10, nQ10
Q11, nQ11
Differential output pair 4. LVPECL interface levels.
Differential output pair 5. LVPECL interface levels.
Differential output pair 6. LVPECL interface levels.
Differential output pair 7. LVPECL interface levels.
Differential output pair 8. LVPECL interface levels.
Differential output pair 9. LVPECL interface levels.
Differential output pair 10. LVPECL interface levels.
Differential output pair 11. LVPECL interface levels.
NOTE: Pulldown and Pullup refers to an internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
CIN
Input Capacitance
Input Pulldown Resistor
Input Pullup Resistor
2
RPULLDOWN
RPULLUP
51
51
k
k
Function Table
Table 3. SEL Input Section Function Table
Input
SEL
0 (default)
1
Operation
PCLK0, nPCLK0 is the selected differential clock input
PCLK1, nPCLK1 is the selected differential clock input
NOTE: SEL is an asynchronous control.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
2
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of the product at these conditions or any conditions beyond those listed in the DC Characteristics or
AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
4.6V
-0.5V to VCC + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
125 C
-65C to 150C
2000V
ESD - Human Body Model (NOTE 1)
ESD - Charged Device Model (NOTE 1)
500V
NOTE 1: According to JEDEC/JESD 22-A114/22-C101. ESD ratings are target specifications.
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, V = 3.3V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
3.3V
Maximum
3.465
Units
V
Power Supply Voltage
Power Supply Current
3.135
IEE
110
131
mA
Q[0:11] terminated 501% to
CC – 2V
ICC
Power Supply Current
490
550
mA
V
Table 4B. Power Supply DC Characteristics, V = 2.5V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
2.5V
Maximum
2.625
Units
V
Power Supply Voltage
Power Supply Current
2.375
IEE
104
124
mA
Q[0:11] terminated 501% to
CC – 2V
ICC
Power Supply Current
490
550
mA
V
Table 4C. LVCMOS/LVTTL DC Characteristics, V = 3.3V 5% or 2.5V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
VCC = 3.465V
VCC = 2.625V
2.2
1.7
VIH
Input High Voltage
V
VCC = 3.465V
-0.3
-0.3
V
VIL
Input Low Voltage
VCC = 2.625V
0.7
V
IIH
IIL
Input High Current
Input Low Current
SEL
SEL
VCC = VIN = 3.465V or 2.625V
VCC = 3.465V or 2.625V, VIN = 0V
150
µA
µA
-10
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
3
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Table 4D. LVPECL DC Characteristics, V = 3.3V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input High PCLK0, nPCLK0
IIH
VCC = VIN = 3.465V
150
µA
Current
PCLK1, nPCLK1
PCLK0, PCLK1
V
CC = 3.465V, VIN = 0V
-10
µA
µA
Input Low
Current
IIL
nPCLK0, nPCLK1
VCC = 3.465V, VIN = 0V
REF = 2mA
-150
Reference Voltage for Input
Bias; NOTE 1
VREF
I
VCC – 1.6
VCC – 1.26
VCC – 1.1
V
VOH
VOL
Output High Voltage; NOTE 2
Output Low Voltage; NOTE 2
VCC – 1.26
VCC – 1.7
VCC – 0.84
VCC – 1.5
VCC – 0.6
V
V
VCC – 1.28
NOTE: Input and output parameters vary 1:1 with VCC
.
NOTE 1: VREF is for 3.3V 5% VCC only. To obtain a bias voltage for VCC = 2.5V 5% application, an external voltage supply is recommended.
NOTE 2: Outputs terminated with 50to VCC – 2V.
Table 4E. LVPECL DC Characteristics, V = 2.5V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input High PCLK0, nPCLK0
IIH
VCC = VIN = 2.625V
150
µA
Current
PCLK1, nPCLK1
PCLK0, PCLK1
V
CC = 2.625V, VIN = 0V
-10
µA
µA
Input Low
Current
IIL
nPCLK0, nPCLK1
VCC = 2.625V, VIN = 0V
REF = 2mA
-150
Reference Voltage for Input
Bias; NOTE 1
VREF
I
VCC – 1.6
VCC – 1.26
VCC – 1.1
V
VOH
VOL
Output High Voltage; NOTE 2
Output Low Voltage; NOTE 2
VCC – 1.26
VCC – 1.7
VCC – 0.84
VCC – 1.47
VCC – 0.6
V
V
VCC – 1.28
NOTE: Input and output parameters vary 1:1 with VCC
.
NOTE 1: VREF is for 3.3V 5% VCC only. To obtain a bias voltage for VCC = 2.5V 5% application, an external voltage supply is recommended.
NOTE 2: Outputs terminated with 50to VCC – 2V.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
4
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
AC Electrical Characteristics
Table 5. AC Electrical Characteristics, V = 3.3V 5% or 2.5V 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum Units
Input
PCLK[0:1],
fREF
2
GHz
V/ns
ps
Frequency nPCLK[0:1]
Input PCLK[0:1],
Edge Rate nPCLK[0:1]
V/t
1.5
PCLKx, nPCLKx to any Qx, nQx
for VPP = 0.1V or 0.3V
tPD
Propagation Delay; NOTE 1
230
360
550
MUX_ISOLATION MUX Isolation
fREF = 100MHz
70
17
10
dB
ps
ps
ps
tsk(o)
tsk(p)
tsk(pp)
Output Skew; NOTE 2, 3
33
50
Pulse Skew
fREF = 100MHz
Part-to-Part Skew; NOTE 3, 4
150
fREF = 122.88MHz,
Square Wave, VPP = 0.8V,
Integration Range: 1kHz– 40MHz
90
60
55
61
45
45
60
45
fs
fs
fs
fs
fs
fs
fs
fs
fs
fREF = 122.88MHz,
Square Wave, VPP = 0.8V, Integration
Range: 10kHz – 20MHz
fREF = 122.88MHz,
Square Wave, VPP = 0.8V, Integration
Range: 12kHz – 20MHz
fREF = 156.25MHz,
Square Wave, VPP = 1V, Integration
Range: 1kHz– 40MHz
76
60
60
90
80
80
Buffer Additive Phase Jitter,
RMS; refer to Additive Phase
Jitter Section
fREF = 156.25MHz,
Square Wave, VPP = 1V, Integration
Range: 10kHz – 20MHz
tJIT
fREF = 156.25MHz,
Square Wave, VPP = 1V, Integration
Range: 12kHz – 20MHz
fREF = 156.25MHz
Square Wave, VPP = 0.5V, Integration
Range: 1kHz– 40MHz
fREF = 156.25MHz,
Square Wave, VPP = 0.5V, Integration
Range: 10kHz – 20MHz
fREF = 156.25MHz,
Square Wave, VPP = 0.5V, Integration
Range: 12kHz – 20MHz
45
tR / tF
VPP
Output Rise/ Fall Time
20% to 80%
f < 1.5GHz
f > 1.5GHz
70
0.1
0.2
110
170
1.5
1.5
ps
V
Differential Input Voltage;
NOTE 5, 7
V
Common Mode Input
Voltage; NOTE 5, 6, 7
VCMR
1.0
V
CC – 0.3
V
VCC = 3.3V 5%, fREF 2GHz
VCC = 2.5V 5%, fREF 2GHz
VCC = 3.3V 5%, fREF 2GHz
VCC = 2.5V 5%, fREF 2GHz
0.45
0.45
0.9
0.68
0.68
1.36
1.36
0.90
0.90
1.8
V
V
V
V
Output Voltage Swing,
Peak-to-Peak
VO(pp)
Differential Output Voltage
Swing, Peak-to-Peak
VDIFF_OUT
0.9
1.8
NOTES on next page.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
5
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: Measured from the differential input crosspoint to the differential output crosspoint.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential crosspoints.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential crosspoints.
NOTE 5: V should not be less than -0.3V. V should not be higher than V .
IL
IH
CC
NOTE 6: Common mode input voltage is defined at the crosspoint.
NOTE 7: For single-ended LVCMOS input applications, please refer to the Applications Information, Wiring the Differential Input to accept
single-ended levels, Figures 1A and 1B.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
6
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Additive Phase Jitter (3.3V at 122.88MHz)
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise
floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
Measured using a Wenzel 122.88MHz Oscillator as the input source.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
7
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Additive Phase Jitter (3.3V at 156.25MHz)
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the measurement equipment. The
noise floor of the equipment can be higher or lower than the noise
floor of the device. Additive phase noise is dependent on both the
noise floor of the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
8
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
Qx
VCC
VCC
Qx
nQx
nQx
VEE
VEE
-1.3V 1.65V
-0.5V 0.125V
3.3V LVPECL Output Load AC Test Circuit
2.5V LVPECL Output Load AC Test Circuit
V
CC
nQx
Qx
nPCLK[0, 1]
PCLK[0, 1]
nQy
Qy
V
EE
Differential Input Level
Output Skew
nQx
Qx
Part 1
nQx
Qx
nQy
Qy
Part 2
nQy
tPLH
tPHL
Qy
tsk(pp)
tsk(p)= tPHL - tPLH
Part-to-Part Skew
Pulse Skew
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
9
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Parameter Measurement Information, continued
nPCLK[1, 0]
nQ[0:11]
Q[0:11]
PCLK[1, 0]
nQ[0:11]
Q[0:11]
tPD
Output Rise/Fall Time
Propagation Delay
Spectrum of Output Signal Q
MUX selects active
input clock signal
A0
Q
VDIFF_OUT
VO(pp)
MUX_ISOL = A0 – A1
L or H
SEL
MUX selects static input
A1
Differential Voltage Swing = 2 x Single-ended VO(pp)
Frequency
(fundamental)
Output Voltage Swing
MUX Isolation
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
10
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
The IDT8SLVP1212I inputs can be interfaced to LVPECL, LVDS,
CML or LVCMOS drivers. Figure 1A illustrates how to dc couple a
single LVCMOS input to the IDT8SLVP1212I. The value of the series
resistance RS is calculated as the difference between the
transmission line impedance and the driver output impedance. This
resistor should be placed close to the LVCMOS driver. To avoid
cross-coupling of single-ended LVCMOS signals, apply the LVCMOS
signals to no more than one PCLK input.
A practical method to implement Vth is shown in Figure 1B below.
The reference voltage Vth = V1 = VCC/2, is generated by the bias
resistors R1 and R2. The bypass capacitor (C1) is used to help filter
noise on the DC bias. This bias circuit should be located as close to
the input pin as possible.
The ratio of R1 and R2 might need to be adjusted to position the V1
in the center of the input voltage swing. For example, if the input clock
swing is 2.5V and VCC = 3.3V, R1 and R2 value should be adjusted
to set V1 at 1.25V. The values below apply when both the
single-ended swing and VCC are at the same voltage.
Figure 1A. DC-Coupling a Single LVCMOS Input to the
IDT8SLVP1212I
When using single-ended signaling, the noise rejection benefits of
differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the
amplitude be reduced, particularly if both input references are
LVCMOS to minimize cross talk. The datasheet specifies a lower
differential amplitude, however this only applies to differential signals.
For single-ended applications, the swing can be larger, however VIL
load. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. R3 and R4 in parallel should equal
the transmission line impedance; for most 50applications, R3 and
R4 will be 100. The values of the resistors can be increased to
reduce the loading for slower and weaker LVCMOS driver.
Though some of the recommended components of Figure 1B might
not be used, the pads should be placed in the layout so that they can
be utilized for debugging purposes. The datasheet specifications are
characterized and guaranteed by using a differential signal.
cannot be less than -0.3V and VIH cannot be more than VCC + 0.3V.
Figure 1B shows a way to attenuate the PCLK input level by a factor
of two as well as matching the transmission line between the
LVCMOS driver and the IDT8SLVP1212I at both the source and the
Figure 1B. Alternative DC Coupling a Single LVCMOS Input to the IDT8SLVP1212I
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
11
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
PCLKx/nPCLKx Inputs
LVPECL Outputs
For applications not requiring the use of a differential input, both the
PCLKx and nPCLKx pins can be left floating. Though not required,
but for additional protection, a 1kresistor can be tied from PCLKx
to ground. For applications
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
12
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
3.3V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both differential outputs must meet the VPP and
The input interfaces suggested here are examples only. If the driver
is from another vendor, use their termination recommendation.
Please consult with the vendor of the driver component to confirm the
driver termination requirements.
VCMR input requirements. Figures 2A to 2E show interface examples
for the PCLK/ nPCLK input driven by the most common driver types.
3.3V
3.3V
3.3V
3.3V
o
o
= 50Ω
= 50Ω
3.3V
PCLK
PCLK
R1
100Ω
nPCLK
nPCLK
LVPECL
Input
LVPECL
Input
CML
CML Built-In Pullup
Figure 2A. PCLK/nPCLK Input Driven by a CML Driver
Figure 2B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
3.3V
3.3V
3.3V
R3
R4
125Ω
125Ω
o = 50Ω
o = 50Ω
PCLK
nPCLK
LVPECL
Input
LVPECL
R1
R2
84Ω
84Ω
Figure 2C. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver
Figure 2D. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver with AC Couple
R
E
Figure 2E. PCLK/nPCLK Input Driven by a
3.3V LVDS Driver
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
13
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
2.5V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both differential outputs must meet the VPP and
The input interfaces suggested here are examples only. If the driver
is from another vendor, use their termination recommendation.
Please consult with the vendor of the driver component to confirm the
driver termination requirements.
VCMR input requirements. Figures 3A to 3E show interface examples
for the PCLK/ nPCLK input driven by the most common driver types.
2.5V
2.5V
2.5V
2.5V
2.5V
PCLK
PCLK
nPCLK
nPCLK
LVPECL
CML Built-In Pullup
LVPECL
CML
Input
Input
Figure 3A. PCLK/nPCLK Input Driven by a CML Driver
Figure 3B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
2.5V
2.5V
2.5V
PCLK
nPCLK
LVPECL
Input
LVPECL
Figure 3C. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver
Figure 3D. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver with AC Couple
PCLK
nPCLK
Figure 3E. PCLK/nPCLK Input Driven by a
2.5V LVDS Driver
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
14
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
VFQFN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
15
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 5A and 5B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are a low impedance follower output that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125
125
3.3V
3.3V
o = 50
+
_
LVPECL
Input
o = 50
R1
84
R2
84
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
16
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6B show examples of termination for 2.5V
LVPECL driver.These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 6B can be eliminated and the termination is
shown in Figure 6C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
R1
R3
50Ω
250Ω
250Ω
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
2.5V LVPECL Driver
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 6C. 2.5V LVPECL Driver Termination Example
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
17
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8SLVP1212I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8SLVP1212I is the sum of the core power plus the power dissipation in the load(s).
The following is the power dissipation for VCC = 3.3V + 5% = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipation in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 131mA = 453.9mW
Power (outputs)MAX = 35.2mW/Loaded Output pair
If all outputs are loaded, the total power is 12 * 35.2mW = 422.4mW
Total Power_MAX (3.465V, with all outputs switching) = 453.9mW + 422.4mW = 876.3mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad, and directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 38.1°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.876W * 38.1°C/W = 118.4°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance for a 40-Lead VFQFN
JA
JA at 0 Air Flow
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
38.1°C/W
32.0°C/W
29.9°C/W
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
18
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
The LVPECL output driver circuit and termination are shown in Figure 7.
VCC
Q1
VOUT
RL
VCC - 2V
Figure 7. LVPECL Driver Circuit and Termination
To calculate power dissipation per output pair due to loading, use the following equations which assume a 50load,
and a termination voltage of VCC – 2V.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.6V
(VCC_MAX – VOH_MAX) = 0.6V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.28V
(VCC_MAX – VOL_MAX) = 1.28V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V - (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.6V)/50] * 0.6V = 16.8mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.28V)/50] * 1.28V = 18.4mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 35.2mW
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
19
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Reliability Information
Table 7. vs. Air Flow Table for a 40-Lead VFQFN
JA
JA at 0 Air Flow
Meters per Second
0
1
2
Multi-Layer PCB, JEDEC Standard Test Boards
38.1°C/W
32.0°C/W
29.9°C/W
Transistor Count
The transistor count for the IDT8SLVP1212I is: 7748
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
20
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
40-Lead VFQFN Package Outline and Package Dimensions
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
21
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
40-Lead VFQFN Package Outline and Package Dimensions, continued
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
22
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Ordering Information
Table 8. Ordering Information
Part/Order Number
8SLVP1212ANLGI
Marking
IDT8SLVP1212ANLGI
Package
“Lead-Free” 40-Lead VFQFN
Shipping Packaging
Tray
Temperature
-40°C to 85°C
Tape & Reel,
pin 1 orientation: EIA-481-C
Tape & Reel,
pin 1 orientation: EIA-481-D
8SLVP1212ANLGI8
IDT8SLVP1212ANLGI
“Lead-Free” 40-Lead VFQFN
“Lead-Free” 40-Lead VFQFN
-40°C to 85°C
-40°C to 85°C
8SLVP1212ANLGI/W IDT8SLVP1212ANLGI
Table 9. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
8
Quadrant 1 (EIA-481-C)
/W
Quadrant 2 (EIA-481-D)
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
23
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Revision History Sheet
Rev
Table
Page
Description of Change
Date
Added Features Bullet: Differential PCLKA, nPCLKA and PCLKB, nPCLKB pairs
can also accept single-ended LVCMOS levels.
Added NOTE 7 to VPP, VCMR.
1
1/30/2013
1/28/2014
A
T5
T5
5, 6
11
Updated the “Wiring the Differential Input to Accept Single-Ended Levels” note.
Changed Note 5 to read “VIL should not be less than -0.3V. VIH should not be
higher than VCC.”
A
6
IDT8SLVP1212ANLGI REVISION A JANUARY 28, 2014
24
©2014 Integrated Device Technology, Inc.
IDT8SLVP1212I Data Sheet
LOW PHASE NOISE, 1-TO-12, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
We’ve Got Your Timing Solution
6024 Silver Creek Valley Road Sales
Technical Support Sales
800-345-7015 (inside USA)
netcom@idt.com
San Jose, California 95138
+408-284-8200 (outside USA) +480-763-2056
Fax: 408-284-2775
www.IDT.com/go/contactIDT
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its subsidiaries reserve the right to modify the products and/or specifications described herein at any time and at IDT’s sole discretion. All information in this document,
including descriptions of product features and performance, is subject to change without notice. Performance specifications and the operating parameters of the described products are determined in the independent state and are not
guaranteed to perform the same way when installed in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the
suitability of IDT’s products for any particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any
license under intellectual property rights of IDT or any third parties.
IDT’s products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably expected to signifi-
cantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are registered trademarks of IDT. Other trademarks and service marks used herein, including protected names, logos and designs, are the property of IDT or their respective third
party owners.
Copyright 2014. All rights reserved.
厂商 型号 描述 页数 下载

RUBYCON

 		8SLE15M 导电性高分子铝固体电解电容器[ CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS ] 2 页

IDT

 		8SLVD1204-33 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI8 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33_18 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI8 [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1212 [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI8 [ 1:12, LVDS Output Fanout Buffer ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.200624s
