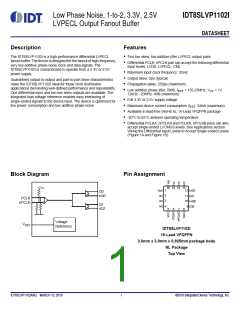

Low Phase Noise, 1-to-2, 3.3V, 2.5V
LVPECL Output Fanout Buffer
IDT8SLVP1102I
DATASHEET
Description
Features
The IDT8SLVP1102I is a high-performance differential LVPECL
fanout buffer. The device is designed for the fanout of high-frequency,
very low additive phase-noise clock and data signals. The
IDT8SLVP1102I is characterized to operate from a 3.3V or 2.5V
power supply.
• Two low skew, low additive jitter LVPECL output pairs
• Differential PCLK, nPCLK pair can accept the following differential
input levels: LVDS, LVPECL, CML
• Maximum input clock frequency: 2GHz
• Output skew: 5ps (typical)
Guaranteed output-to-output and part-to-part skew characteristics
make the IDT8SLVP1102I ideal for those clock distribution
applications demanding well-defined performance and repeatability.
One differential input and two low skew outputs are available. The
integrated bias voltage reference enables easy interfacing of
single-ended signals to the device input. The device is optimized for
low power consumption and low additive phase noise.
• Propagation delay: 250ps (maximum)
• Low additive phase jitter, RMS; fREF = 156.25MHz, VPP = 1V,
12kHz - 20MHz: 49fs (maximum)
• Full 3.3V or 2.5V supply voltage
• Maximum device current consumption (IEE): 34mA (maximum)
• Available in lead-free (RoHS 6), 16-Lead VFQFPN package
• -40°C to 85°C ambient operating temperature
• Differential PCLKA, nPCLKA and PCLKB, nPCLKB pairs can also
accept single-ended LVCMOS levels. See Applications section
Wiring the Differential Input Levels to Accept Single-ended Levels
(Figure 1A and Figure 1B)
Block Diagram
Pin Assignment
V
CC
16 15 14 13
1
2
3
VEE
nc
12
11
10
nQ1
Q1
Q0
nQ0
PCLK
nPCLK
nc
nQ0
Q0
Q1
nQ1
nc
4
9
5
6
7
8
Voltage
Reference
VREF
IDT8SLVP1102I
16-Lead VFQFPN
3.0mm x 3.0mm x 0.925mm package body
NL Package
Top View
IDT8SLVP1102ANLI MARCH 13, 2018
1
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Pin Descriptions and Characteristics
Table 1. Pin Descriptions
Number
Name
Type
Description
1, 16
VEE
Power
Negative supply pins.
Do not connect.
2, 3, 4,
13, 14, 15
nc
Unused
5
6
VCC
Power
Input
Power supply pin.
PCLK
Pulldown
Non-inverting differential LVPECL clock/data input.
Pullup/
Pulldown/
Inverting differential LVPECL clock/data input. VCC/2 default when left
floating.
7
nPCLK
Input
8
VREF
Output
Output
Output
Bias voltage reference for the PCLK input.
9, 10
11, 12
Q0, nQ0
Q1, nQ1
Differential output pair 0. LVPECL interface levels.
Differential output pair 1. LVPECL interface levels.
NOTE: Pulldown and Pullup refers to an internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
Input Pulldown Resistor
Input Pullup Resistor
2
RPULLDOWN
RPULLUP
51
51
k
k
IDT8SLVP1102ANLI MARCH 13, 2018
2
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum
Ratings may cause permanent damage to the device. These ratings
are stress specifications only. Functional operation of product at
these conditions or any conditions beyond those listed in the DC
Characteristics or AC Characteristics is not implied. Exposure to
absolute maximum rating conditions for extended periods may affect
product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
3.63V
-0.5V to VCC + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Input Sink/Source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
125°C
-65C to 150C
2000V
ESD - Human Body Model, NOTE 1
ESD - Charged Device Model, NOTE 1
1500V
NOTE 1: According to JEDEC/JESD 22-A114/22-C101.
DC Electrical Characteristics
Table 3A. Power Supply DC Characteristics, V = 3.3V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
Maximum
3.465
34
Units
V
Power Supply Voltage
Power Supply Current
3.135
3.3V
IEE
mA
Q0 and Q1 terminated
ICC
Power Supply Current
106
mA
50to VCC – 2V
Table 3B. Power Supply DC Characteristics, VCC = 2.5V ± 5%, VEE = 0V, TA = -40°C to 85°C
Symbol
VCC
Parameter
Test Conditions
Minimum
Typical
Maximum
2.625
31
Units
V
Power Supply Voltage
Power Supply Current
2.375
2.5V
IEE
mA
Q0 and Q1 terminated
ICC
Power Supply Current
103
mA
50to VCC – 2V
IDT8SLVP1102ANLI MARCH 13, 2018
3
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Table 3C. LVPECL DC Characteristics, V = 3.3V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input High
Current
IIH
PCLK, nPCLK
VCC = VIN = 3.465V
150
μA
PCLK
V
CC = 3.465V, VIN = 0V
-10
μA
μA
Input Low
Current
IIL
nPCLK
VCC = 3.465V, VIN = 0V
IREF = ±1mA
-150
Reference Voltage for Input
Bias
VREF
VCC – 1.6
VCC – 1.3
VCC – 1.1
V
VOH
VOL
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
VCC – 1.1
VCC – 2.0
VCC – 0.9
VCC – 0.7
VCC – 1.5
V
V
VCC – 1.65
NOTE 1: Outputs terminated with 50to VCC – 2V.
Table 3D. LVPECL DC Characteristics, V = 2.5V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input High
Current
IIH
PCLK, nPCLK
VCC = VIN = 2.625V
150
μA
PCLK
V
CC = 2.625V, VIN = 0V
-10
μA
μA
Input Low
Current
IIL
nPCLK
VCC = 2.625V, VIN = 0V
IREF = ±1mA
-150
Reference Voltage for Input
Bias
VREF
VCC – 1.6
VCC – 1.3
VCC – 1.1
V
VOH
VOL
Output High Voltage; NOTE 1
Output Low Voltage; NOTE 1
VCC – 1.1
VCC – 2.0
VCC – 0.9
VCC – 1.6
VCC – 0.7
VCC – 1.5
V
V
NOTE 1: Outputs terminated with 50to VCC – 2V.
IDT8SLVP1102ANLI MARCH 13, 2018
4
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
AC Electrical Characteristics
Table 4. AC Electrical Characteristics, V = 3.3V ± 5% or 2.5V ± 5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum Units
PCLK,
nPCLK
fREF
Input Frequency
2
GHz
V/ns
ps
PCLK,
nPCLK
V/t
Input Edge Rate
1.5
70
PCLK, nPCLK to any Qx, nQx
for VPP = 0.1V or 0.3V
tPD
Propagation Delay; NOTE 1
140
250
tsk(o)
tsk(p)
tsk(pp)
Output Skew; NOTE 2, 3
Output Pulse Skew
5
6
15
10
ps
ps
ps
fREF = 100MHz
Part-to-Part Skew; NOTE 3, 4
80
230
f
REF = 122.88MHz Sine Wave, VPP = 1V,
157
92
91
38
36
36
60
49
fs
fs
fs
fs
fs
fs
fs
fs
fs
Integration Range: 1kHz – 40MHz
fREF = 122.88MHz Sine Wave, VPP = 1V,
Integration Range: 10kHz – 20MHz
fREF = 122.88MHz Sine Wave, VPP = 1V,
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 1kHz – 40MHz
51
49
49
77
63
63
Buffer Additive Phase Jitter,
RMS; refer to Additive Phase
Jitter Section
fREF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 10kHz – 20MHz
tJIT
fREF = 156.25MHz Square Wave, VPP = 1V,
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V,
Integration Range: 1kHz – 40MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V,
Integration Range: 10kHz – 20MHz
fREF = 156.25MHz Square Wave, VPP = 0.5V,
Integration Range: 12kHz – 20MHz
49
tR / tF
VPP
Output Rise/ Fall Time
20% to 80%
fREF < 1.5GHz
fREF > 1.5GHz
35
0.1
0.2
110
180
1.5
1.5
ps
V
Peak-to-Peak Input Voltage;
NOTE 5, 7
V
Common Mode Input
Voltage; NOTE 5, 6, 7
VCMR
1.0
VCC – 0.6
V
VCC = 3.3V, fREF 2GHz
VCC = 2.5V, fREF 2GHz
VCC = 3.3V, fREF 2GHz
VCC = 2.5V, fREF 2GHz
0.45
0.4
0.9
0.8
0.75
0.65
1.5
1.0
1.0
2.0
2.0
V
V
V
V
Output Voltage Swing,
Peak-to-Peak
VO(pp)
Differential Output Voltage
Swing, Peak-to-Peak
VDIFF_OUT
1.3
NOTE: Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the device is
mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications after thermal equilibrium
has been reached under these conditions.
NOTE 1: Measured from the differential input crossing point to the differential output crosspoint.
NOTE 2: Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential crosspoints.
NOTE 3: This parameter is defined in accordance with JEDEC Standard 65.
NOTE 4: Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature and
with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential crosspoints.
NOTE 5: VIL should not be less than -0.3V. VIH should not be higher than VCC
NOTE 6: Common mode input voltage is defined as the crosspoint.
.
NOTE 7: For single-ended LVCMOS input applications, please refer to the Applications Information, Wiring the Differential Input to accept
single-ended levels, Figures 1A and 1B.
IDT8SLVP1102ANLI MARCH 13, 2018
5
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements have
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device. This
is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
IDT8SLVP1102ANLI MARCH 13, 2018
6
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
VCC
VCC
Qx
Qx
nQx
nQx
VEE
VEE
-1.3V ± 0.165V
-0.5V ± 0.125V
3.3V LVPECL Output Load AC Test Circuit
2.5V LVPECL Output Load AC Test Circuit
V
CC
nQx
Qx
nPCLK
VPP
Cross Points
nQy
Qy
PCLK
VCMR
V
EE
Differential Input Level
Output Skew
nPCLK
PCLK
Part 1
nQx
Qx
nQy
Qy
Part 2
nQy
tPLH
tPHL
Qy
tsk(pp)
tsk(p)= |tPHL - tPLH
|
Part-to-Part Skew
Pulse Skew
IDT8SLVP1102ANLI MARCH 13, 2018
7
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Parameter Measurement Information, continued
nPCLK
nQ0, nQ1
PCLK
nQ0, nQ1
Q0, Q1
Q0, Q1
tPD
Propagation Delay
Output Rise/Fall Time
IDT8SLVP1102ANLI MARCH 13, 2018
8
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
The IDT8SLVP1102I inputs can be interfaced to LVPECL, LVDS,
CML or LVCMOS drivers. Figure 1A illustrates how to DC couple a
single LVCMOS input to the IDT8SLVP1102I. The value of the series
resistance RS is calculated as the difference between the
transmission line impedance and the driver output impedance. This
resistor should be placed close to the LVCMOS driver. To avoid
cross-coupling of single-ended LVCMOS signals, apply the LVCMOS
signals to no more than one PCLK input.
A practical method to implement Vth is shown in Figure 1B below.
The reference voltage Vth = V1 = VCC/2, is generated by the bias
resistors R1 and R2. The bypass capacitor (C1) is used to help filter
noise on the DC bias. This bias circuit should be located as close to
the input pin as possible.
The ratio of R1 and R2 might need to be adjusted to position the V1
in the center of the input voltage swing. For example, if the input clock
swing is 2.5V and VCC = 3.3V, R1 and R2 value should be adjusted
to set V1 at 1.25V. The values below apply when both the
single-ended swing and VCC are at the same voltage.
Figure 1A. DC-Coupling a Single LVCMOS Input to the
IDT8SLVP1102I
When using single-ended signaling, the noise rejection benefits of
differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the
amplitude be reduced, particularly if both input references are
LVCMOS to minimize cross talk. The datasheet specifies a lower
differential amplitude, however this only applies to differential signals.
For single-ended applications, the swing can be larger, however VIL
load. This configuration requires that the sum of the output
impedance of the driver (Ro) and the series resistance (Rs) equals
the transmission line impedance. R3 and R4 in parallel should equal
the transmission line impedance; for most 50applications, R3 and
R4 will be 100. The values of the resistors can be increased to
reduce the loading for slower and weaker LVCMOS driver.
Though some of the recommended components of Figure 1B might
not be used, the pads should be placed in the layout so that they can
be utilized for debugging purposes. The datasheet specifications are
characterized and guaranteed by using a differential signal.
cannot be less than -0.3V and VIH cannot be more than VCC + 0.3V.
Figure 1B shows a way to attenuate the PCLK input level by a factor
of two as well as matching the transmission line between the
LVCMOS driver and the IDT8SLVP1102I at both the source and the
Figure 1B. Alternative DC Coupling a Single LVCMOS Input to the IDT8SLVP1102I
IDT8SLVP1102ANLI MARCH 13, 2018
9
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Recommendations for Unused Output Pins
Outputs:
LVPECL Outputs
All unused LVPECL outputs can be left floating. We recommend that
there is no trace attached. Both sides of the differential output pair
should either be left floating or terminated.
IDT8SLVP1102ANLI MARCH 13, 2018
10
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
3.3V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both signals must meet the VPP and VCMR input
requirements. Figures 2A to 2E show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
3.3V
3.3V
3.3V
3.3V
Zo = 50Ω
3.3V
PCLK
PCLK
R1
100Ω
nPCLK
Zo = 50Ω
nPCLK
LVPECL
LVPECL
Input
CML
CML Built-In Pullup
Input
Figure 2A. PCLK/nPCLK Input Driven by a CML Driver
Figure 2B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
3.3V
3.3V
3.3V
R3
R4
125Ω
125Ω
Zo = 50Ω
Zo = 50Ω
PCLK
nPCLK
LVPECL
Input
LVPECL
R1
R2
84Ω
84Ω
Figure 2C. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver
Figure 2D. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver with AC Couple
3.3V
3.3V
฀o= 50฀
PCLK
R1
100฀
nPCLK
฀o= 50฀
LVPECL
Input
LVDS
Figure 2E. PCLK/nPCLK Input Driven by a
3.3V LVDS Driver
IDT8SLVP1102ANLI MARCH 13, 2018
11
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
2.5V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both signals must meet the VPP and VCMR input
requirements. Figures 3A to 3E show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V
2.5V
2.5V
2.5V
2.5V
PCLK
PCLK
nPCLK
nPCLK
LVPECL
CML Built-In Pullup
LVPECL
Input
CML
Input
Figure 3A. PCLK/nPCLK Input Driven by a CML Driver
Figure 3B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
2.5V
2.5V
2.5V
PCLK
nPCLK
LVPECL
Input
LVPECL
Figure 3C. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver
Figure 3D. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver with AC Couple
PCLK
nPCLK
Figure 3E. PCLK/nPCLK Input Driven by a
2.5V LVDS Driver
IDT8SLVP1102ANLI MARCH 13, 2018
12
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
VFQFPN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8SLVP1102ANLI MARCH 13, 2018
13
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 5A and 5B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are a low impedance follower output that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125฀
125฀
3.3V
3.3V
Zo = 50฀
Zo = 50฀
+
_
Input
R1
84฀
R2
84฀
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
IDT8SLVP1102ANLI MARCH 13, 2018
14
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6B show examples of termination for 2.5V
LVPECLdriver. These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 6B can be eliminated and the termination is
shown in Figure 6C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
50Ω
R1
R3
250Ω
250Ω
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
2.5V LVPECL Driver
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 6C. 2.5V LVPECL Driver Termination Example
IDT8SLVP1102ANLI MARCH 13, 2018
15
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Power Considerations
This section provides information on power dissipation and junction temperature for the IDT8SLVP1102I.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the IDT8SLVP1102I is the sum of the core power plus the power dissipated in the load(s).
The following is the power dissipation for VCC = 3.465V, which gives worst case results.
NOTE: Please refer to Section 3 for details on calculating power dissipated in the load.
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.465V * 34mA = 117.81mW
Power (outputs)MAX = 33.2mW/Loaded Output pair
If all outputs are loaded, the total power is 2 * 33.2mW = 66.4mW
Total Power_MAX (3.465V, with all outputs switching) = 117.81mW + 66.4mW = 184.21mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 5 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.184W * 74.7°C/W = 98.7°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 5. Thermal Resistance for 16-Lead VFQFPN, Forced Convection
JA
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
IDT8SLVP1102ANLI MARCH 13, 2018
16
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
LVPECL output driver circuit and termination are shown in Figure 7.
VCC
Q1
VOUT
RL
VCC - 2V
Figure 7. LVPECL Driver Circuit and Termination
To calculate power dissipation into the load, use the following equations which assume a 50load, and a termination voltage of VCC – 2V.
These are typical calculations.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.7V
(VCC_MAX – VOH_MAX) = 0.7V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.5V
(VCC_MAX – VOL_MAX) = 1.5V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.7V)/50] * 0.7V = 18.2mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.5V)/50] * 1.5V = 15mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 33.2mW
IDT8SLVP1102ANLI MARCH 13, 2018
17
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Reliability Information
Table 6. vs. Air Flow Table for a 16-Lead VFQFPN
JA
JA at 0 Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for the IDT8SLVP1102I is: 204
Package Outline Drawings
The package outline drawings are appended at the end of this document and are accessible from the link below. The package information is
the most current data available.
www.idt.com/document/psc/16-vfqfpn-package-outline-drawing-30-x-30-x-09-mm-05-mm-170-x-170-mm-epad-nlnlg16p2
Ordering Information
Table 7. Ordering Information
Part/Order Number
8SLVP1102ANLGI
8SLVP1102ANLGI8
8SLVP1102ANLGI/W
Marking
102AI
Package
Shipping Packaging
Tube
Temperature
-40C to 85C
-40C to 85C
-40C to 85C
“Lead-Free” 16-Lead VFQFPN
“Lead-Free” 16-Lead VFQFPN
“Lead-Free” 16-Lead VFQFPN
102AI
Tape & Reel, Pin 1 Orientation: EIA-481-C
Tape & Reel, Pin 1 Orientation: EIA-481-D
102AI
NOTE: Parts that are ordered with an “G” suffix to the part number are the Pb-Free configuration and are RoHS compliant.
Table 8. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
8
Quadrant 1 (EIA-481-C)
/W
Quadrant 2 (EIA-481-D)
IDT8SLVP1102ANLI MARCH 13, 2018
18
©2018 Integrated Device Technology, Inc.
IDT8SLVP1102I Datasheet
LOW PHASE NOISE, 1-TO-2, 3.3V, 2.5V LVPECL OUTPUT FANOUT BUFFER
Revision History
Revision Date
Description of Change
Updated the package outline drawings; however, no technical changes
Completed other minor changes
March 13, 2018
February 25, 2014 Ordering Information: changed Tray to Tube.
January 23, 2014 Changed NOTE 5 to read: VIL should not be less than -0.3V. VIH should not be higher than VCC
.
Added Features Bullet: Differential PCLKA, nPCLKA and PCLKB, nPCLKB pairs can also accept single-ended
LVCMOS levels.
February 1, 2013
August 2, 2012
Added NOTE 7 to VPP, VCMR.
Updated the “Wiring the Differential Input to Accept Single-Ended Levels” note.
Changed datasheet title to Low Phase Noise, 1-to-2, 3.3V, 2.5V LVPECL Output Fanout Buffer
Ordering Information Table - added additional row.
Added Orientation Packaging Table.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.idt.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time, without
notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed
in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any
particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intel-
lectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc All rights reserved.
IDT8SLVP1102ANLI MARCH 13, 2018
19
©2018 Integrated Device Technology, Inc.
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 1
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 2
Package Revision History
Description
Rev 04 Remove Bookmak at Pdf Format & Update Thickness Tolerance
Change QFN to VFQFPN
Date Created Rev No.
Oct 25, 2017
Jan 18, 2018
Rev 05
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
厂商 型号 描述 页数 下载

RUBYCON

 		8SLE15M 导电性高分子铝固体电解电容器[ CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS ] 2 页

IDT

 		8SLVD1204-33 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33NLGI8 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204-33_18 [ 2:4, LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1204NLGI8 [ 2:4 LVDS Output Fanout Buffer ] 18 页

IDT

 		8SLVD1212 [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI [ 1:12, LVDS Output Fanout Buffer ] 20 页

IDT

 		8SLVD1212ANLGI8 [ 1:12, LVDS Output Fanout Buffer ] 20 页

购物指南

支付方式

配送服务

售后服务

发票须知

优惠券使用规则

特色服务

PCBA制造

国产品牌推荐

国产料号替代

质量保证

技术资料

行业资讯

关于我们

关于达普

联系我们

联系我们

服务热线：400-618-9990

企业邮箱：smail@ic72.com

服务时间：周一至周六 8:30-17:30

达普官方微信号

PDF索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

IC型号索引：

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Copyright 2024 gkzhan.com Al Rights Reserved 京ICP备06008810号-21 京

深圳网络警察报警平台
公共信息安全网络监察
经营性网站备案信息
不良信息举报中心
工商网监电子标识
全国公安机关备案
0.222335s
