8SLVP1204ANLGI8

型号：

8SLVP1204ANLGI8

品牌：

IDT[ INTEGRATED DEVICE TECHNOLOGY ]

页数：

24 页

PDF大小：

580 K

下载PDF手册

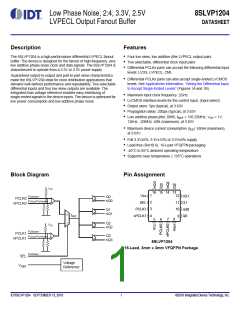

Low Phase Noise, 2:4, 3.3V, 2.5V
LVPECL Output Fanout Buffer
8SLVP1204
DATASHEET
Description
Features
The 8SLVP1204 is a high-performance differential LVPECL fanout
buffer. The device is designed for the fanout of high-frequency, very
low additive phase-noise clock and data signals. The 8SLVP1204 is
characterized to operate from a 3.3V or 2.5V power supply.
• Four low skew, low additive jitter LVPECL output pairs
• Two selectable, differential clock input pairs
• Differential PCLKx pairs can accept the following differential input
levels: LVDS, LVPECL, CML
Guaranteed output-to-output and part-to-part skew characteristics
make the 8SLVP1204 ideal for clock distribution applications that
demand well-defined performance and repeatability. Two selectable
differential inputs and four low skew outputs are available. The
integrated bias voltage reference enables easy interfacing of
single-ended signals to the device inputs. The device is optimized for
low power consumption and low additive phase noise.
• Differential PCLKx pairs can also accept single-ended LVCMOS
levels. See Applications Information, “Wiring the Differential Input
to Accept Single-Ended Levels” (Figures 1A and 1B)
• Maximum input clock frequency: 2GHz
• LVCMOS interface levels for the control input, (input select)
• Output skew: 5ps (typical), at 3.63V
• Propagation delay: 200ps (typical), at 3.63V
• Low additive phase jitter, RMS; fREF = 156.25MHz, VPP = 1V,
12kHz - 20MHz: 40fs (maximum), at 3.63V
• Maximum device current consumption (IEE): 60mA (maximum),
at 3.63V
• Full 3.3V±5%, 3.3V±10% or 2.5V±5% supply
• Lead-free (RoHS 6), 16-Lead VFQFPN packaging
• -40°C to 85°C ambient operating temperature
• Supports case temperature 105°C operations
Block Diagram
Pin Assignment
V
CC
16 15 14 13
1
2
3
VEE
SEL
12
11
10
nQ1
Q1
Pulldown
Q0
nQ0
PCLK0
Pullup/Pulldown
nPCLK0
PCLK1
nPCLK1
nQ0
Q0
Q1
nQ1
0
1
fREF
4
9
5
6
7
8
Q2
V
CC
nQ2
Pulldown
PCLK1
Q3
Pullup/Pulldown
nPCLK1
nQ3
8SLVP1204
16-Lead, 3mm x 3mm VFQFPN Package
Pulldown
SEL
Voltage
Reference
VREF
IDT8SLVP1204 SEPTEMBER 13, 2018
1
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Pin Descriptions and Characteristics
Table 1. Pin Descriptions
Number
Name
Type
Description
1
VEE
Power
Input
Input
Input
Negative supply pin.
Reference select control pin. See Table 3 for function. LVCMOS/LVTTL interface
levels.
2
3
4
SEL
Pulldown
PCLK1
nPCLK1
Pulldown
Non-inverting differential LVPECL clock/data input.
Pullup/
Pulldown
Inverting differential LVPECL clock/data input. VCC/2 default when left floating.
5
6
VCC
Power
Input
Power supply pins.
PCLK0
Pulldown
Non-inverting differential LVPECL clock/data input.
Pullup/
Pulldown
7
nPCLK0
Input
Inverting differential LVPECL clock/data input. VCC/2 default when left floating.
8
VREF
Output
Output
Output
Output
Output
Bias voltage reference for the PCLK inputs.
9, 10
11, 12
13, 14
15, 16
Q0, nQ0
Q1, nQ1
Q2, nQ2
Q3, nQ3
Differential output pair 0. LVPECL interface levels.
Differential output pair 1. LVPECL interface levels.
Differential output pair 2. LVPECL interface levels.
Differential output pair 3. LVPECL interface levels.
NOTE: Pulldown and Pullup refers to an internal input resistors. See Table 2, Pin Characteristics, for typical values.
Table 2. Pin Characteristics
Symbol
CIN
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
pF
Input Capacitance
Input Pulldown Resistor
Input Pullup Resistor
2
RPULLDOWN
RPULLUP
51
51
k
k
Function Table
Table 3. SEL Input Selection Function Table
Input
SEL
0 (default)
1
Operation
PCLK0, nPCLK0 is the selected differential clock input.
PCLK1, nPCLK1 is the selected differential clock input.
NOTE: SEL is an asynchronous control.
IDT8SLVP1204 SEPTEMBER 13, 2018
2
©2018 Integrated Device Technology, Inc.

8SLVP1204 DATASHEET
Absolute Maximum Ratings
NOTE: Stresses beyond those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress
specifications only. Functional operation of the product at these conditions or any conditions beyond those listed in the DC Characteristics or
AC Characteristics is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
Item
Rating
Supply Voltage, VCC
Inputs, VI
4.6V
-0.5V to VCC + 0.5V
Outputs, IO (LVPECL)
Continuous Current
Surge Current
50mA
100mA
Input Sink/Source, IREF
±2mA
Maximum Junction Temperature, TJ,MAX
Storage Temperature, TSTG
125°C
-65°C to 150°C
2000V
ESD - Human Body Model, NOTE 1
ESD - Charged Device Model, NOTE 1
1500V
NOTE 1: According to JEDEC/JESD 22-A114/22-C101.
DC Electrical Characteristics
Table 4A. Power Supply DC Characteristics, V = 3.3V ±10%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
VCC Power Supply Voltage
IEE
Test Conditions
Minimum
Typical
3.3V
53
Maximum
3.63
Units
V
2.97
Power Supply Current
Power Supply Current
60
mA
mA
ICC
Q0 to Q3 terminated 50to VCC – 2V
170
204
Table 4B. Power Supply DC Characteristics, V = 3.3V ±5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
VCC Power Supply Voltage
IEE
Test Conditions
Minimum
3.135
Typical
3.3V
53
Maximum
3.465
60
Units
V
Power Supply Current
Power Supply Current
mA
mA
ICC
Q0 to Q3 terminated 50to VCC – 2V
170
204
Table 4C. Power Supply DC Characteristics, VCC = 2.5V ±5%, VEE = 0V, TA = -40°C to 85°C
Symbol Parameter
VCC Power Supply Voltage
IEE
Test Conditions
Minimum
Typical
2.5V
49
Maximum
2.625
55
Units
V
2.375
Power Supply Current
Power Supply Current
mA
mA
ICC
Q0 to Q3 terminated 50to VCC – 2V
170
199
IDT8SLVP1204 SEPTEMBER 13, 2018
3
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Table 4D. LVCMOS/LVTTL DC Characteristics, V = 3.3V ±10%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
V
CC = 3.63V
VCC = 2.625V
CC = 3.63V
VCC = 2.625V
2.2
1.7
VIH Input High Voltage
V
V
-0.3
-0.3
V
VIL
Input Low Voltage
0.7
V
IIH
IIL
Input High Current
Input Low Current
SEL
SEL
VCC = VIN = 3.465V or 2.625V
150
µA
µA
VCC = 3.465V or 2.625V, VIN = 0V
-10
Table 4E. LVCMOS/LVTTL DC Characteristics, V = 3.3V ±5% or 2.5V ±5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
Test Conditions
Minimum
Typical
Maximum
VCC + 0.3
VCC + 0.3
0.8
Units
V
VCC = 3.465V
2.2
1.7
VIH Input High Voltage
VCC = 2.625V
VCC = 3.465V
V
-0.3
-0.3
V
VIL
Input Low Voltage
VCC = 2.625V
0.7
V
IIH
IIL
Input High Current
Input Low Current
SEL
SEL
VCC = VIN = 3.465V or 2.625V
VCC = 3.465V or 2.625V, VIN = 0V
150
µA
µA
-10
IDT8SLVP1204 SEPTEMBER 13, 2018
4
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Table 4F. LVPECL DC Characteristics, V = 3.3V ±10%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
IIH Input High Current
Test Conditions
Minimum
Typical
Maximum
Units
PCLK0, nPCLK0
PCLK1, nPCLK1
VCC = VIN = 3.63V
150
µA
PCLK0, PCLK1
VCC = 3.63V, VIN = 0V
VCC = 3.63V, VIN = 0V
IREF = ±1mA
-10
µA
µA
V
IIL
Input Low Current
nPCLK0, nPCLK1
-150
VREF
VOH
VOL
Reference Voltage for Input Bias
Output High Voltage1
VCC – 1.6
VCC – 1.1
VCC – 2.0
VCC – 1.3
VCC – 0.9
VCC – 1.65
VCC – 1.1
VCC – 0.7
VCC – 1.5
V
Output Low Voltage1
V
NOTE 1. Outputs terminated with 50to VCC – 2V.
Table 4G. LVPECL DC Characteristics, V = 3.3V ±5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
IIH Input High Current
Test Conditions
Minimum
Typical
Maximum
Units
PCLK0, nPCLK0
PCLK1, nPCLK1
VCC = VIN = 3.465V
150
µA
PCLK0, PCLK1
V
CC = 3.465V, VIN = 0V
-10
µA
µA
V
IIL
Input Low Current
nPCLK0, nPCLK1
VCC = 3.465V, VIN = 0V
IREF = ±1mA
-150
VREF
VOH
VOL
Reference Voltage for Input Bias
Output High Voltage1
VCC – 1.6
VCC – 1.1
VCC – 2.0
VCC – 1.3
VCC – 0.9
VCC – 1.65
VCC – 1.1
VCC – 0.7
VCC – 1.5
V
Output Low Voltage1
V
NOTE 1. Outputs terminated with 50to VCC – 2V.
Table 4H. LVPECL DC Characteristics, V = 2.5V ±5%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol Parameter
IIH Input High Current
Test Conditions
VCC = VIN = 2.625V
CC = 2.625V, VIN = 0V
Minimum
Typical
Maximum
Units
PCLK0, nPCLK0
PCLK1, nPCLK1
150
µA
PCLK0, PCLK1
V
-10
µA
µA
V
IIL
Input Low Current
nPCLK0, nPCLK1
VCC = 2.625V, VIN = 0V
IREF = ±1mA
-150
VREF
VOH
VOL
Reference Voltage for Input Bias
Output High Voltage1
VCC – 1.6
VCC – 1.1
VCC – 2.0
VCC – 1.3
VCC – 0.9
VCC – 1.6
VCC – 1.1
VCC – 0.7
VCC – 1.5
V
Output Low Voltage1
V
NOTE 1. Outputs terminated with 50to VCC – 2V.
IDT8SLVP1204 SEPTEMBER 13, 2018
5
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
AC Electrical Characteristics
Table 5A. AC Electrical Characteristics, VCC = 3.3V ± 5% or 2.5V ±5%, VEE = 0V, TA = -40°C to 85°C1
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum
Units
Input
PCLK[0:1],
fREF
2
GHz
Frequency nPCLK[0:1]
Input PCLK[0:1],
V/t
1.5
V/ns
ps
Edge Rate nPCLK[0:1]
Propagation Delay2
PCKx, nPCLKx to any Qx, nQx
for VPP = 0.1V or 0.3V
tPD
120
200
320
tsk(o)
tsk(i)
Output Skew3 4
Input Skew4
5
5
25
50
ps
ps
ps
ps
tsk(p)
tsk(pp)
Pulse Skew
Part-to-Part Skew4 5
fREF = 100MHz
5
20
100
200
fREF = 122.88MHz Sine Wave, VPP = 1V,
Integration Range: 1kHz – 40MHz
170
114
114
fs
fs
fs
fREF = 122.88MHz Sine Wave, VPP = 1V,
Integration Range: 10kHz – 20MHz
fREF = 122.88MHz Sine Wave, VPP = 1V,
Integration Range: 12kHz – 20MHz
fREF = 156.25MHz Square Wave,
VPP = 1V, Integration Range:
1kHz – 40MHz
42
32
32
51
38
38
51
40
40
71
52
fs
fs
fs
fs
fs
fs
fREF = 156.25MHz Square Wave,
VPP = 1V, Integration Range:
10kHz – 20MHz
Buffer Additive Phase
Jitter, RMS; refer to
Additive Phase Jitter
Section
tJIT
fREF = 156.25MHz Square Wave,
VPP = 1V, Integration Range:
12kHz – 20MHz
f
REF = 156.25MHz Square Wave,
VPP = 0.5V, Integration Range:
1kHz – 40MHz
fREF = 156.25MHz Square Wave,
VPP = 0.5V, Integration Range:
10kHz – 20MHz
fREF = 156.25MHz Square Wave,
VPP = 0.5V, Integration Range:
12kHz – 20MHz
52
tR / tF
Output Rise/ Fall Time
20% to 80%
fREF = 100MHz
fREF < 1.5 GHz
fREF > 1.5 GHz
35
90
77
180
ps
dB
V
MUXISOLATION Mux Isolation6
0.1
0.2
1.0
0.8
0.45
0.4
0.9
1.5
1.5
Peak-to-Peak Input
Voltage7
VPP
V
VCC – 0.6
VCC – 0.6
1.0
V
Common Mode Input
Voltage7 8 9
VCMR
VO(pp)
VPP = > 247mV
V
VCC = 3.3V, fREF 2GHz
VCC = 2.5V, fREF 2GHz
VCC = 3.3V, fREF 2GHz
0.75
0.65
1.5
V
Output Voltage Swing,
Peak-to-Peak
1.0
V
Differential Output
Voltage Swing,
Peak-to-Peak
2.0
V
VDIFF_OUT
V
CC = 2.5V, fREF 2GHz
0.8
1.3
2.0
V
IDT8SLVP1204 SEPTEMBER 13, 2018
6
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
NOTE 1. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the
device is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications
after thermal equilibrium has been reached under these conditions.
NOTE 2. Measured from the differential input crossing point to the differential output crosspoint.
NOTE 3. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential cross
point.
NOTE 4. This parameter is defined in accordance with JEDEC Standard 65.
NOTE 5. Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature
and with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cross
point.
NOTE 6. Qx, nQx outputs measured differentially. See MUX Isolation diagram in the Parameter Measurement Information section.
NOTE 7. For single-ended LVCMOS input applications, refer to the Applications section Wiring the Differential Input Levels to Accept Sin-
gle-ended Levels (Figures 1 and 2).
NOTE 8. VIL should not be less than -0.3V. VIH should not be higher than VCC
NOTE 9. Common mode input voltage is defined as the crosspoint.
.
1
Table 5B. AC Electrical Characteristics, V = 3.3V ±10%, V = 0V, T = -40°C to 85°C
CC
EE
A
Symbol
Parameter
Test Conditions
Minimum
Typical
Maximum Units
Input
PCLK[0:1],
fREF
2
GHz
V/ns
ps
Frequency nPCLK[0:1]
Input2
PCLK[0:1],
V/t
1.5
Edge Rate nPCLK[0:1]
PCKx, nPCLKx to any Qx, nQx
for VPP = 0.1V or 0.3V
tPD
Propagation Delay3
120
230
325
tsk(o)
tsk(i)
Output Skew4 5
Input Skew4
6
6
7
30
55
ps
ps
ps
ps
ps
dB
V
tsk(p)
tsk(pp)
tR / tF
Pulse Skew
Part-to-Part Skew4 6
fREF = 100MHz
25
200
200
Output Rise/ Fall Time
20% to 80%
fREF = 100MHz
fREF < 1.5 GHz
fREF > 1.5 GHz
35
MUXISOLATION Mux Isolation7
77
0.1
0.2
1.0
0.8
0.45
0.4
0.9
1.5
1.5
Peak-to-Peak Input
Voltage8
VPP
V
VCC – 0.6
VCC – 0.6
1.0
V
Common Mode Input
Voltage7 9 10
VCMR
VO(pp)
VPP = > 247mV
V
V
CC = 3.3V, fREF 2GHz
VCC = 2.5V, fREF 2GHz
CC = 3.3V, fREF 2GHz
VCC = 2.5V, fREF 2GHz
0.75
0.65
1.5
V
Output Voltage Swing,
Peak-to-Peak
1.0
V
Differential Output
Voltage Swing,
Peak-to-Peak
V
2.0
V
VDIFF_OUT
0.8
1.3
2.0
V
NOTE 1. Electrical parameters are guaranteed over the specified ambient operating temperature range, which is established when the
device is mounted in a test socket with maintained transverse airflow greater than 500 lfpm. The device will meet specifications
after thermal equilibrium has been reached under these conditions.
NOTE 2. Input Edge Rate is the slope of Δv/Δt at the crosspoint of the differential pair signals. Δt is measured with ΔV = 300mV on one
of the single-ended input pair signals.
NOTE 3. Measured from the differential input crossing point to the differential output crosspoint.
NOTE 4. Defined as skew between outputs at the same supply voltage and with equal load conditions. Measured at the differential cross
point.
NOTE 5. This parameter is defined in accordance with JEDEC Standard 65
IDT8SLVP1204 SEPTEMBER 13, 2018
7
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
NOTE 6. Defined as skew between outputs on different devices operating at the same supply voltage, same frequency, same temperature
and with equal load conditions. Using the same type of inputs on each device, the outputs are measured at the differential cros-
spoint.
NOTE 7. Qx, nQx outputs measured differentially. See MUX Isolation diagram in the Parameter Measurement Information section.
NOTE 8. For single-ended LVCMOS input applications, refer to the Applications section Wiring the Differential Input Levels to Accept Sin-
gle-ended Levels (Figures 1 and 2).
NOTE 9. VIL should not be less than -0.3V. VIH should not be higher than VCC
NOTE 10. Common mode input voltage is defined as the crosspoint.
.
IDT8SLVP1204 SEPTEMBER 13, 2018
8
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Additive Phase Jitter
The spectral purity in a band at a specific offset from the fundamental
compared to the power of the fundamental is called the dBc Phase
Noise. This value is normally expressed using a Phase noise plot
and is most often the specified plot in many applications. Phase noise
is defined as the ratio of the noise power present in a 1Hz band at a
specified offset from the fundamental frequency to the power value of
the fundamental. This ratio is expressed in decibels (dBm) or a ratio
of the power in the 1Hz band to the power in the fundamental. When
the required offset is specified, the phase noise is called a dBc value,
which simply means dBm at a specified offset from the fundamental.
By investigating jitter in the frequency domain, we get a better
understanding of its effects on the desired application over the entire
time record of the signal. It is mathematically possible to calculate an
expected bit error rate given a phase noise plot.
Offset from Carrier Frequency (Hz)
As with most timing specifications, phase noise measurements has
issues relating to the limitations of the equipment. Often the noise
floor of the equipment is higher than the noise floor of the device. This
is illustrated above. The device meets the noise floor of what is
shown, but can actually be lower. The phase noise is dependent on
the input source and measurement equipment.
Measured using a Wenzel 156.25MHz Oscillator as the input source.
IDT8SLVP1204 SEPTEMBER 13, 2018
9
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Parameter Measurement Information
2V
2V
SCOPE
SCOPE
V
V
CC
Qx
Qx
CC
nQx
nQx
VEE
VEE
-1.3V±0.165V
-1.3V±0.33V
3.3V ±10% LVPECL Output Load Test Circuit
3.3V ±5% LVPECL Output Load Test Circuit
2V
V
CC
SCOPE
V
CC
Qx
nPCLK[0:1]
PCLK[0:1]
nQx
VEE
V
EE
-0.5V±0.125V
2.5V LVPECL Output Load Test Circuit
Differential Input Level
nPCLK[0:1]
PCLK[0:1]
Part 1
nQx
Qx
nQy
Qy
Part 2
nQy
tPLH
tPHL
Qy
tsk(pp)
tsk(p)= |tPHL - tPLH
|
Part-to-Part Skew
Pulse Skew
IDT8SLVP1204 SEPTEMBER 13, 2018
10
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Parameter Measurement Information, continued
nPCLK0
Spectrum of Output Signal Q
PCLK0
MUX selects active
input clock signal
A0
nPCLK1
PCLK1
MUX_ISOLATION = A0 – A1
nQ[0:3]
MUX selects other input
A1
Q[0:3]
tPD2
tPD1
ƒ
Frequency
tsk(i)
(fundamental)
tsk(i) = |tPD1 - tPD2
|
Input Skew
MUX Isolation
nQx
Qx
nPCLK[0:1]
PCLK[0:1]
nQ[0:3]
Q[0:3]
nQy
Qy
tPD
Output Skew
Propagation Delay
nQ[0:3]
80%
80%
tR
VO(PP)
20%
20%
Q[0:3]
tF
Output Rise/Fall Time
IDT8SLVP1204 SEPTEMBER 13, 2018
11
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Applications Information
Wiring the Differential Input to Accept Single-Ended Levels
The 8SLVP1204 inputs can be interfaced to LVPECL, LVDS, CML or
LVCMOS drivers. Figure 1A illustrates how to DC couple a single
LVCMOS input to the 8SLVP1204. The value of the series resistance
RS is calculated as the difference between the transmission line
impedance and the driver output impedance. This resistor should be
placed close to the LVCMOS driver. To avoid cross-coupling of
single-ended LVCMOS signals, apply the LVCMOS signals to no
more than one PCLK input.
A practical method to implement Vth is shown in Figure 1B below.
The reference voltage Vth = V1 = VCC/2, is generated by the bias
resistors R1 and R2. The bypass capacitor (C1) is used to help filter
noise on the DC bias. This bias circuit should be located as close to
the input pin as possible.
The ratio of R1 and R2 might need to be adjusted to position the V1
in the center of the input voltage swing. For example, if the input clock
swing is 2.5V and VCC = 3.3V, R1 and R2 value should be adjusted
to set V1 at 1.25V. The values below apply when both the
single-ended swing and VCC are at the same voltage.
Figure 1A. DC-Coupling a Single LVCMOS Input to the
8SLVP1204
When using single-ended signaling, the noise rejection benefits of
differential signaling are reduced. Even though the differential input
can handle full rail LVCMOS signaling, it is recommended that the
amplitude be reduced, particularly if both input references are
LVCMOS to minimize cross talk. The datasheet specifies a lower
differential amplitude, however this only applies to differential signals.
For single-ended applications, the swing can be larger, however VIL
This configuration requires that the sum of the output impedance of
the driver (Ro) and the series resistance (Rs) equals the transmission
line impedance. R3 and R4 in parallel should equal the transmission
line impedance; for most 50applications, R3 and R4 will be 100.
The values of the resistors can be increased to reduce the loading for
slower and weaker LVCMOS driver.
Though some of the recommended components of Figure 1B might
not be used, the pads should be placed in the layout so that they can
be utilized for debugging purposes. The datasheet specifications are
characterized and guaranteed by using a differential signal.
cannot be less than -0.3V and VIH cannot be more than VCC + 0.3V.
Figure 1B shows a way to attenuate the PCLK input level by a factor
of two as well as matching the transmission line between the
LVCMOS driver and the 8SLVP1204 at both the source and the load.
VC C
VC C
VCC
VCC
R3
100
R1
1K
Ro
RS
Zo = 50 Ohm
+
Receiv er
Driver
V1
R4
-
100
R2
1K
Ro +Rs = Zo
C1
0.1uF
Figure 1B. Alternative DC Coupling a Single LVCMOS Input to the 8SLVP1204
IDT8SLVP1204 SEPTEMBER 13, 2018
12
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
3.3V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both signals must meet the VPP and VCMR input
requirements. Figures 2A to 2E show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
3.3V
3.3V
3.3V
3.3V
Zo = 50Ω
3.3V
PCLK
PCLK
R1
100Ω
nPCLK
Zo = 50Ω
nPCLK
LVPECL
LVPECL
Input
CML
CML Built-In Pullup
Input
Figure 2A. PCLK/nPCLK Input Driven by a CML Driver
Figure 2B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
3.3V
3.3V
3.3V
R3
R4
125Ω
125Ω
Zo = 50Ω
Zo = 50Ω
PCLK
nPCLK
LVPECL
Input
LVPECL
R1
R2
84Ω
84Ω
Figure 2C. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver
Figure 2D. PCLK/nPCLK Input Driven by a
3.3V LVPECL Driver with AC Couple
3.3V
3.3V
Zo = 50฀
PCLK
R1
100฀
nPCLK
Zo = 50฀
LVPECL
Input
LVDS
Figure 2E. PCLK/nPCLK Input Driven by a
3.3V LVDS Driver
IDT8SLVP1204 SEPTEMBER 13, 2018
13
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
2.5V LVPECL Clock Input Interface
The PCLK /nPCLK accepts LVPECL, LVDS, CML and other
differential signals. Both signals must meet the VPP and VCMR input
requirements. Figures 3A to 3E show interface examples for the
PCLK/ nPCLK input driven by the most common driver types. The
input interfaces suggested here are examples only. If the driver is
from another vendor, use their termination recommendation. Please
consult with the vendor of the driver component to confirm the driver
termination requirements.
2.5V
2.5V
2.5V
2.5V
2.5V
PCLK
PCLK
nPCLK
nPCLK
LVPECL
CML Built-In Pullup
LVPECL
Input
CML
Input
Figure 3A. PCLK/nPCLK Input Driven by a CML Driver
Figure 3B. PCLK/nPCLK Input Driven by a
Built-In Pullup CML Driver
2.5V
2.5V
2.5V
PCLK
nPCLK
LVPECL
Input
LVPECL
Figure 3C. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver
Figure 3D. PCLK/nPCLK Input Driven by a
2.5V LVPECL Driver with AC Couple
PCLK
nPCLK
Figure 3E. PCLK/nPCLK Input Driven by a
2.5V LVDS Driver
IDT8SLVP1204 SEPTEMBER 13, 2018
14
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Recommendations for Unused Input and Output Pins
Inputs:
Outputs:
PCLK/nPCLK Inputs
LVPECL Outputs
For applications not requiring the use of a differential input, both the
PCLK and nPCLK pins can be left floating. Though not required, but
for additional protection, a 1kresistor can be tied from PCLK to
ground.
All unused LVPECL output pairs can be left floating. We recommend
that there is no trace attached. Both sides of the differential output
pair should either be left floating or terminated.
VFQFPN EPAD Thermal Release Path
In order to maximize both the removal of heat from the package and
the electrical performance, a land pattern must be incorporated on
the Printed Circuit Board (PCB) within the footprint of the package
corresponding to the exposed metal pad or exposed heat slug on the
package, as shown in Figure 4. The solderable area on the PCB, as
defined by the solder mask, should be at least the same size/shape
as the exposed pad/slug area on the package to maximize the
thermal/electrical performance. Sufficient clearance should be
designed on the PCB between the outer edges of the land pattern
and the inner edges of pad pattern for the leads to avoid any shorts.
and dependent upon the package power dissipation as well as
electrical conductivity requirements. Thus, thermal and electrical
analysis and/or testing are recommended to determine the minimum
number needed. Maximum thermal and electrical performance is
achieved when an array of vias is incorporated in the land pattern. It
is recommended to use as many vias connected to ground as
possible. It is also recommended that the via diameter should be 12
to 13mils (0.30 to 0.33mm) with 1oz copper via barrel plating. This is
desirable to avoid any solder wicking inside the via during the
soldering process which may result in voids in solder between the
exposed pad/slug and the thermal land. Precautions should be taken
to eliminate any solder voids between the exposed heat slug and the
land pattern. Note: These recommendations are to be used as a
guideline only. For further information, please refer to the Application
Note on the Surface Mount Assembly of Amkor’s Thermally/
Electrically Enhance Leadframe Base Package, Amkor Technology.
While the land pattern on the PCB provides a means of heat transfer
and electrical grounding from the package to the board through a
solder joint, thermal vias are necessary to effectively conduct from
the surface of the PCB to the ground plane(s). The land pattern must
be connected to ground through these vias. The vias act as “heat
pipes”. The number of vias (i.e. “heat pipes”) are application specific
SOLDER
SOLDER
PIN
PIN
EXPOSED HEAT SLUG
PIN PAD
GROUND PLANE
LAND PATTERN
(GROUND PAD)
PIN PAD
THERMAL VIA
Figure 4. P.C. Assembly for Exposed Pad Thermal Release Path – Side View (drawing not to scale)
IDT8SLVP1204 SEPTEMBER 13, 2018
15
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Termination for 3.3V LVPECL Outputs
The clock layout topology shown below is a typical termination for
LVPECL outputs. The two different layouts mentioned are
recommended only as guidelines.
transmission lines. Matched impedance techniques should be used
to maximize operating frequency and minimize signal distortion.
Figures 5A and 5B show two different layouts which are
recommended only as guidelines. Other suitable clock layouts may
exist and it would be recommended that the board designers
simulate to guarantee compatibility across all printed circuit and clock
component process variations.
The differential outputs are a low impedance follower output that
generate ECL/LVPECL compatible outputs. Therefore, terminating
resistors (DC current path to ground) or current sources must be
used for functionality. These outputs are designed to drive 50
3.3V
R3
R4
125฀
125฀
3.3V
3.3V
Zo = 50฀
Zo = 50฀
+
_
Input
R1
84฀
R2
84฀
Figure 5A. 3.3V LVPECL Output Termination
Figure 5B. 3.3V LVPECL Output Termination
IDT8SLVP1204 SEPTEMBER 13, 2018
16
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Termination for 2.5V LVPECL Outputs
Figure 6A and Figure 6B show examples of termination for 2.5V
LVPECLdriver. These terminations are equivalent to terminating 50
to VCC – 2V. For VCC = 2.5V, the VCC – 2V is very close to ground
level. The R3 in Figure 6B can be eliminated and the termination is
shown in Figure 6C.
2.5V
VCC = 2.5V
2.5V
2.5V
VCC = 2.5V
50Ω
R1
R3
250Ω
250Ω
+
50Ω
50Ω
+
–
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
2.5V LVPECL Driver
R2
R4
62.5Ω
62.5Ω
R3
18Ω
Figure 6A. 2.5V LVPECL Driver Termination Example
Figure 6B. 2.5V LVPECL Driver Termination Example
2.5V
VCC = 2.5V
50Ω
+
50Ω
–
2.5V LVPECL Driver
R1
R2
50Ω
50Ω
Figure 6C. 2.5V LVPECL Driver Termination Example
IDT8SLVP1204 SEPTEMBER 13, 2018
17
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
3.3V ±10% Power Considerations
This section provides information on power dissipation and junction temperature for the 8SLVP1204.
Equations and example calculations are also provided.
1. Power Dissipation.
The total power dissipation for the 8SLVP1204 is the sum of the core power plus the power dissipated due to loading.
The following is the power dissipation for VCC = 3.63V.
NOTE: Please refer to Section 3 for details on calculating power dissipated due to loading.
The maximum current at 85° is as follows:
IEE_MAX = 65mA
•
•
Power (core)MAX = VCC_MAX * IEE_MAX = 3.63V * 60mA = 217.80mW
Power (outputs)MAX = 33.2mW/Loaded Output pair
If all outputs are loaded, the total power is 4 * 33.2mW = 132.8mW
Total Power_MAX (3.63V, with all outputs switching) = 217.80mW + 132.8mW = 350.60mW
2. Junction Temperature.
Junction temperature, Tj, is the temperature at the junction of the bond wire and bond pad directly affects the reliability of the device. The
maximum recommended junction temperature is 125°C. Limiting the internal transistor junction temperature, Tj, to 125°C ensures that the bond
wire and bond pad temperature remains below 125°C.
The equation for Tj is as follows: Tj = JA * Pd_total + TA
Tj = Junction Temperature
JA = Junction-to-Ambient Thermal Resistance
Pd_total = Total Device Power Dissipation (example calculation is in section 1 above)
TA = Ambient Temperature
In order to calculate junction temperature, the appropriate junction-to-ambient thermal resistance JA must be used. Assuming no air flow and
a multi-layer board, the appropriate value is 74.7°C/W per Table 6 below.
Therefore, Tj for an ambient temperature of 85°C with all outputs switching is:
85°C + 0.351W * 74.7°C/W = 111.2°C. This is below the limit of 125°C.
This calculation is only an example. Tj will obviously vary depending on the number of loaded outputs, supply voltage, air flow and the type of
board (multi-layer).
Table 6. Thermal Resistance for 16-Lead VFQFPN, Forced Convection
JA
JA by Velocity
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
IDT8SLVP1204 SEPTEMBER 13, 2018
18
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
3. Calculations and Equations.
The purpose of this section is to calculate the power dissipation for the LVPECL output pair.
LVPECL output driver circuit and termination are shown in Figure 7.
VCC
Q1
VOUT
RL
VCC - 2V
Figure 7. LVPECL Driver Circuit and Termination
To calculate power dissipation due to loading, use the following equations which assume a 50load, and a termination voltage of VCC – 2V.
These are typical calculations.
•
•
For logic high, VOUT = VOH_MAX = VCC_MAX – 0.7V
(VCC_MAX – VOH_MAX) = 0.7V
For logic low, VOUT = VOL_MAX = VCC_MAX – 1.5V
(VCC_MAX – VOL_MAX) = 1.5V
Pd_H is power dissipation when the output drives high.
Pd_L is the power dissipation when the output drives low.
Pd_H = [(VOH_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOH_MAX) = [(2V – (VCC_MAX – VOH_MAX))/RL] * (VCC_MAX – VOH_MAX) =
[(2V – 0.7V)/50] * 0.7V = 18.2mW
Pd_L = [(VOL_MAX – (VCC_MAX – 2V))/RL] * (VCC_MAX – VOL_MAX) = [(2V – (VCC_MAX – VOL_MAX))/RL] * (VCC_MAX – VOL_MAX) =
[(2V – 1.5V)/50] * 1.5V = 15mW
Total Power Dissipation per output pair = Pd_H + Pd_L = 33.2mW
IDT8SLVP1204 SEPTEMBER 13, 2018
19
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Case Temperature Considerations
This device supports applications in a natural convection environment which does not have any thermal conductivity through ambient air. The
printed circuit board (PCB) is typically in a sealed enclosure without any natural or forced air flow and is kept at or below a specific temperature.
The device package design incorporates an exposed pad (ePad) with enhanced thermal parameters which is soldered to the PCB where most
of the heat escapes from the bottom exposed pad. For this type of application, it is recommended to use the junction-to-board thermal
characterization parameter JB (Psi-JB) to calculate the junction temperature (TJ) and ensure it does not exceed the maximum allowed
junction temperature in the Absolute Maximum Rating table.
The junction-to-board thermal characterization parameter, JB, is calculated using the following equation:
TJ = TCB + JB x Pd, Where
TJ = Junction temperature at steady state condition in (oC).
TCB = Case temperature (Bottom) at steady state condition in (oC).
JB = Thermal characterization parameter to report the difference between junction temperature and the temperature of the board
measured at the top surface of the board.
Pd = power dissipation (W) in desired operating configuration.
T
J
T
CB
The ePad provides a low thermal resistance path for heat transfer to the PCB and represents the key pathway to transfer heat away from the
IC to the PCB. It’s critical that the connection of the exposed pad to the PCB is properly constructed to maintain the desired IC case temperature
(TCB). A good connection ensures that temperature at the exposed pad (TCB) and the board temperature (TB) are relatively the same. An
improper connection can lead to increased junction temperature, increased power consumption and decreased electrical performance. In
addition, there could be long-term reliability issues and increased failure rate.
Example Calculation for Junction Temperature (TJ): TJ = TCB + JB x Pd
Package type:
Body size:
ePad size:
Thermal Via:
JB
16-Lead VFQFPN
3mm x 3mm x0.9mm
1.7mm x 1.7mm
2 x 2 matrix
5.1 C/W
105oC
TCB
Pd
0.351 W
For the variables above, the junction temperature is equal to 107oC. Since this is below the maximum junction temperature of 125oC, there
are no long term reliability concerns. In addition, since the junction temperature at which the device was characterized using forced convection
is 111.2oC, this device can function without the degradation of the specified AC or DC parameters.
IDT8SLVP1204 SEPTEMBER 13, 2018
20
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Reliability Information
Table 7. vs. Air Flow Table for a 16-Lead VFQFPN
JA
JA at 0 Air Flow
Meters per Second
0
1
2.5
Multi-Layer PCB, JEDEC Standard Test Boards
74.7°C/W
65.3°C/W
58.5°C/W
Transistor Count
The transistor count for the 8SLVP1204 is: 258
Package Outline Drawings
The package outline drawings are appended at the end of this document and are accessible from the link below. The package information is
the most current data available.
www.idt.com/document/psc/16-vfqfpn-package-outline-drawing-30-x-30-x-09-mm-05-mm-170-x-170-mm-epad-nlnlg16p2
Ordering Information
Table 8. Ordering Information
Part/Order Number
8SLVP1204ANLGI
8SLVP1204ANLGI8
8SLVP1204ANLGI/W
Marking
204AI
Package
Shipping Packaging
Tube
Temperature
-40°C to 85°C
-40°C to 85°C
-40°C to 85°C
16-VFQFPN, Lead-Free
16-VFQFPN, Lead-Free
16-VFQFPN, Lead-Free
204AI
Tape & Reel, Pin 1 Orientation: EIA-481-C
Tape & Reel, Pin 1 Orientation: EIA-481-D
204AI
Table 9. Pin 1 Orientation in Tape and Reel Packaging
Part Number Suffix
Pin 1 Orientation
Illustration
8
Quadrant 1 (EIA-481-C)
/W
Quadrant 2 (EIA-481-D)
IDT8SLVP1204 SEPTEMBER 13, 2018
21
©2018 Integrated Device Technology, Inc.
8SLVP1204 DATASHEET
Revision History
Revision Date
Description of Change
September 13, 2018
Added Note 2 to Table 5B.
Updated the package outline drawings; however, no technical changes
Completed other minor changes
March 13, 2018
June 8, 2015
Features Section - Added Case Temperature bullet.
Added Case Temperature Considerations.
AC Characteristic Tables - added VCMR spec.
Updated header/footer throughout the datasheet.
December 19, 2014
February 25, 2014
Ordering Info: Changed Tray to Tube.
VPP Deleted reference to NOTE 5; VO(pp) corrected typo ‘’;
VDIFF_OUT corrected typo ‘’
March 20, 2014
VPP Deleted reference to NOTE 5; VO(pp) corrected typo ‘’;
VDIFF_OUT corrected typo ‘’
Output Rise/Fall; changed VSWING to VO(pp)
January 27, 2014
Changed NOTE 7 to read: VIL should not be less than -0.3V. VIH should not be higher than VCC
.
Features section, 10th bullet; changed 65mA to 60mA.
V
REF; added Minimum and Maximum values.
September 30, 2013
VOH; added Minimum and Maximum values.
VOL; added Minimum and Maximum values.
Features section - added Differential PCLK bullet referencing single-ended LVCMOS input.
Added 3.3V ±10% Power Supply DC Characteristics Table
Added 3.3V ±10% LVCMOS/LVTTL DC Characteristics Table
Added 3.3V ±10% LVPECL DC Characteristics Table
April 8, 2013
AC Characteristics Table, added NOTE 6.
Added 3.3V ±10% AC Characteristics Table and added NOTE 6.
Parameter Measurement Information section - added 3.3V±10% LVPECL Output Load Test Circuit Diagram.
Updated application note, Wiring the Differential Inputs to Accept Single-ended Levels.
Updated Power Considerations section.
Corporate Headquarters
6024 Silver Creek Valley Road
San Jose, CA 95138 USA
www.IDT.com
Sales
Tech Support
1-800-345-7015 or 408-284-8200
Fax: 408-284-2775
www.IDT.com/go/sales
www.idt.com/go/support
DISCLAIMER Integrated Device Technology, Inc. (IDT) and its affiliated companies (herein referred to as “IDT”) reserve the right to modify the products and/or specifications described herein at any time, without
notice, at IDT’s sole discretion. Performance specifications and operating parameters of the described products are determined in an independent state and are not guaranteed to perform the same way when installed
in customer products. The information contained herein is provided without representation or warranty of any kind, whether express or implied, including, but not limited to, the suitability of IDT's products for any
particular purpose, an implied warranty of merchantability, or non-infringement of the intellectual property rights of others. This document is presented only as a guide and does not convey any license under intel-
lectual property rights of IDT or any third parties.
IDT's products are not intended for use in applications involving extreme environmental conditions or in life support systems or similar devices where the failure or malfunction of an IDT product can be reasonably
expected to significantly affect the health or safety of users. Anyone using an IDT product in such a manner does so at their own risk, absent an express, written agreement by IDT.
Integrated Device Technology, IDT and the IDT logo are trademarks or registered trademarks of IDT and its subsidiaries in the United States and other countries. Other trademarks used herein are the property of
IDT or their respective third party owners. For datasheet type definitions and a glossary of common terms, visit www.idt.com/go/glossary. Integrated Device Technology, Inc All rights reserved.
IDT8SLVP1204 SEPTEMBER 13, 2018
22
©2018 Integrated Device Technology, Inc.
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 1
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
16-VFQFPN Package Outline Drawing
3.0 x 3.0 x 0.9 mm, 0.5mm Pitch, 1.70 x 1.70 mm Epad
NL/NLG16P2, PSC-4169-02, Rev 05, Page 2
Package Revision History
Description
Rev 04 Remove Bookmak at Pdf Format & Update Thickness Tolerance
Change QFN to VFQFPN
Date Created Rev No.
Oct 25, 2017
Jan 18, 2018
Rev 05
‹ꢀ,QWHJUDWHGꢀ'HYLFHꢀ7HFKQRORJ\ꢁꢀ,QFꢂ
